PRODUCT ID:12377i

Leica HC PL APO 20x/.80 M25 Thread Size Microscope Objective

Leica HC PL APO 20x/.80 M25 Thread Size Microscope Objective

$2,250.00 USD
$2,250.00 USD
Sale Sold out
Shipping calculated at checkout.

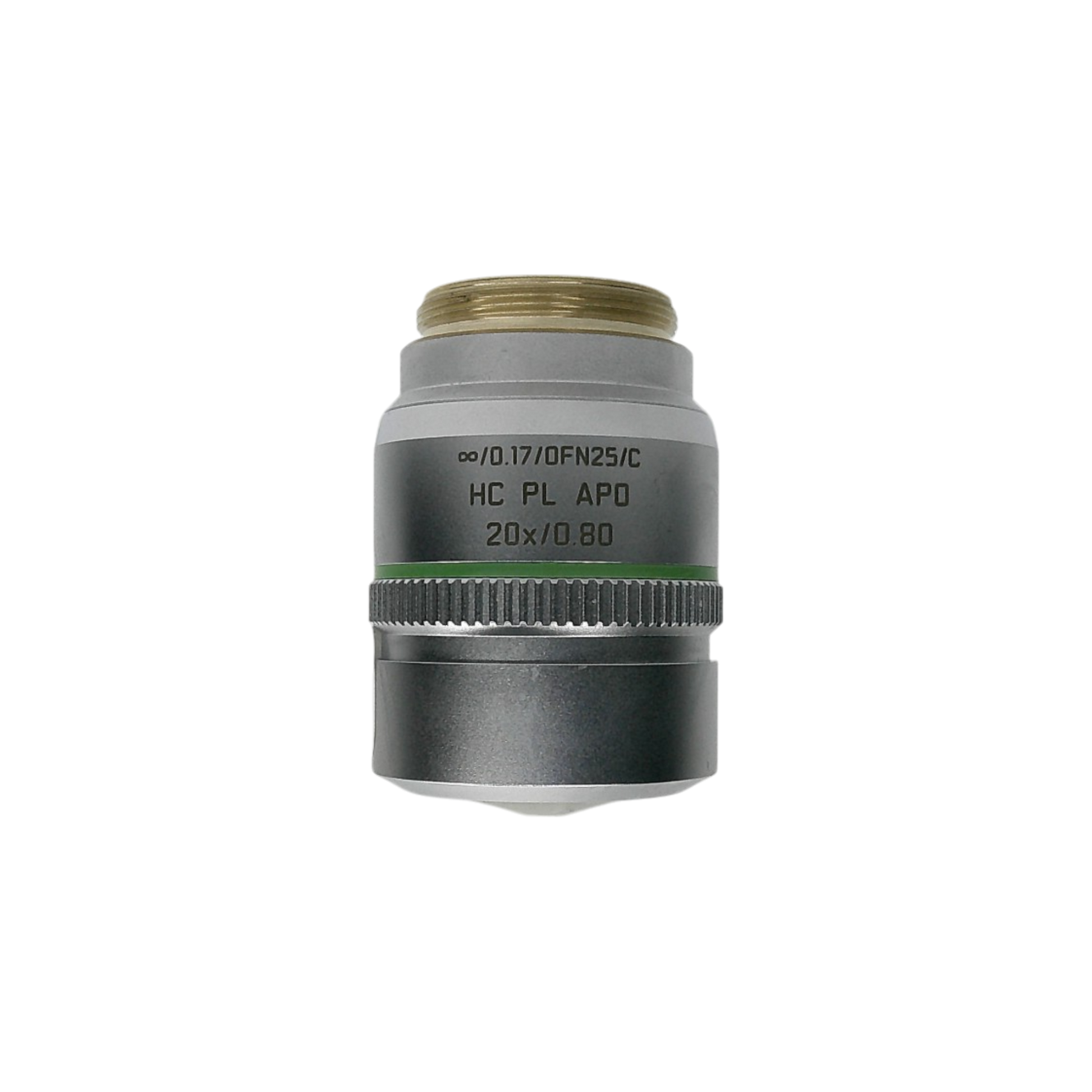

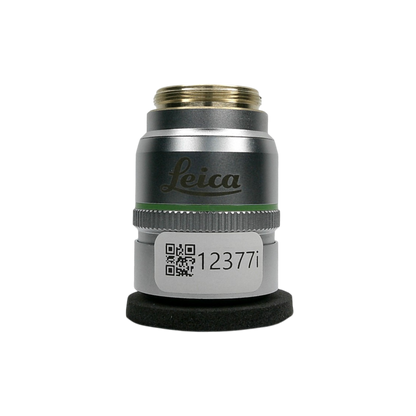

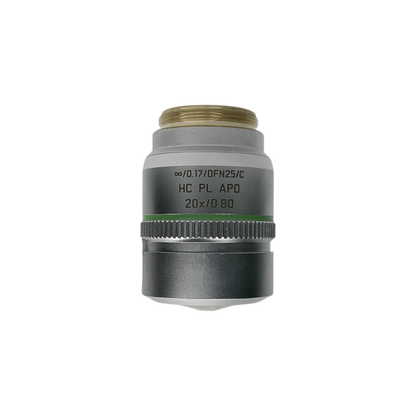

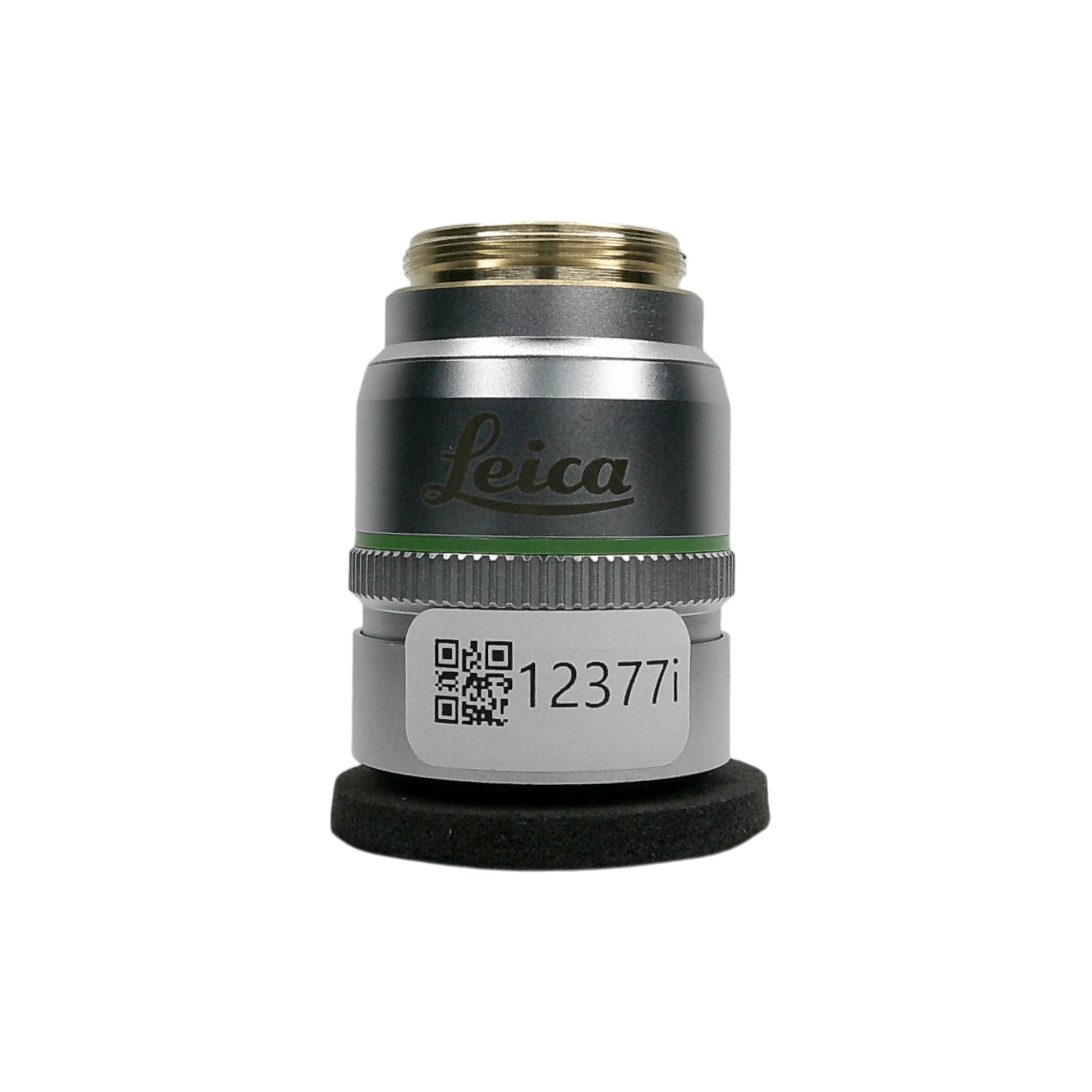

Leica HC PL APO 20x/0.80 Objective — M25 Thread Size — 506529

Overview
The Leica HC PL APO 20x/0.80 is a high-performance plan apochromatic objective designed for advanced fluorescence and transmitted light microscopy. Offering 20x magnification and a high numerical aperture of 0.80, this objective delivers superb resolution, flat field correction, and chromatic aberration correction across the visible spectrum. It features an M25 thread and is compatible with Leica upright microscope systems.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

  • Magnification: 20x
  • Numerical Aperture (NA): 0.80 — ideal for high-resolution imaging and light collection
  • Plan Apochromatic Correction: Corrects for spherical and chromatic aberrations across the visible spectrum
  • Flat Field Imaging: Optimized for widefield applications requiring edge-to-edge sharpness
  • M25 Thread Size: Standard Leica RMS-compatible mounting
  • Designed For: Fluorescence, brightfield, and transmitted light microscopy

Applications

  • Fluorescence Microscopy
  • Live Cell Imaging
  • High-Resolution Brightfield Microscopy
  • Histological and Cytological Imaging

Specifications

Specification Value
Manufacturer Leica Microsystems
Model HC PL APO 20x/0.80
Catalog Number 506529
Magnification 20×
Numerical Aperture (NA) 0.80
Thread Size M25
Objective Type Plan Apochromat
Typical Applications Fluorescence, Brightfield, Transmitted Light

Additional Details

  • Manufacturer: Leica
  • Model: HC PL FLUOTAR L 20x/0.80 CORR M25 Thread Size
  • Catalog Number: 12377i
  • Serial Number: N/A
  • Condition: Used
