Leica HC PL Fluotar 1.25x0.04 M25 Thread Size Microscope Objective

Leica HC PL Fluotar 1.25x0.04 M25 Thread Size Microscope Objective

Regular price $1,100.00 USD
Regular price Sale price $1,100.00 USD
Sale Sold out
Shipping calculated at checkout.
  • ✓ Tested in house. 30-day warranty
  • ✓ Typical delivery in 1 to 3 weeks, depending on parts
  • ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
  • ✓ Installation, training and service available from our engineers (quoted separately)
  • ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
  • ✓ Leasing and finance companies available

Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

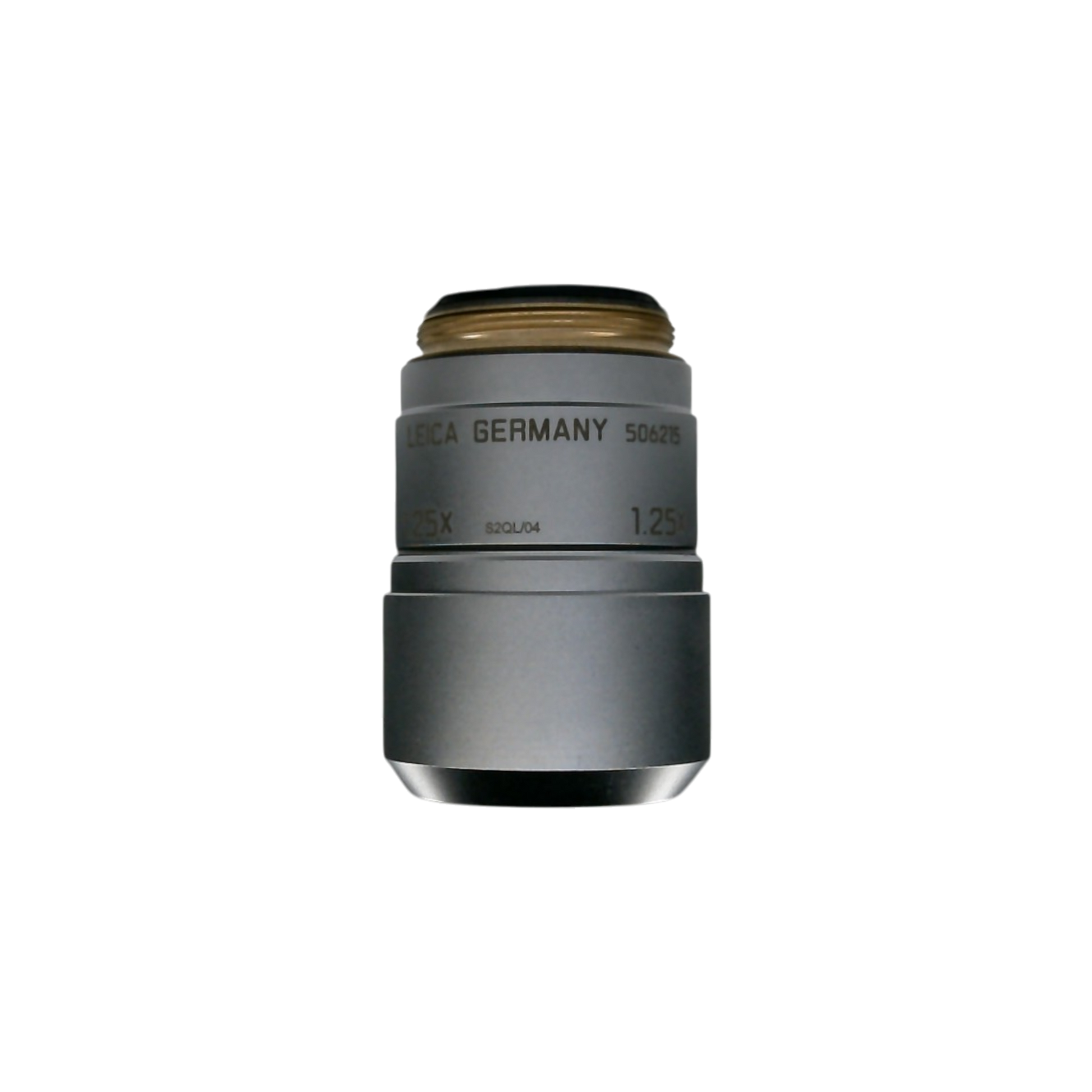

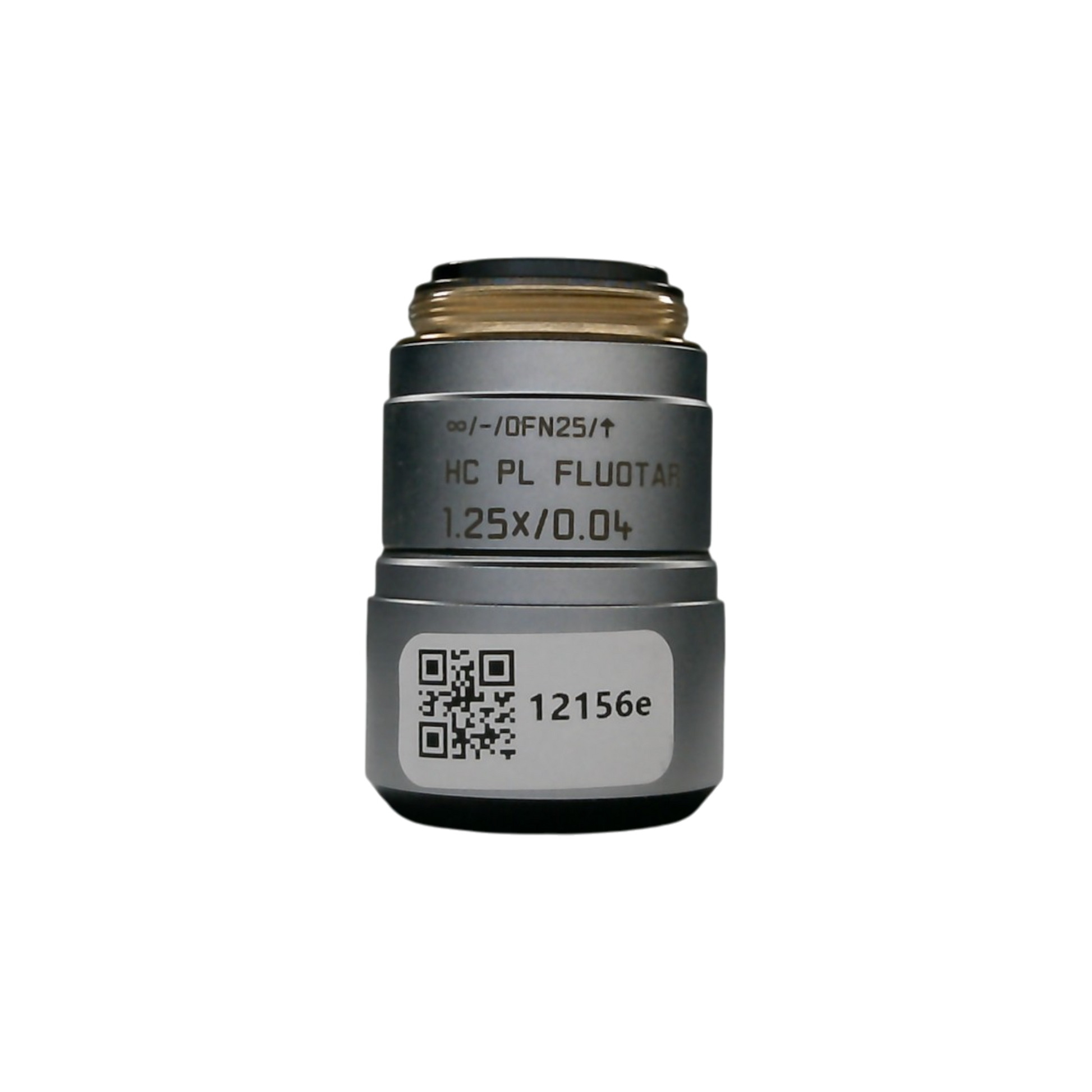

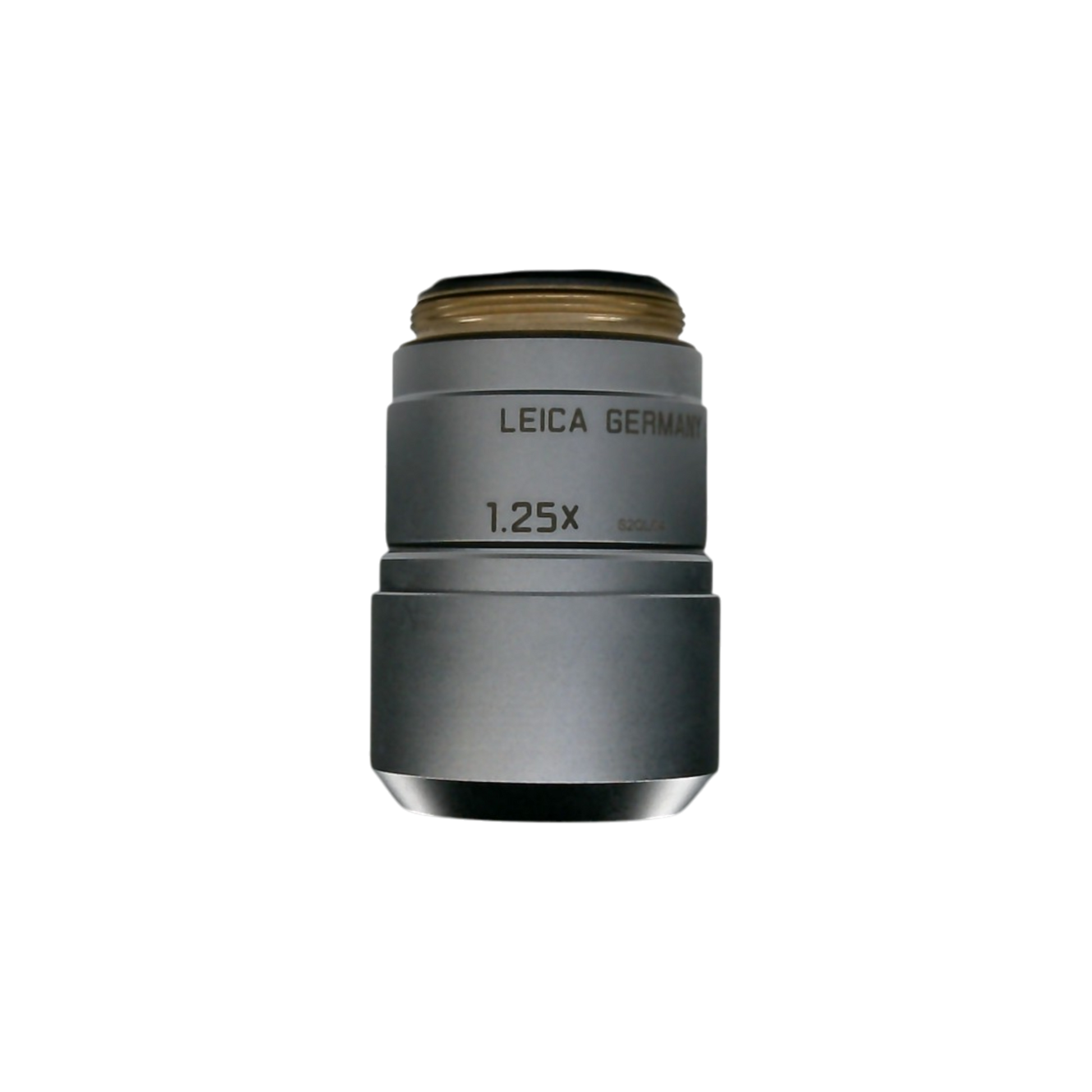

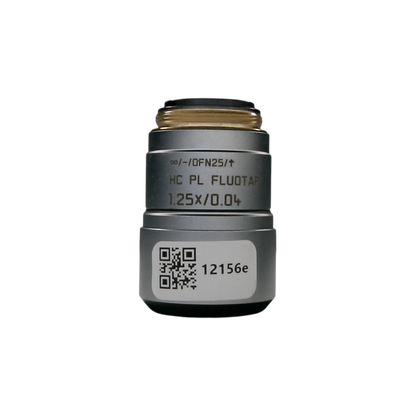

Leica HC PL Fluotar 1.25x/0.04 M25 Thread Size - 506215 (Used)

The Leica HC PL Fluotar 1.25x/0.04 is a high-quality low-magnification fluorite objective designed for brightfield, fluorescence, and wide-field imaging applications. With a numerical aperture (NA) of 0.04, this objective provides excellent contrast, resolution, and field flatness, making it ideal for large-sample imaging, pathology, and material science applications. The M25 thread size ensures compatibility with Leica DM series and other M25-compatible microscopes.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)

Included Items

  • Leica HC PL Fluotar 1.25x/0.04 Objective

Key Features

  • 1.25x magnification for ultra-wide field imaging
  • Plan Fluotar (Fluorite) optics for superior contrast and chromatic correction
  • Numerical aperture (NA) of 0.04 for optimal light transmission
  • Optimized for fluorescence and brightfield microscopy with high transmission coatings
  • M25 thread size for compatibility with Leica DM series and other standard microscopes
  • Flat field correction for sharp, edge-to-edge imaging
  • Ideal for whole-slide imaging and large-format observation

Applications

  • Brightfield microscopy
  • Fluorescence microscopy
  • Whole-slide imaging
  • Pathology and histology
  • Material science and metallurgical analysis
  • Educational and clinical research

Specifications

Specification Details
Magnification 1.25x
Numerical Aperture (NA) 0.04
Working Distance ~5.6 mm
Immersion Medium Air (Dry)
Cover Glass Thickness 0.17 mm
Optical Correction Plan Fluotar (Flat Field, High Contrast, Optimized for Wide-Field Imaging)
Thread Size M25 (25mm thread diameter)
Parfocal Distance 60 mm
Compatible Microscopes Leica DM series and other M25-compatible models
Special Features High transmission coatings for fluorescence, optimized for large-sample and whole-slide imaging

Additional Details

  • Manufacturer: Leica
  • Model: HC PL Fluotar 1.25x0.04 M25 Thread Size
  • Catalog Number: 12156e
  • Serial Number: N/A
  • Condition: Seller Refurbished
