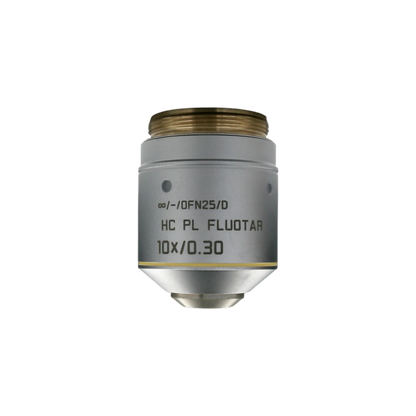

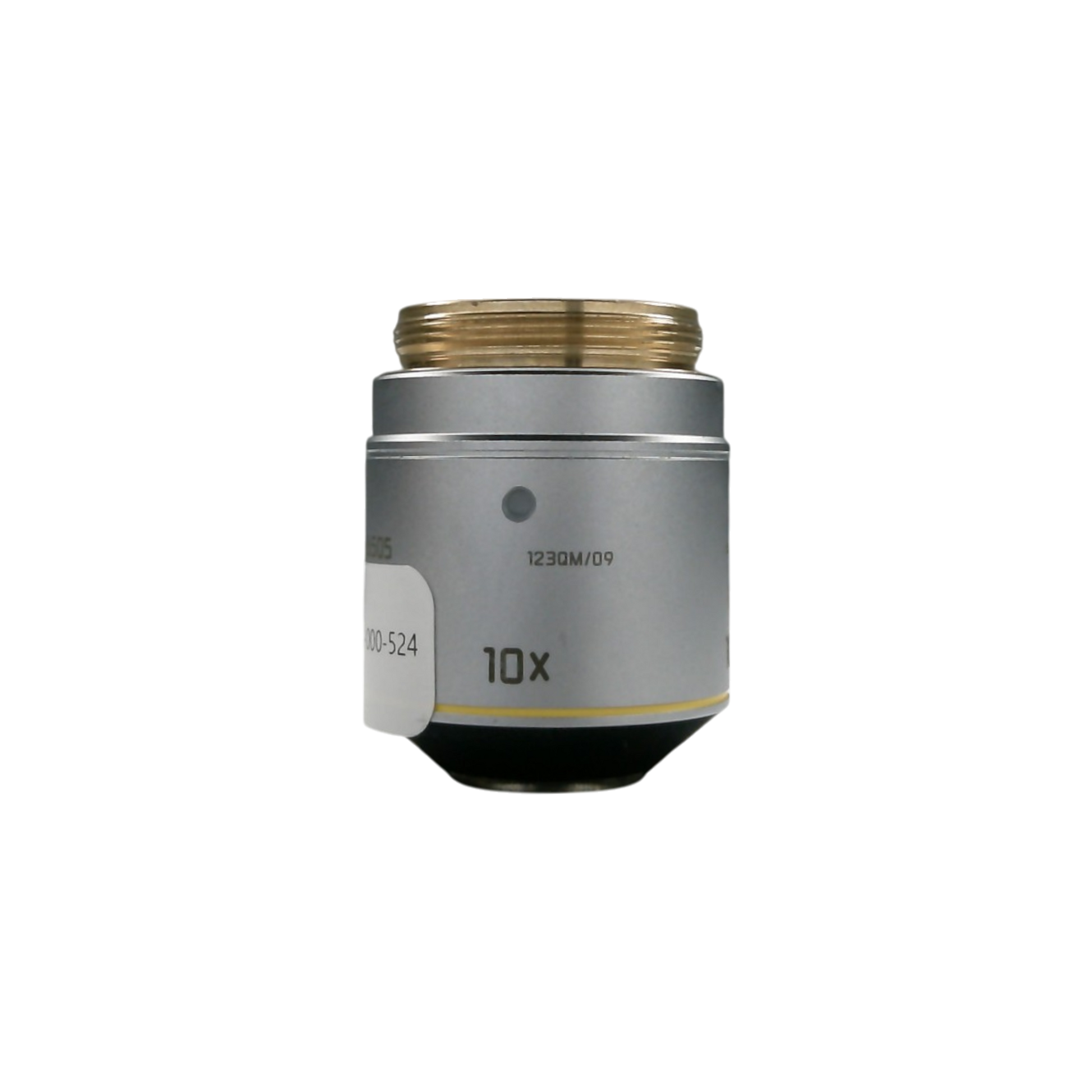

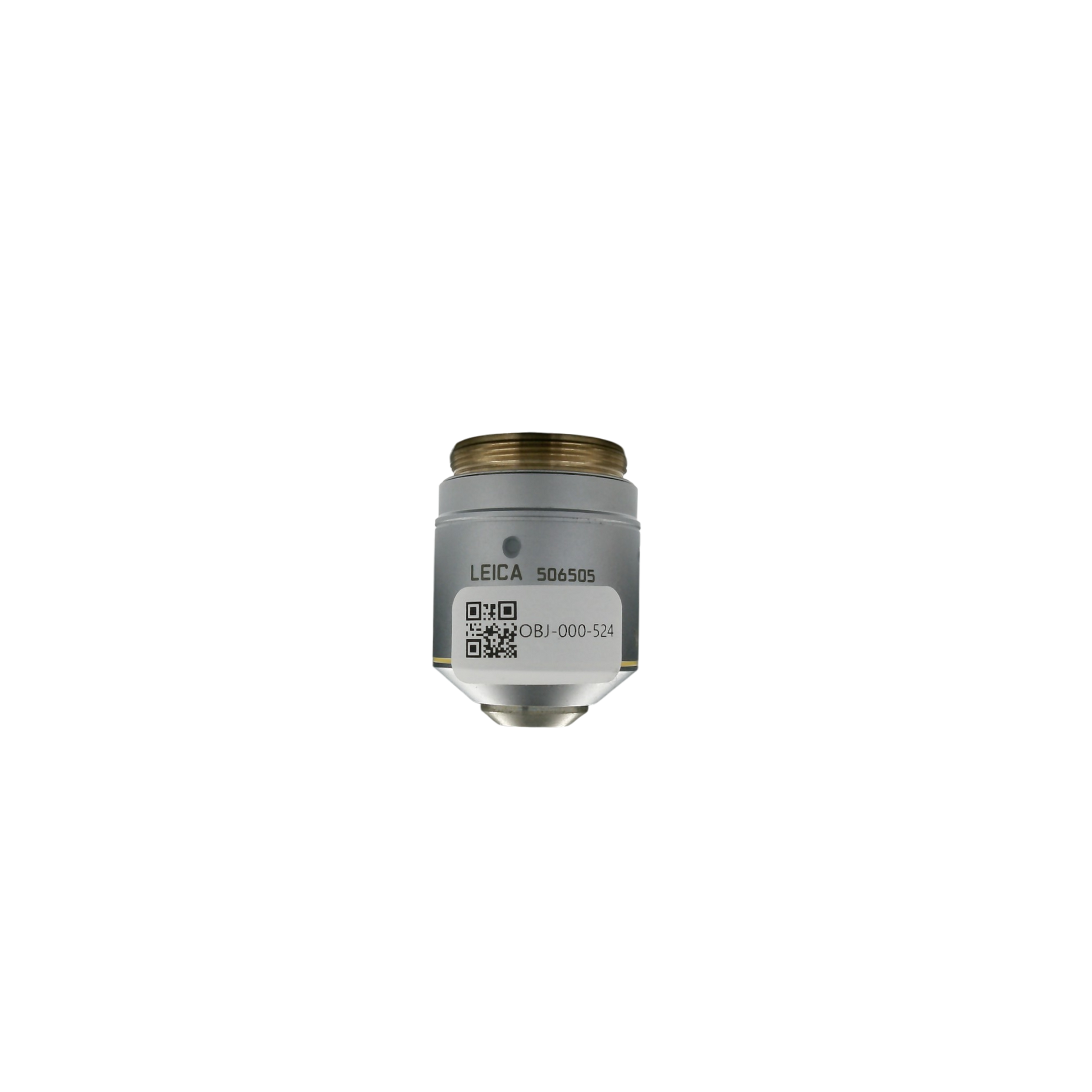

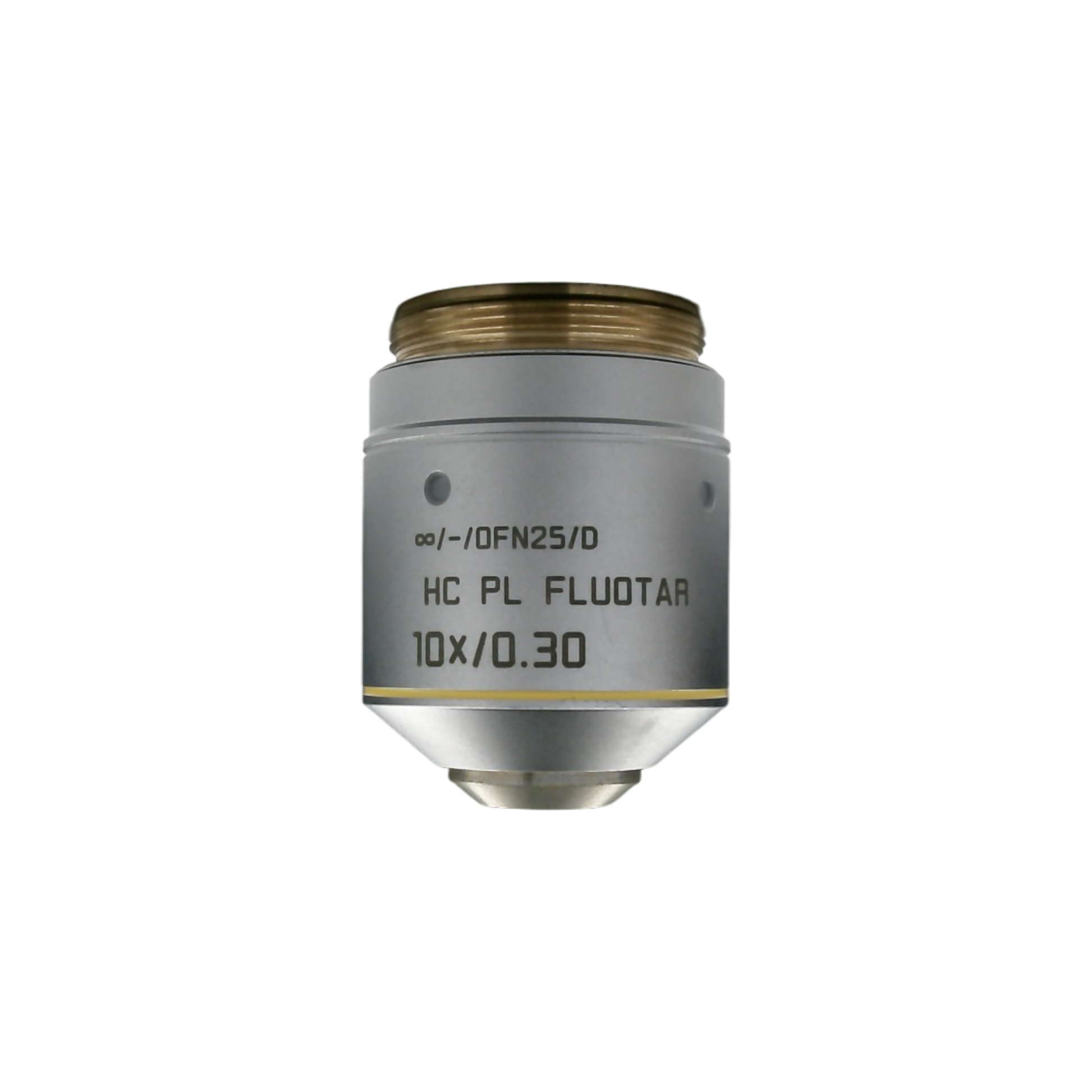

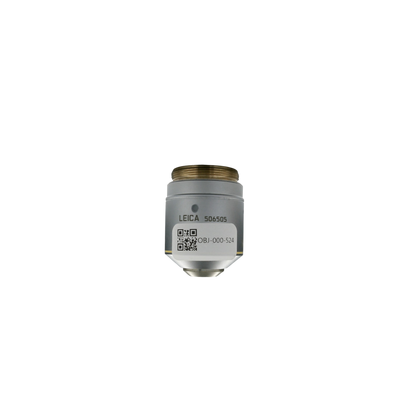

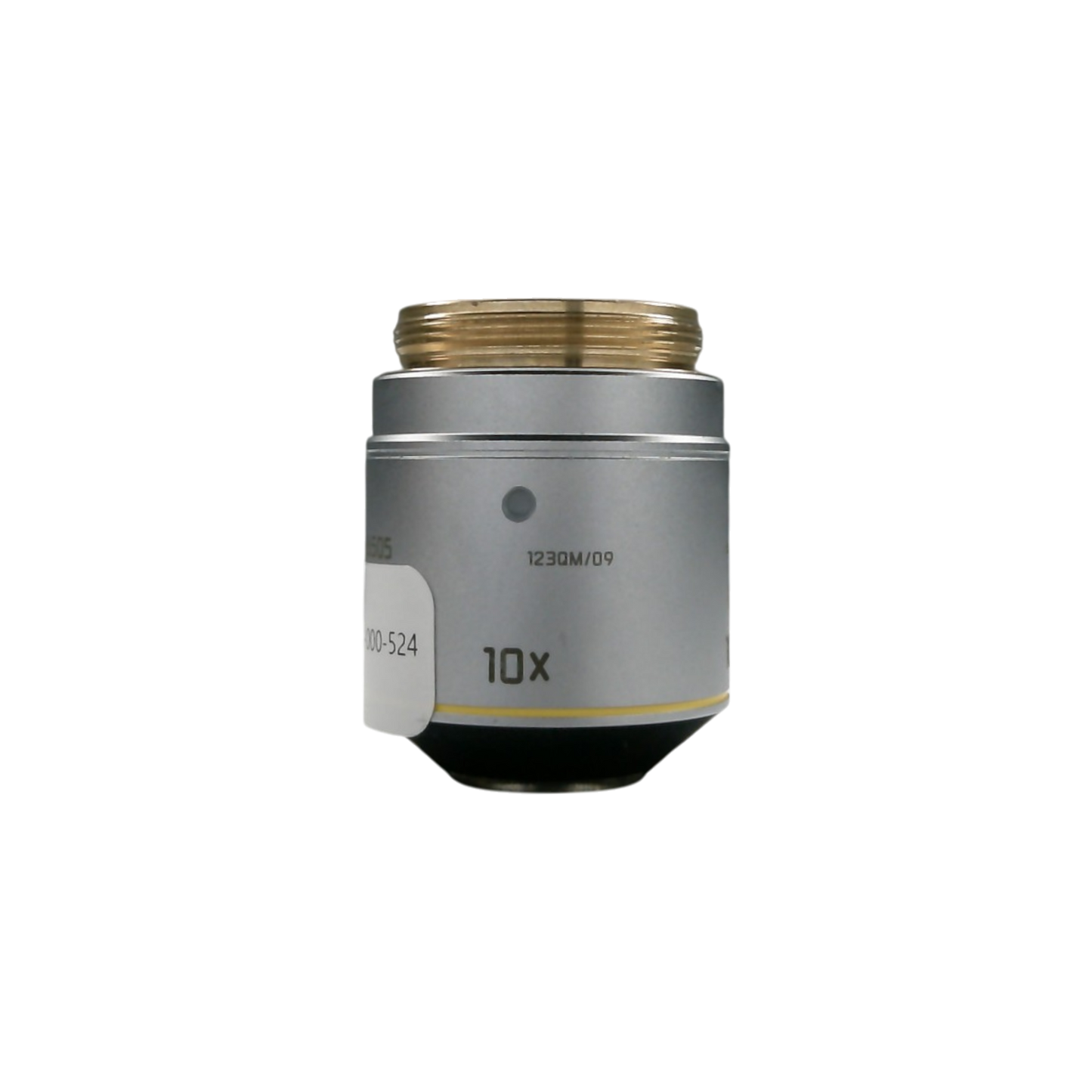

Leica HC PL Fluotar 10x/0.3 M25 Thread Size Microscope Objective

Leica HC PL Fluotar 10x/0.3 M25 Thread Size Microscope Objective

Regular price $650.00 USD
Regular price Sale price $650.00 USD
Sale Sold out
Shipping calculated at checkout.
  • ✓ Tested in house. 30-day warranty
  • ✓ Typical delivery in 1 to 3 weeks, depending on parts
  • ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
  • ✓ Installation, training and service available from our engineers (quoted separately)
  • ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
  • ✓ Leasing and finance companies available

Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

Leica HC PL Fluotar 10x/0.3 M25 Thread Size - 506505 (Used)

The Leica HC PL Fluotar 10x/0.3 is a high-quality fluorite objective designed for brightfield, fluorescence, and wide-field imaging applications. With a numerical aperture (NA) of 0.3, this objective provides excellent contrast, resolution, and field flatness, making it ideal for biological research, pathology, and educational microscopy. The M25 thread size ensures compatibility with Leica DM series and other M25-compatible microscopes.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)

Included Items

  • Leica HC PL Fluotar 10x/0.3 Objective

Key Features

  • 10x magnification for high-resolution imaging
  • Plan Fluotar (Fluorite) optics for superior contrast and chromatic correction
  • Numerical aperture (NA) of 0.3 for improved light transmission
  • Optimized for fluorescence and brightfield microscopy with high transmission coatings
  • M25 thread size for compatibility with Leica DM series and other standard microscopes
  • Flat field correction for sharp, edge-to-edge imaging

Applications

  • Brightfield microscopy
  • Fluorescence microscopy
  • Pathology and histology
  • Biological and clinical research
  • Educational and routine laboratory use

Specifications

Specification Details
Magnification 10x
Numerical Aperture (NA) 0.3
Working Distance ~7.0 mm
Immersion Medium Air (Dry)
Cover Glass Thickness 0.17 mm
Optical Correction Plan Fluotar (Flat Field, High Contrast, Fluorescence Optimized)
Thread Size M25 (25mm thread diameter)
Parfocal Distance 60 mm
Compatible Microscopes Leica DM series and other M25-compatible models
Special Features High transmission coatings for fluorescence, optimized for high-contrast imaging

Additional Details

  • Manufacturer: Leica
  • Model: HC PL Fluotar 10x/0.3 M25 Thread Size
  • Catalog Number: Obj-000-524
  • Serial Number: N/A
  • Condition: Seller Refurbished
