Leica HC PL FLUOTAR 10X/0.32 M25 Thread Size Microscope Objective
Leica HC PL FLUOTAR 10X/0.32 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

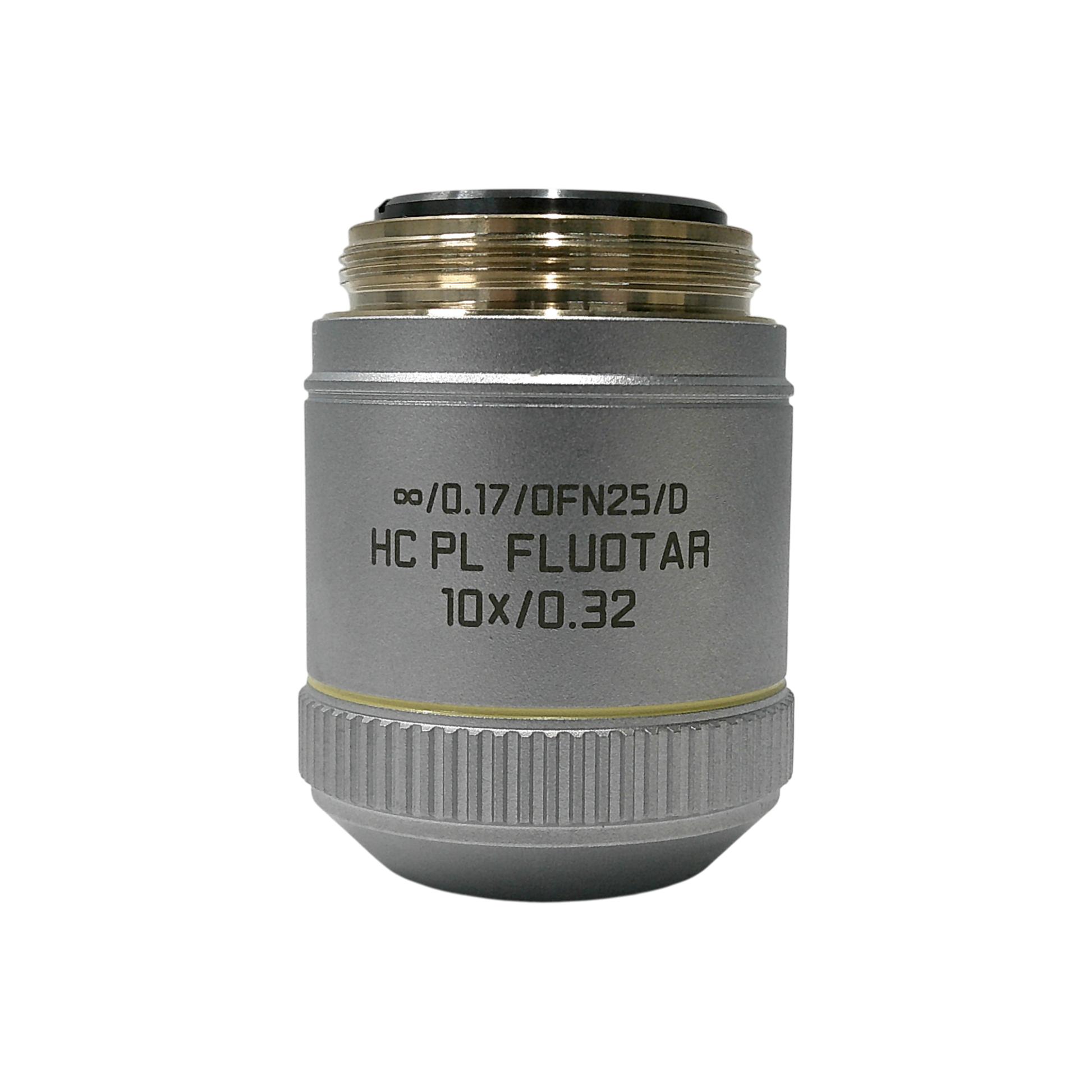

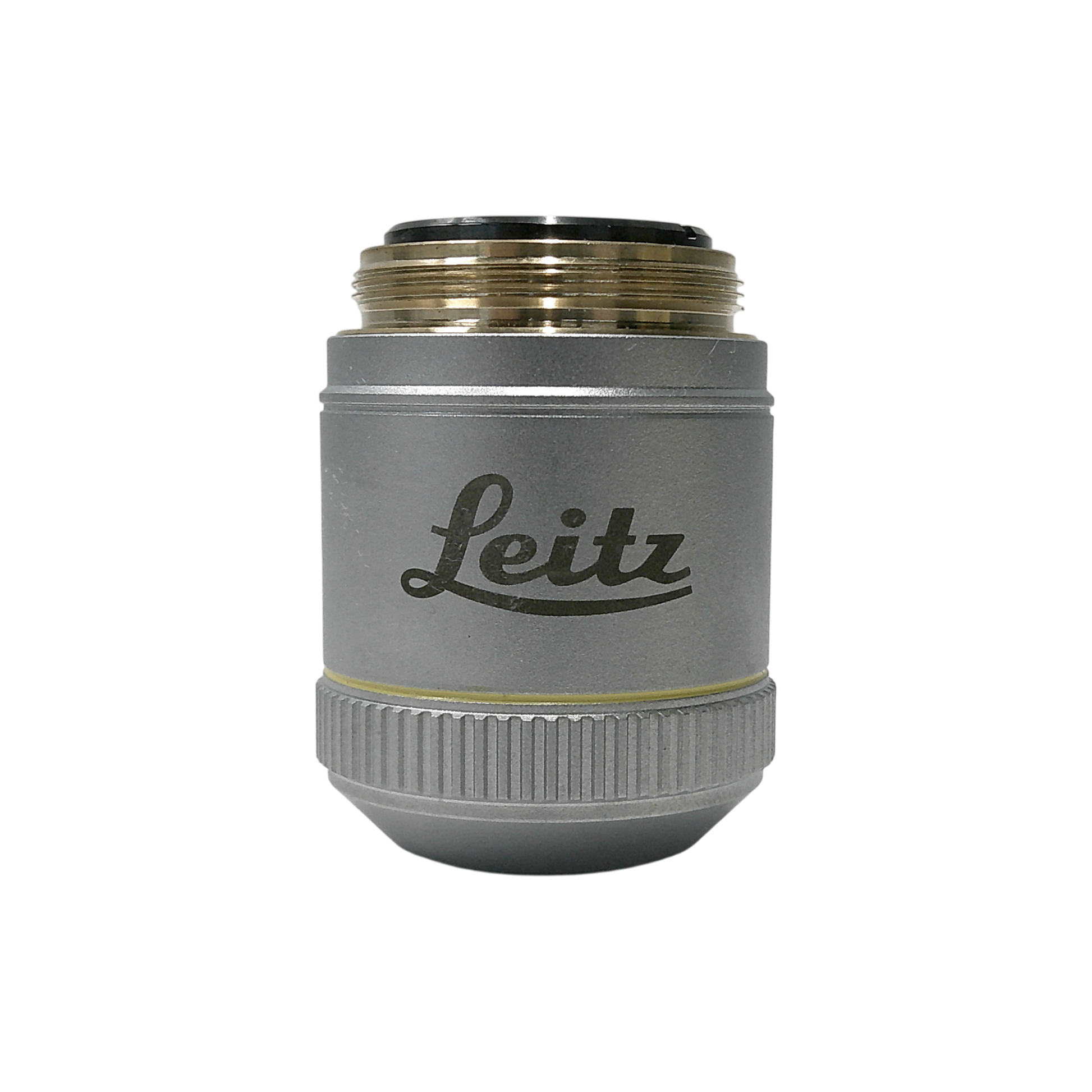

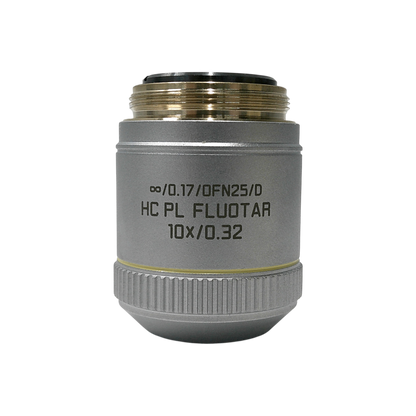

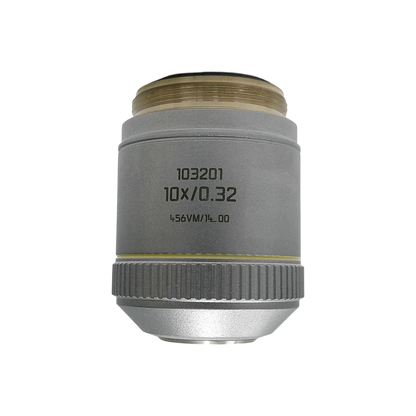

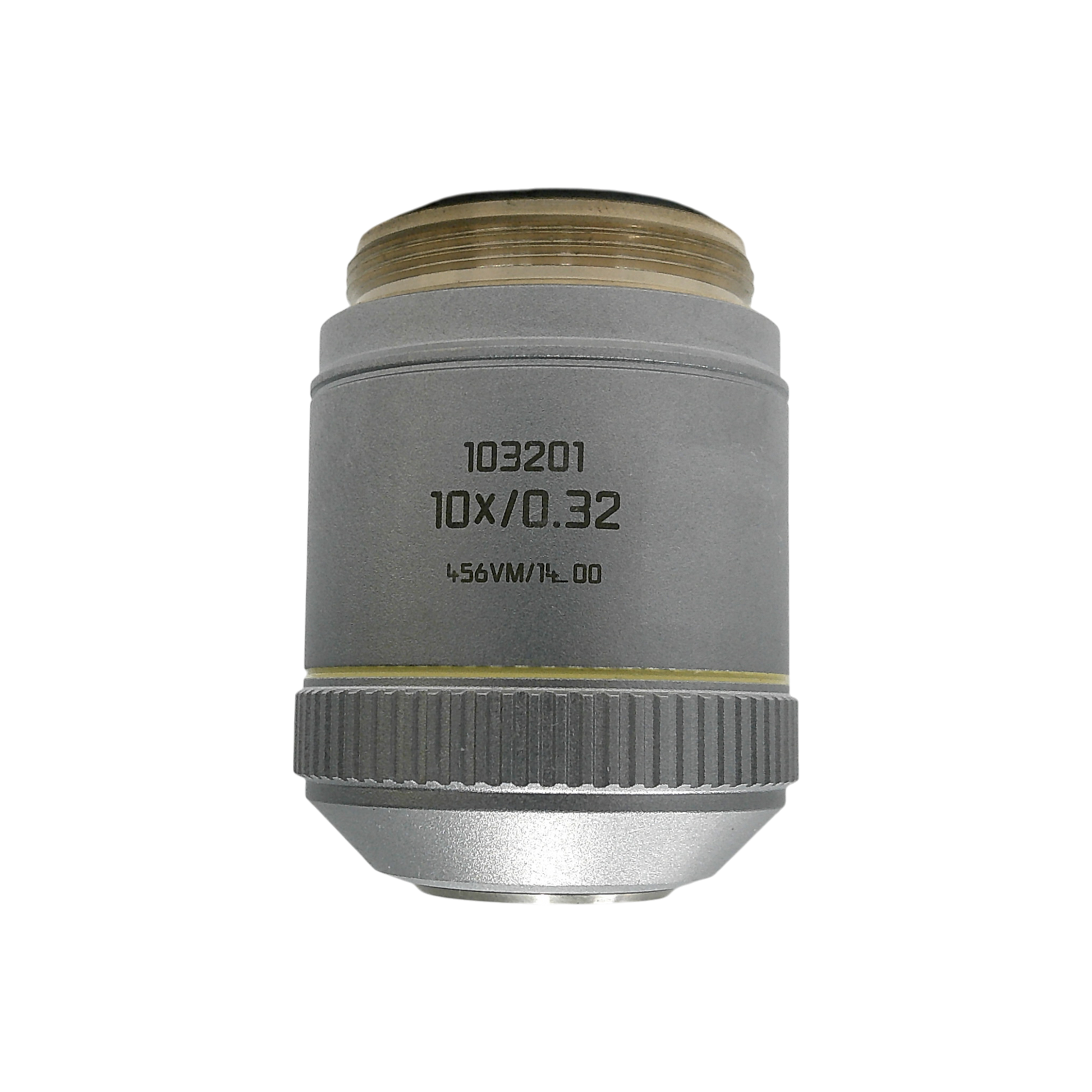

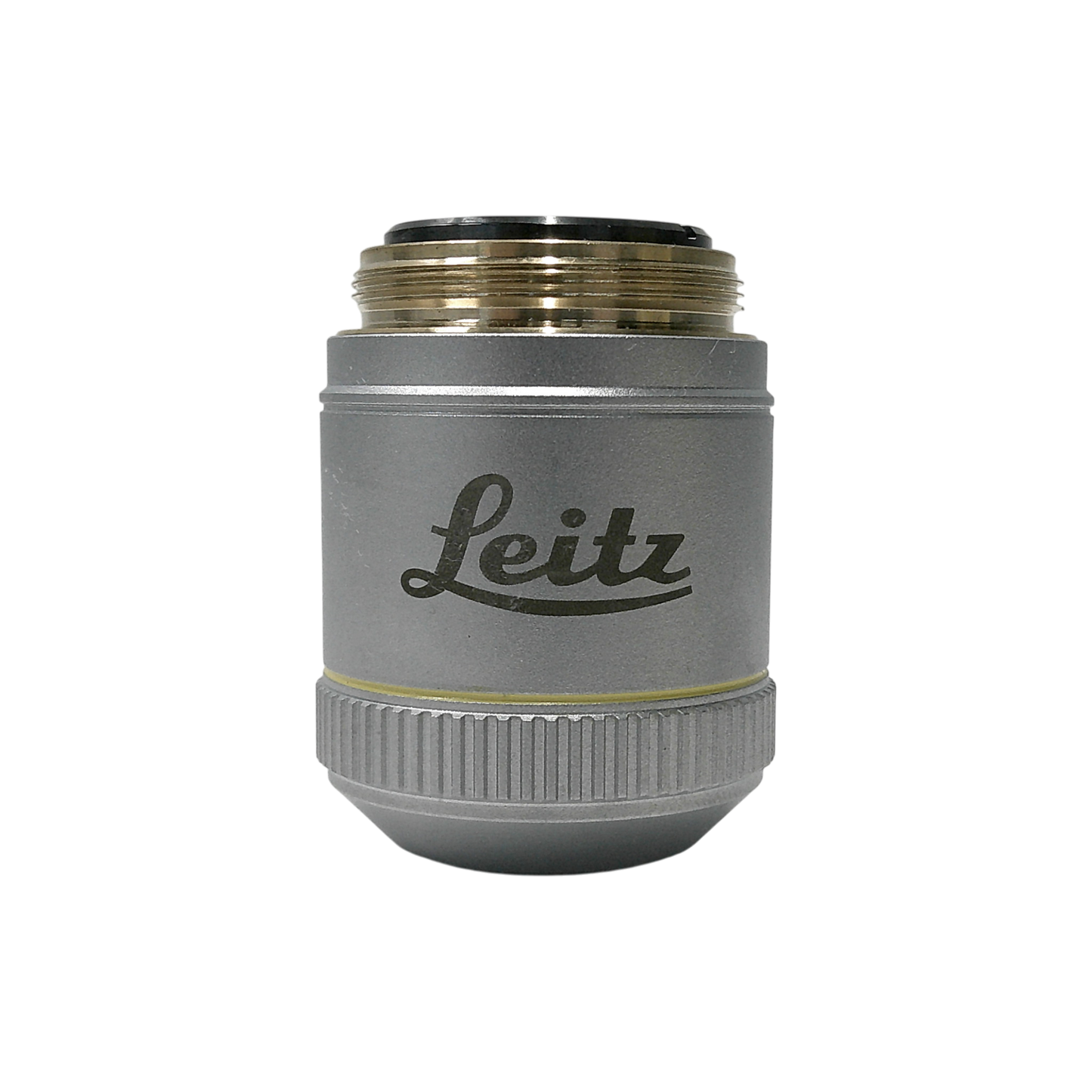

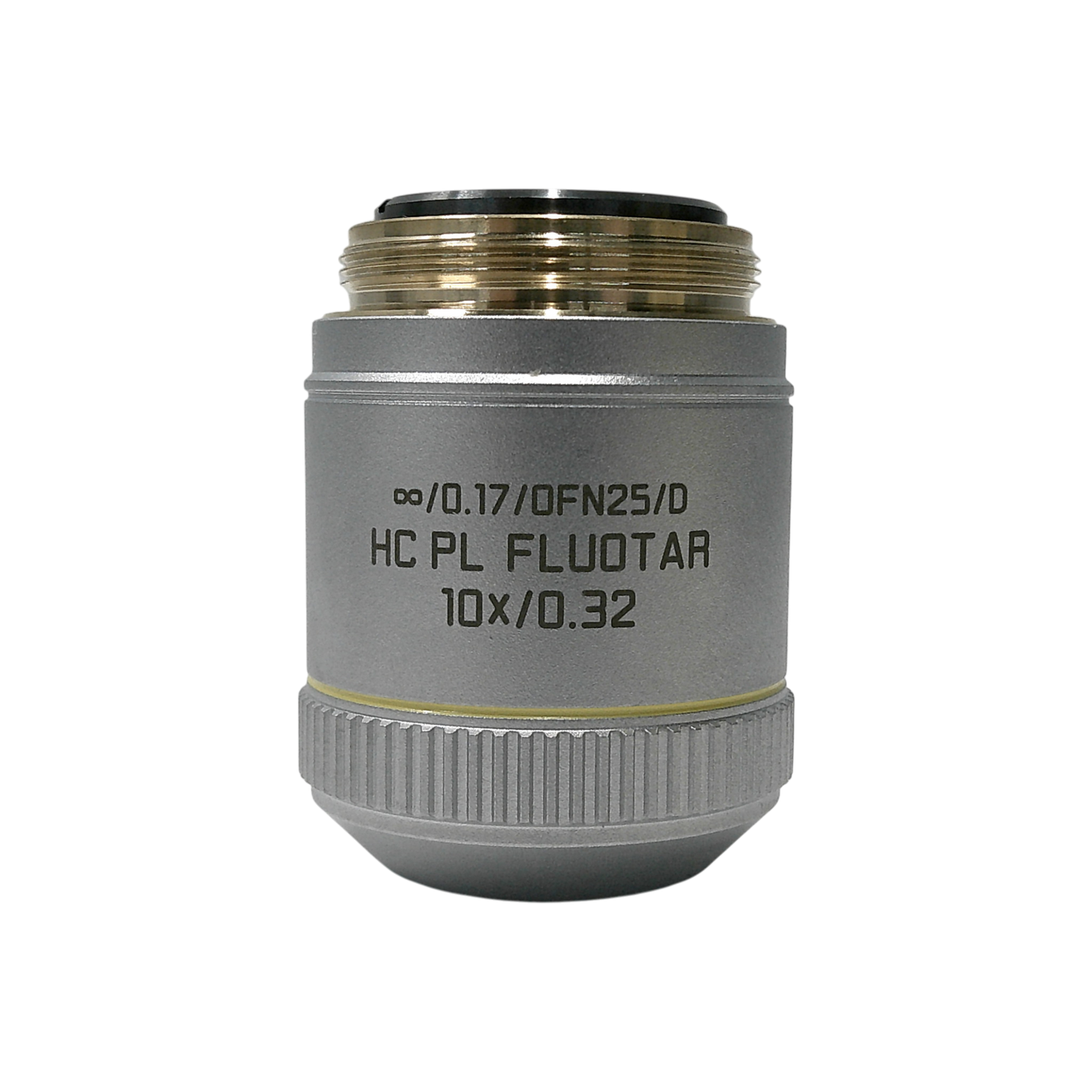

Leica HC PL FLUOTAR 10x/0.32 Objective – Catalog #103201
The Leica HC PL FLUOTAR 10x/0.32 objective is a high-performance plan fluorite lens designed for precision imaging in both brightfield and fluorescence applications. With superior chromatic correction, enhanced contrast, and a flat field of view, this infinity-corrected objective is ideal for routine research and clinical microscopy. The M25 thread makes it compatible with Leica DMi and DM series microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Magnification: 10x
- Numerical Aperture (NA): 0.32
- Optical Type: HC PL FLUOTAR (Plan Fluorite)
- Thread Size: M25
- High Light Transmission: Suitable for fluorescence and transmitted light techniques
- Plan Field Correction: Sharp imaging across the entire field of view
- Infinity-Corrected Design: Designed for Leica infinity optical systems
Applications
- Brightfield microscopy
- Fluorescence imaging
- Clinical diagnostics
- Routine and advanced biological research
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Leica |
| Model | HC PL FLUOTAR 10x/0.32 |
| Catalog Number | 103201 |
| Magnification | 10x |
| Numerical Aperture (NA) | 0.32 |
| Optical Class | Plan Fluorite (FLUOTAR) |
| Thread Type | M25 |
| Correction | Infinity-corrected |
| Cover Glass Thickness | 0.17 mm |
| Application | Brightfield, Fluorescence, Clinical and Research Microscopy |
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 11940o
- Serial Number:
- Condition: Used
