SKU: PRODUCT ID:52252ll
Leica HC PL Fluotar 2.5x/0.07 M25 Thread Size Microscope Objective
Leica HC PL Fluotar 2.5x/0.07 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

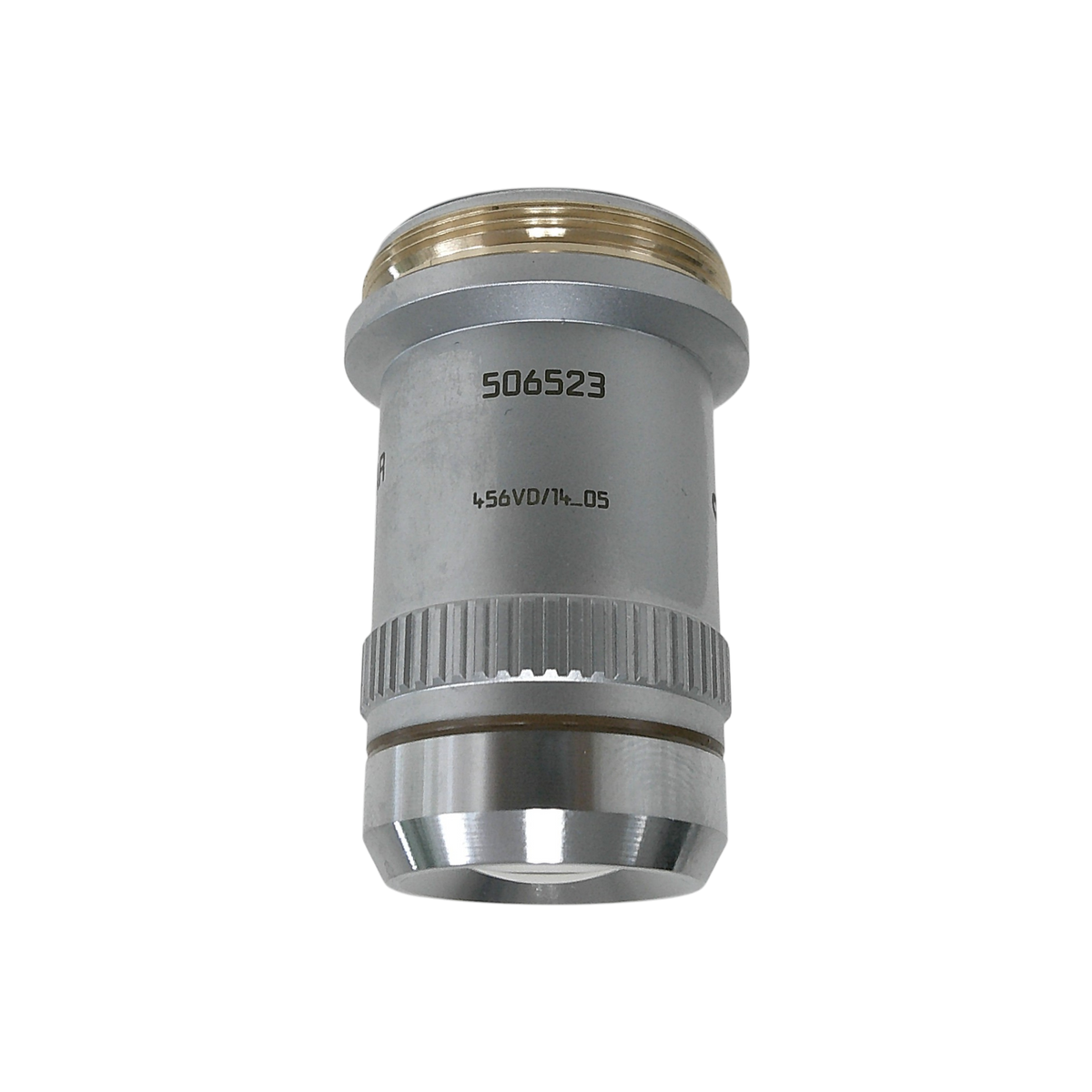

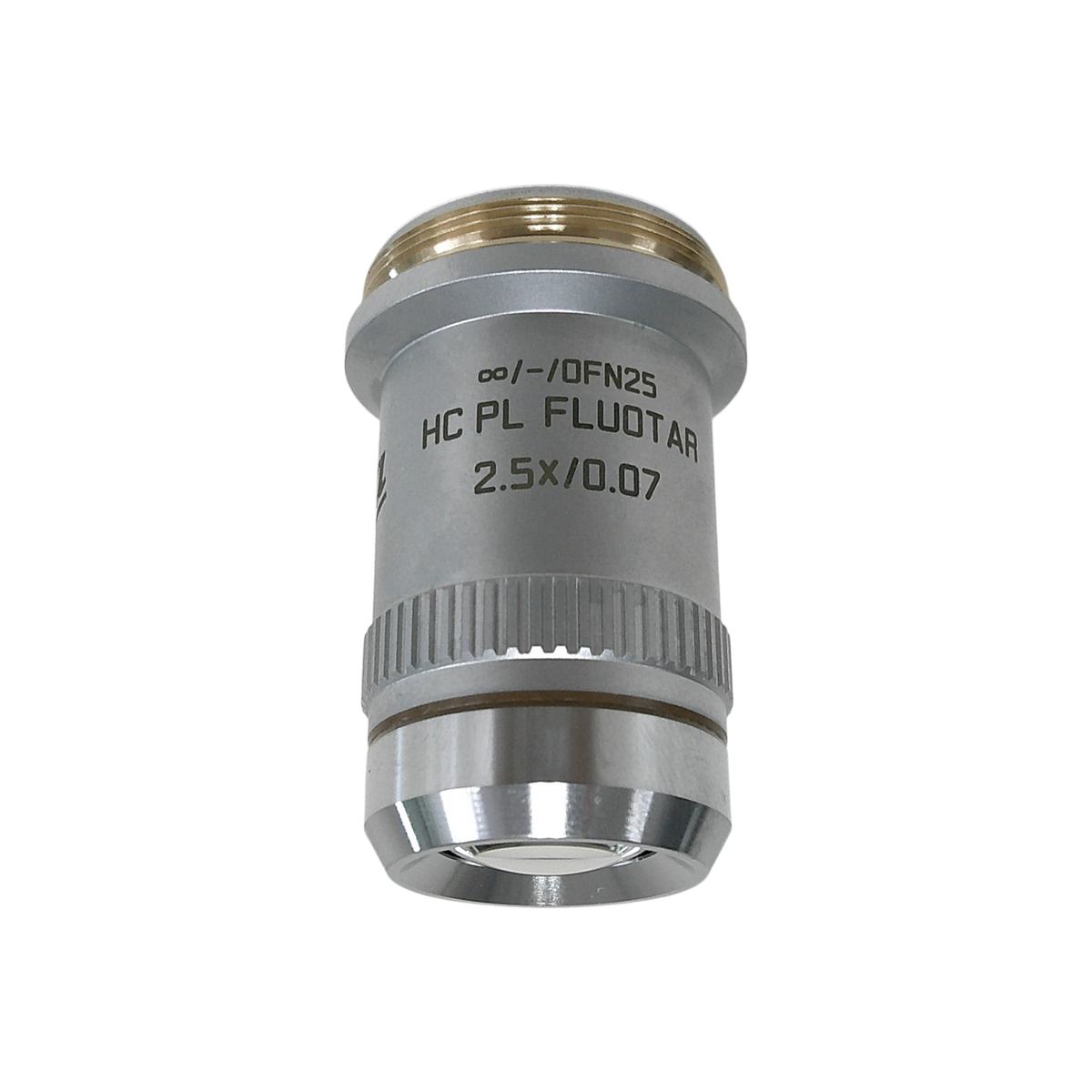

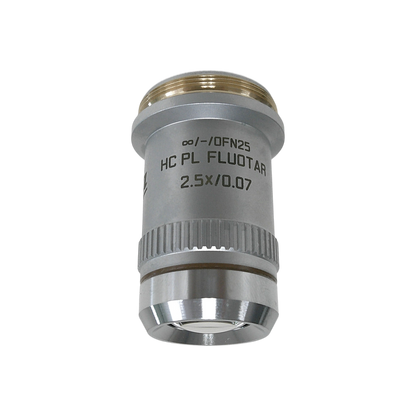

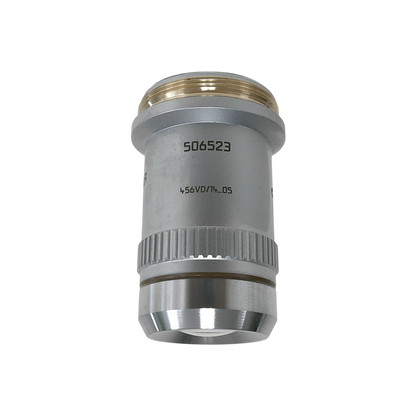

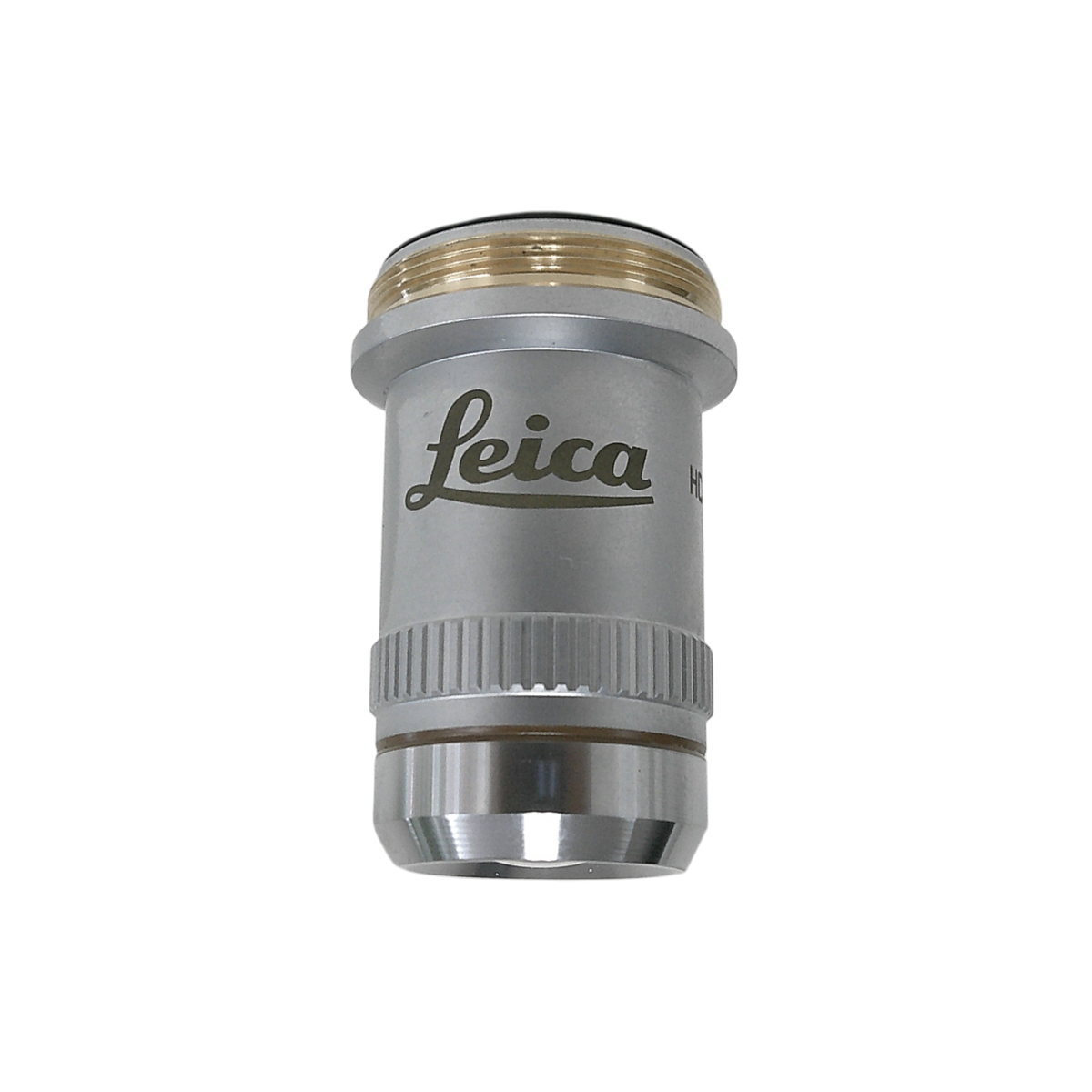

Leica HC PL Fluotar 2.5x/0.07 Microscope Objective – M25 Thread (Used) – Catalog # 506523
Condition: Used – Fully Tested and VerifiedThe Leica HC PL Fluotar 2.5x/0.07 Microscope Objective is a high-performance low-magnification objective designed for wide-field imaging, fluorescence, brightfield, and stereomicroscopy applications. With a numerical aperture (NA) of 0.07, this objective provides excellent depth of field, flat-field correction, and color fidelity for large specimen imaging and whole-slide scanning. This unit has been fully tested and verified to meet manufacturer specifications, making it a cost-effective solution for Leica research microscopes.
Condition
- Used – Fully Tested and Verified
- Meets Manufacturer Specifications
- Cleaned and Inspected for Optical Performance
Included Items
- Leica HC PL Fluotar 2.5x/0.07 Microscope Objective
- M25 Thread Size for Leica Research Microscopes
- Protective Storage Case
Key Features
- Low Magnification (2.5x) with Wide Field of View – Ideal for large specimen imaging and slide scanning
- Plan Fluotar Optics – Provides flat-field correction and high contrast across the field of view
- Numerical Aperture (NA 0.07) – Optimized for brightfield, fluorescence, and macro-imaging applications
- M25 Thread Size – Compatible with Leica research microscopes using the M25 mount
- Long Working Distance – Designed for stereomicroscopy and large specimen imaging
Applications
- Wide-Field Microscopy
- Whole-Slide Scanning
- Brightfield & Fluorescence Imaging
- Stereomicroscopy & Large Specimen Analysis
- Biomedical & Life Science Research
Specifications
| Specification | Details |
|---|---|
| Catalog Number | 506523 |
| Magnification | 2.5x |
| Numerical Aperture (NA) | 0.07 |
| Optical Class | HC PL Fluotar |
| Thread Size | M25 |
| Immersion Type | Dry |
| Correction Collar | No |
| Compatible Microscope | Leica CS Series & Other Leica Research Microscopes |
| Condition | Used – Fully Tested & Verified |
🔹 Additional Leica objectives available. Contact us for more details.
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 52252ll
- Serial Number:
- Condition: Used
