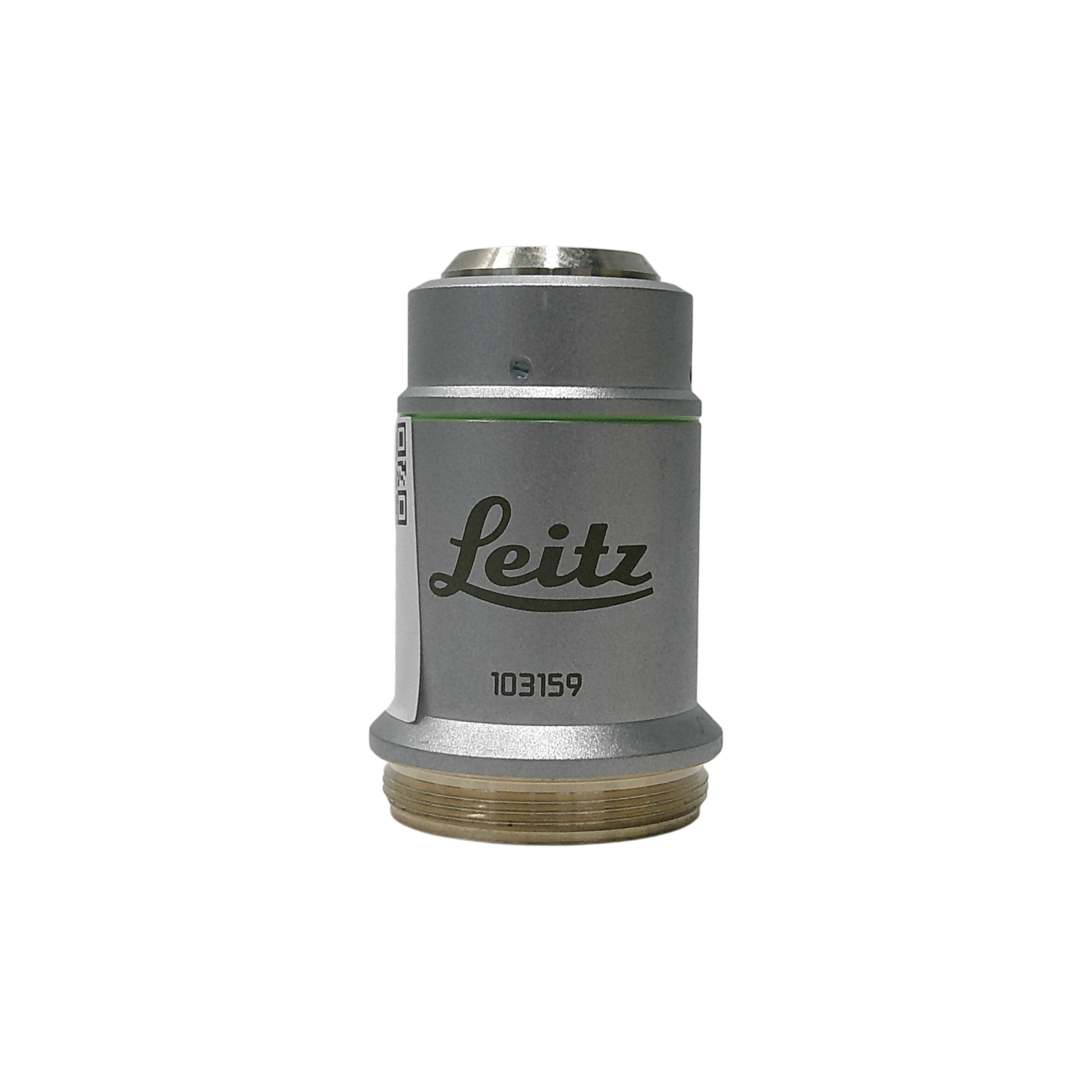

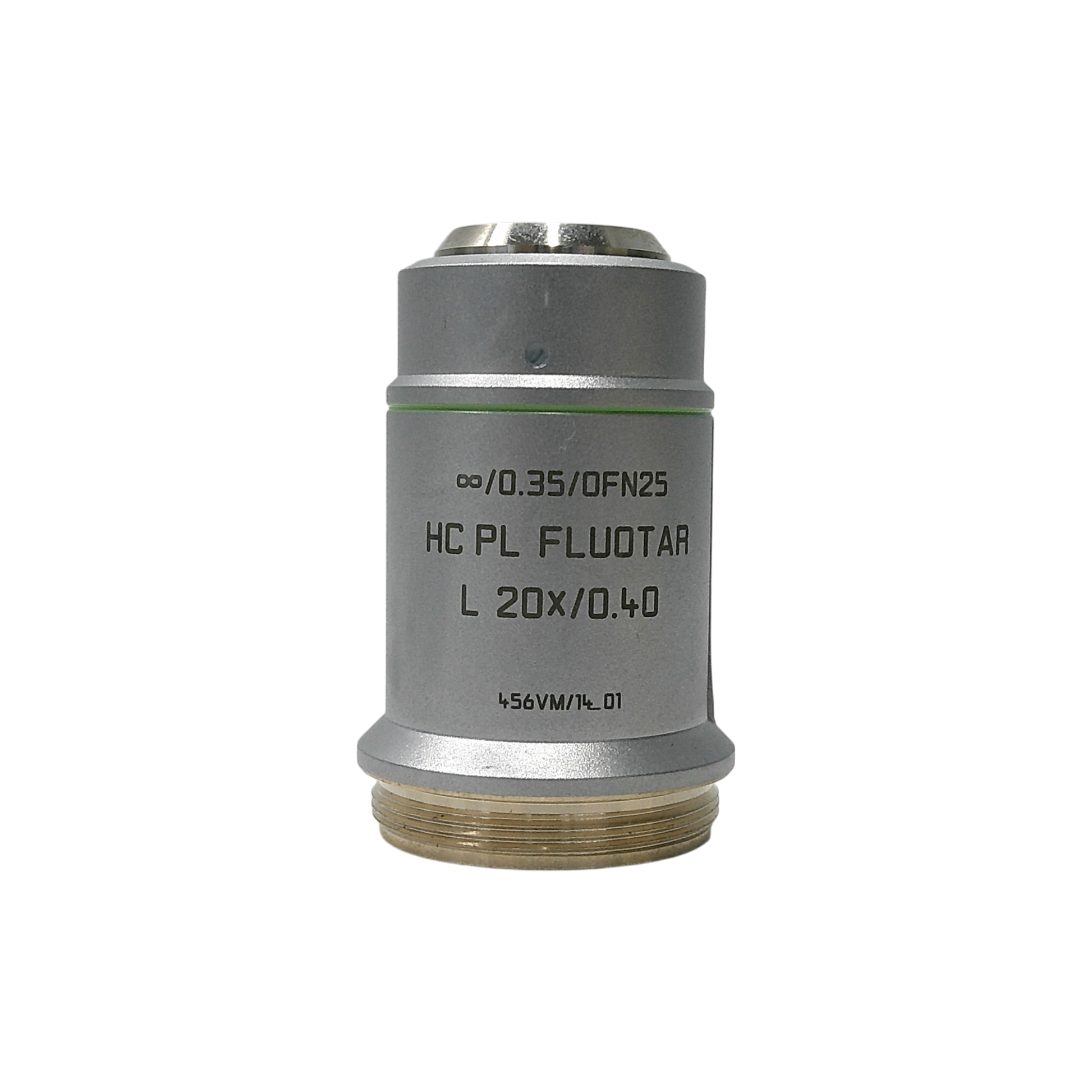

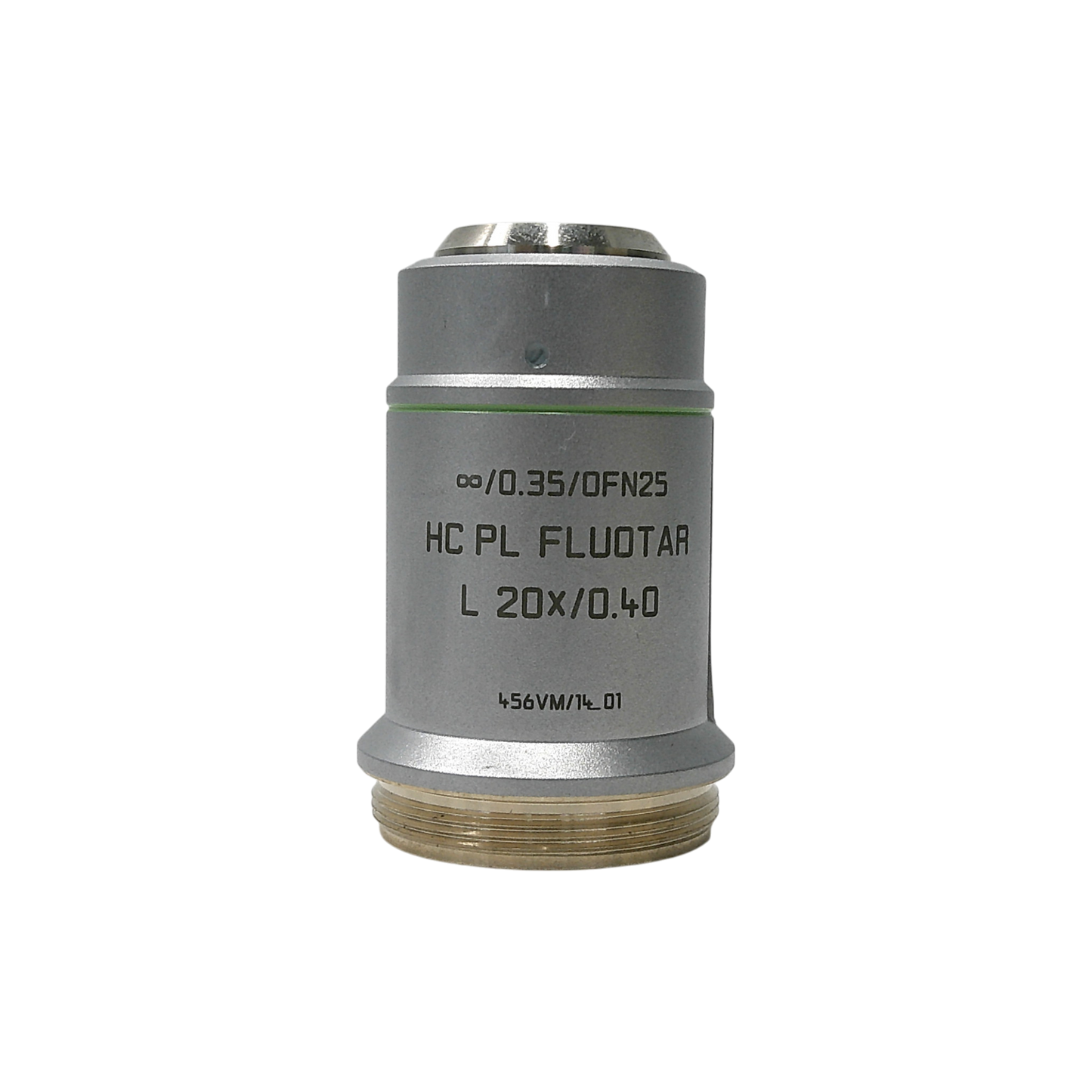

Leica HC PL FLUOTAR 20X/0.40 M25 Thread Size Microscope Objective

Leica HC PL FLUOTAR 20X/0.40 M25 Thread Size Microscope Objective

$1,750.00 USD
$1,750.00 USD
Sale Sold out
Shipping calculated at checkout.

Leica HC PL FLUOTAR 20x/0.40 Objective – Catalog #103159

The Leica HC PL FLUOTAR 20x/0.40 objective offers excellent performance for both brightfield and fluorescence imaging. Engineered with high numerical aperture and fluorite optics, this lens provides superb resolution, contrast, and chromatic correction. Ideal for routine and advanced microscopy, it is compatible with Leica microscopes using the M25 thread and infinity-corrected optical systems.

Condition

Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)

Key Features

  • Magnification: 20x
  • Numerical Aperture (NA): 0.40
  • Optical Type: HC PL FLUOTAR (Plan Fluorite)
  • Thread Size: M25
  • Wide Field Flatness: Plan correction ensures edge-to-edge clarity
  • High Transmission: Excellent for fluorescence and transmitted light applications
  • Infinity-Corrected: Compatible with Leica DMi and DM series microscopes

Applications

  • Brightfield microscopy
  • Fluorescence imaging
  • Cell culture and histology
  • General biomedical and research use

Specifications

Specification Detail
Manufacturer Leica
Model HC PL FLUOTAR 20x/0.40
Catalog Number 103159
Magnification 20x
Numerical Aperture (NA) 0.40
Optical Class Plan Fluorite (FLUOTAR)
Thread Type M25
Correction Infinity-corrected
Cover Glass Thickness 0.17 mm
Application Brightfield, Fluorescence, Research Microscopy

Additional Details

  • Manufacturer: Leica
  • Model:
  • Catalog Number: 11940p
  • Serial Number:
  • Condition: Used
