Leica HC PL FLUOTAR 4x/0.13 M25 Thread Size Microscope Objective
Leica HC PL FLUOTAR 4x/0.13 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

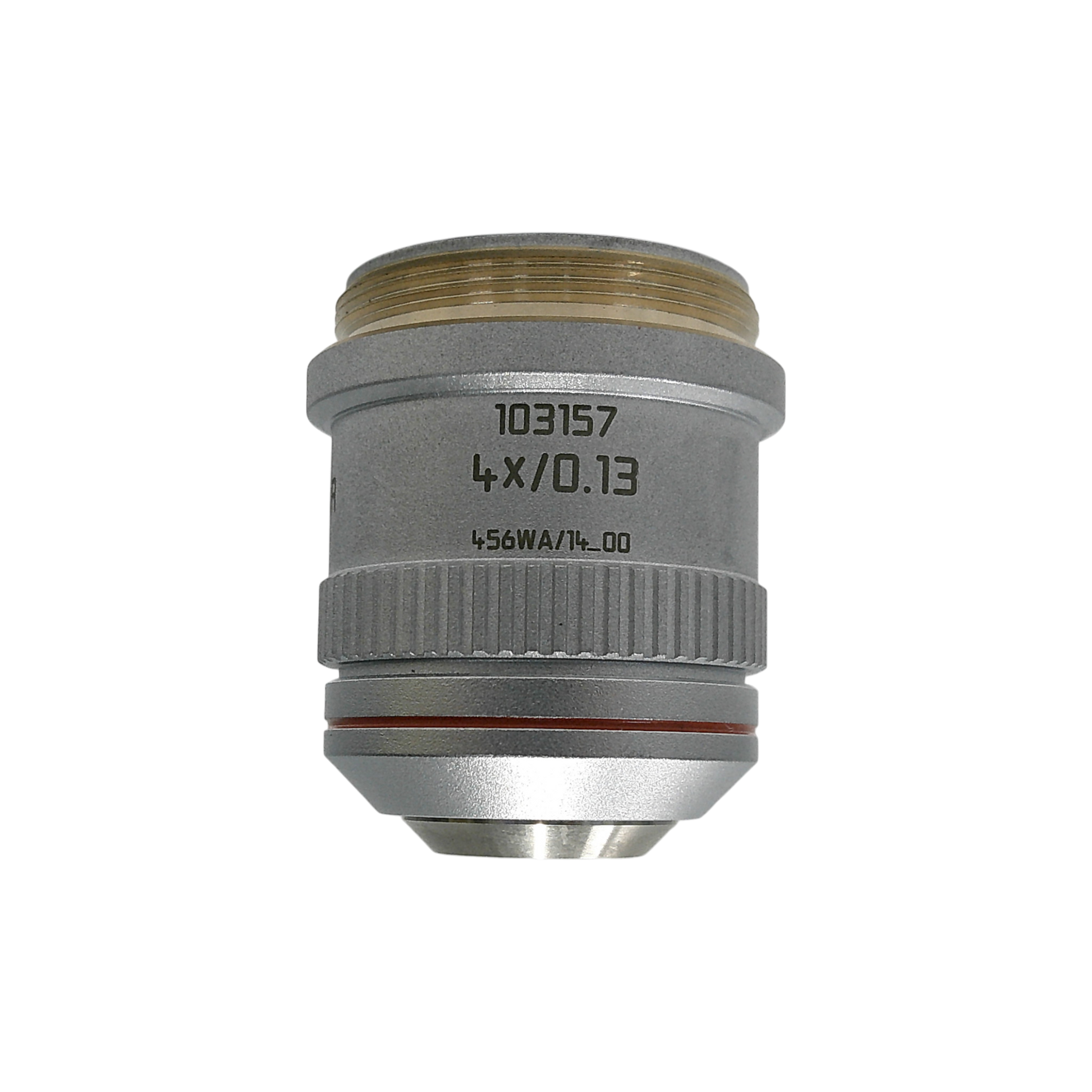

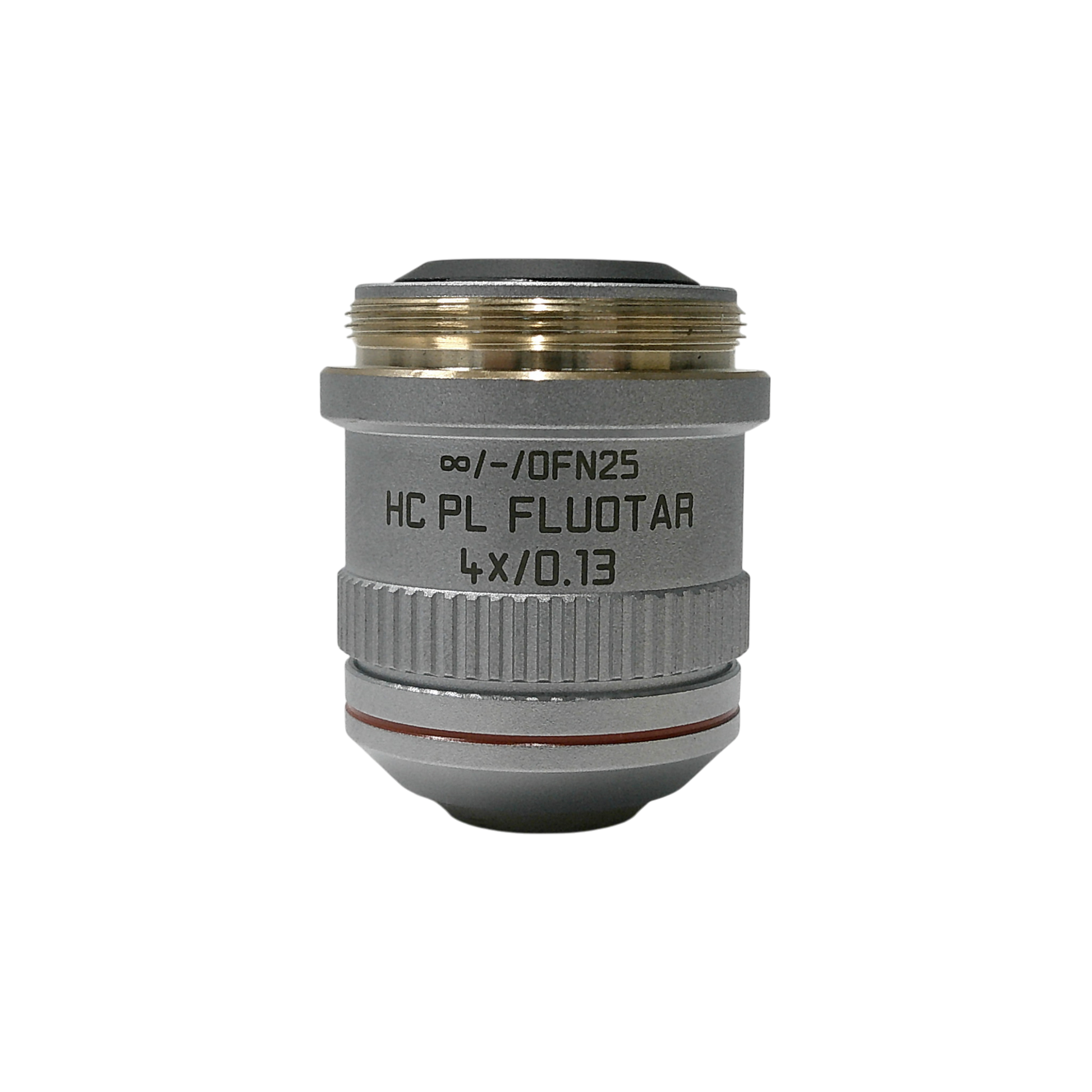

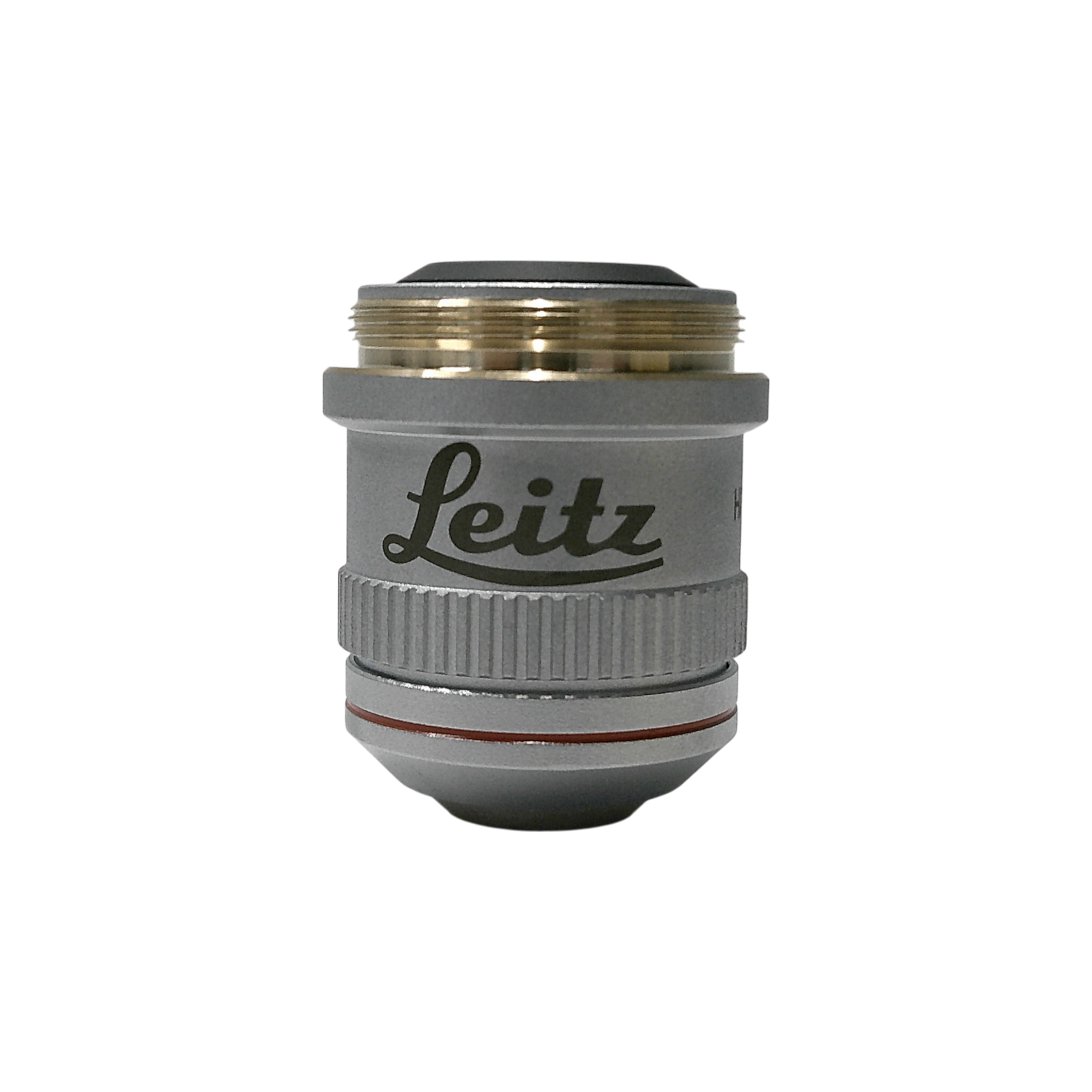

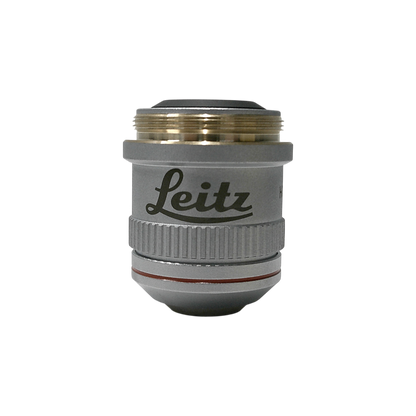

Leica HC PL FLUOTAR 4x/0.13 Objective – Catalog #1013157
The Leica HC PL FLUOTAR 4x/0.13 objective delivers exceptional image clarity and field flatness, ideal for low-magnification observation across large sample areas. With high transmission and color correction, this objective is well-suited for brightfield, fluorescence, and general research microscopy. The M25 thread design ensures compatibility with Leica DMi and DM series infinity-corrected microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Magnification: 4x
- Numerical Aperture (NA): 0.13
- Optical Type: HC PL FLUOTAR (Plan Fluorite)
- Thread Size: M25
- Wide Field Coverage: Supports large field of view with edge-to-edge sharpness
- Excellent Color Correction: High transmission for fluorescence and brightfield imaging
- Infinity-Corrected: Compatible with Leica infinity systems
Applications
- Brightfield microscopy
- Fluorescence imaging
- Routine and advanced research applications
- Tissue scanning and slide surveys
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Leica |
| Model | HC PL FLUOTAR 4x/0.13 |
| Catalog Number | 1013157 |
| Magnification | 4x |
| Numerical Aperture (NA) | 0.13 |
| Optical Class | Plan Fluorite (FLUOTAR) |
| Thread Type | M25 |
| Correction | Infinity-corrected |
| Cover Glass Thickness | 0.17 mm |
| Application | Brightfield, Fluorescence, Research Microscopy |
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 11940n
- Serial Number:
- Condition: Used
