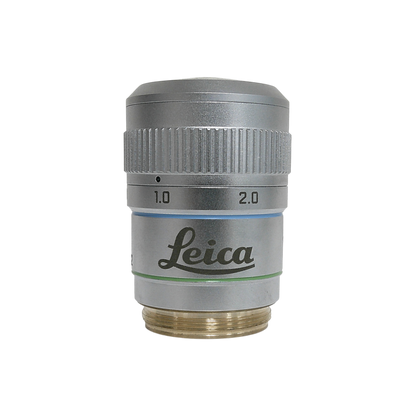

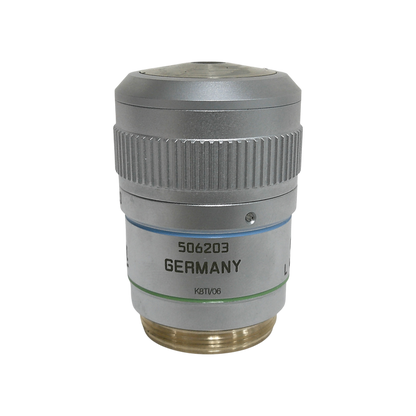

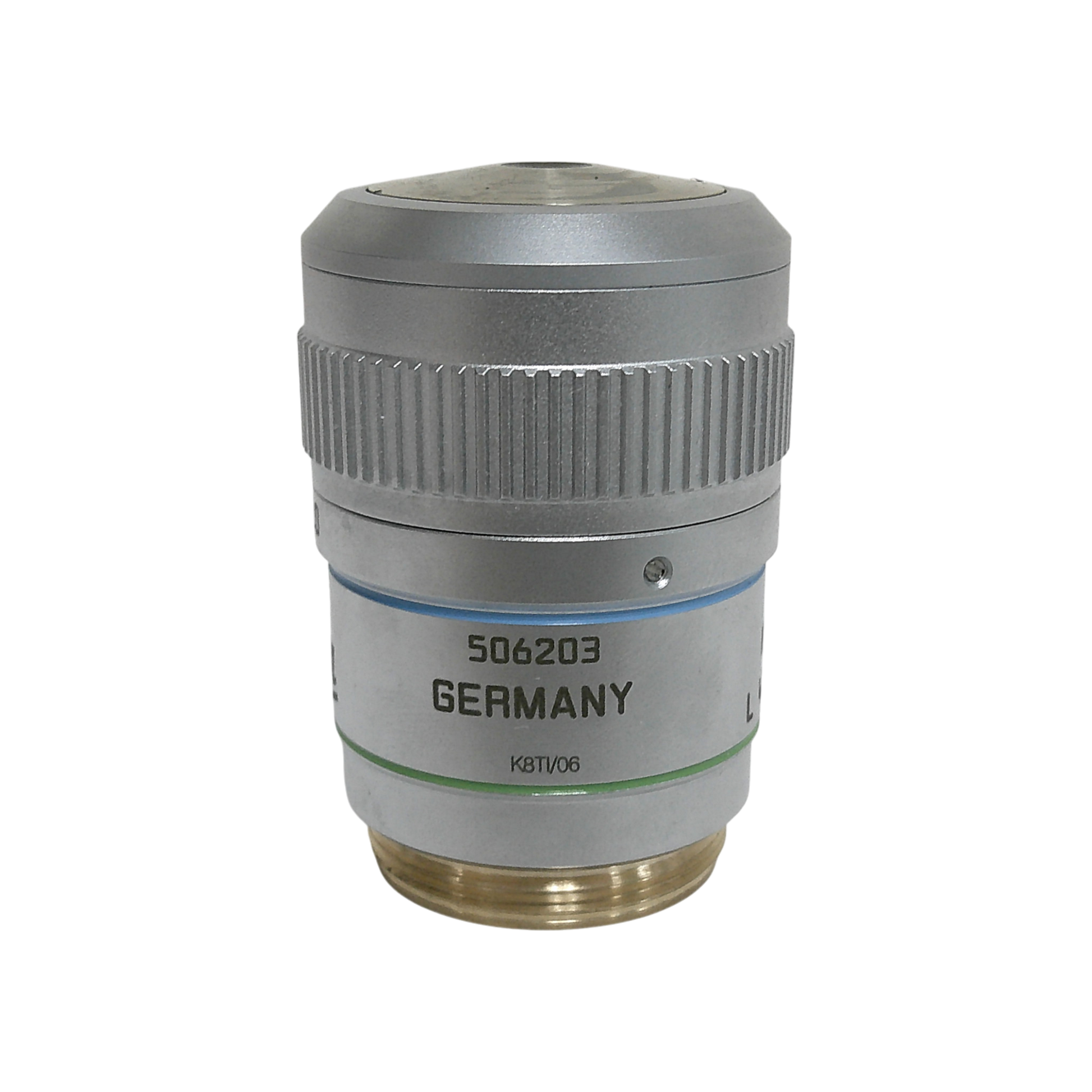

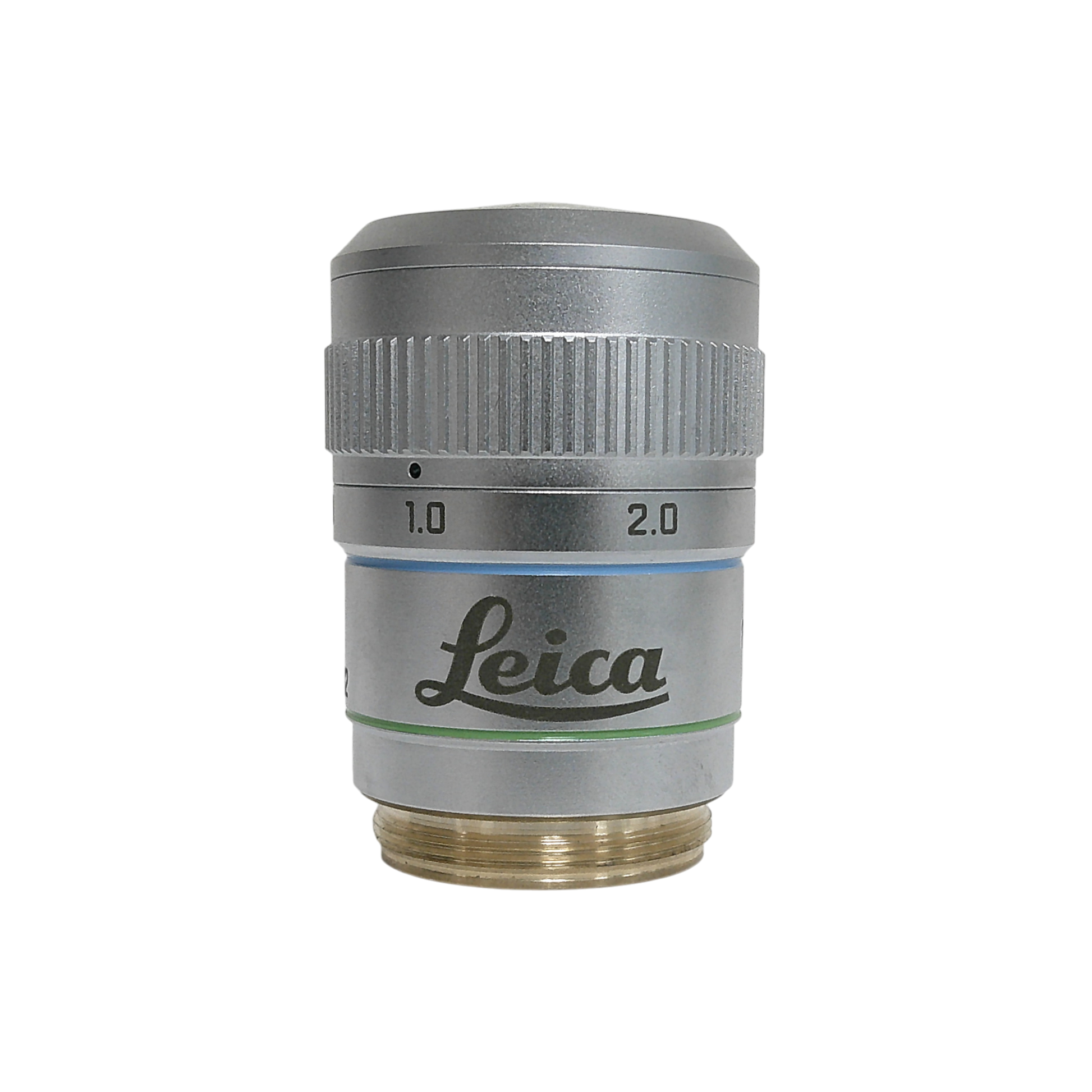

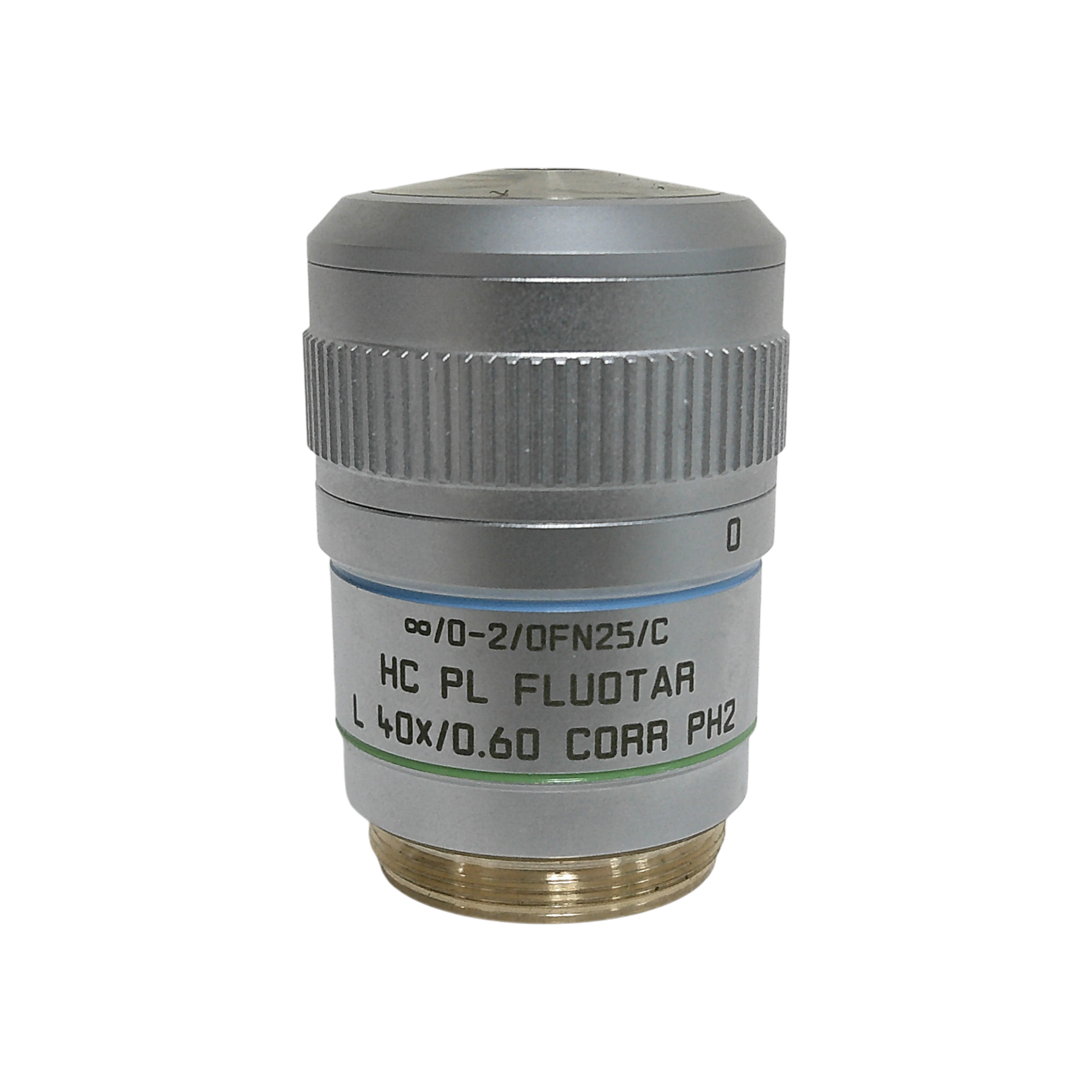

Leica HC PL FLUOTAR L Ph2 40x/0.60 CORR M25 Thread Size Microscope Objective

Leica HC PL FLUOTAR L Ph2 40x/0.60 CORR Objective — M25 Thread Size — 506203

Overview
The Leica HC PL FLUOTAR L Ph2 40x/0.60 CORR objective is designed for high-contrast phase contrast and fluorescence microscopy. With a numerical aperture of 0.60 and correction collar for cover glass thickness adjustments, this objective is ideal for live-cell imaging and fixed sample analysis. Its FLUOTAR design ensures excellent chromatic correction and flat-field imaging, while the Ph2 ring makes it perfectly suited for phase contrast applications. Features M25 thread size for Leica upright microscopes.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Magnification: 40x
• Numerical Aperture (NA): 0.60
• Correction Collar: Allows fine-tuning for cover glass variations to optimize contrast and resolution
• FLUOTAR Optical Design: Delivers high transmission and chromatic correction for fluorescence and transmitted light imaging
• Phase Ring: Ph2 — optimized for medium power phase contrast applications
• Thread Type: M25 (Leica standard)

Applications

• Phase Contrast Microscopy (Ph2)
• Fluorescence Imaging
• Live Cell Imaging
• Fixed Cell and Tissue Imaging

Specifications
