Leica HC PL Fluotar Ph1 10x/0.32 M25 Thread Size Microscope Objective
Leica HC PL Fluotar Ph1 10x/0.32 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

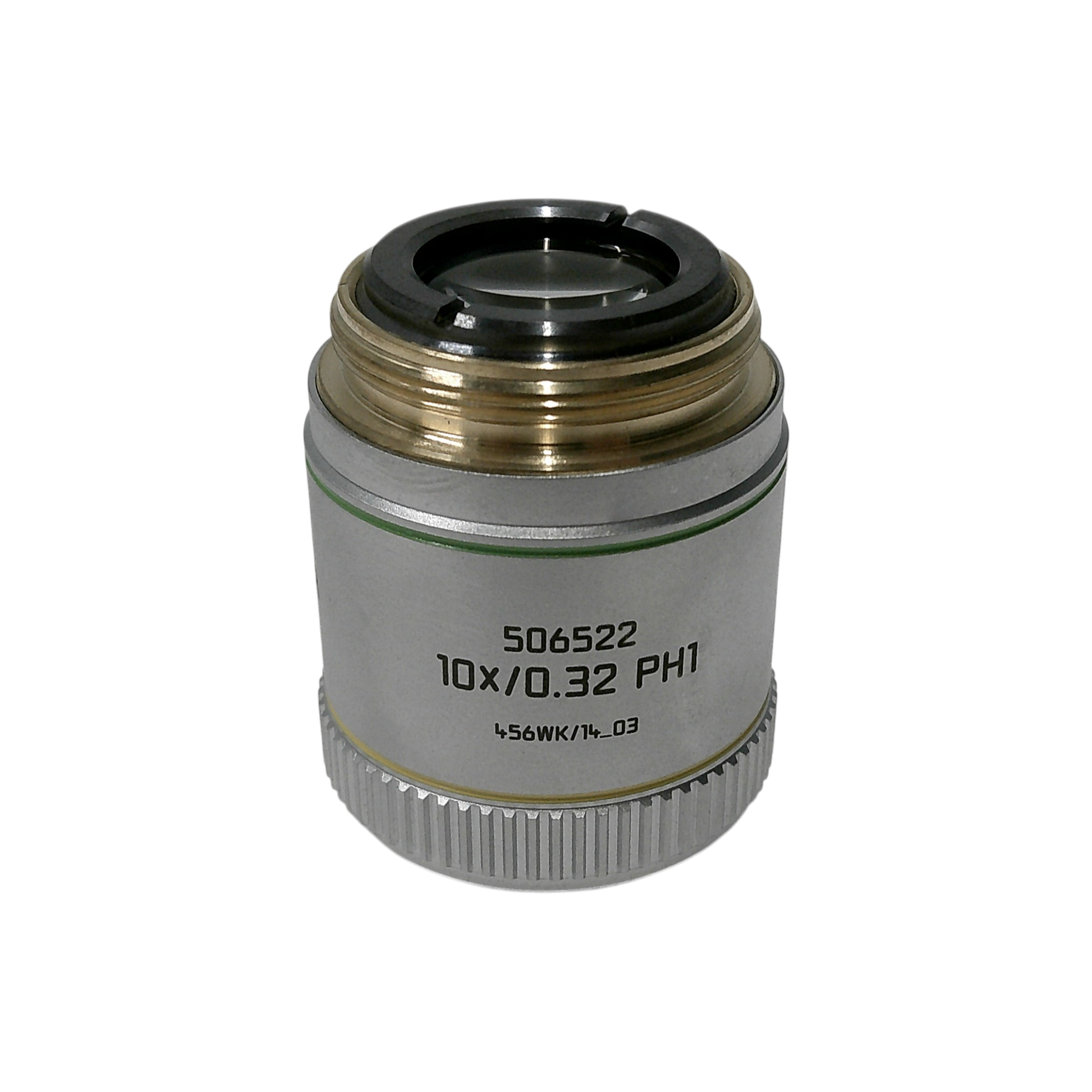

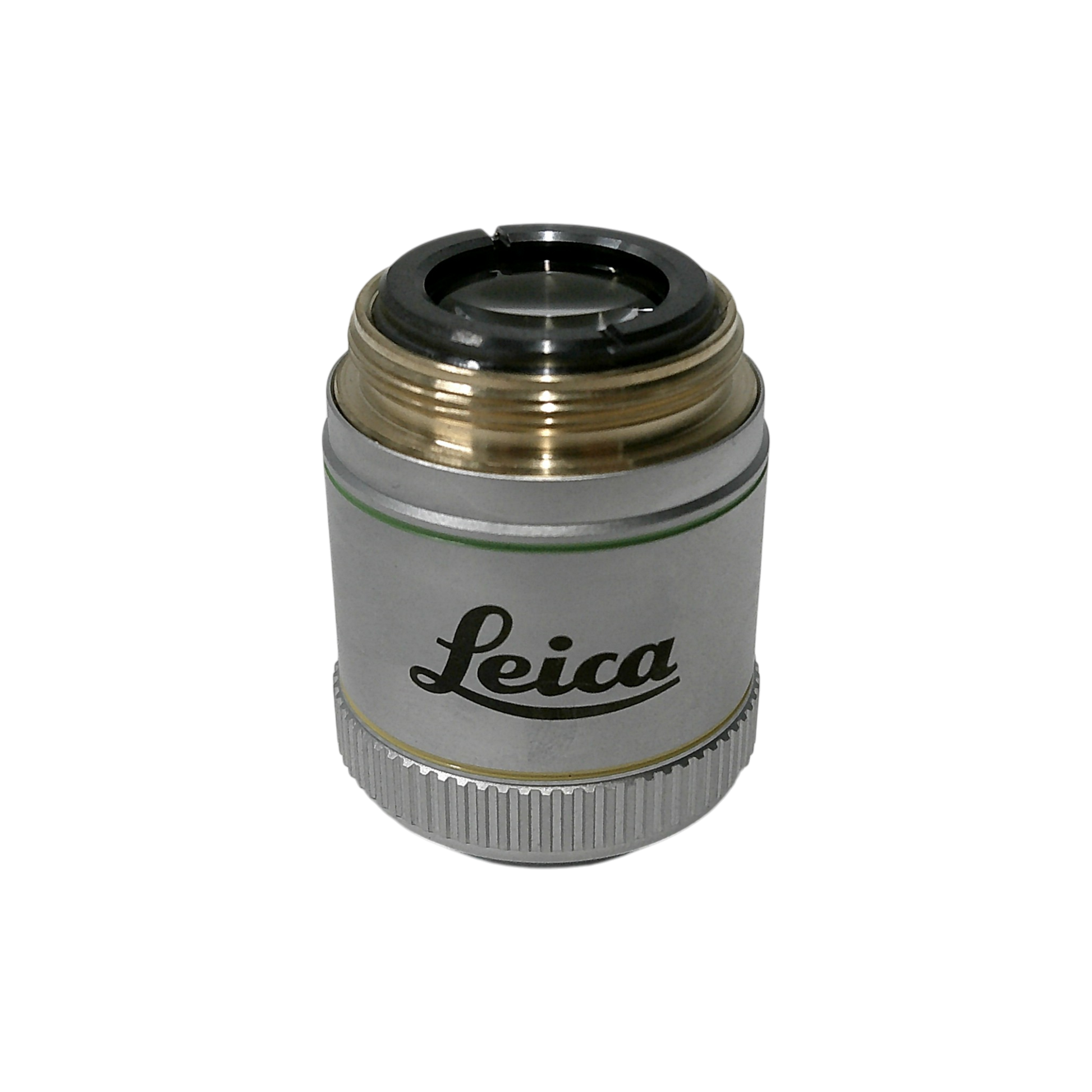

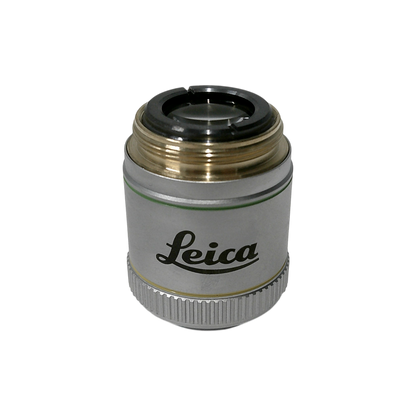

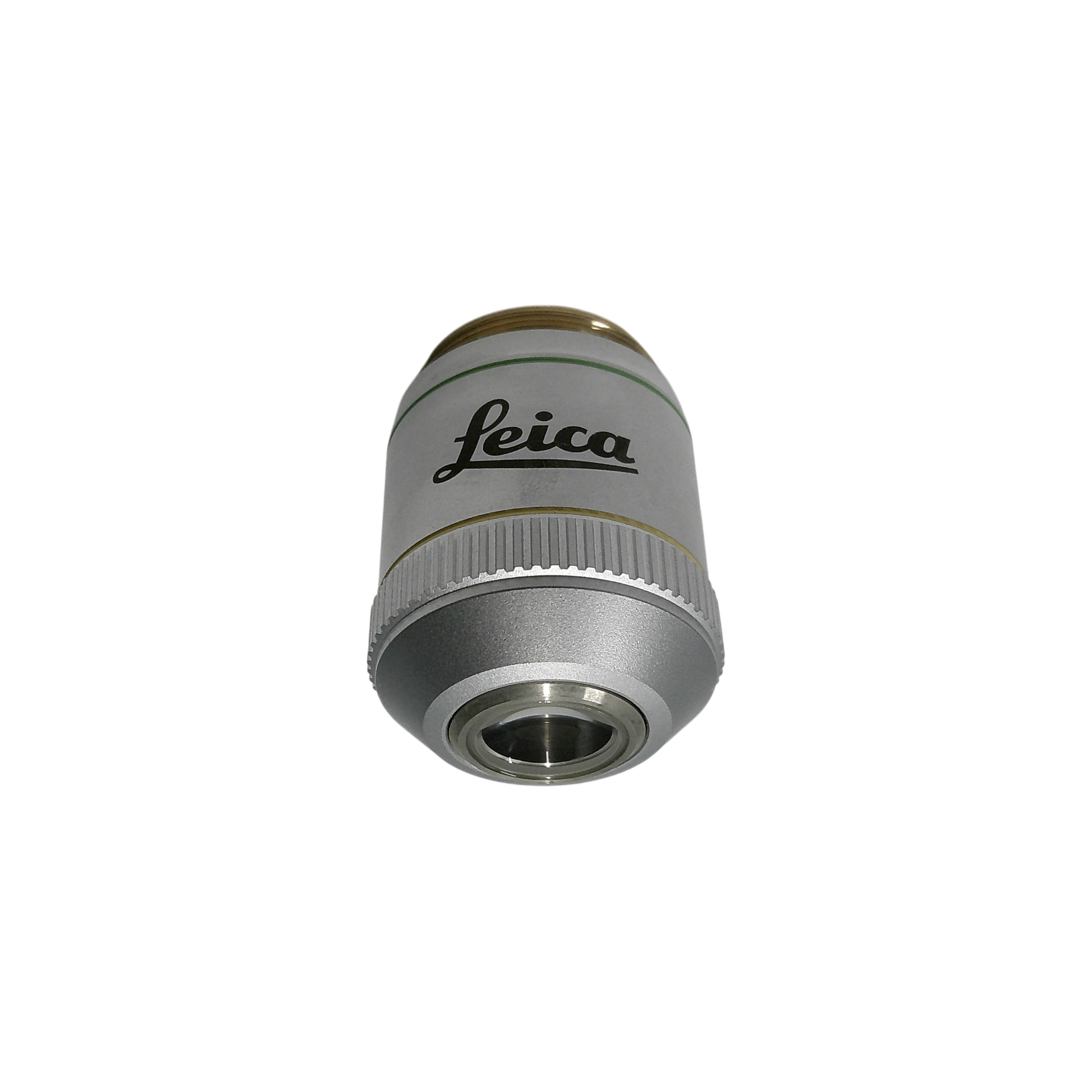

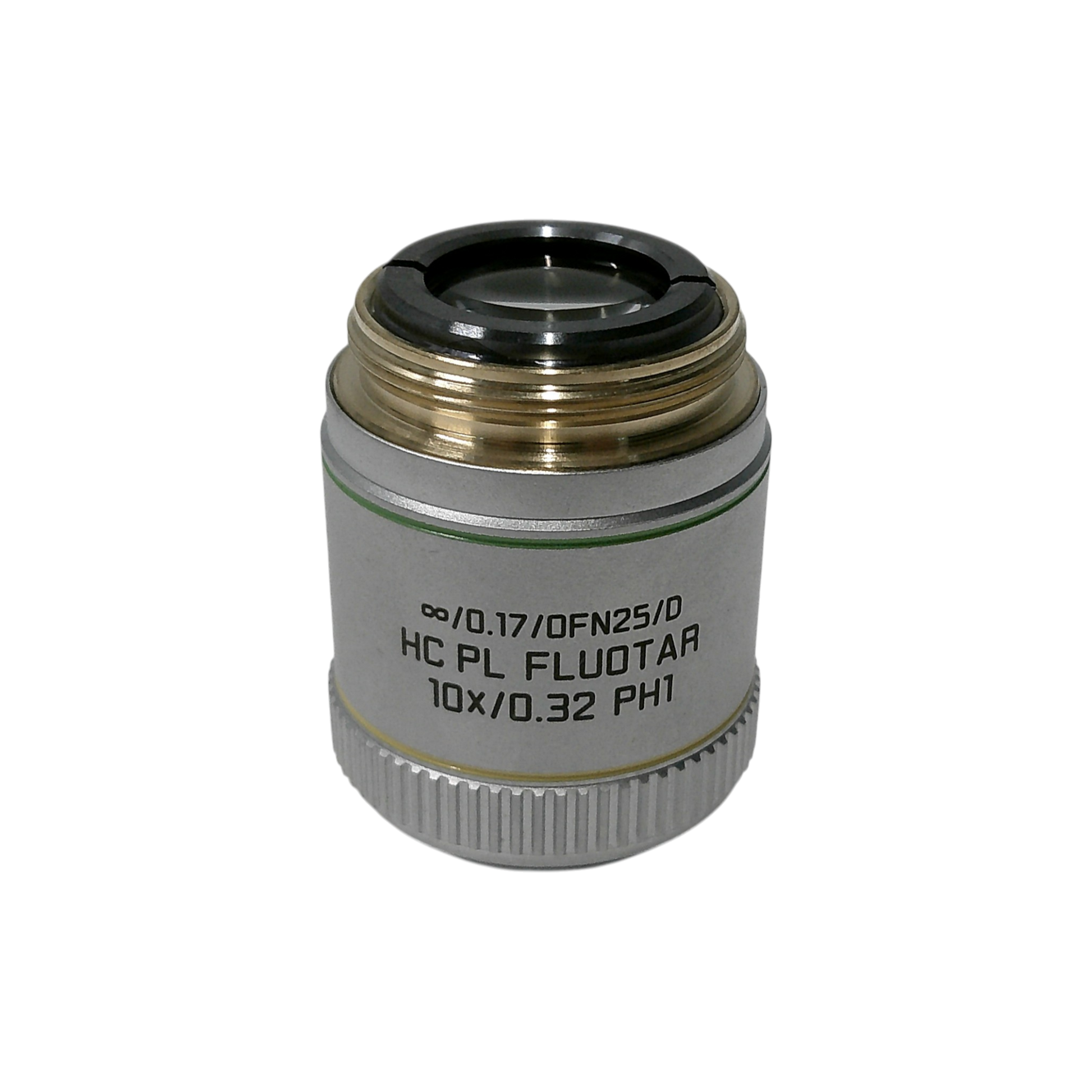

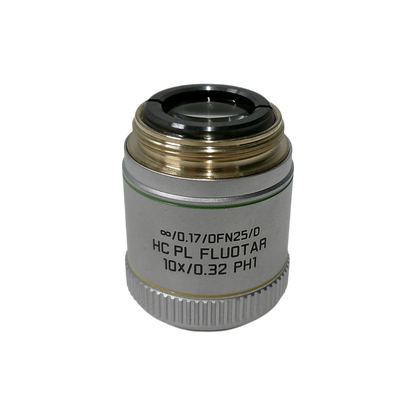

Leica HC PL Fluotar Ph1 10x/0.32 Objective | 506522 | M25 Thread Size
The Leica HC PL Fluotar Ph1 10x/0.32 objective (catalog number 506522) is a high-performance, infinity-corrected lens designed for phase contrast and brightfield microscopy. With Fluotar optical correction and a 0.32 numerical aperture, this objective delivers sharp, high-contrast imaging with excellent color fidelity and flatness across the field. Optimized for Phase 1 (Ph1) contrast techniques, it is ideal for imaging live, unstained cells or thin specimens. The objective features a 10x magnification and is compatible with Leica upright microscope systems using an M25 thread.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 10x magnification with 0.32 numerical aperture
- Phase contrast Ph1 for enhanced imaging of transparent samples
- Fluotar optics for excellent flatness and color correction
- Infinity-corrected HC PL optical system
- M25 thread for Leica upright microscopes
Applications
- Live-cell imaging
- Phase contrast microscopy (Ph1)
- Brightfield observation of unstained or weakly stained samples
- Routine and research microscopy
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Leica |
| Model | HC PL Fluotar Ph1 10x/0.32 |
| Catalog Number | 506522 |
| Magnification | 10x |
| Numerical Aperture | 0.32 |
| Optical Correction | Fluotar (flat-field, high contrast) |
| Contrast Technique | Phase Contrast Ph1, Brightfield |
| Thread Size | M25 |
| Optical System | HC PL Infinity-Corrected |
| Intended Use | Upright compound microscopes |
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 51570i
- Serial Number:
- Condition: Used
