Leica HCX PL Fluotar 40x/0.75 M25 Thread Size Microscope Objective
Leica HCX PL Fluotar 40x/0.75 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

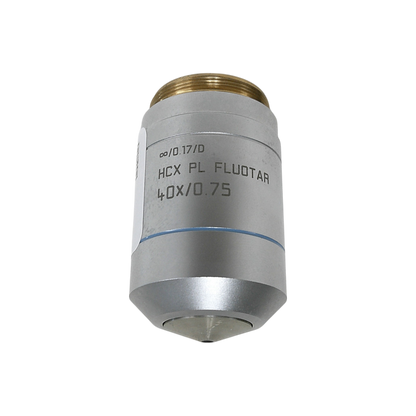

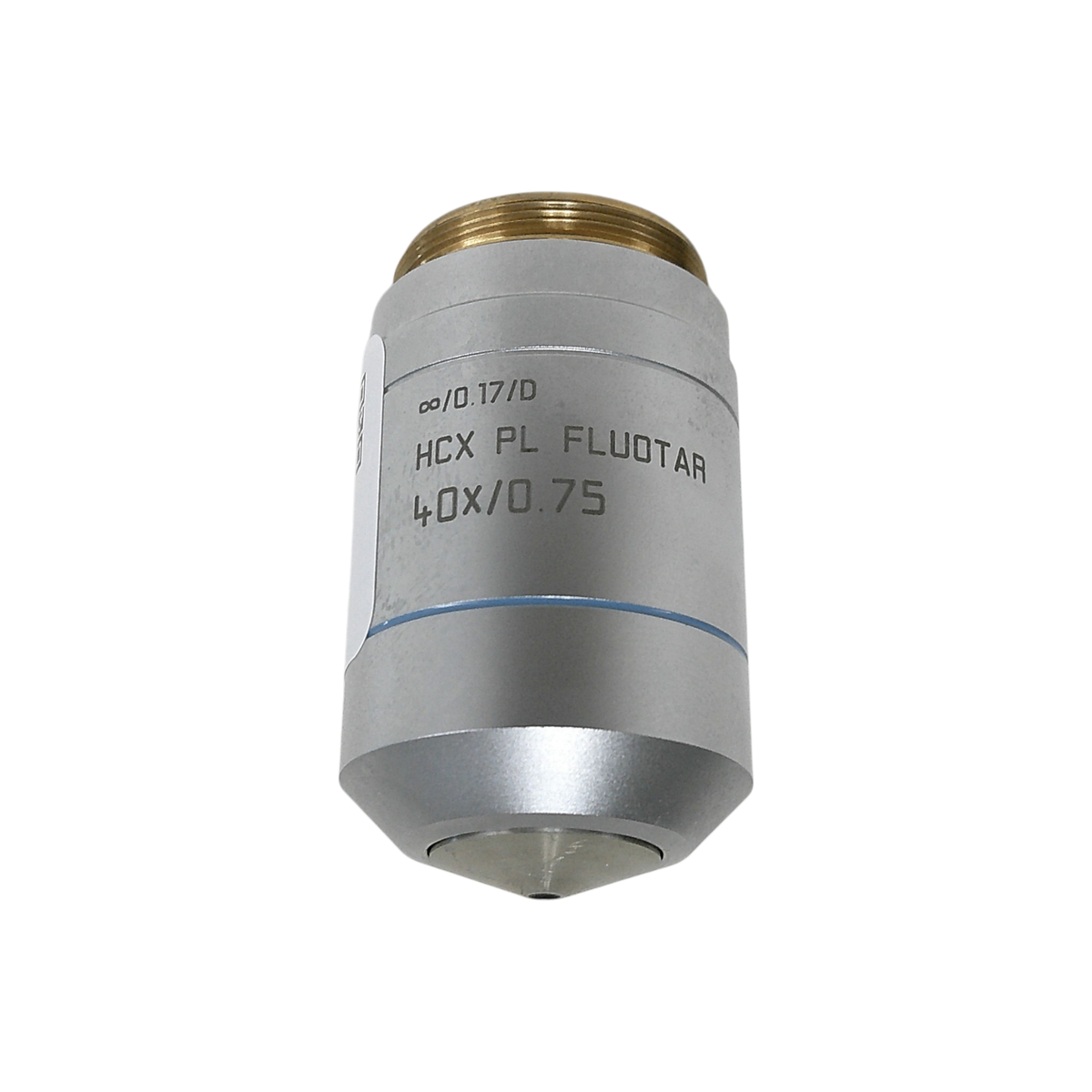

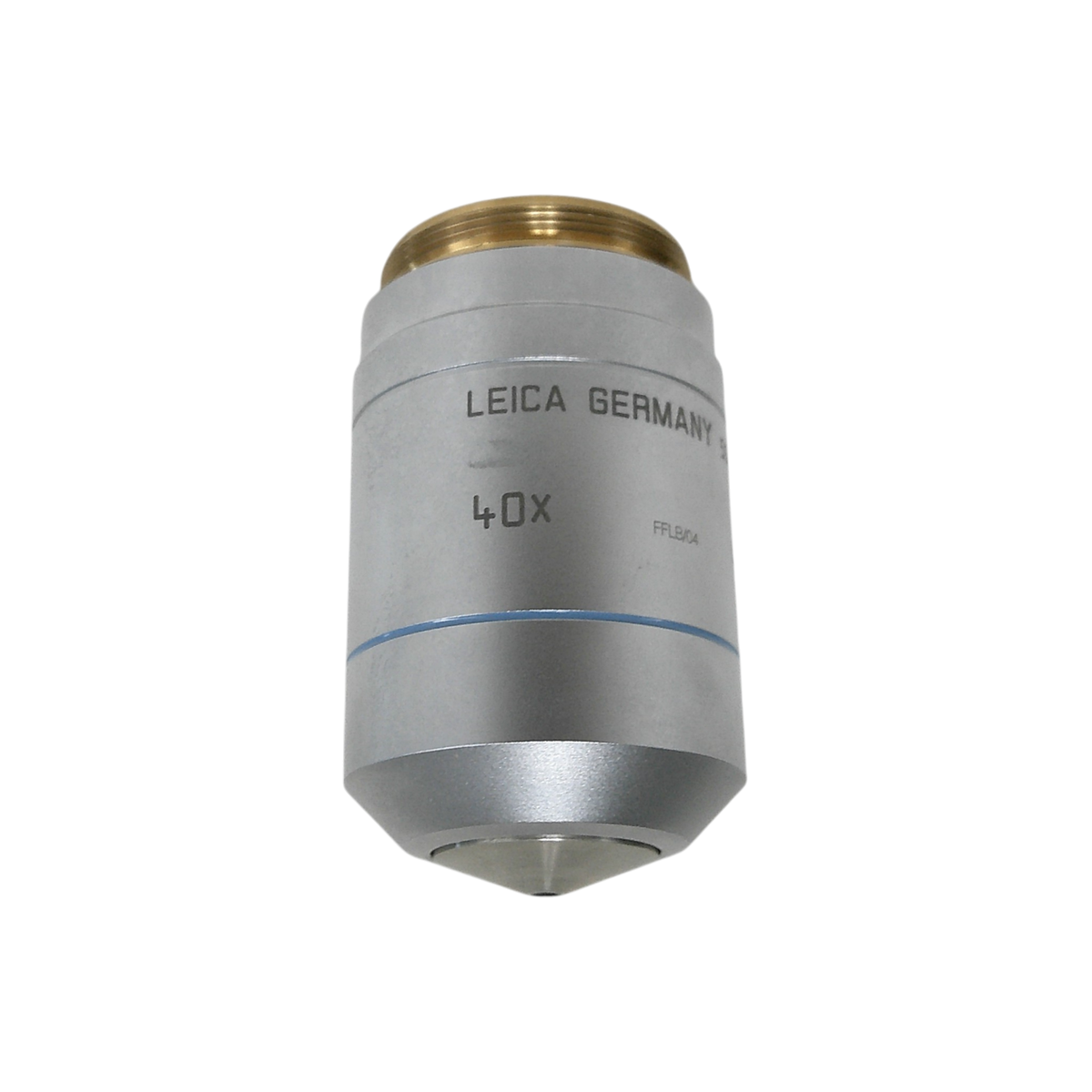

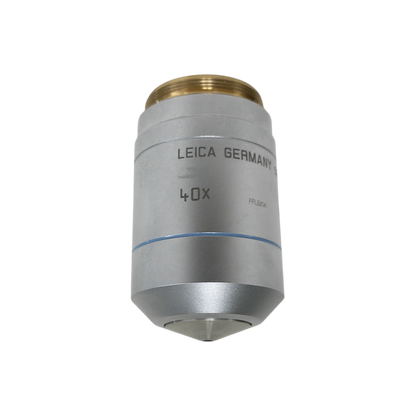

Leica HCX PL FLUOTAR 40x/0.75 Objective – 506144
The Leica HCX PL FLUOTAR 40x/0.75 is a high-quality plan fluorite microscope objective designed for fluorescence and transmitted-light microscopy. Featuring 40x magnification, a 0.75 numerical aperture, and an M25 objective thread, this dry objective provides strong resolution, contrast, and light transmission for routine and advanced biological imaging applications.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 40x magnification
- 0.75 numerical aperture
- HCX PL FLUOTAR plan fluorite optical design
- Dry objective requiring no immersion medium
- Infinity-corrected optical design
- High light transmission suitable for fluorescence microscopy
- Plan correction for a flat image field
- M25 objective mounting thread
- Designed for compatible Leica microscope systems
- Suitable for fluorescence and transmitted-light imaging
Applications
- Fluorescence microscopy
- Immunofluorescence
- Cell and tissue imaging
- Fixed-cell microscopy
- Brightfield microscopy
- DIC microscopy when configured with compatible DIC components
- Histology and pathology research
- Biomedical and life science research
- General high-resolution laboratory microscopy
Specifications
| Manufacturer | Leica Microsystems |
| Model | HCX PL FLUOTAR 40x/0.75 |
| Catalog Number | 506144 |
| Objective Type | Plan Fluorite |
| Optical Series | HCX PL FLUOTAR |
| Magnification | 40x |
| Numerical Aperture (NA) | 0.75 |
| Immersion Medium | Dry / Air |
| Optical Correction | Plan Fluorite |
| Optical System | Infinity-corrected |
| Objective Thread | M25 |
| Fluorescence Compatibility | Yes |
| Transmitted-Light Compatibility | Yes |
| DIC Compatibility | Configuration dependent; requires compatible DIC components |
| Microscope Compatibility | Compatible Leica microscope systems using M25 objective threads |
| Primary Applications | Fluorescence, transmitted-light, cell, tissue, and general biological microscopy |
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 52293d
- Serial Number:
- Condition: Used
