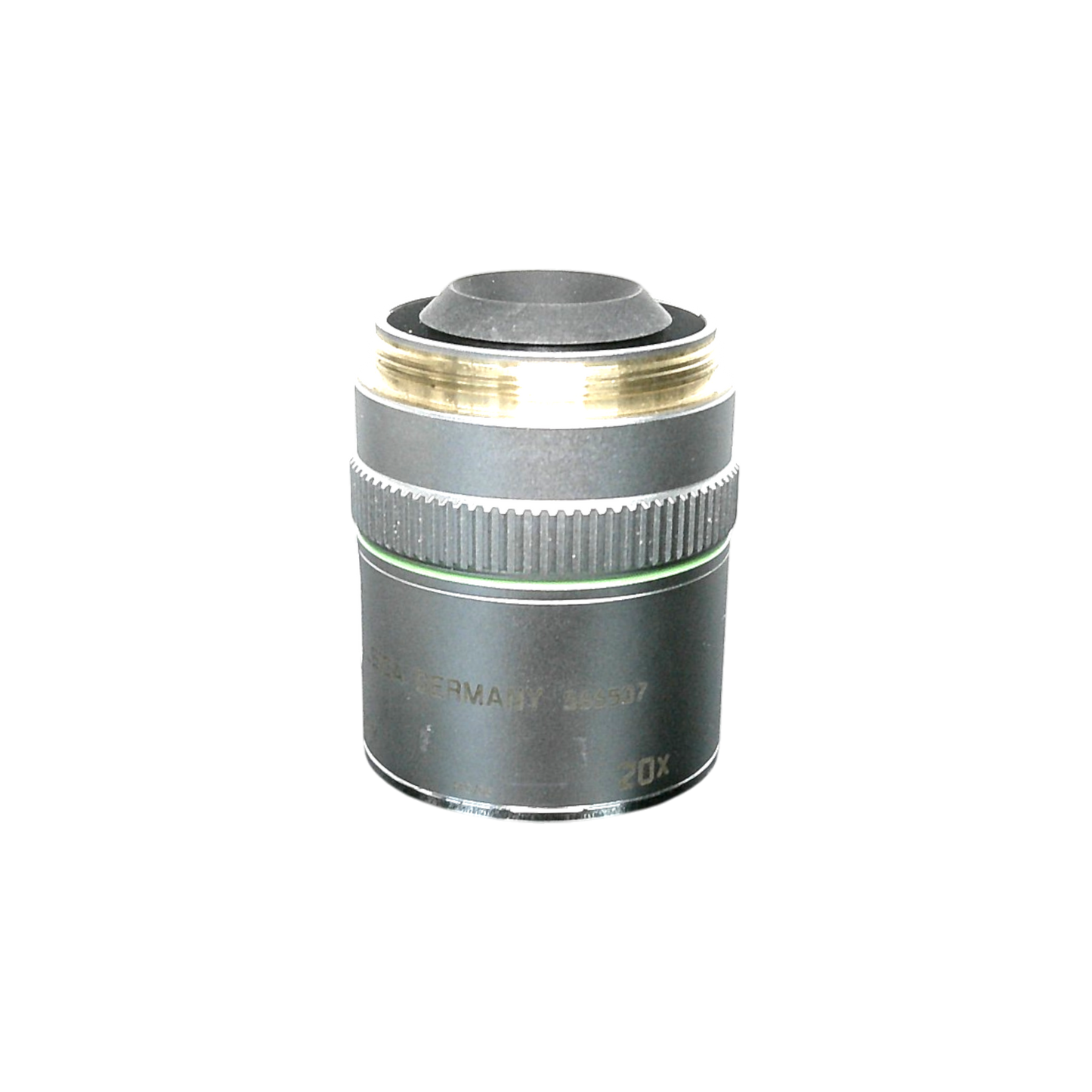

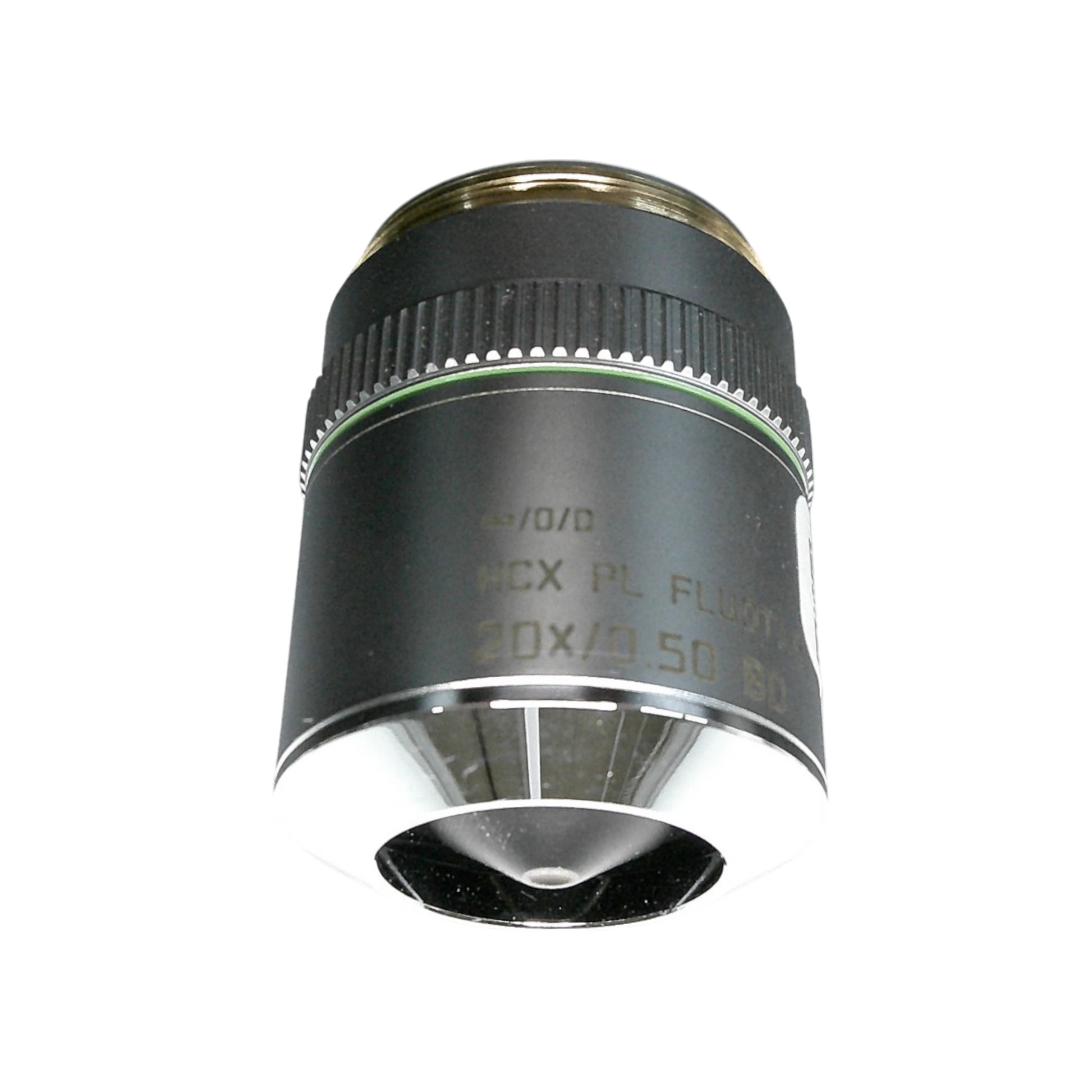

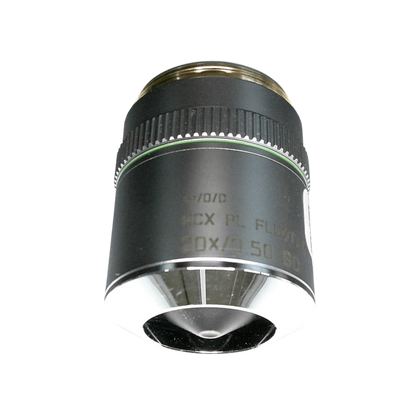

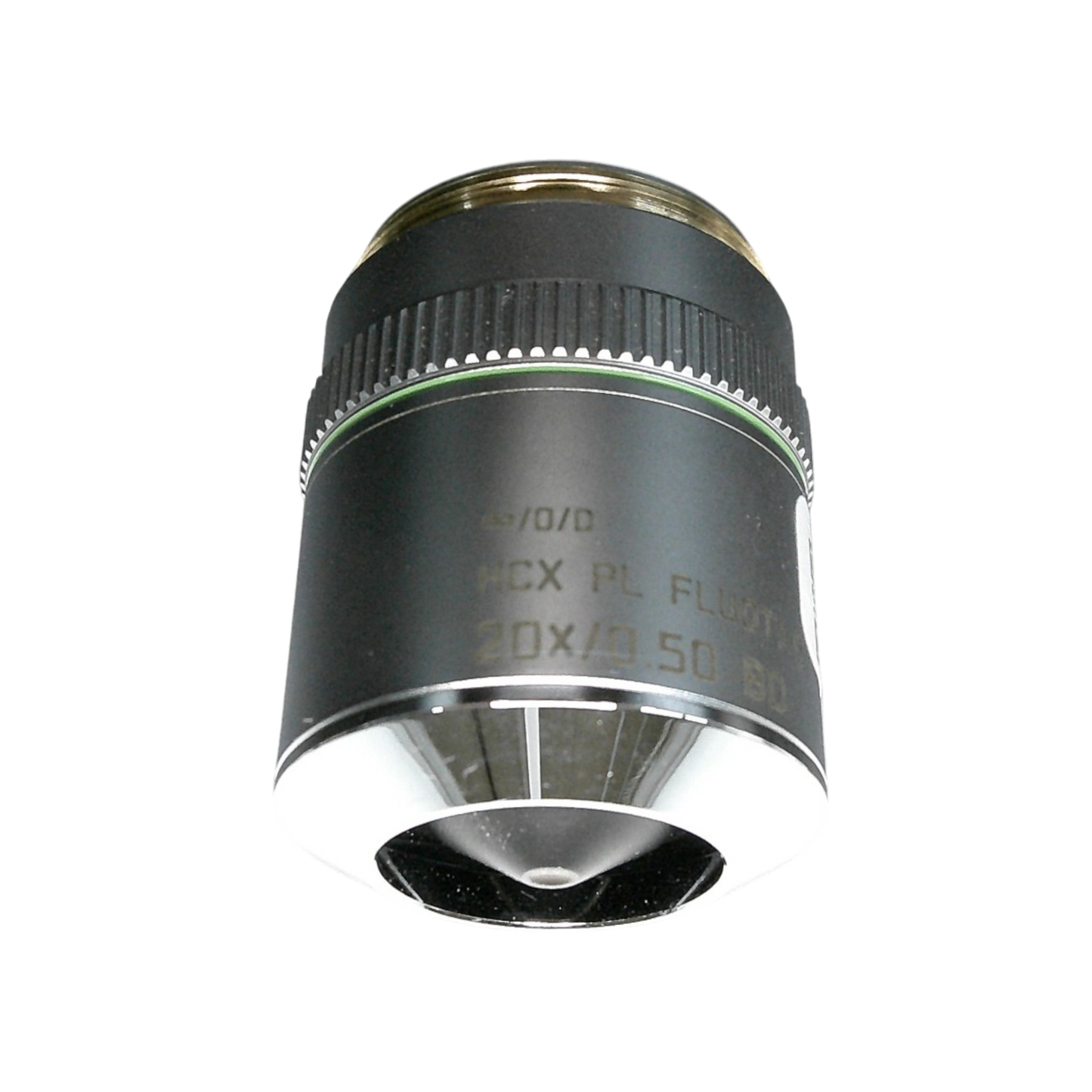

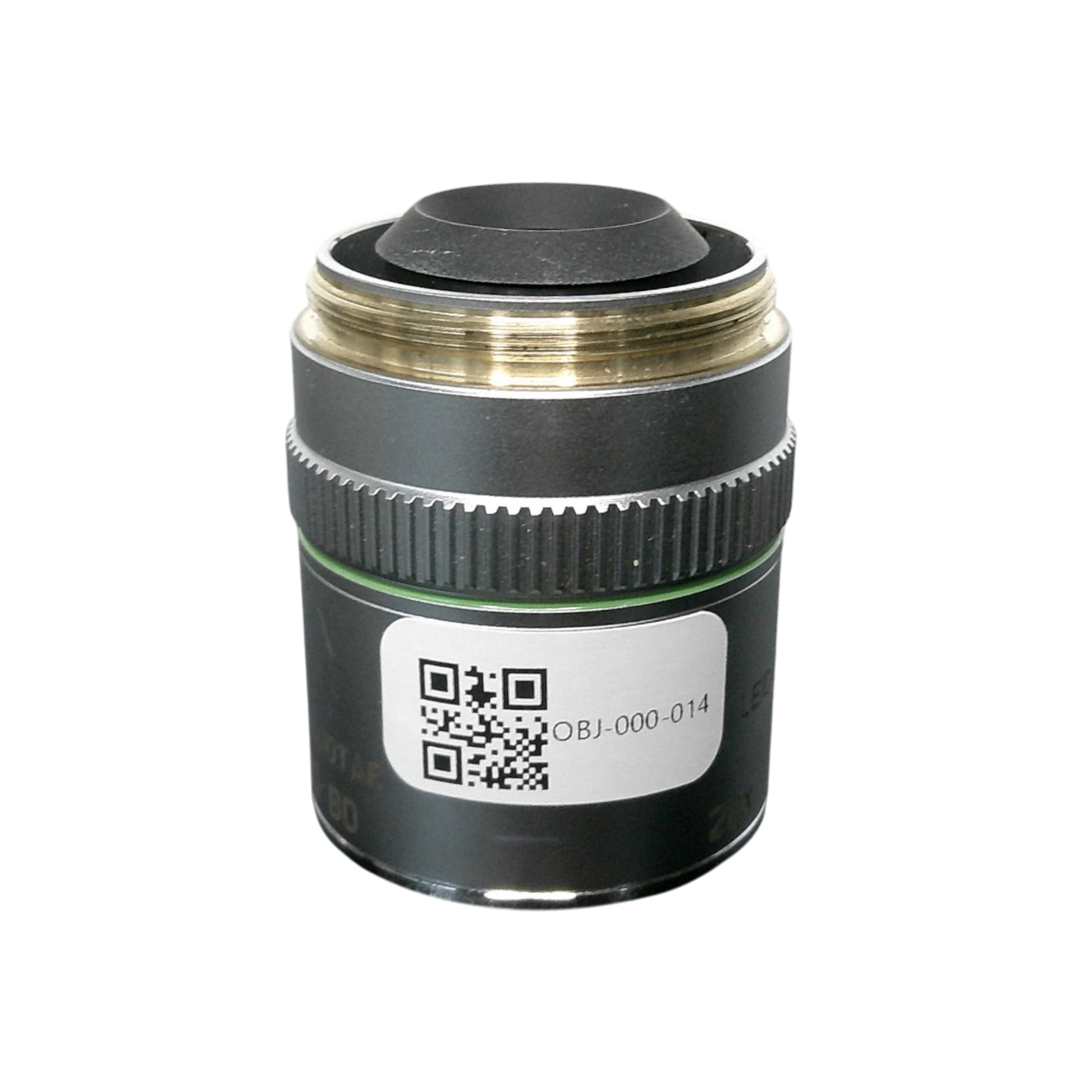

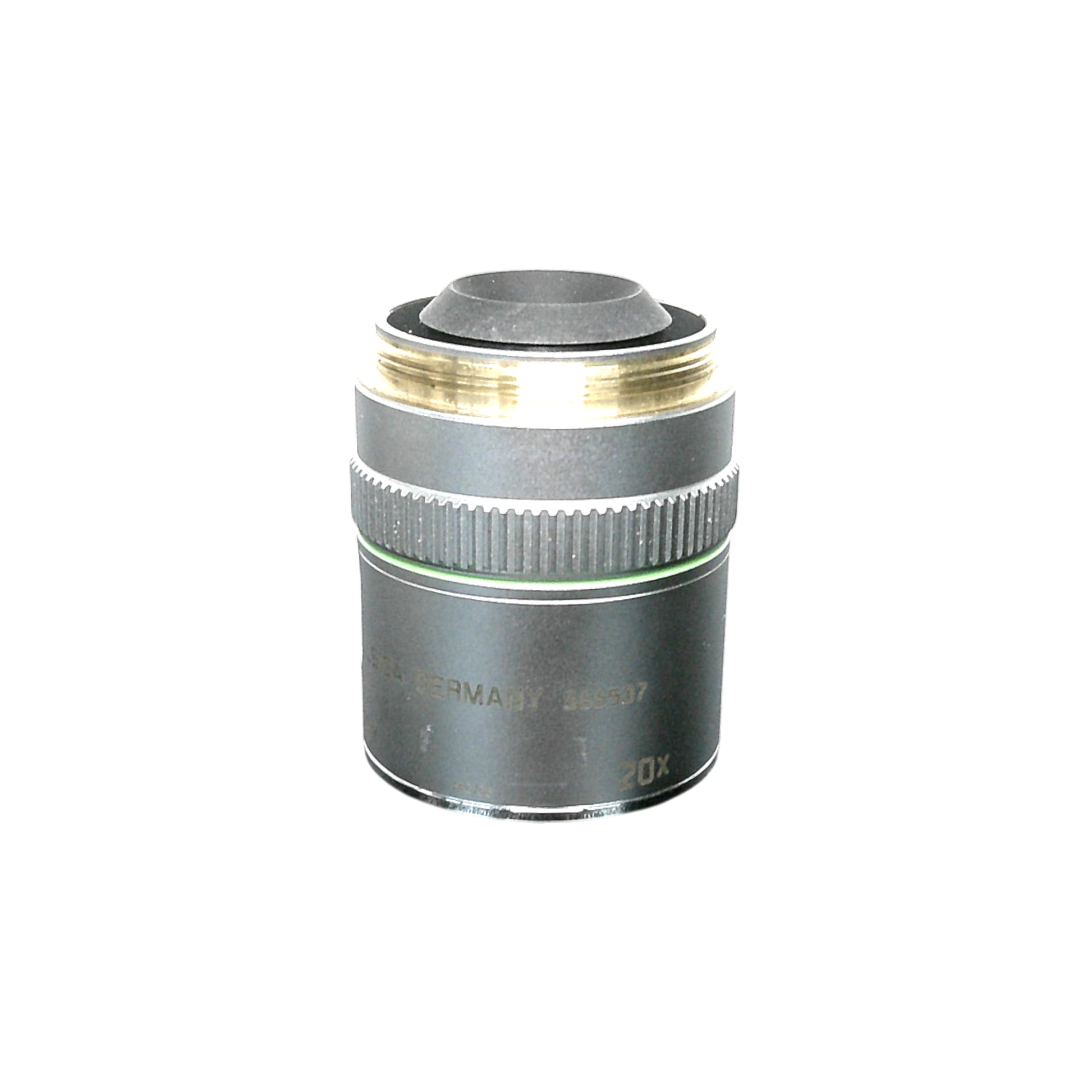

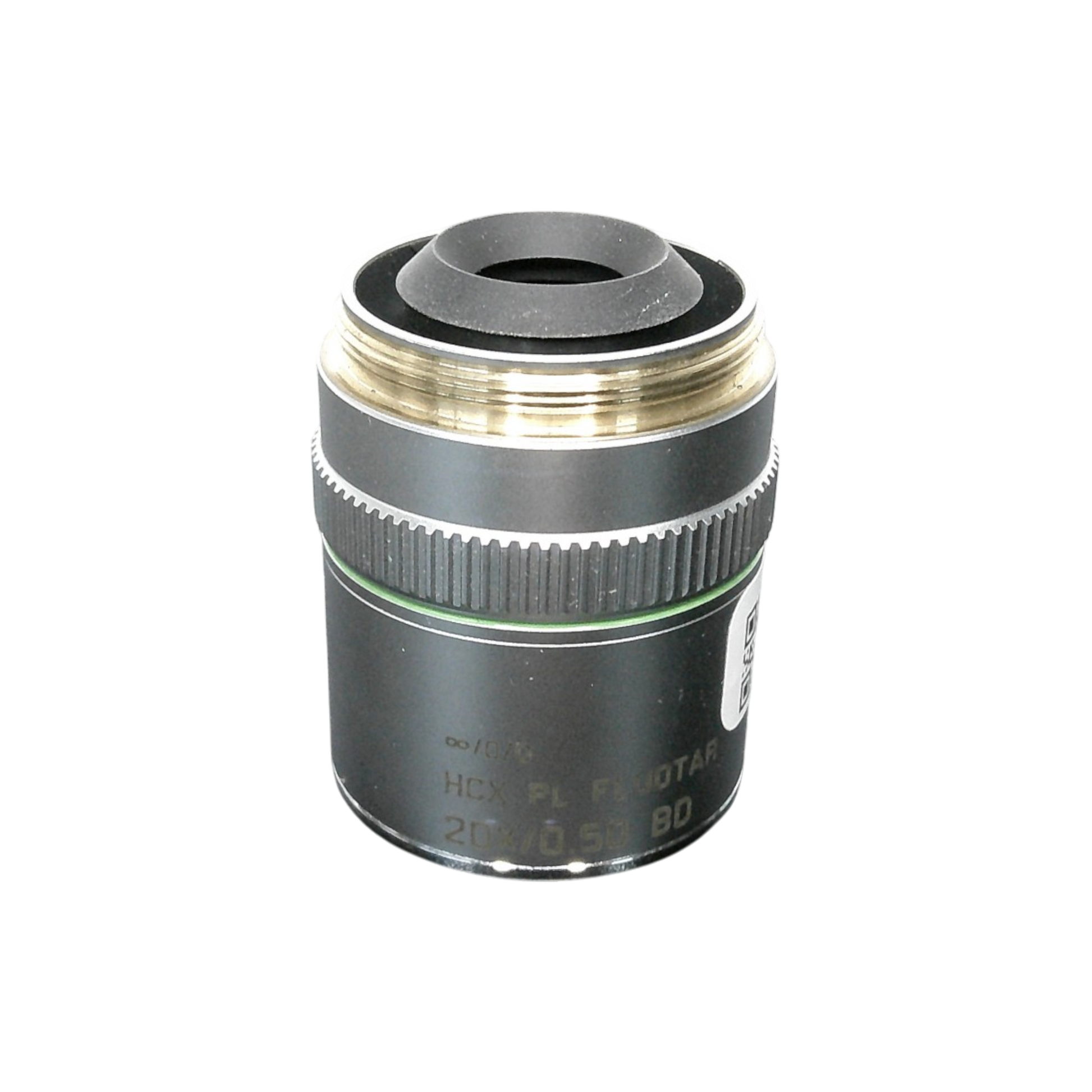

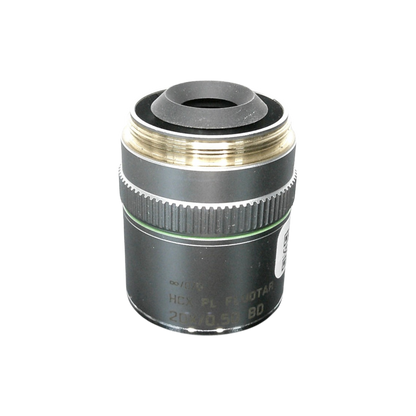

Leica HCX PL Fluotar BD 20x/0.5 M32 Thread Size Microscope Objective
Leica HCX PL Fluotar BD 20x/0.5 M32 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Leica HCX PL Fluotar BD 20x/0.5 M32 Thread Size - 566507 (Used)
The Leica HCX PL Fluotar BD 20x/0.5 is a high-performance fluorite objective designed for brightfield, darkfield (BD), and fluorescence microscopy. With a numerical aperture (NA) of 0.5, this objective provides superior resolution, contrast, and field flatness, making it ideal for material science, metallurgical analysis, and biological research. The M32 thread size ensures compatibility with Leica DM series and other M32-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Leica HCX PL Fluotar BD 20x/0.5 Objective
Key Features
- 20x magnification for high-resolution imaging
- Brightfield and darkfield (BD) capability for versatile imaging applications
- Plan Fluotar (Fluorite) optics for superior chromatic aberration correction
- Numerical aperture (NA) of 0.5 for excellent light transmission and resolution
- M32 thread size for compatibility with Leica DM series and other M32-compatible microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence, brightfield, and darkfield microscopy with high transmission coatings
Applications
- Brightfield microscopy
- Darkfield (BD) microscopy
- Fluorescence microscopy
- Metallurgical analysis
- Material science research
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.5 |
| Working Distance | ~2.1 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Fluotar (Flat Field, High Contrast, Brightfield & Darkfield Optimized) |
| Thread Size | M32 (32mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Leica DM series and other M32-compatible models |
| Special Features | High transmission coatings for fluorescence, optimized for brightfield and darkfield imaging |
Additional Details
Additional Details
- Manufacturer: Leica
- Model: HCX PL Fluotar BD 20x/0.5 M32 Thread Size
- Catalog Number: OBJ-000-014
- Serial Number: N/A
- Condition: Seller Refurbished
