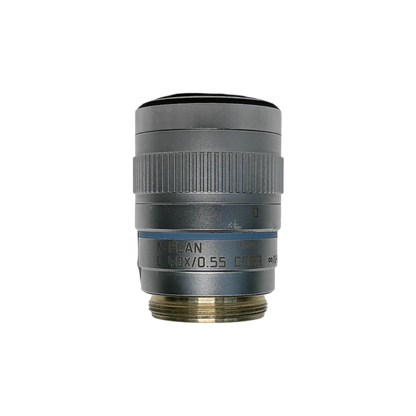

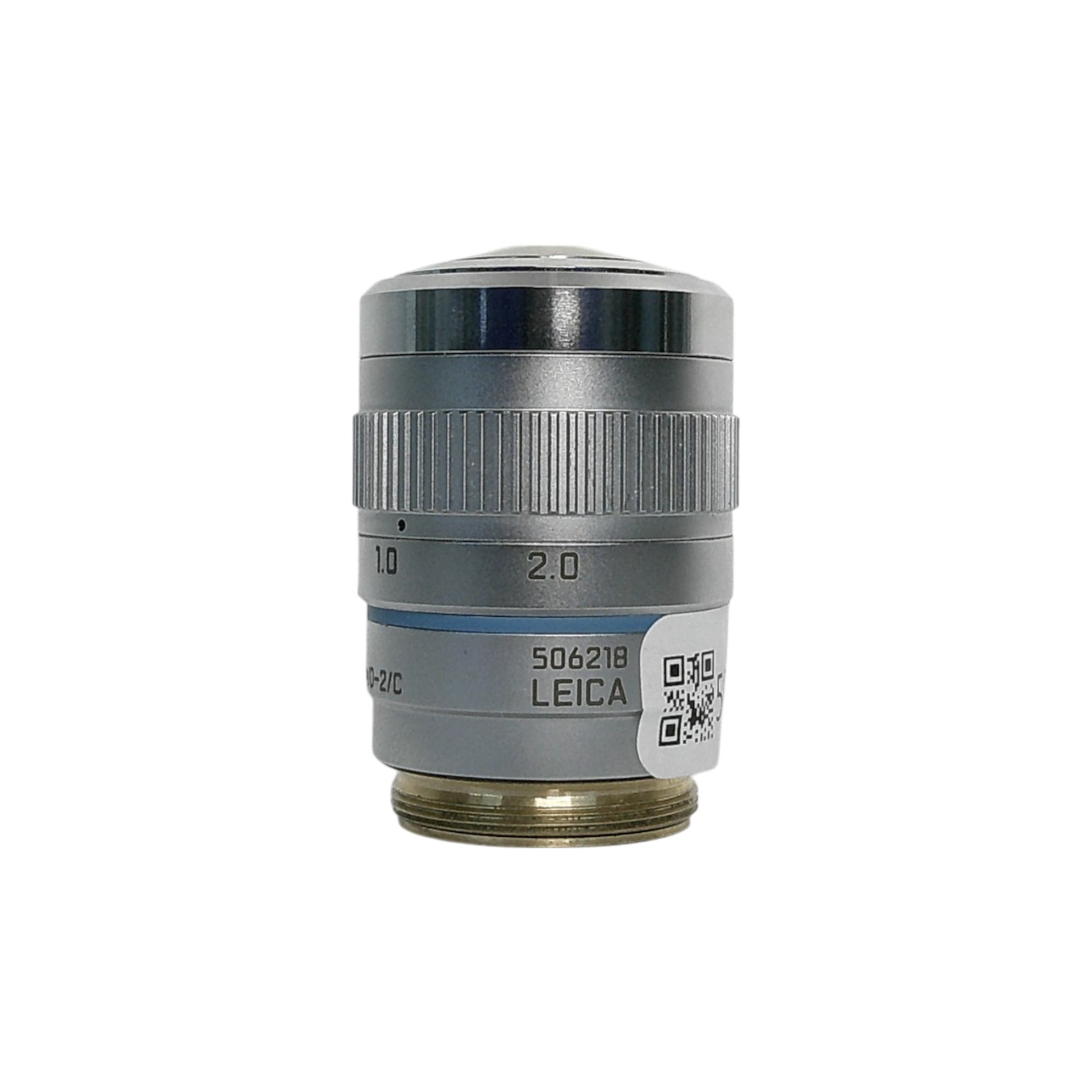

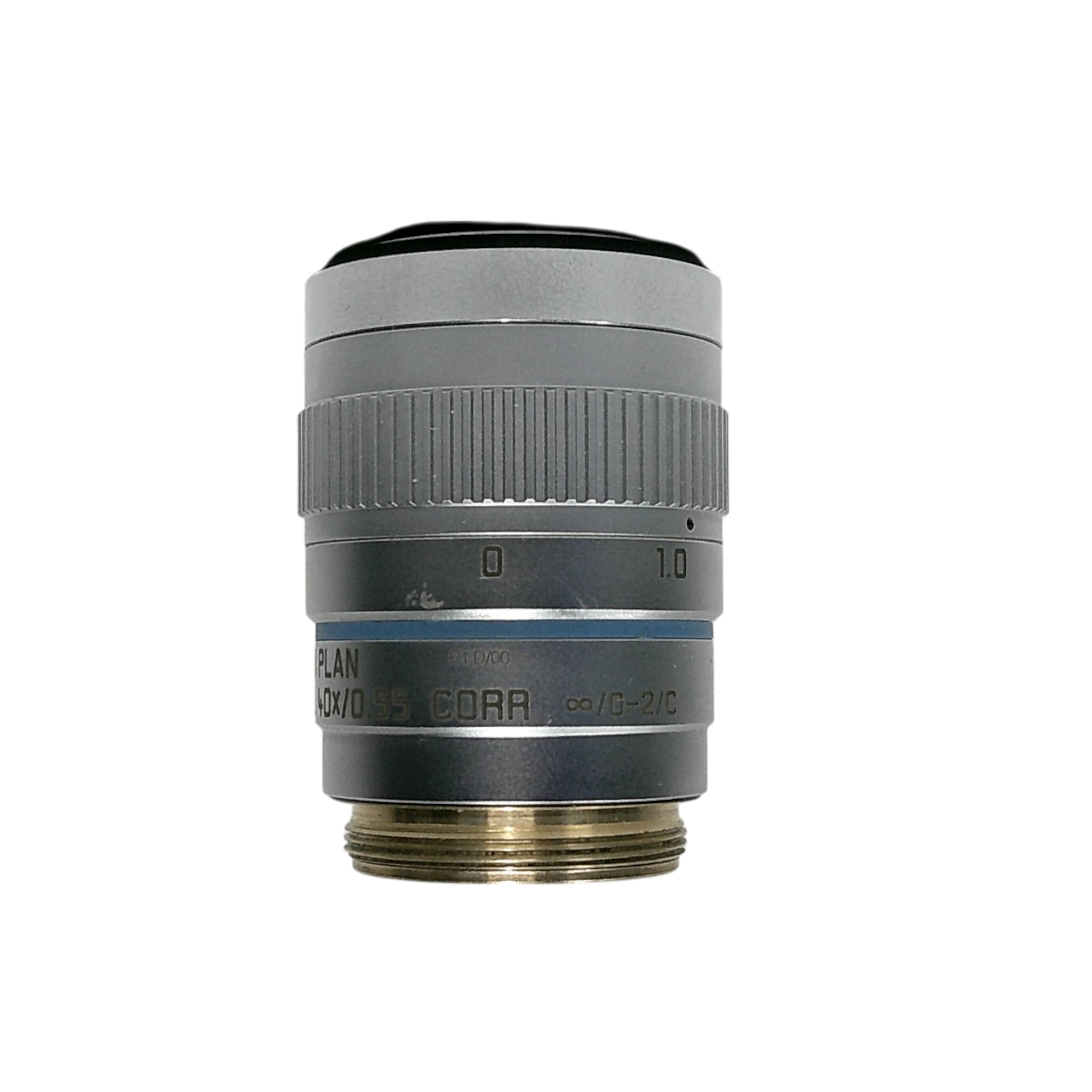

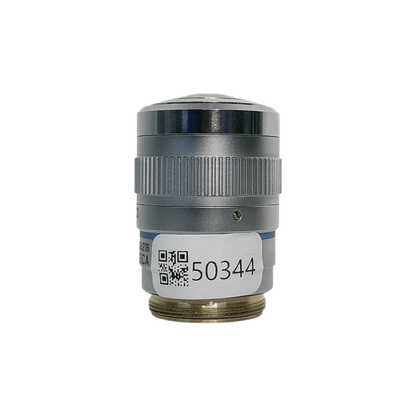

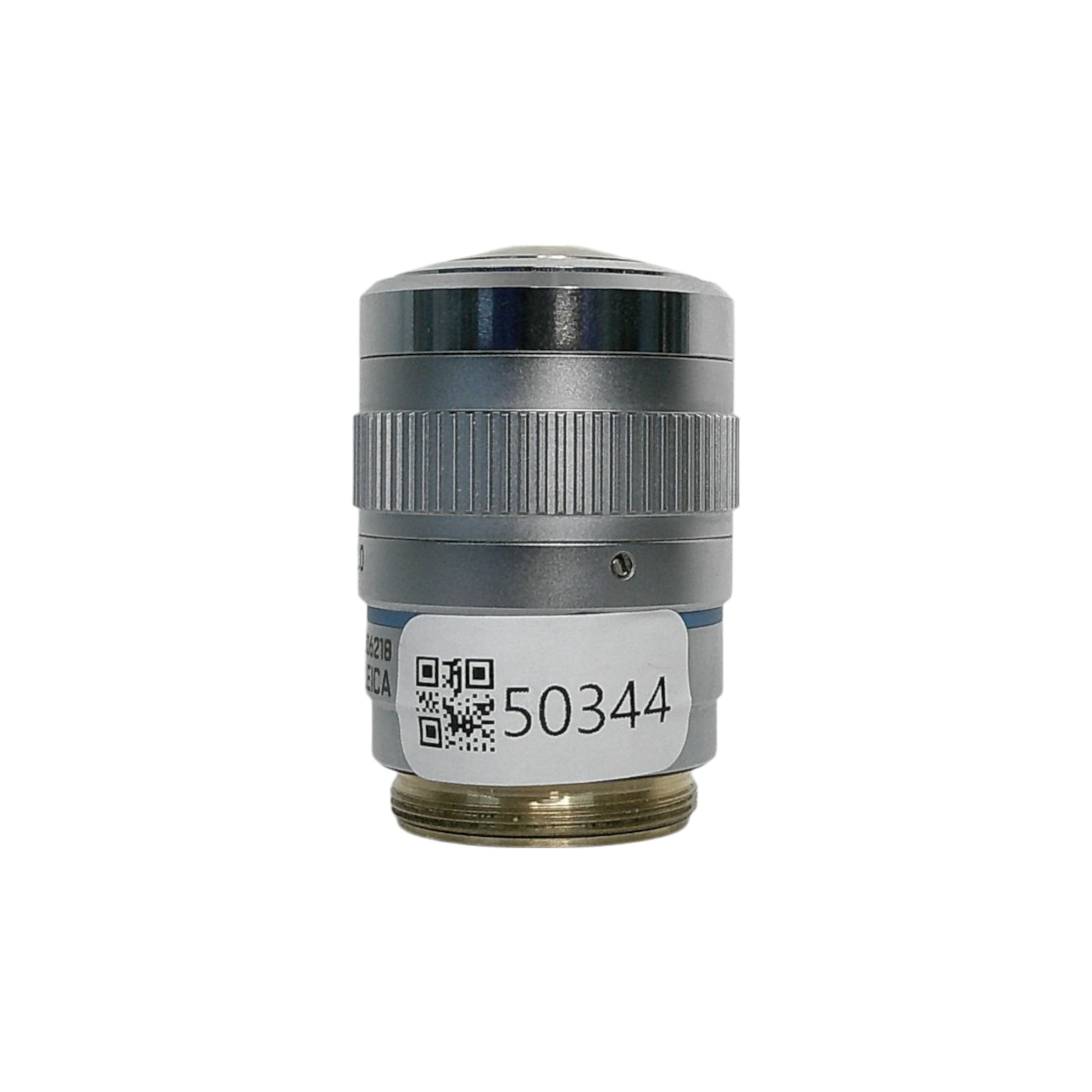

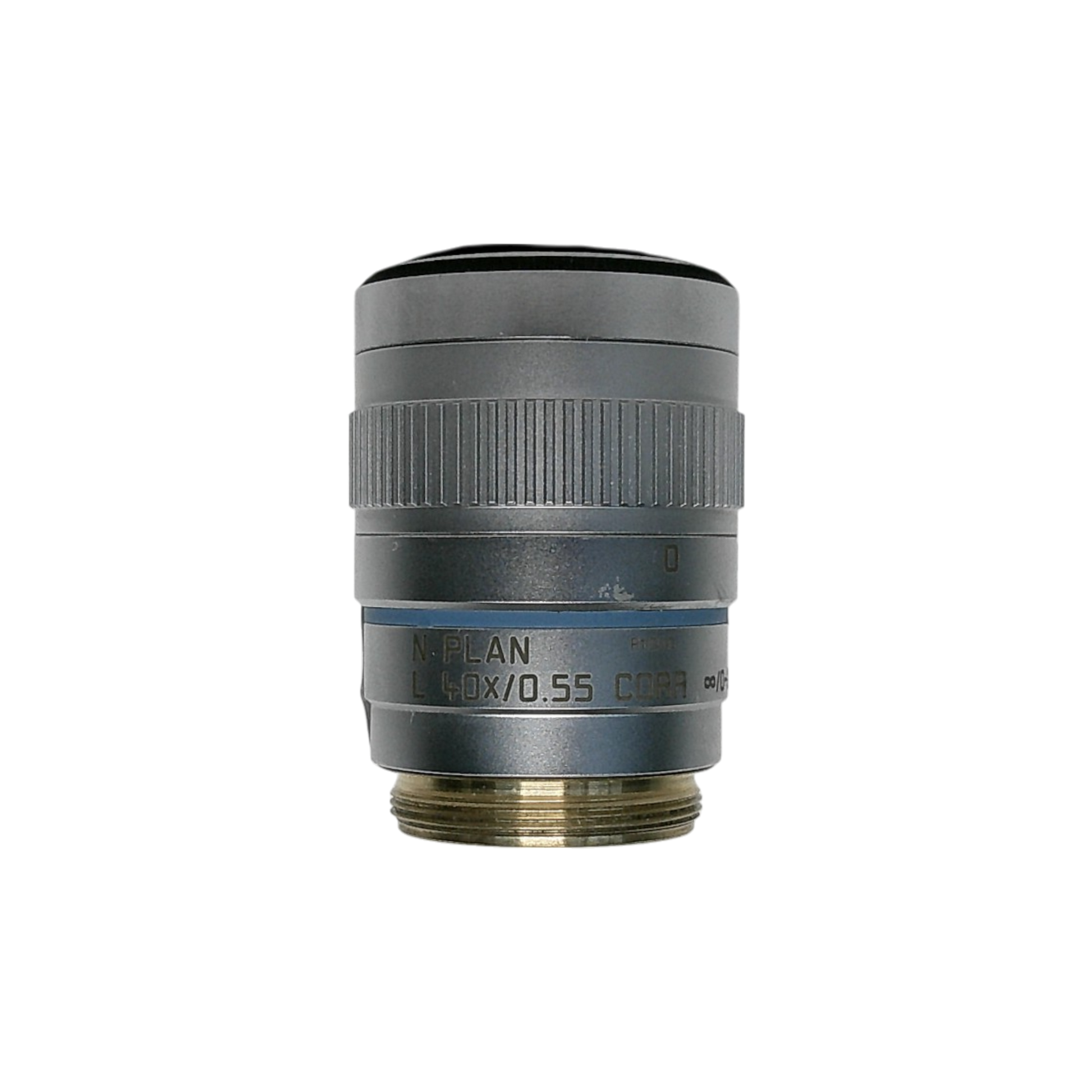

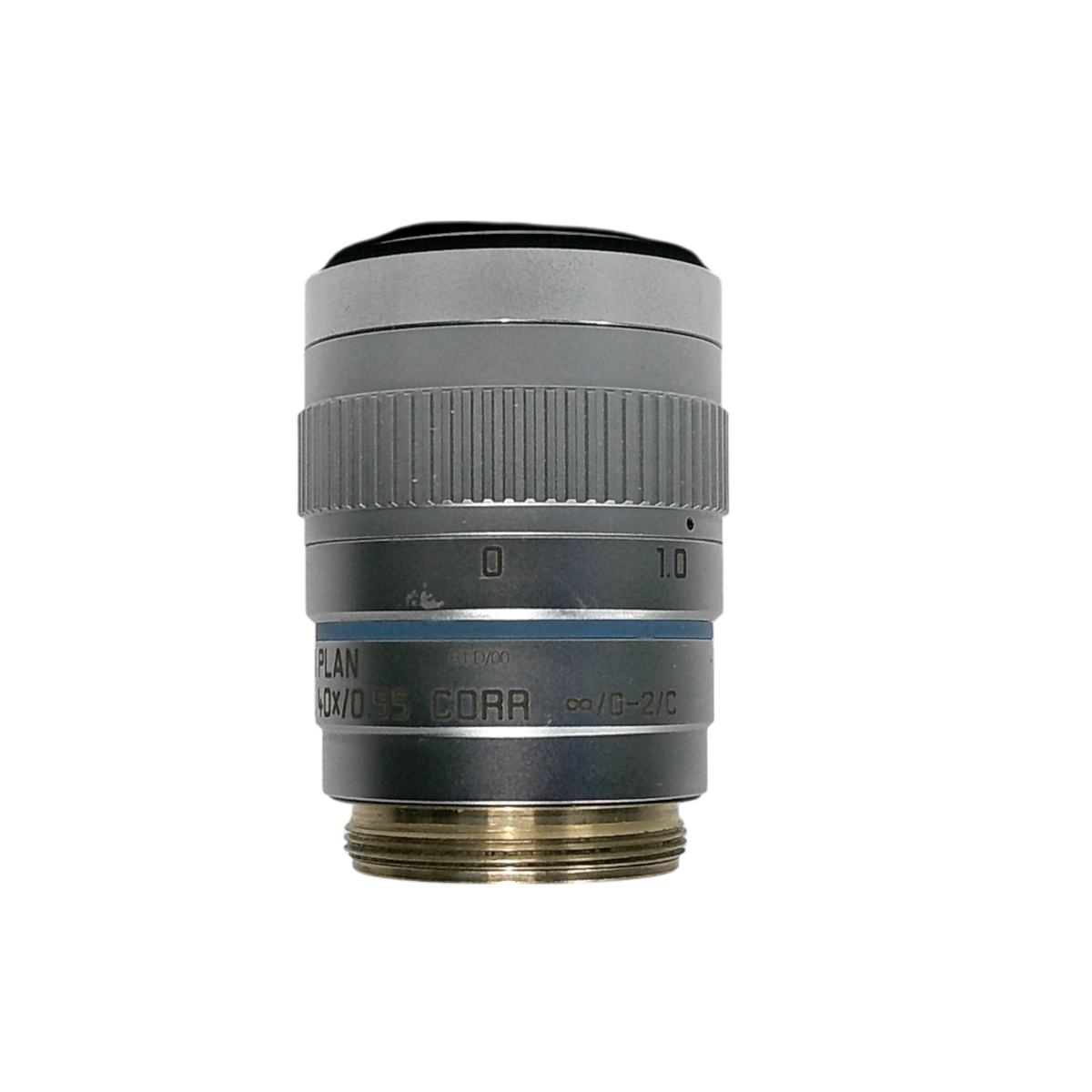

Leica N Plan L 40x/0.55 CORR M25 Thread Size Microscope Objective
Leica N Plan L 40x/0.55 CORR M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Leica N Plan L 40x/0.55 CORR Objective, M25 Thread – Catalog #506218
Enhance your imaging system with the Leica N Plan L 40x/0.55 CORR objective, featuring a robust correction collar for precise compensation of cover glass thickness. Designed with an M25 thread, this objective ensures compatibility with a range of Leica research-grade microscopes. Ideal for routine and advanced biological applications requiring high contrast and resolution.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Magnification: 40x
- Numerical Aperture (NA): 0.55
- Correction Collar: Adjustable for optimized clarity with varying cover glass thickness
- Objective Type: N Plan L (long working distance, flat-field corrected)
- Thread Size: M25 (standard Leica objective thread)
- Optical Quality: Achieves excellent image flatness and contrast across the field of view
- Ideal for: Brightfield microscopy and applications where working distance flexibility is key
Applications
- Histology and pathology
- Cell and tissue culture imaging
- Education and training labs
- Life sciences and biological research
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Leica |
| Model | N Plan L 40x/0.55 CORR |
| Catalog Number | 506218 |
| Magnification | 40x |
| Numerical Aperture | 0.55 |
| Objective Type | N Plan L (Long Working Distance) |
| Correction Collar | Yes |
| Thread Size | M25 |
| Immersion Method | Dry |
| Working Distance | Long (exact distance varies) |
| Field Correction | Plan (flat field) |
Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
Additional Details
Additional Details
- Manufacturer: Leica
- Model: N Plan L 40x/0.55 CORR M25 Thread Size
- Catalog Number: 50344
- Serial Number: N/A
- Condition: Seller Refurbished
