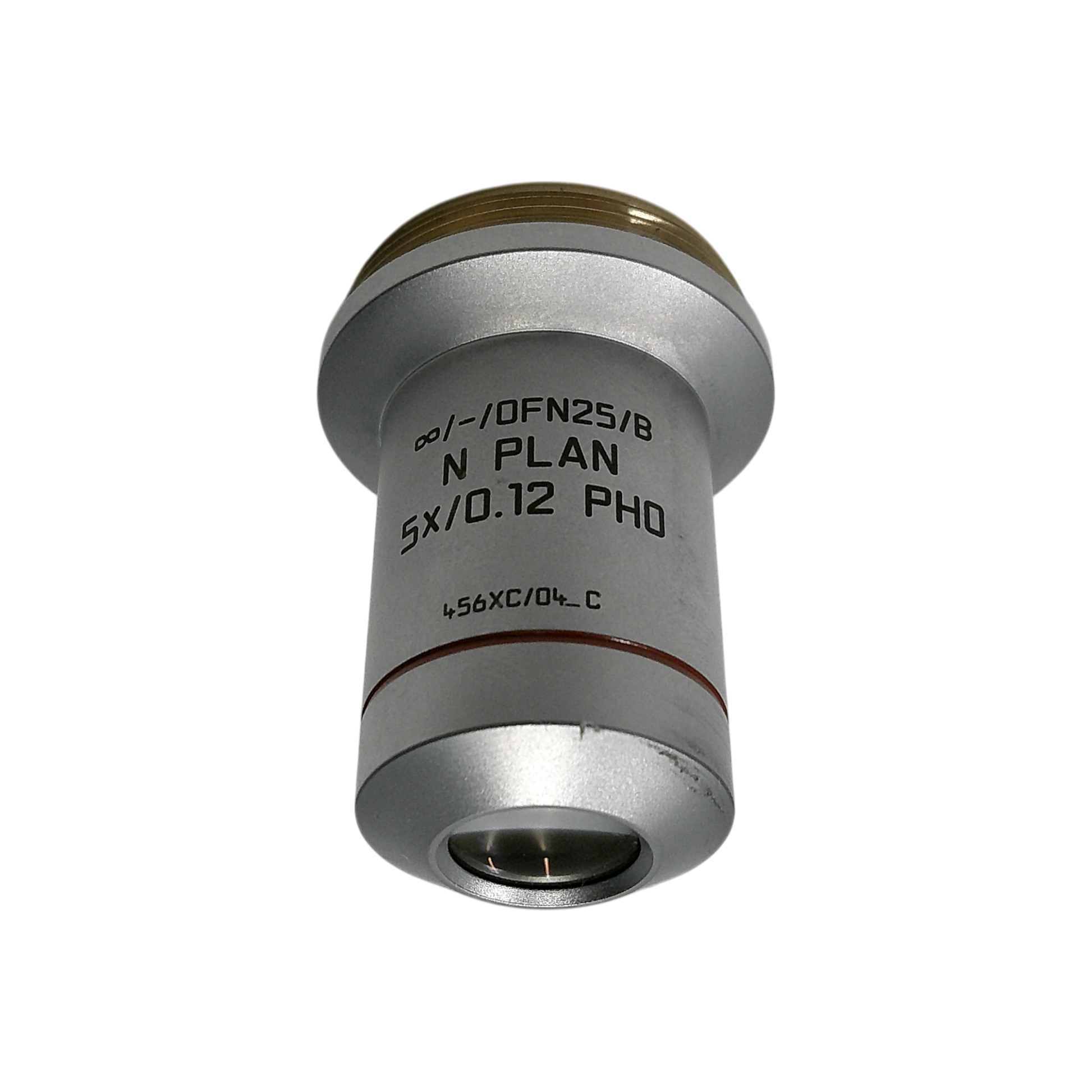

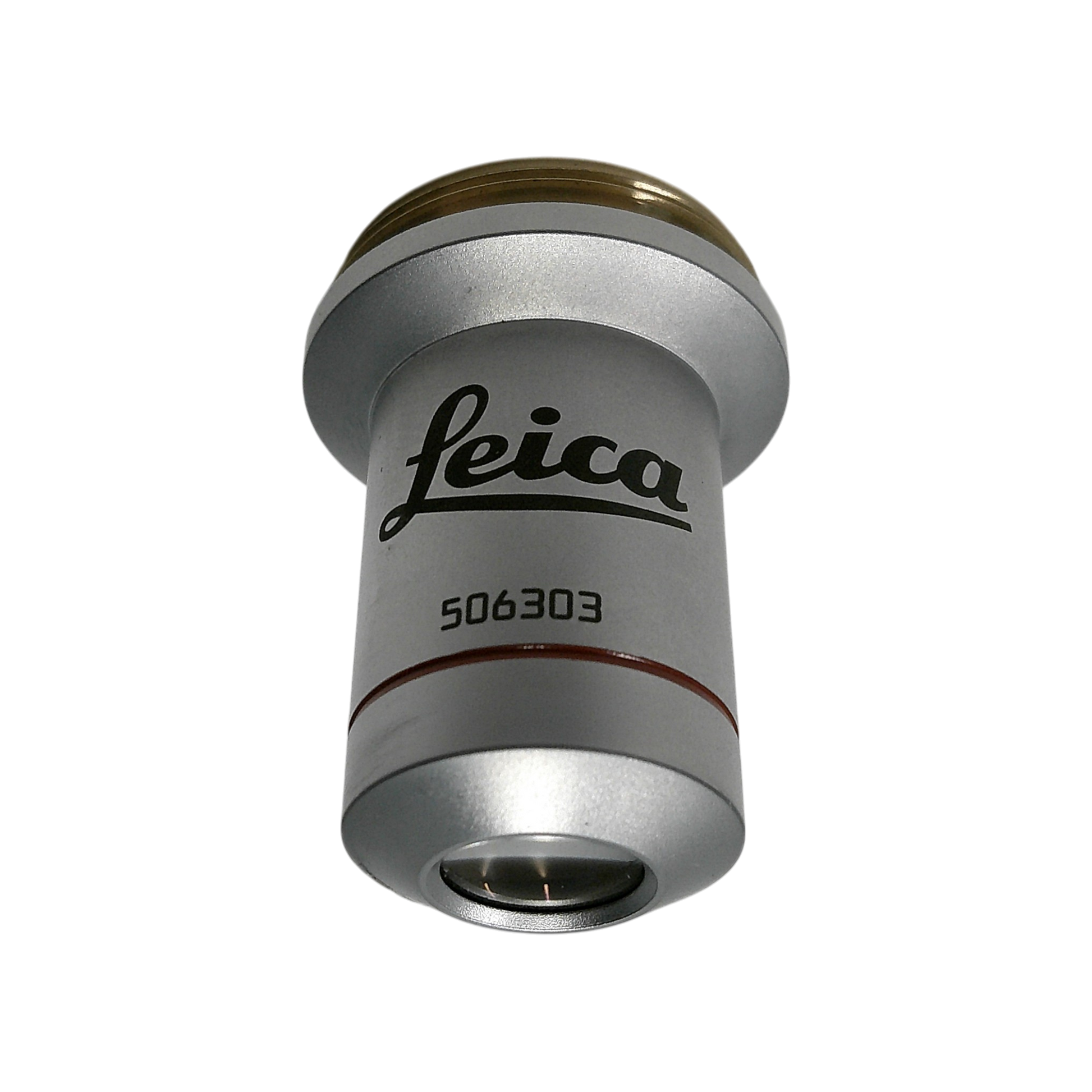

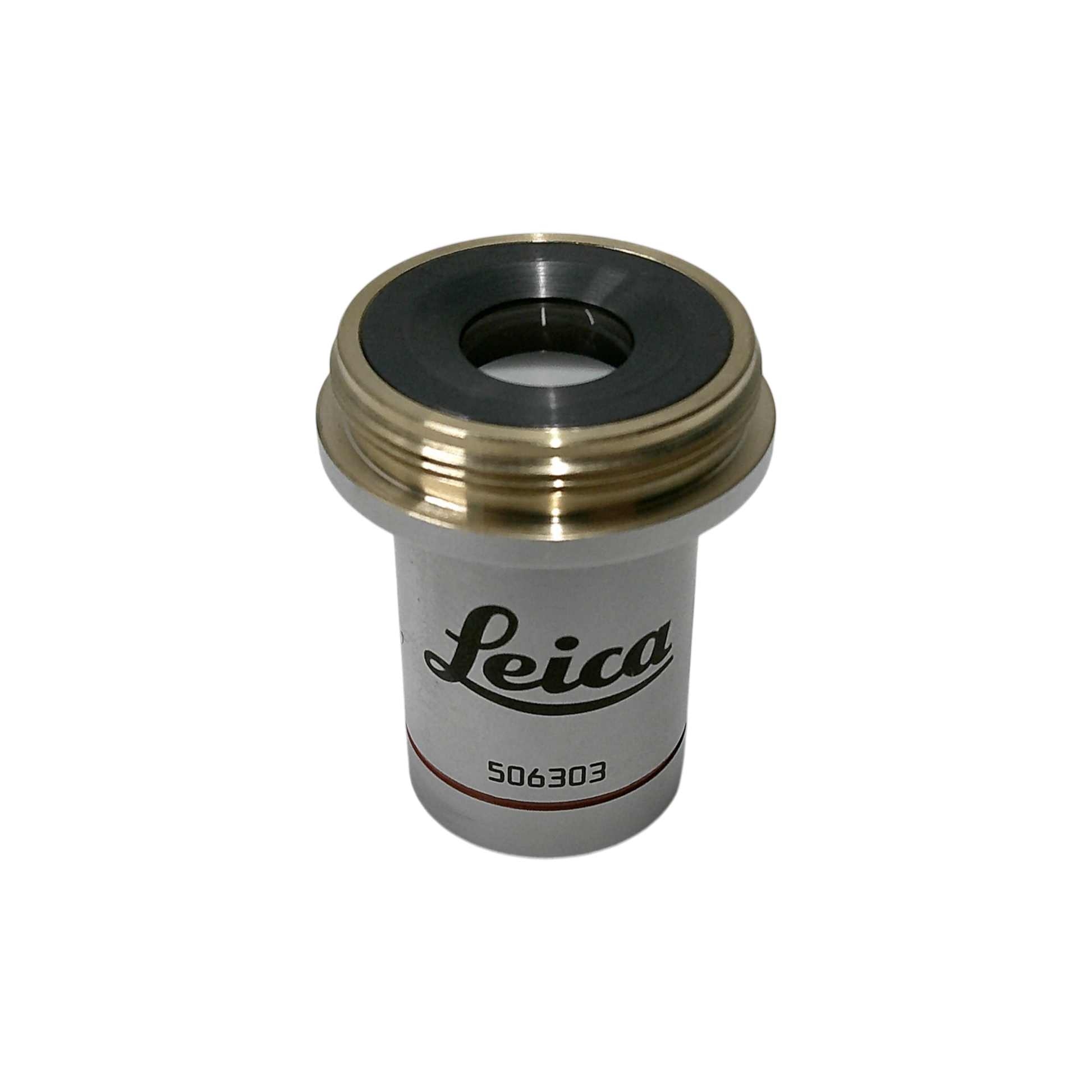

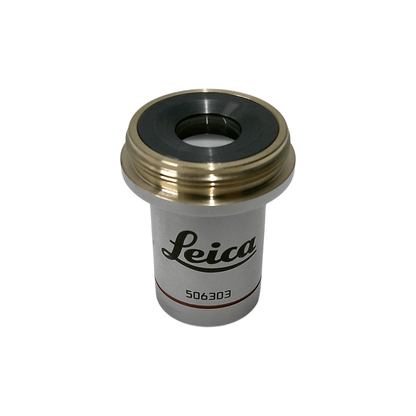

Leica N Plan Ph0 5x/0.12 M25 Thread Size Microscope Objective
Leica N Plan Ph0 5x/0.12 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Leica N Plan PH0 5x/0.12 Phase Contrast Objective | 506303
The Leica N Plan PH0 5x/0.12 Phase Contrast Objective (catalog number 506303) is engineered for high-clarity imaging in transmitted light and phase contrast microscopy. Featuring a 5x magnification and 0.12 numerical aperture, this objective provides excellent contrast for low-magnification observation of transparent specimens. Its infinity-corrected optical design ensures compatibility with modern Leica upright microscopes and offers flat-field performance across the visual field. Ideal for routine biological and clinical applications.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 5x magnification with high clarity and resolution
- Phase contrast (PH0) optimized for transparent, unstained specimens
- Infinity-corrected optical system for Leica microscopes
- M25 thread size for standard compatibility
- Flat-field (N Plan) optical correction for sharp images edge-to-edge
Applications
- Phase contrast microscopy
- Live-cell imaging
- Cytology and histology screening
- Educational and clinical laboratory use
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Leica |
| Model | N Plan PH0 5x/0.12 |
| Catalog Number | 506303 |
| Magnification | 5x |
| Numerical Aperture | 0.12 |
| Optical Correction | N Plan (flat field) |
| Contrast Technique | Phase Contrast (PH0) |
| Thread Size | M25 |
| Optical System | Infinity-corrected |
| Intended Use | Upright compound microscopes |
Additional Details
Additional Details
- Manufacturer: Leica
- Model:
- Catalog Number: 51570h
- Serial Number:
- Condition: Used
