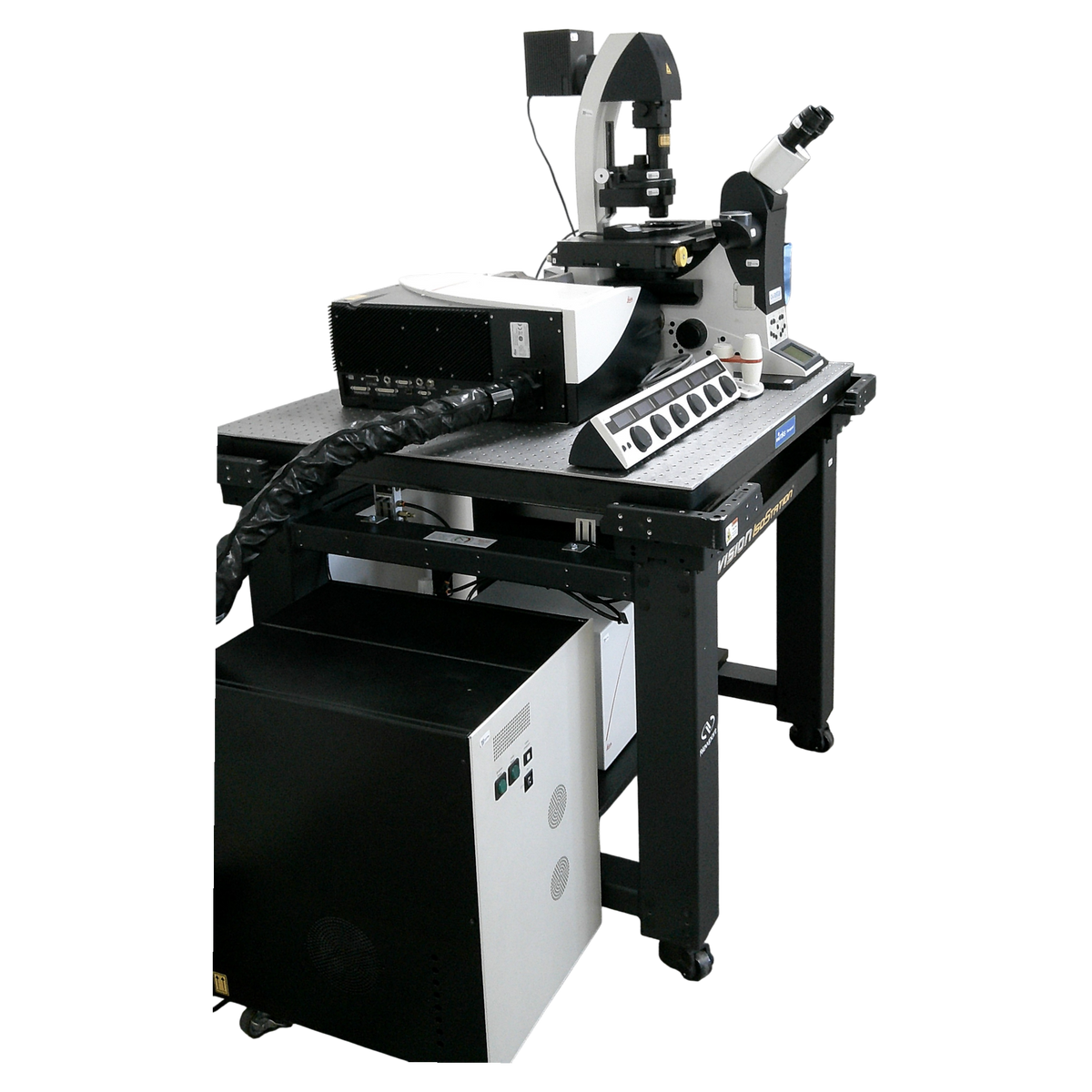

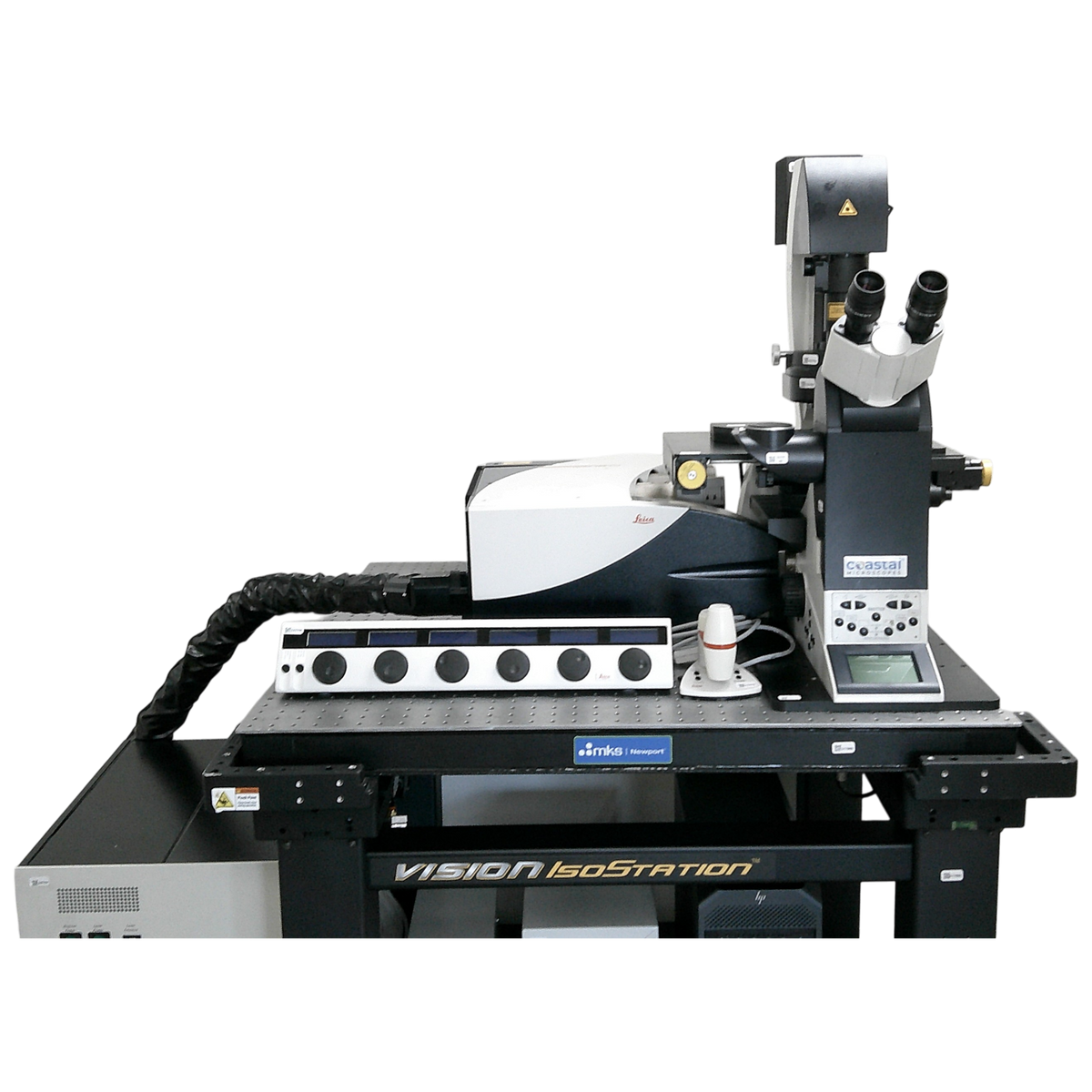

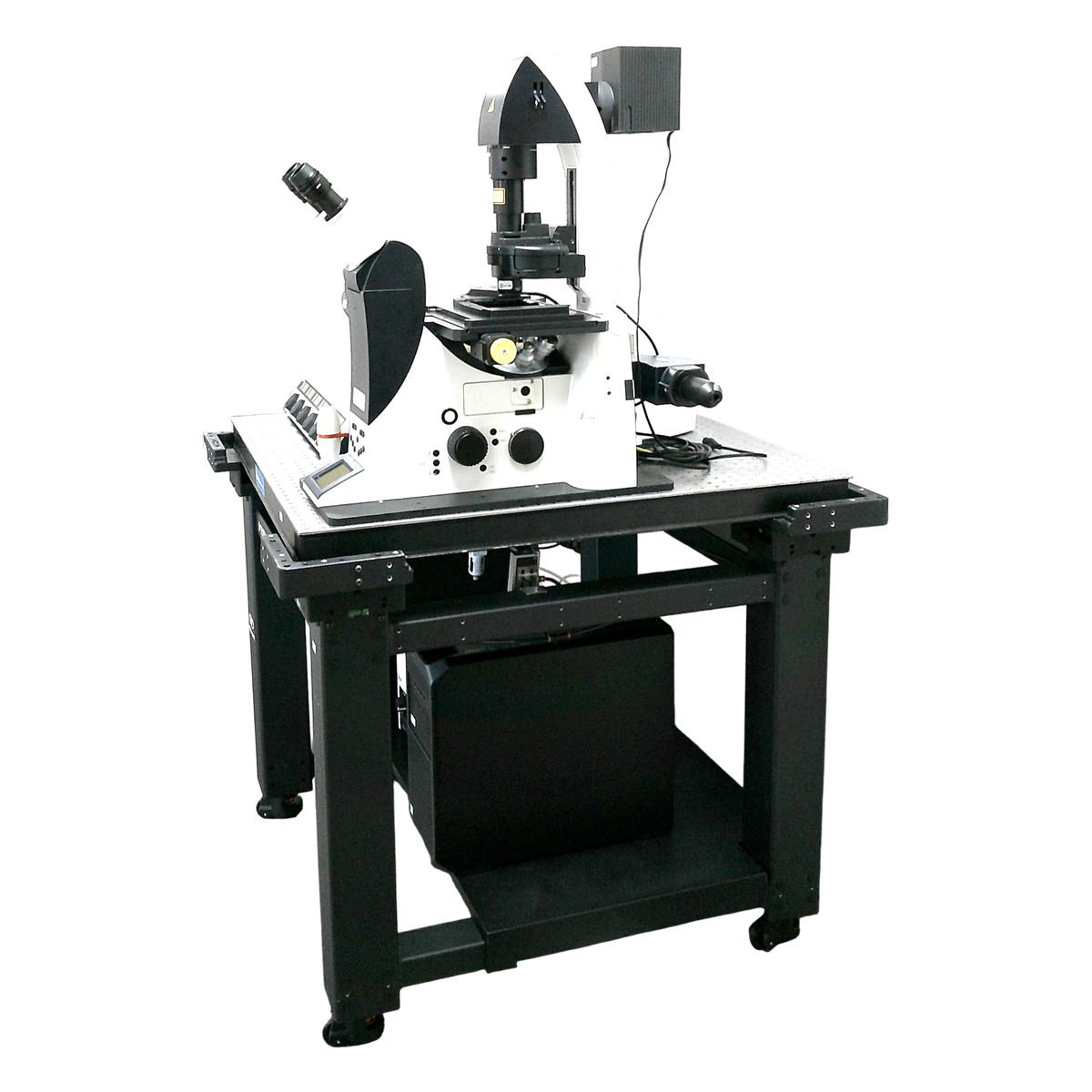

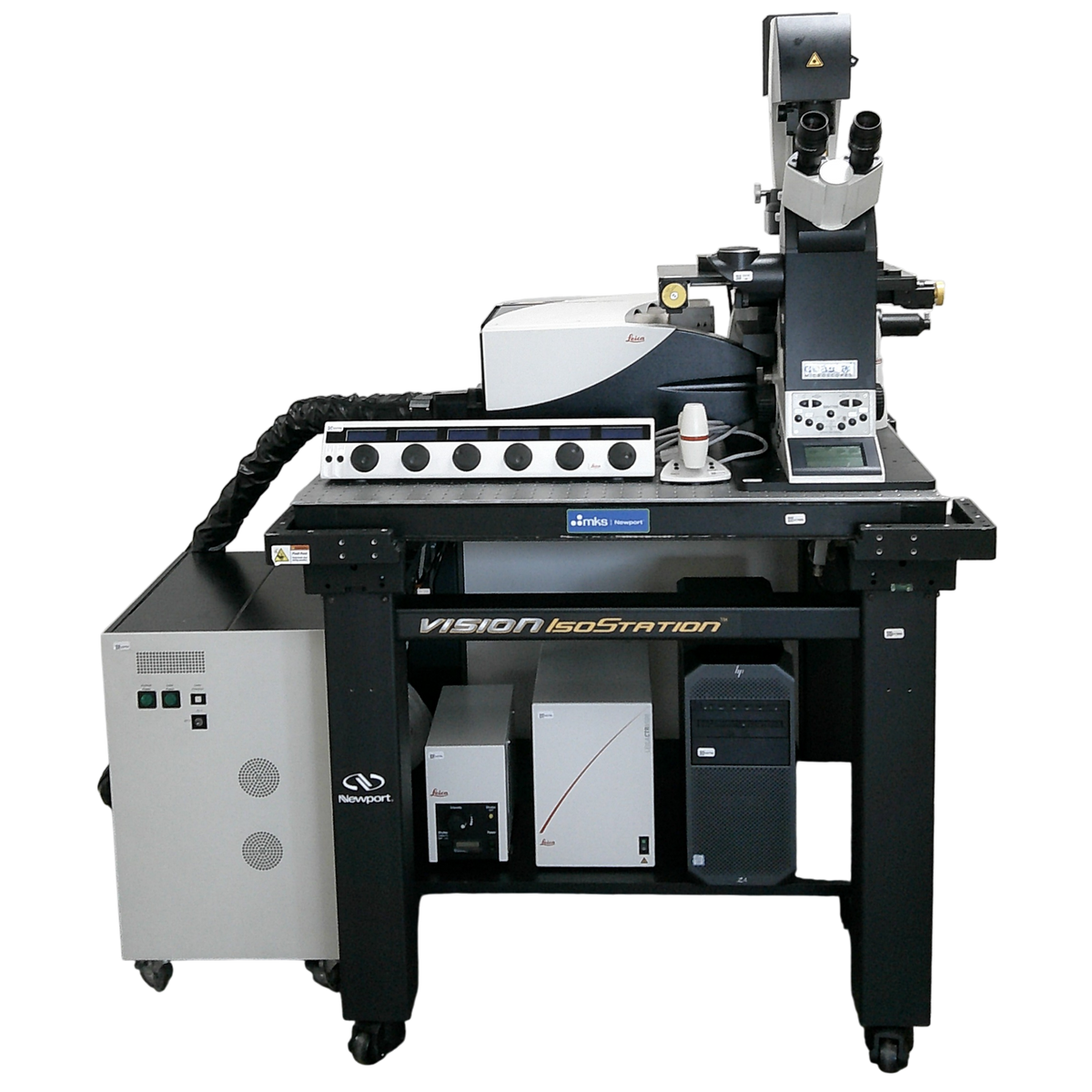

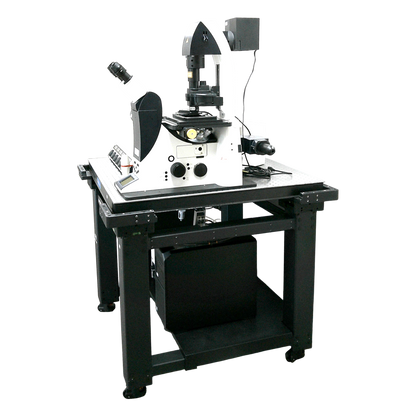

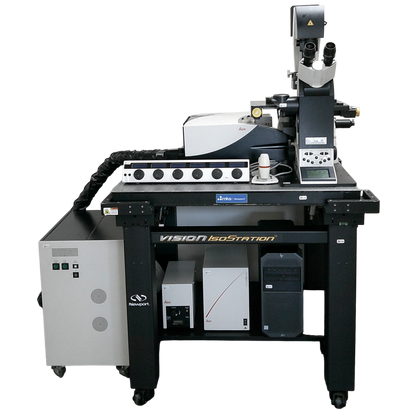

Leica SP8 Laser Confocal w/ DMI6000CS Inverted Phase Contrast Fluorescence Confocal

Leica SP8 Laser Scanning Confocal w/ DMI6000 CS Inverted Phase Contrast Fluorescence Confocal (Used)

The Leica TCS SP8 with DMI6000 CS combines a fully motorized inverted research microscope with Leica's modular spectral confocal imaging platform for advanced fluorescence, live-cell, optical sectioning, and multidimensional microscopy. The DMI6000 CS provides motorized control of focus, nosepiece, condenser, and fluorescence turret, while the TCS SP8 adds high-resolution confocal imaging, spectral detection, Z-stack acquisition, 3D imaging, and configurable multichannel fluorescence workflows.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Leica DMI6000 CS Motorized Inverted Microscope Stand
• Leica TCS SP8 Laser Scanning Confocal Scan Head
• (1) PMT Detector
• (3) HyD Hybrid Detectors, high sensitivity for exceptional signal-to-noise performance
• SP8 Laser Module with Solid State Lasers:
  • 405nm
  • 488nm
  • 514nm
• Binocular Viewing Head with Camera Port
• Motorized Focus Drive
• Nosepiece: 6-Position Motorized Coded Nosepiece
• Motorized Condenser
• Motorized Fluorescence Filter Cube Turret
• Phase Contrast Slider
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Power Supplies and Cabling
• Workstation with Leica LAS X Software
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available, including Leica Scanning Stage with Super Galvo-Z High Speed Focus Module
• Environmental Incubation System
• Optical Table: New and Refurbished options available
• SP8 Laser Configuration:
  • Laser excitation configuration can be customized to the application
  • Solid-state laser configurations available
  • White Light Laser configurations available on compatible SP8 systems
• SP8 Detection: Additional PMT, HyD, and spectral detection configurations available
• Software: Additional Leica LAS X configurations available. Training and method development available.

Illuminator (Choose One):

• Leica EL6000 LLG-Coupled Fluorescence Light Source
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New or Used Leica Illuminator

Key Features

• Integrated Leica DMI6000 CS inverted microscope and TCS SP8 laser scanning confocal platform
• Fully motorized Z-focus, nosepiece, condenser, and fluorescence turret
• Point-scanning confocal imaging for optical sectioning and high-contrast fluorescence acquisition
• Spectral confocal detection with (1) PMT and (3) HyD detectors
• Configurable laser excitation for multicolor fluorescence imaging
• Galvanometric point scanning
• Supports Z-stack, 3D reconstruction, time-lapse, and multidimensional imaging
• Inverted design suited for dishes, flasks, chamber slides, and multi-well plates
• Modular architecture configurable to application-specific research requirements
• Workstation and monitor included

Applications

• Live-cell fluorescence imaging
• Confocal optical sectioning
• Spectral imaging and unmixing
• Multichannel fluorescence imaging
• Z-stack and 3D reconstruction
• Time-lapse and multidimensional imaging
• Multi-position and well plate imaging
• Organoids and tissue sections
• Developmental biology

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
