Leica TCS SP5 II Laser Scanner w/ DM6000 CFS Upright Fluorescence Microscope

Leica TCS SP5 II Laser Scanning Confocal with DM6000 CFS Upright Fluorescence Microscope System

The Leica TCS SP5 II with DM6000 CFS is a high-performance upright fluorescence confocal system designed for flexible and advanced imaging. Pairing Leica's fixed-stage upright optical platform with the spectral TCS SP5 II laser scanner and a GFP/RFP non-descanned detector, this system supports fast acquisition, precise control, and optical sectioning for demanding applications like neuroscience, brain slice work, and thick-tissue imaging.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Leica TCS SP5 II Laser Scanning Confocal System
• Non-Descanned Detector (NDD), GFP/RFP
• 2-Channel Transmitted Light Detector
• Leica DM6000 CFS Upright Fluorescence Microscope
• Leica CTR6500 Control Unit
• Leica TCS SP5 Control Panel Box (Programmable)
• Leica SmartTouch Panel
• Leica SmartMove Joystick
• Leica Lamp Housing 107/2, 12V 100W Halogen
• Leica HC Plan S 10x/25 Eyepieces (Pair)
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Workstation with Leica LAS AF Software
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available, including Märzhäuser EK 75x75 Motorized Stage for DM6000 and Leica Gibraltar XY Stage
• Environmental Incubation System
• Optical Table: New and Refurbished options available, including Newport Air Table (59" x 47.25") with I-2000 Laminar Flow Isolators

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: Leica EL6000 Fluorescence Light Source
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• Upright fixed-stage configuration optimized for thick tissue, brain slices, and electrophysiology setups
• Leica TCS SP5 II scanner provides high-speed spectral confocal imaging
• Spectral detection with user-defined emission bandwidths
• GFP/RFP non-descanned detector (NDD) for efficient signal collection from deep and scattering samples, multiphoton upgrade ready
• 2-channel transmitted light detector for simultaneous confocal fluorescence and transmitted light/DIC overlays
• Modular control via SmartTouch Panel, SmartMove Joystick, and programmable control panel
• Optional motorized stage, incubation, and LED fluorescence illumination
• Workstation and monitor included

Applications

• Neuroscience and brain slice imaging
• Confocal fluorescence microscopy
• Thick sample and deep tissue imaging
• GFP/RFP reporter imaging
• Spectral imaging and unmixing
• High-speed multichannel fluorescence acquisition
• Correlated fluorescence and transmitted light imaging
• Z-stack and 3D reconstruction
• Live-cell and time-lapse imaging

Specifications

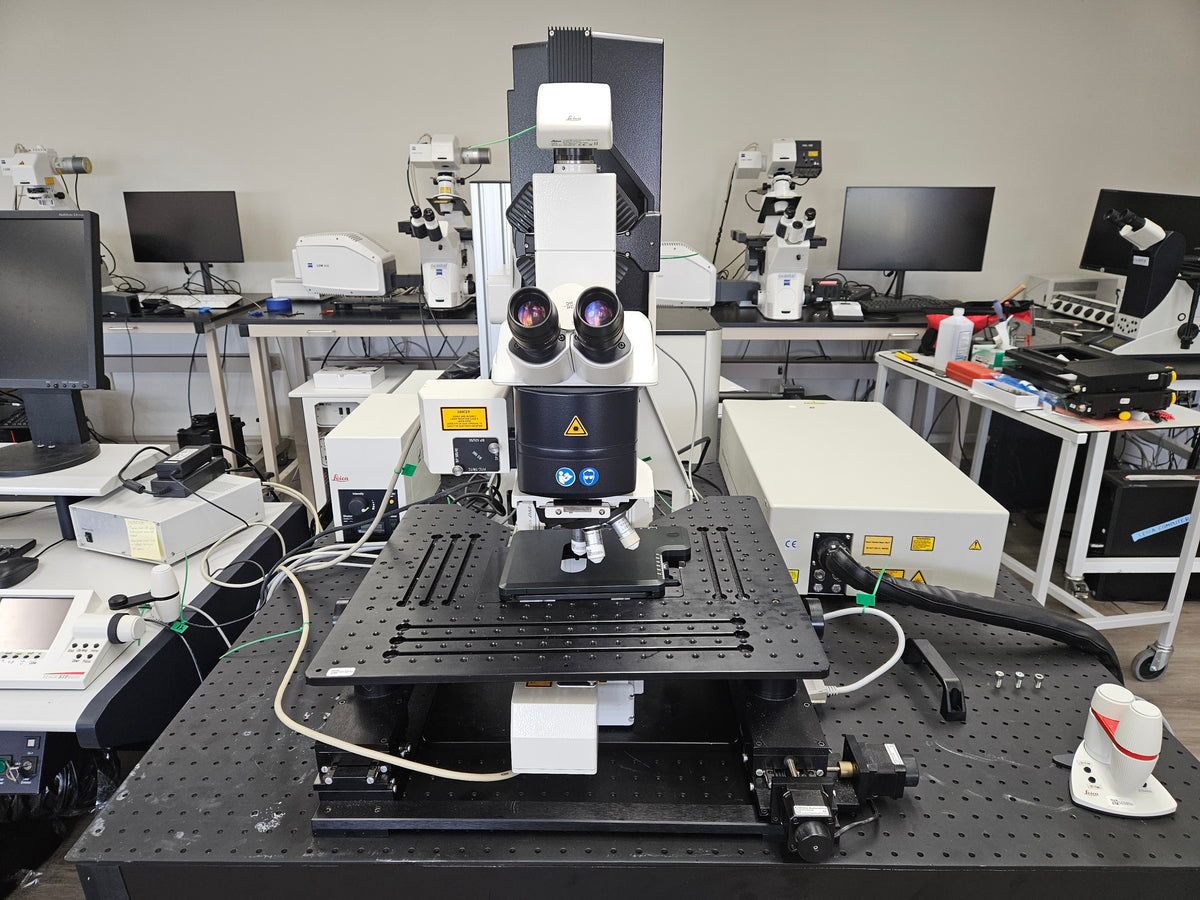

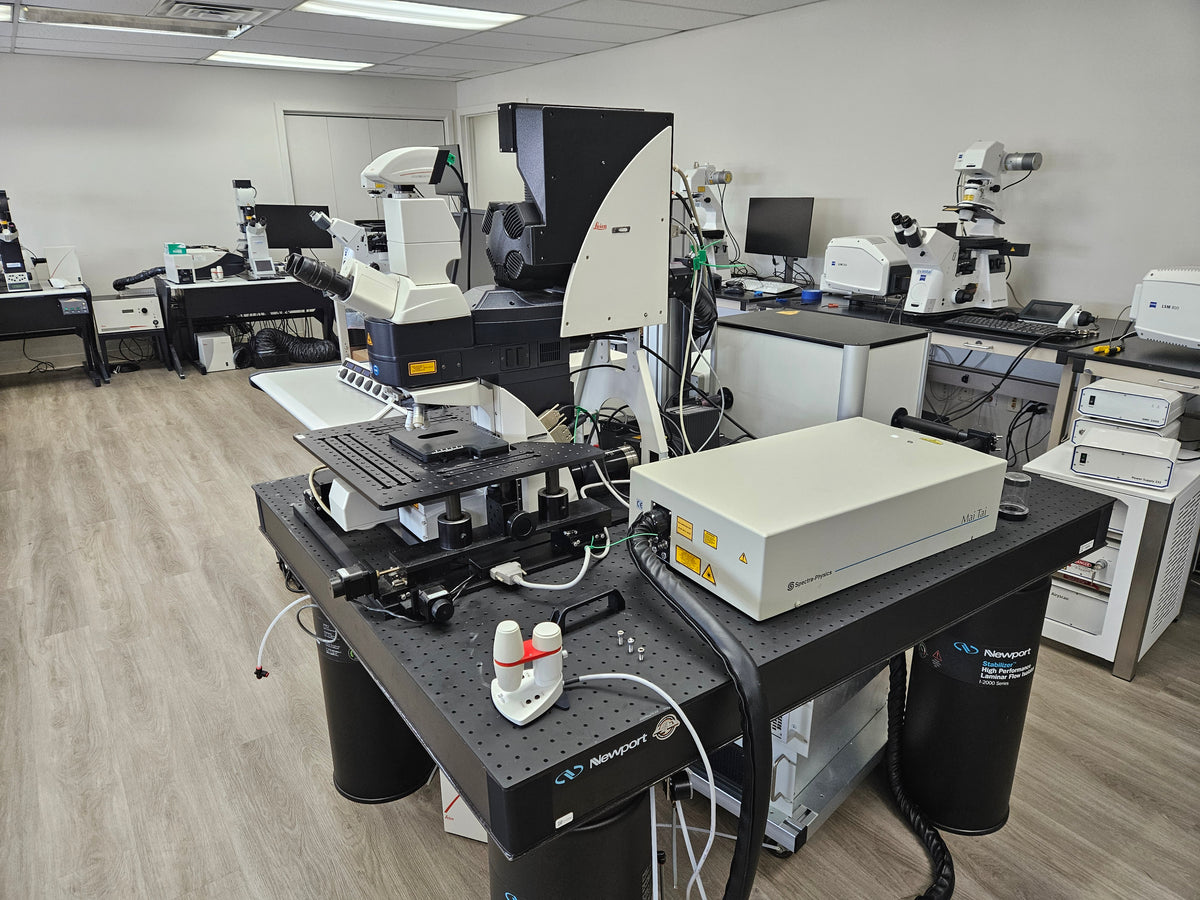

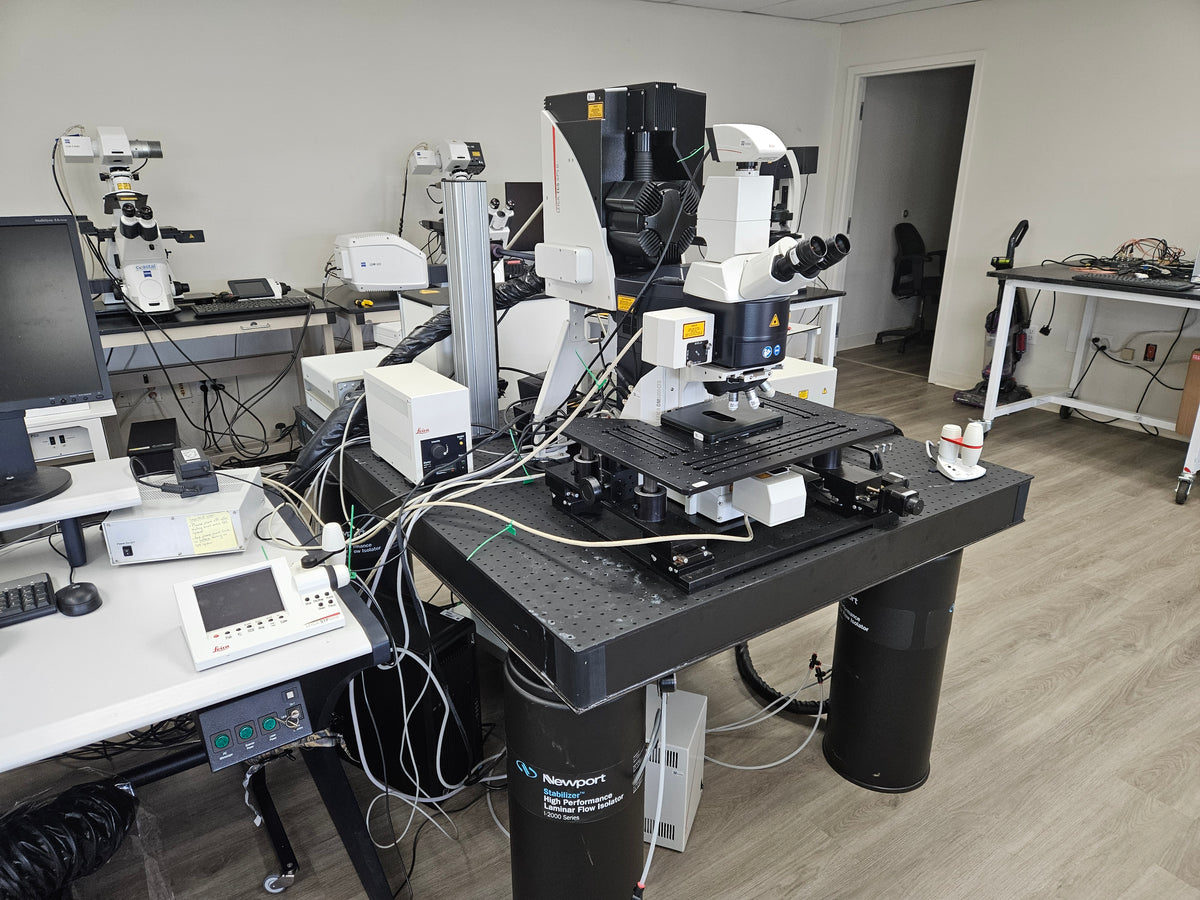

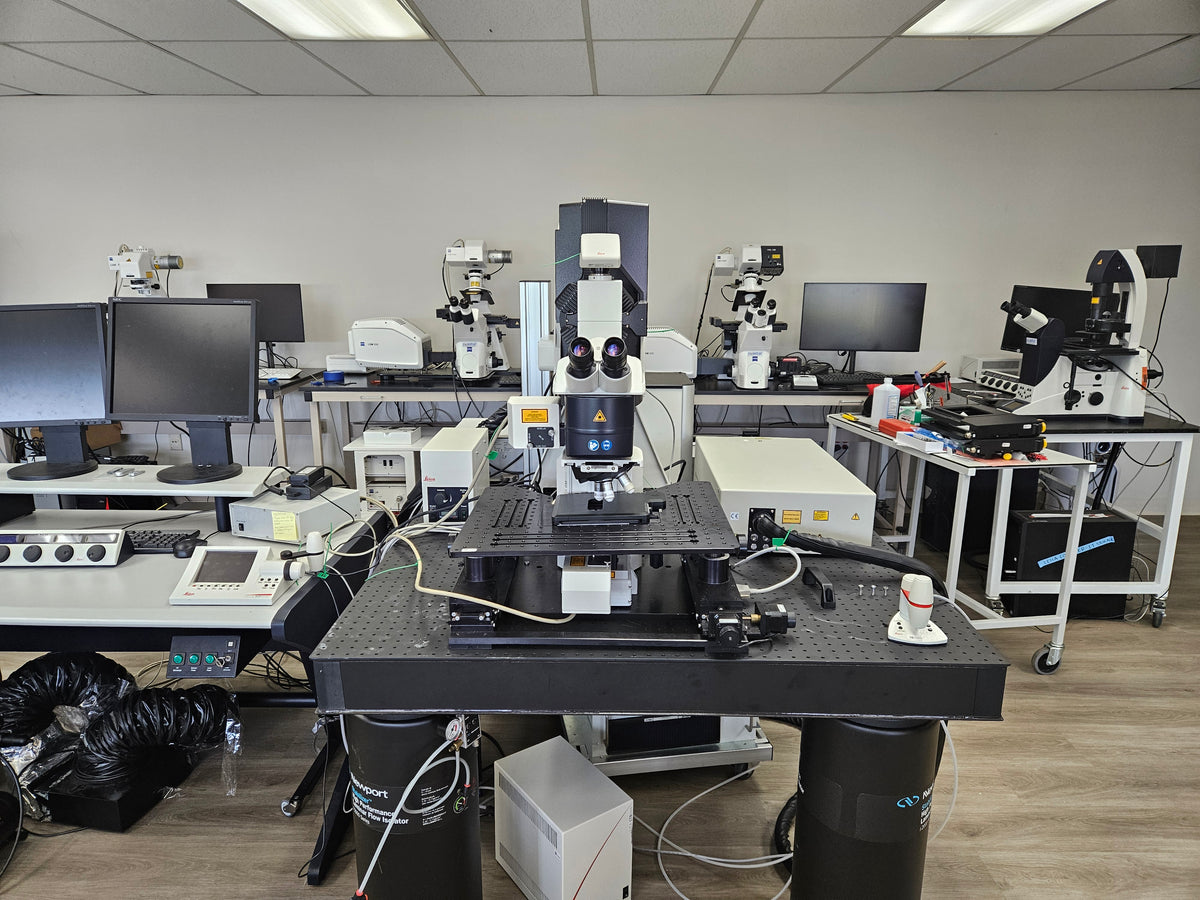

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
