Leica TCS SP8 Laser Confocal w/ DMI8 Inverted Phase Contrast Fluorescence Scan Unit Confocal

Leica DMi8 Automated Inverted Fluorescence Microscope with TCS SP8 Laser Scanning Confocal System and Optional DLS Light Sheet Module (Used)

The Leica DMi8 with TCS SP8 Laser Scanning Confocal System combines a fully motorized inverted research microscope with Leica's modular spectral confocal imaging platform for advanced fluorescence, live-cell, optical sectioning, and multidimensional microscopy. The DMi8 provides motorized control of focus, nosepiece, condenser, and fluorescence turret, while the TCS SP8 adds high-resolution confocal imaging, spectral detection, Z-stack acquisition, 3D imaging, and configurable multichannel fluorescence workflows.

The optional DLS Light Sheet module adds a high-speed, high-resolution imaging mode for visualizing fast-changing biological processes with drastically reduced phototoxicity.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Leica DMi8 Automated Inverted Microscope Stand
• Leica TCS SP8 Laser Scanning Confocal Scan Head
• (3) PMT Detectors
• (2) HyD Hybrid Detectors, high sensitivity for exceptional signal-to-noise performance
• SP8 Laser Source / Laser Module
• Binocular Viewing Head with Camera Port
• Motorized Focus Drive
• Nosepiece: 6-Position Motorized Coded Nosepiece
• Motorized Condenser
• Motorized Fluorescence Filter Cube Turret
• Phase Contrast Slider
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Power Supplies and Cabling
• Workstation with Leica LAS X Software
• Monitor

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available, including Leica Scanning Stage with Super Galvo-Z High Speed Focus Module
• Leica Adaptive Focus Control (AFC) Autofocus System
• Environmental Incubation System
• Optical Table: New and Refurbished options available
• DLS Light Sheet Module:
  • Leica DLS Condenser and TL Column Camera Adapter
  • Hamamatsu ORCA-Flash4.0 Camera
  • DLS Objectives: 5x/0.15, 16x/0.60, 25x/0.95W
  • DLS Software Module for LAS X
• SP8 Laser Configuration:
  • Laser excitation configuration can be customized to the application
  • Solid-state laser configurations available
  • White Light Laser configurations available on compatible SP8 systems
• SP8 Detection: Additional PMT, HyD, and spectral detection configurations available
• SP8 Scanning: Resonant scanning available on compatible configurations
• Software: Additional Leica LAS X configurations available. Training and method development available.

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New or Used Leica Illuminator

Key Features

• Integrated Leica DMi8 inverted microscope and TCS SP8 laser scanning confocal platform
• Fully motorized Z-focus, nosepiece, condenser, and fluorescence turret
• Point-scanning confocal imaging for optical sectioning and high-contrast fluorescence acquisition
• Spectral confocal detection with (3) PMT and (2) HyD detectors
• Configurable laser excitation for multicolor fluorescence imaging
• Standard galvanometric scanning, with resonant scanning available on compatible configurations
• Optional DLS Light Sheet module for fast, low-phototoxicity imaging
• Optional Adaptive Focus Control (AFC) for drift-free time-lapse imaging
• Supports Z-stack, 3D reconstruction, time-lapse, and multidimensional imaging
• Inverted design suited for dishes, flasks, chamber slides, and multi-well plates
• Modular architecture configurable to application-specific research requirements
• Workstation and monitor included

Applications

• Live-cell fluorescence imaging
• Confocal optical sectioning
• Spectral imaging and unmixing
• Multichannel fluorescence imaging
• Z-stack and 3D reconstruction
• Time-lapse and multidimensional imaging
• Multi-position and well plate imaging
• Light sheet imaging of fast biological processes (with optional DLS module)
• Organoids and tissue sections
• Developmental biology

Specifications

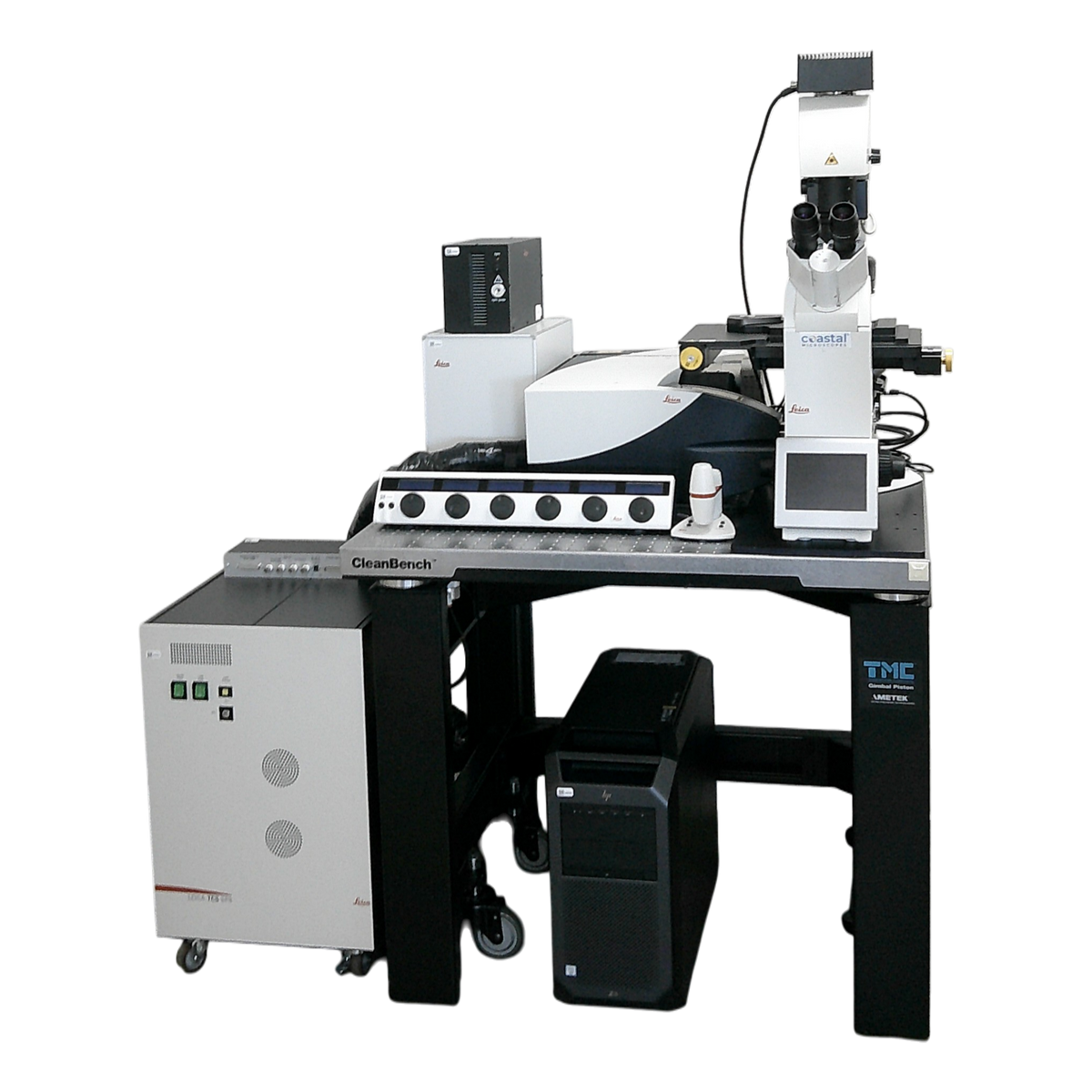

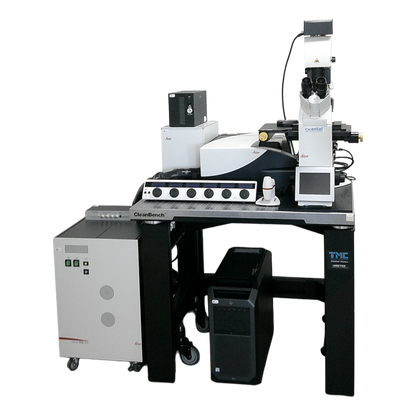

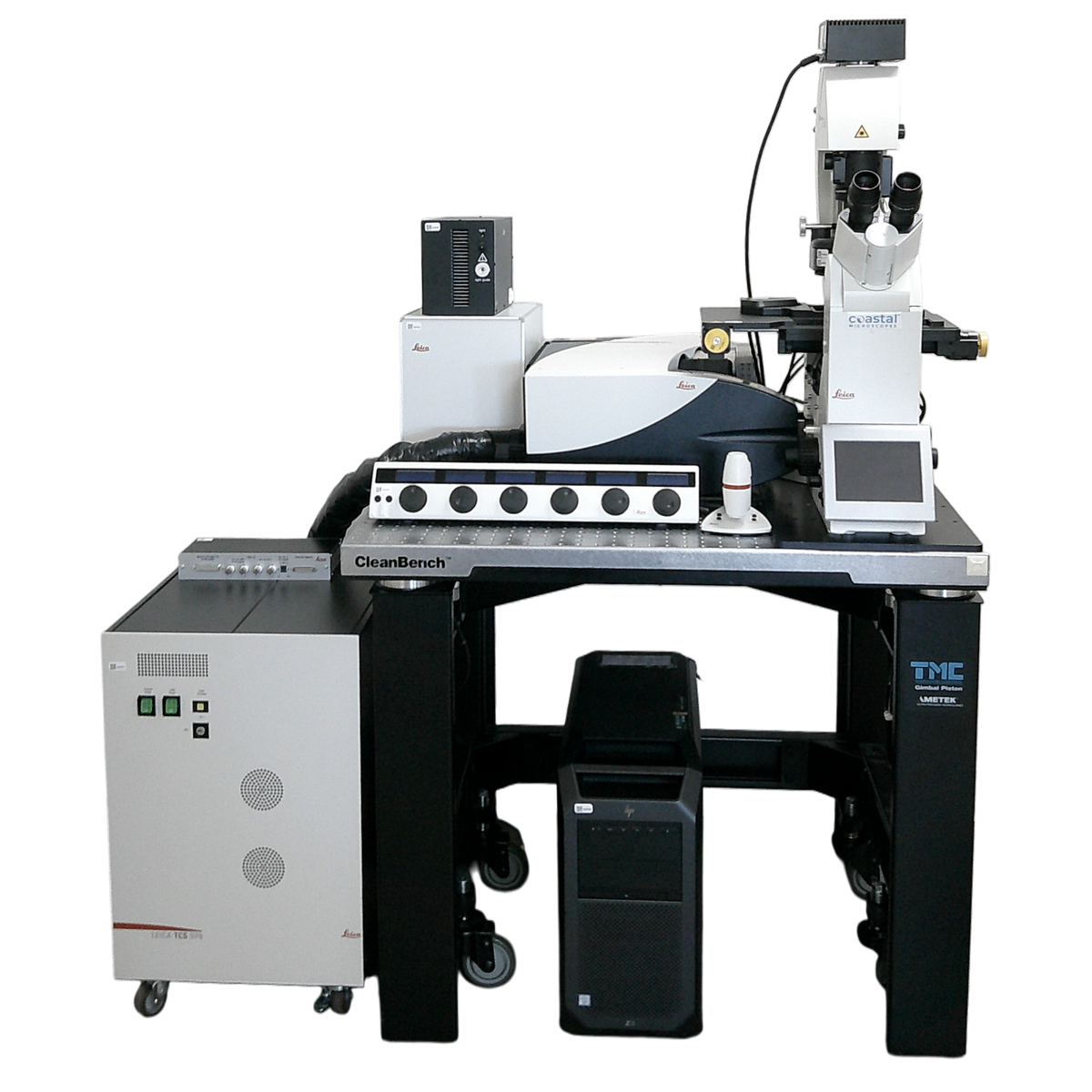

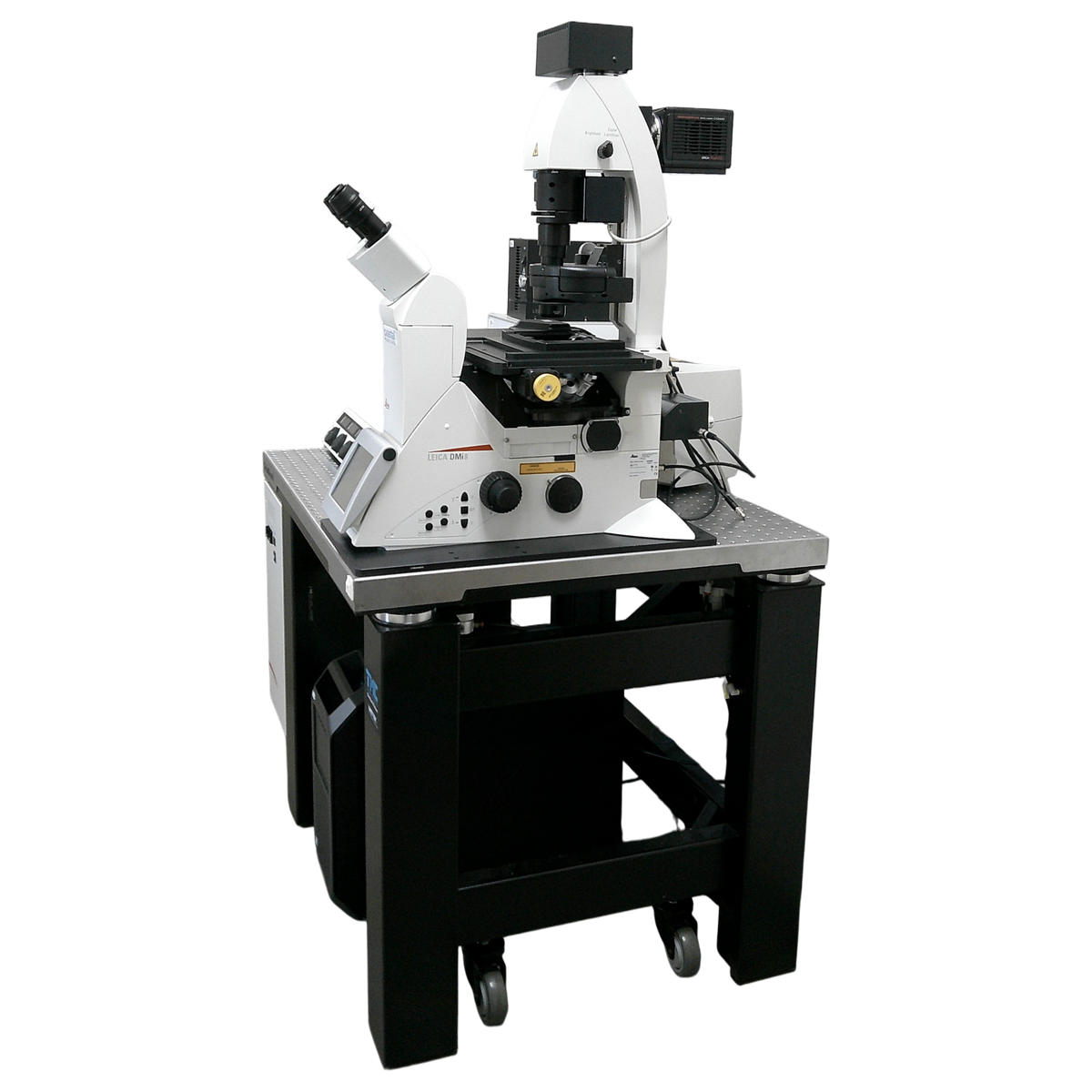

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
