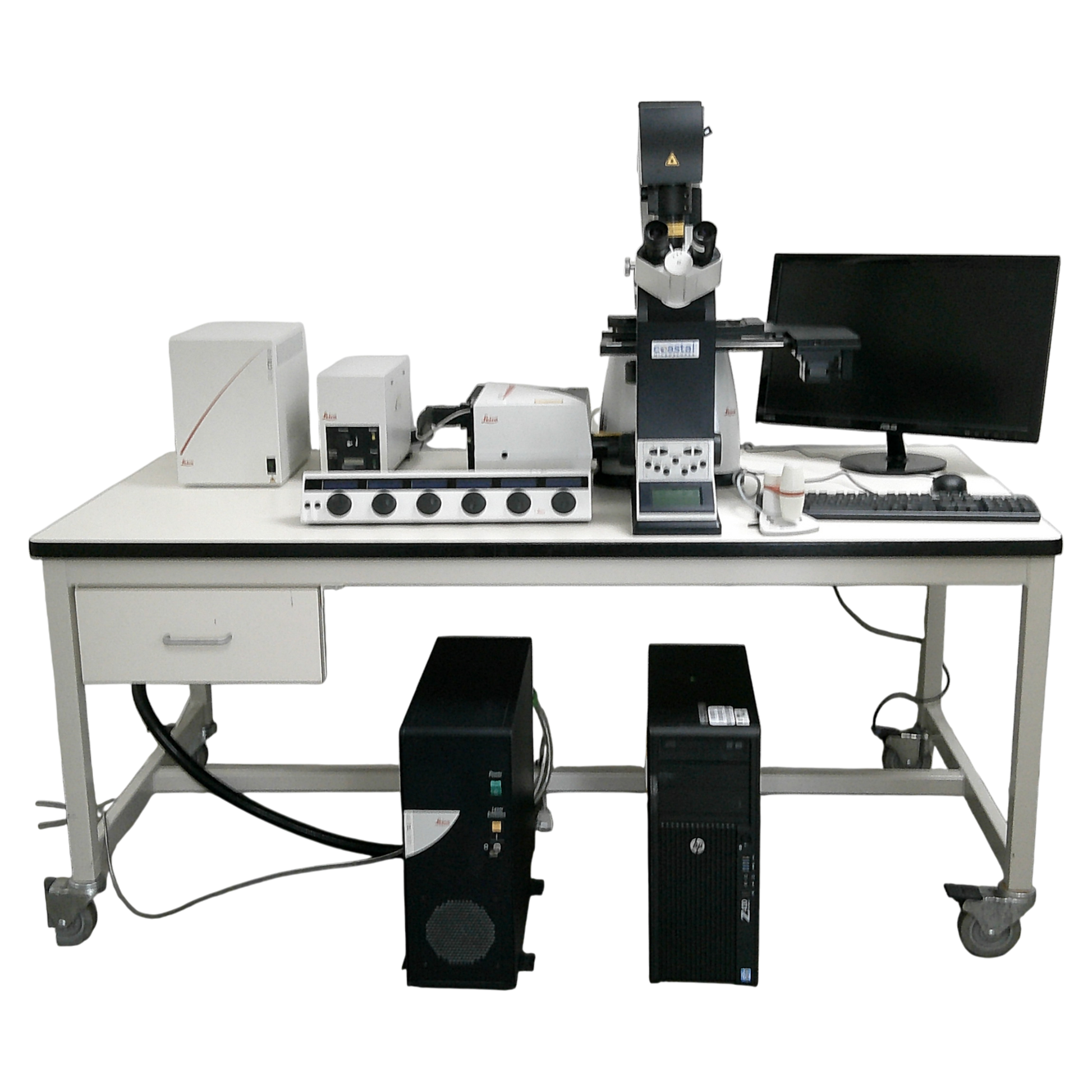

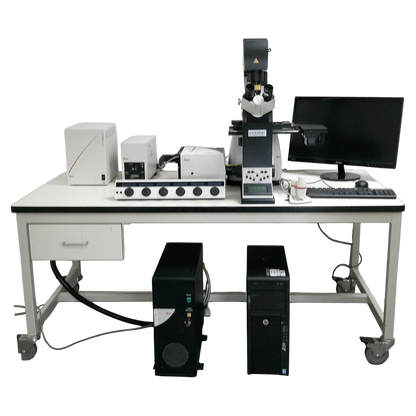

Leica TCS SPE Scanhead w/ DMI4000B Inverted Phase Contrast Fluorescence Microscope Confocal

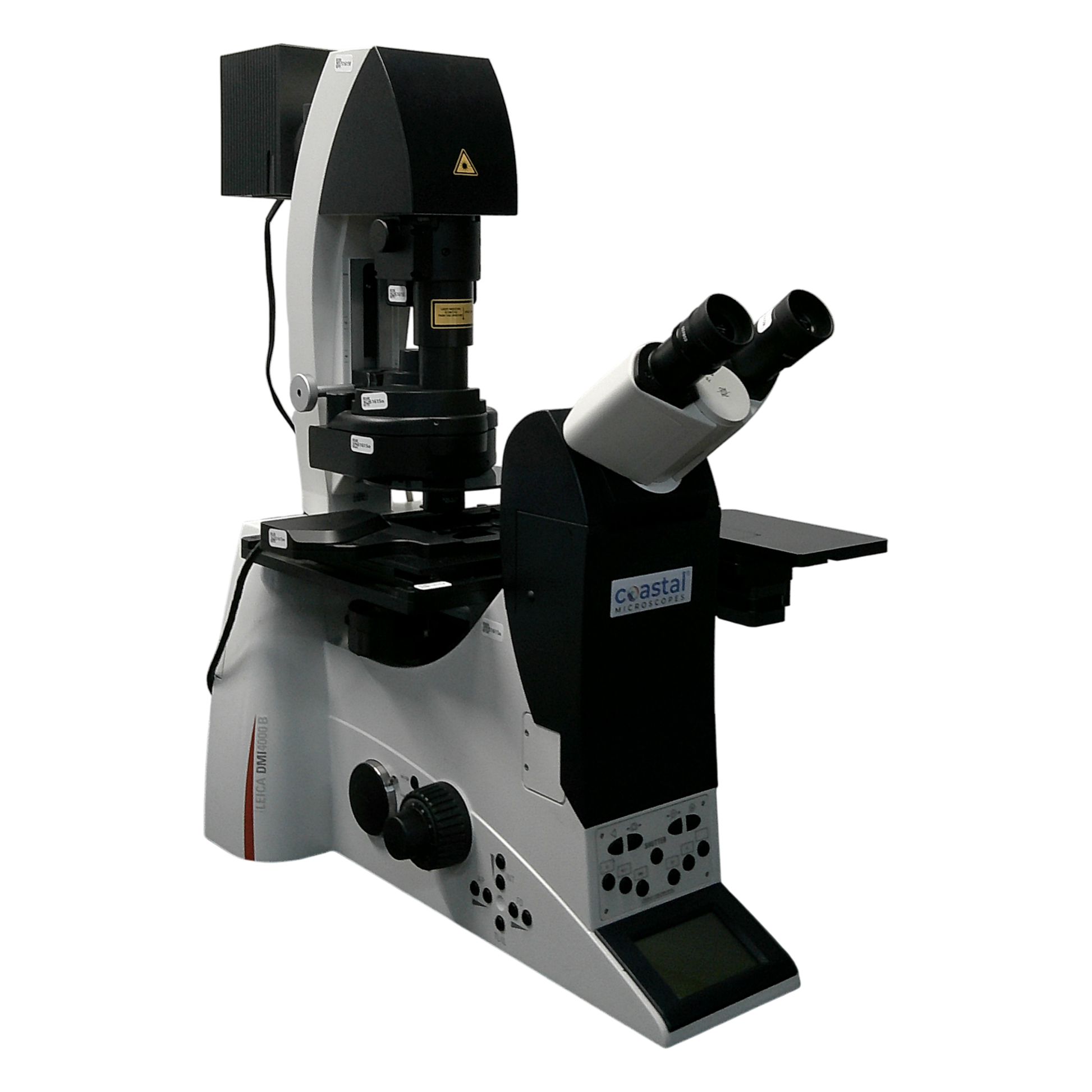

Leica DMI4000B Inverted Phase Contrast Fluorescence Microscope with TCS SPE Confocal Scanhead

The Leica DMI4000B is a professional-grade inverted phase contrast fluorescence microscope equipped with a Leica TCS SPE confocal scanhead, delivering precise, high-resolution imaging ideal for demanding research applications. This system seamlessly combines brightfield, phase contrast, and fluorescence imaging for exceptional versatility in live-cell and fixed-sample analysis. Integrated software and motorized components make it a powerful tool for high-throughput, multi-dimensional imaging workflows.

---

Includes:

• Leica TCS SPE Scan Head with RYBV Solid-State Laser Launch
• Leica TCS SPE Control Panel (Cat# 156504750)
• Leica DMI4000 B Microscope Body (Inverted)
• PC Workstation with Leica LAS X Software and License Dongle
• Binocular Viewing Head
• Widefield Eyepieces
• Manual Condenser – Supports Phase Contrast and Brightfield
• Motorized Nosepiece – Holds up to 6 objectives
• Motorized Fluorescence Filter Cube Turret – Includes (3) Filter Cubes of Your Choice (Additional Cubes Available)
• Transmitted Light Arm and Power Supply
• 100w Mercury Lamphouse and Power Supply
• Motorized Light Path Selector
• Left-Side C-Mount Camera Port

---

Illuminator (Choose One):

• 100w Mercury with Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter – Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System – Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S with 1.5m Liquid Light Guide – Includes: X-Cite XYLIS (XT730S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

---

Objectives

Objectives are available in a wide range of configurations to suit your imaging needs. Options include:

• Phase Contrast
• High NA Fluor and Plan Fluor Objectives
• Water, Oil, and Dry Immersion
• Long Working Distance for live-cell compatibility

Please discuss your application or preferred configuration with our team. We have a full suite of options available.

---

Key Features

• Inverted Microscope Design: Optimized for live-cell imaging in culture dishes and multi-well plates.
• Phase Contrast: Enables high-contrast visualization of transparent specimens without staining.
• Fluorescence Imaging: Multi-channel fluorescence for comprehensive sample analysis.
• Confocal TCS SPE Scanhead: Delivers 3D imaging with precision laser scanning.
• Motorized Automation: Integrated stage, filter turret, and focus for streamlined workflows.
• Software Integration: Fully compatible with Leica Application Suite (LAS X) with license included.

---

Included Software Modules

• 10000 Base License
• 10020 Live Data Mode
• 10060 LAS-AF WPF Deconvolution Licence
• 10089 LAS X DFC 9000 GT/C Camera
• 10261 LAS-AF WPF Mark and Find
• 10262 LAS-AF WPF Time Lapse
• 10264 LAS-AF WPF Multi Channel Acquisition
• 10265 LAS-AF WPF Z-Control & Autofocus
• 10267 LAS-AF WPF Mosaic Plus
• 10280 LAS-AF WPF 3D Advanced Basic
• 10600 LAS-AF WPF Mobile Devices
• 10703 LAS-AF WPF Environmental Control
• 10812 LAS X Spiralscan

---

Applications

• Live-Cell Imaging
• Fluorescence Microscopy
• Confocal Imaging
• Time-Lapse Experiments
• 3D Reconstruction
• Multi-Channel Acquisition
• Quantitative Image Analysis

---

Specifications

Attribute	Details
Microscope Type	Inverted Trinocular Microscope
Imaging Modes	Brightfield, Phase Contrast, Fluorescence, Confocal
Objective Compatibility	Wide range including Phase, Fluor, Dry, Oil, and Water Immersion
Nosepiece	Motorized, 6-position
Confocal System	Leica TCS SPE with RYBV Laser Launch
Fluorescence Channels	RYBV – Red, Yellow, Blue, Violet (Solid-State Lasers)
Stage	Compatible with motorized and manual XY stages
Focus	Motorized focus with sub-micron precision
Camera Port	Left-side C-Mount Camera Port
Software	Leica LAS X with full module suite
Power Requirements	100–240V AC, 50/60 Hz
Dimensions	Customizable based on configuration
Weight	Varies depending on included components

---

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
