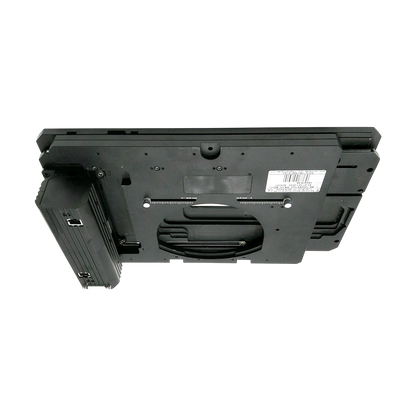

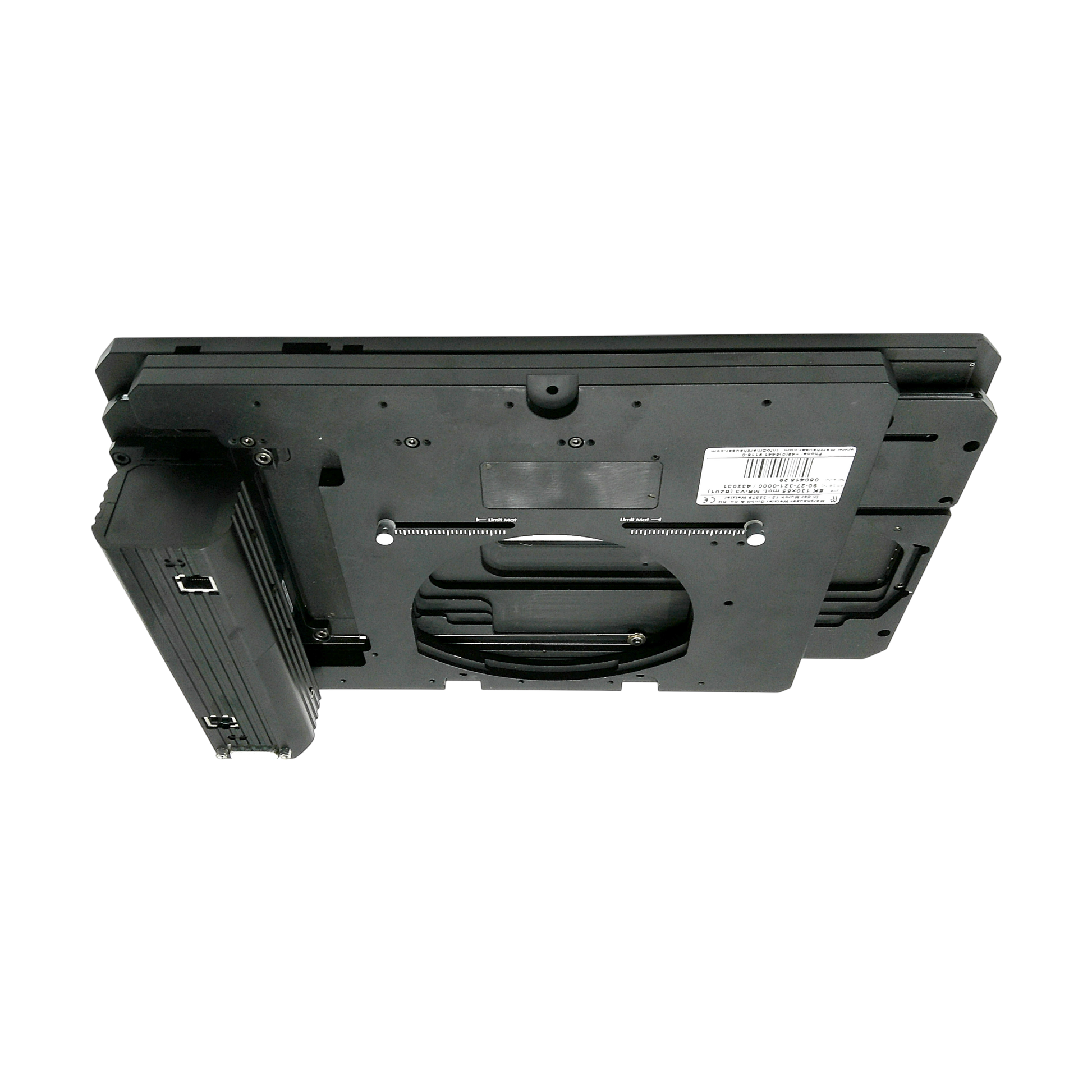

Marzhauser EK 130 x 85 Mot MR-V3 Microscope Stage

Marzhauser EK 130x85 Motorized Microscope Stage | MR-V3 Series | Model 90-27-321-0000 / 432031

The Marzhauser EK 130 x 85 Motorized Stage (MR-V3 series) is a precision XY stage engineered for high-speed, high-accuracy movement in demanding microscopy applications. With a travel range of 130 mm x 85 mm, it is ideal for slide scanning, multi-position imaging, and time-lapse experiments across upright and inverted microscope platforms. This model provides ultra-smooth motion and compatibility with leading automation software when paired with the appropriate controller.

---

Condition

Refurbished/Used
(This stage has been inspected and verified to meet manufacturer specifications.)

---

Included Items

• Marzhauser EK 130x85 Motorized Microscope Stage

No controller, adapter plate, or cables included unless specified.

---

Key Features

• Travel Range: 130 mm (X) × 85 mm (Y)
• Part of the MR-V3 motorized stage family
• Compatible with upright and inverted research microscopes
• High repeatability and sub-micron resolution when paired with suitable controller
• Ideal for fluorescence, confocal, and high-content imaging

---

Applications

• Live-cell Imaging
• Automated Slide Scanning
• Z-stack and Multi-Position Acquisition
• Time-Lapse Microscopy
• Fluorescence and Confocal Imaging

---

Specifications

Attribute	Details
Manufacturer	Marzhauser
Model	EK 130 x 85 / MR-V3

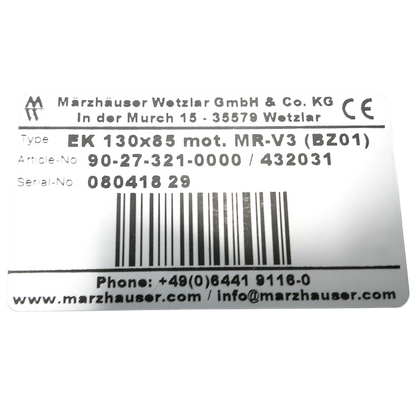

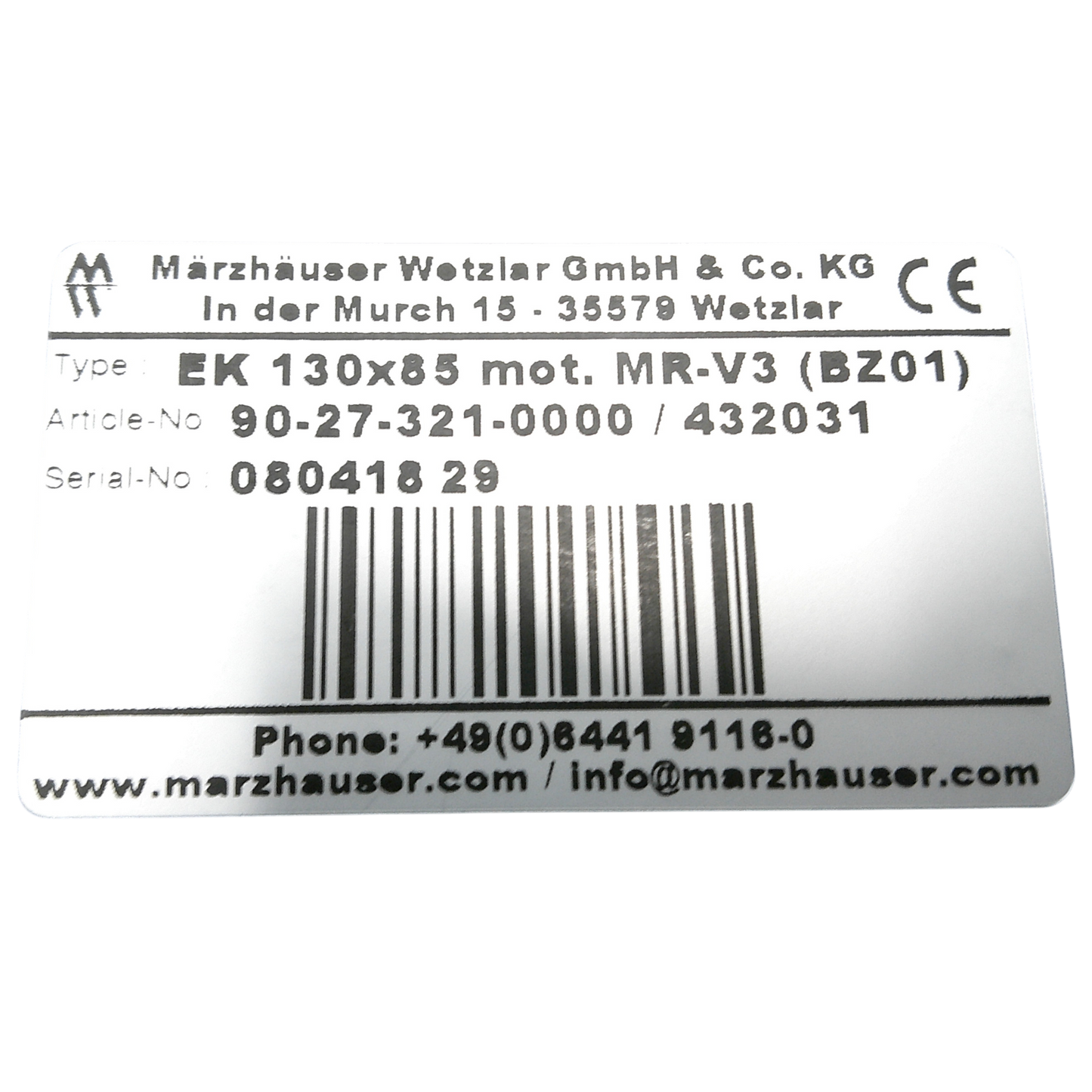

Catalog Number	90-27-321-0000 / 432031
Travel Range	130 mm × 85 mm
Drive Type	Stepper Motor (Controller Required)
Mounting Compatibility	Inverted and Upright Microscopes
Condition	Refurbished/Used

---

Configuration shown is for demonstration purposes. Contact us to confirm compatibility with your microscope platform and controller system.
