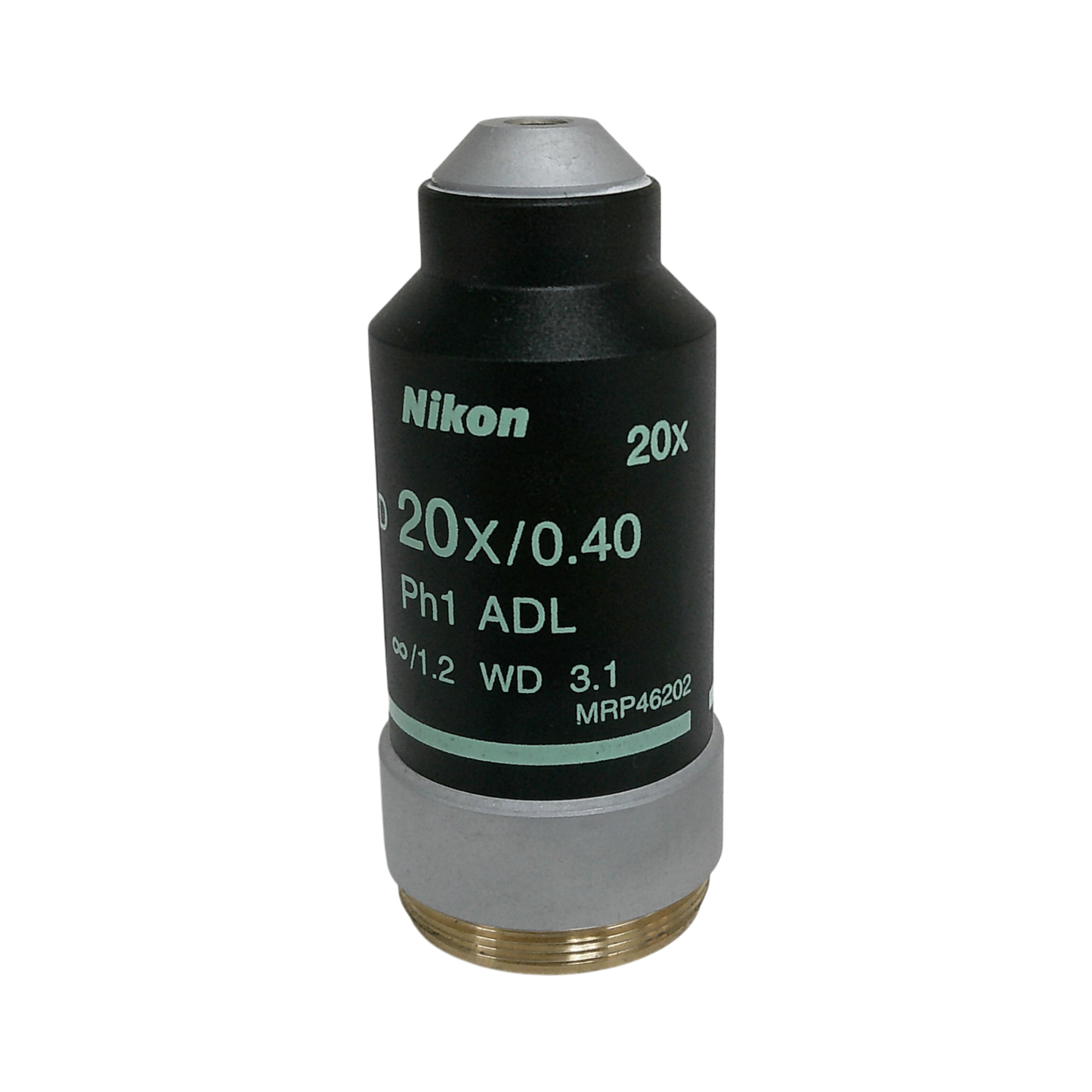

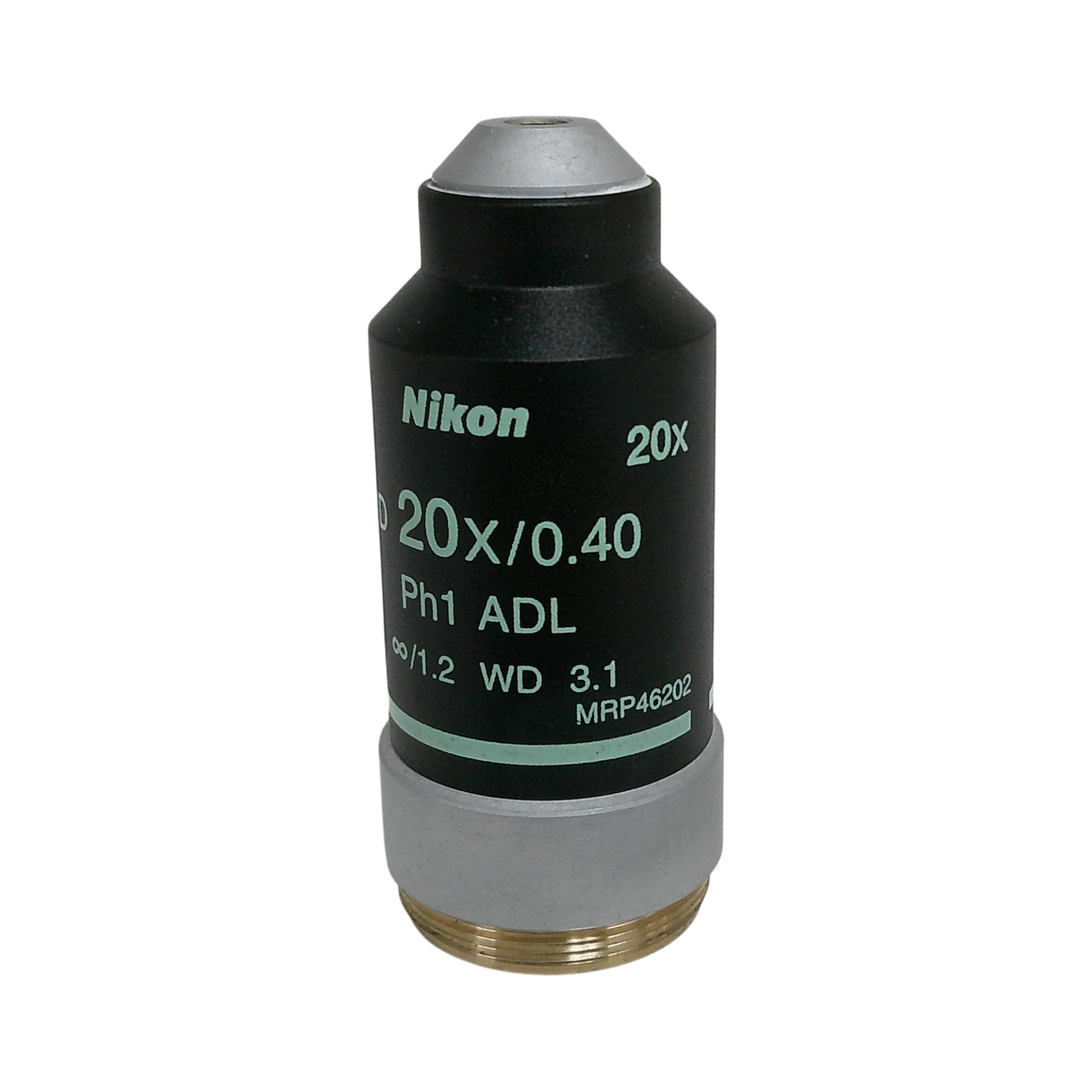

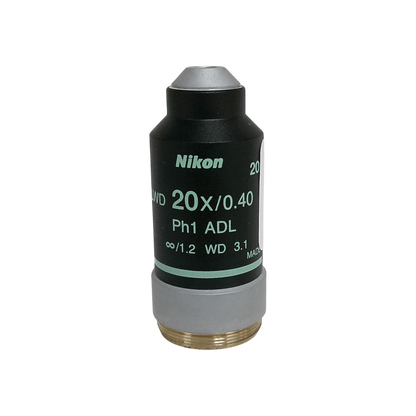

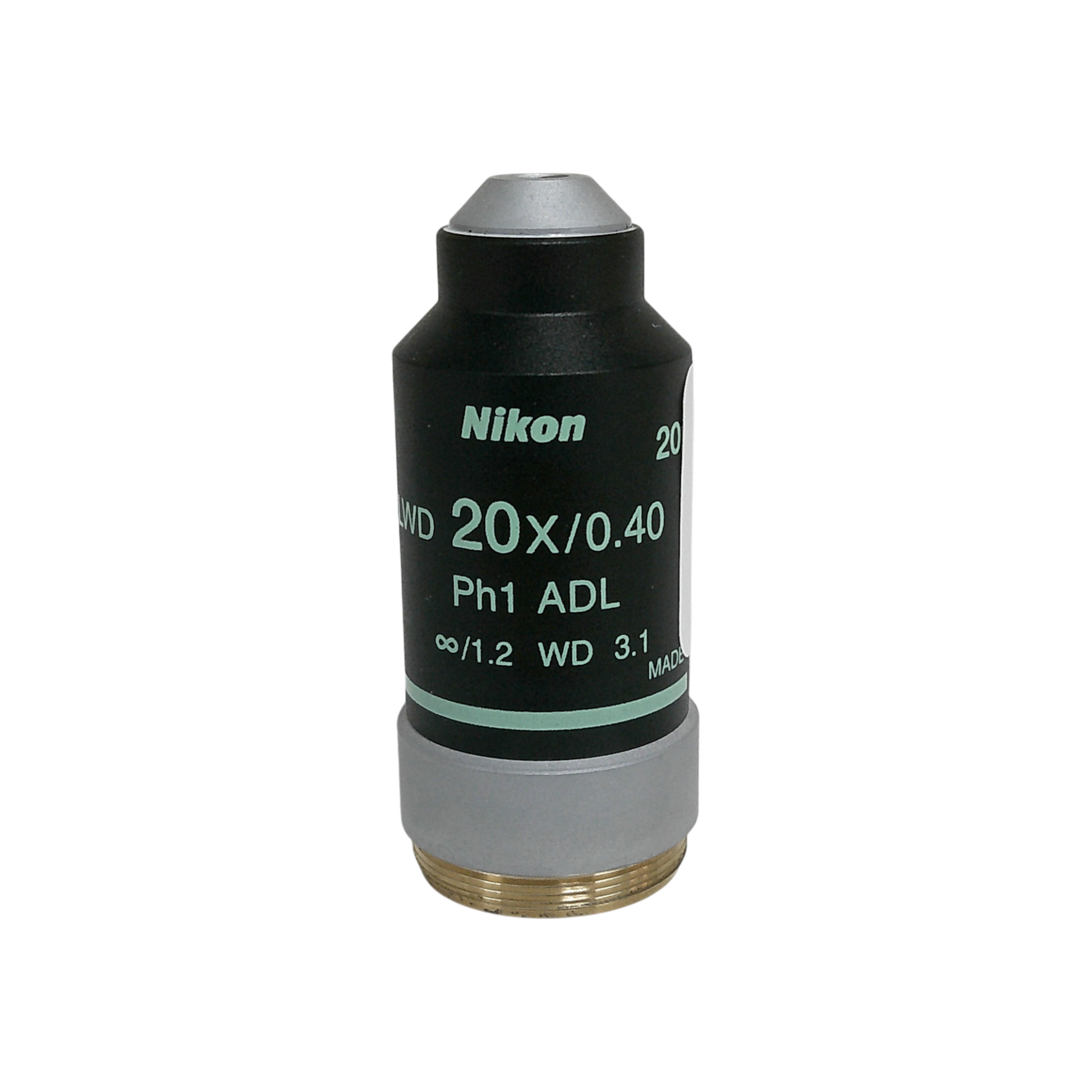

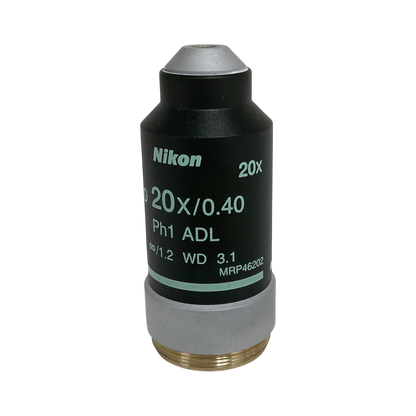

Nikon Achromat LWD Ph1 ADL 20x/0.40 M25 Thread Size Microscope Objective
Nikon Achromat LWD Ph1 ADL 20x/0.40 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Nikon LWD 20x/0.40 Ph1 ADL M25 Thread Size - MRP46202 (Used)
The Nikon LWD 20x/0.40 Ph1 ADL is a high-performance long working distance (LWD) phase contrast objective designed for phase contrast (Ph1), brightfield, and fluorescence microscopy. With a numerical aperture (NA) of 0.40, this objective provides superior resolution, contrast, and flat-field correction, making it ideal for live-cell imaging and unstained sample observation. The M25 thread size ensures compatibility with Nikon Eclipse and other M25-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Nikon LWD 20x/0.40 Ph1 ADL Objective
Key Features
- 20x magnification for high-resolution imaging
- Long working distance (LWD) for improved focus on thick samples
- Phase Contrast (Ph1 ADL) optimized for unstained biological samples
- Plan Fluor optics for superior chromatic aberration correction
- Numerical aperture (NA) of 0.40 for enhanced light transmission
- M25 thread size for compatibility with Nikon Eclipse and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence and brightfield microscopy with high transmission coatings
Applications
- Phase contrast microscopy (Ph1 ADL)
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.40 |
| Working Distance | ~5.0 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Fluor (Flat Field, High Contrast, Phase Contrast ADL Optimized) |
| Thread Size | M25 (25mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Nikon Eclipse series and other M25-compatible models |
| Special Features | Long working distance for thick sample imaging, optimized for phase contrast and fluorescence imaging |
Additional Details
Additional Details
- Manufacturer: Nikon
- Model:
- Catalog Number: 51706c
- Serial Number:
- Condition: Used
