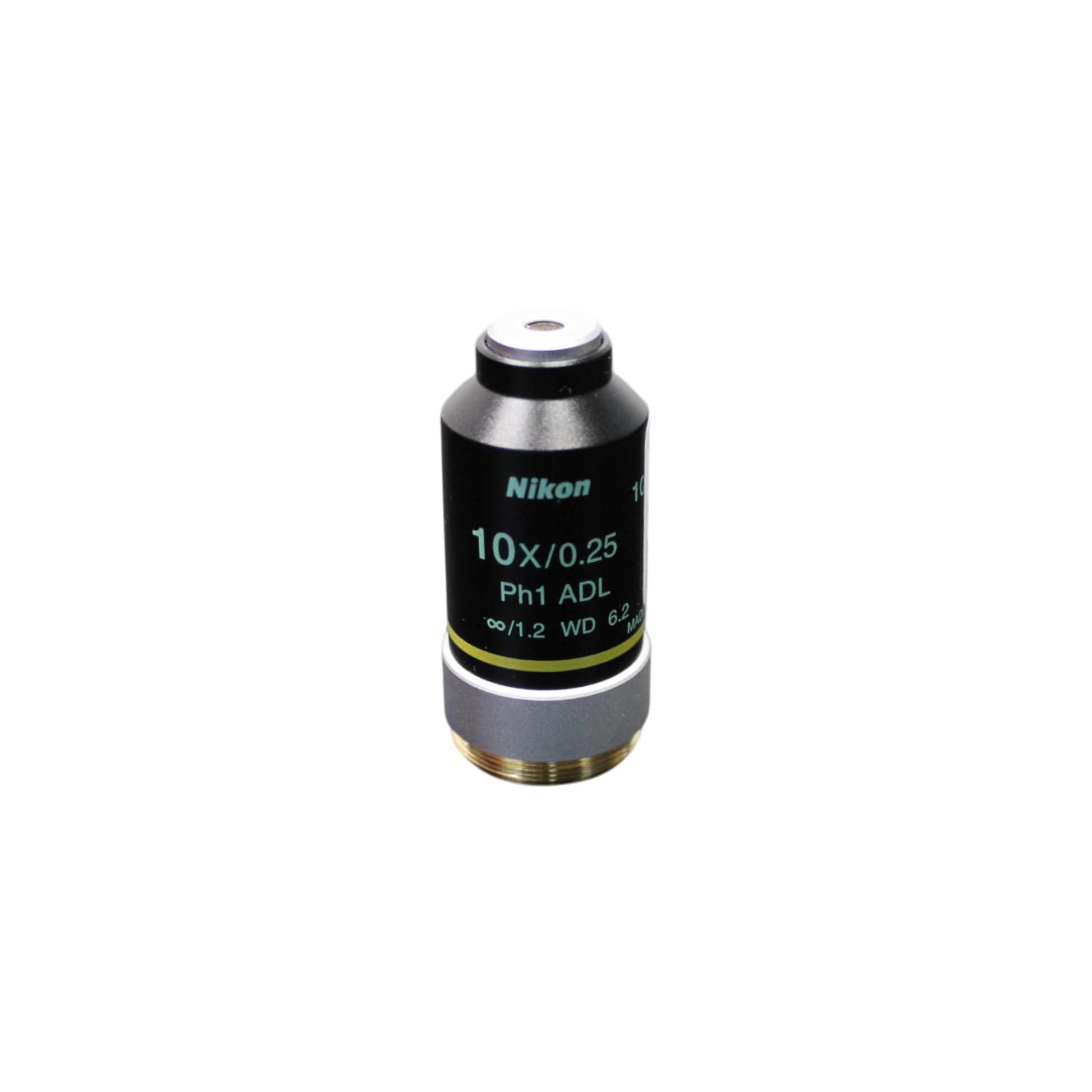

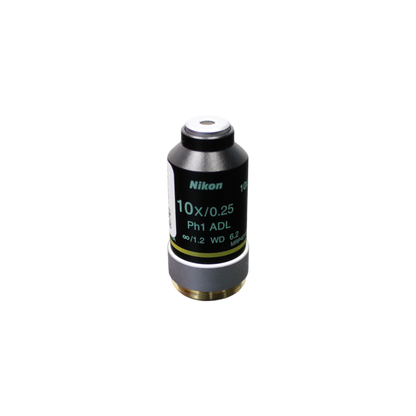

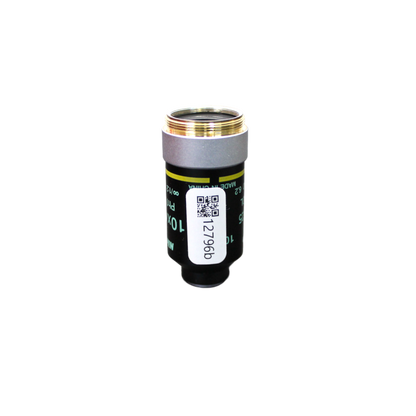

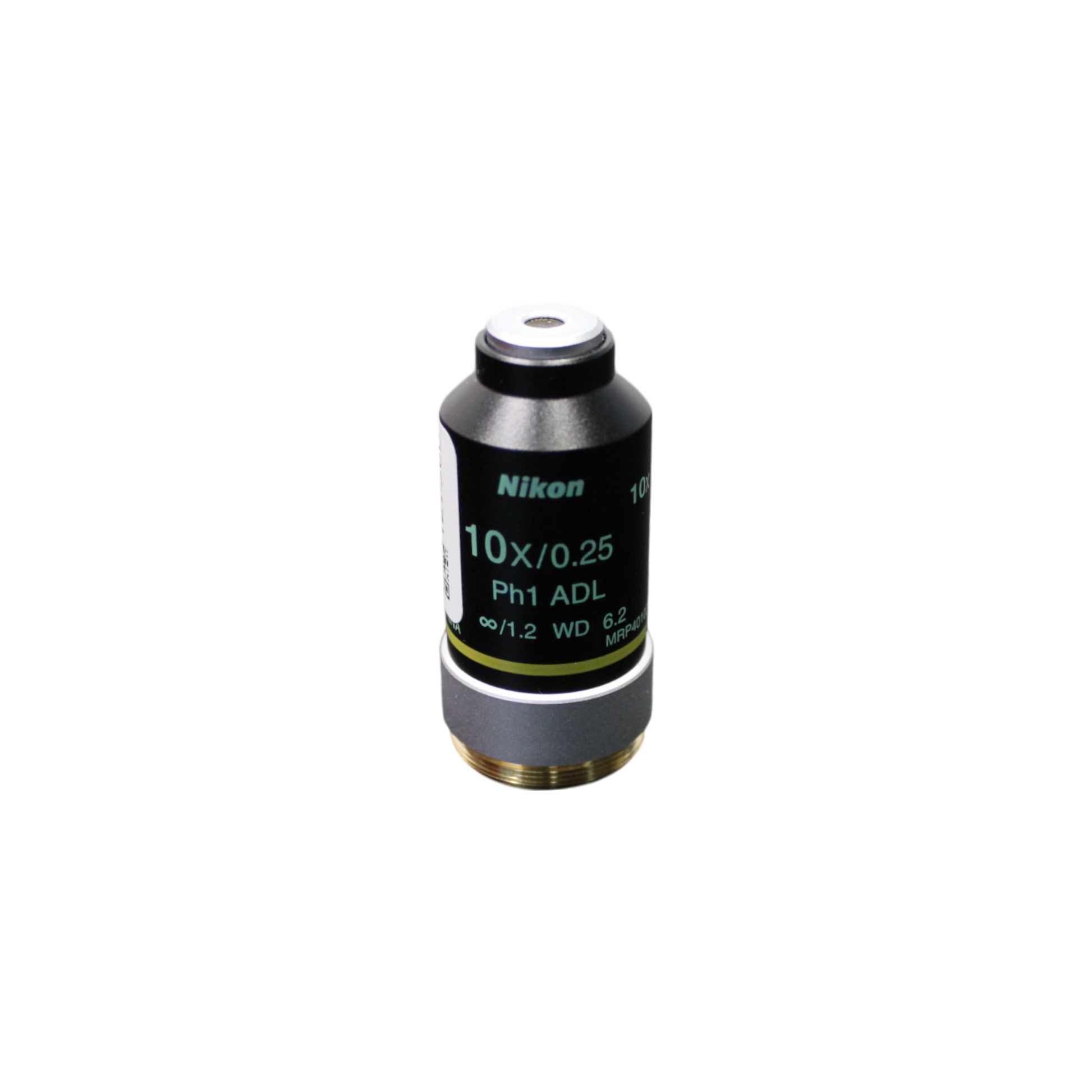

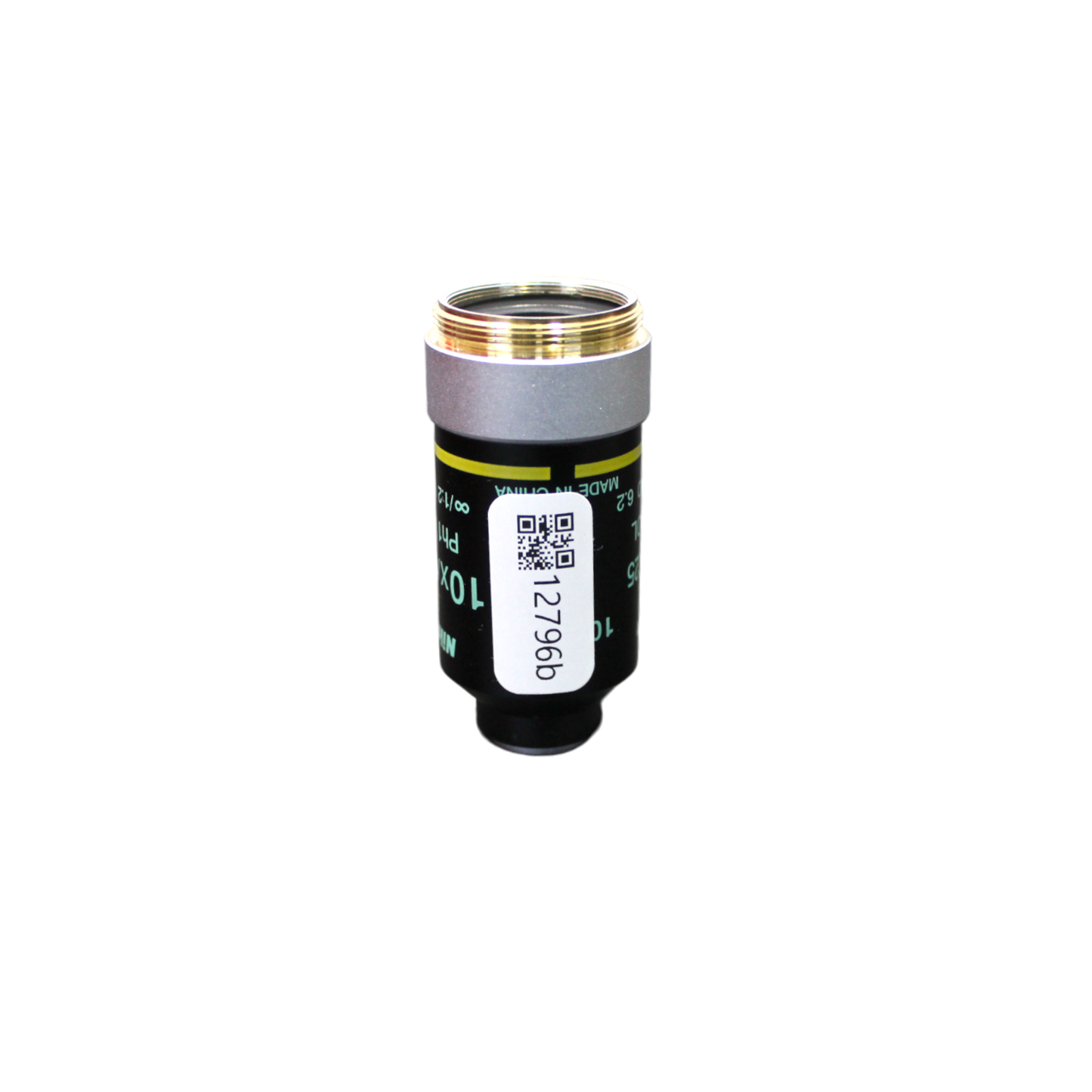

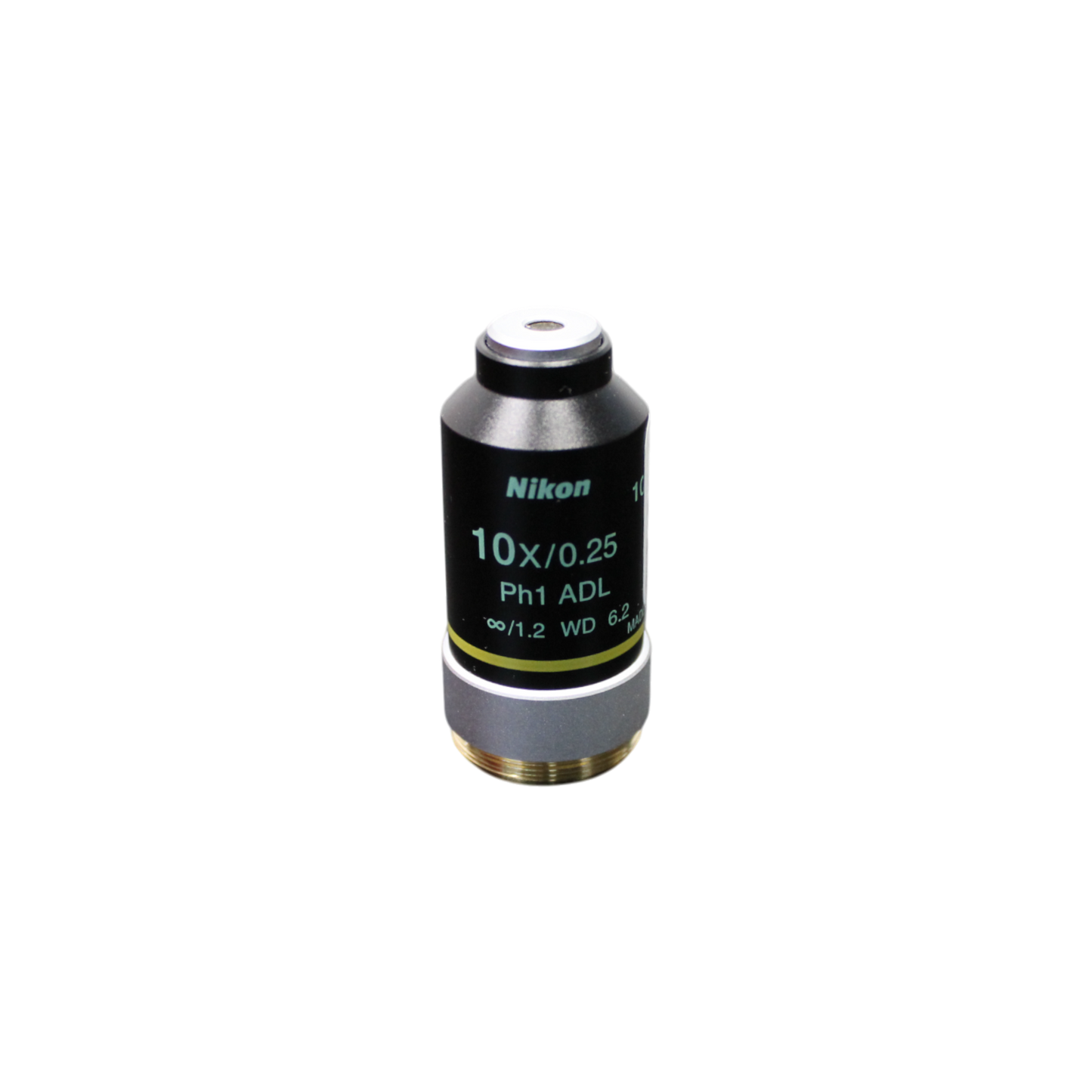

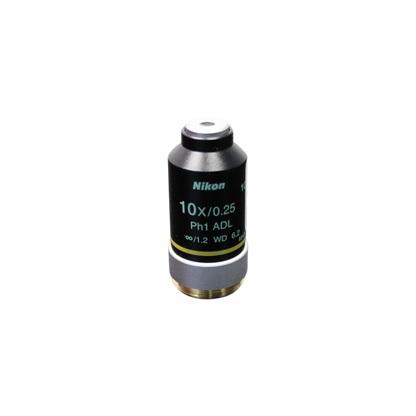

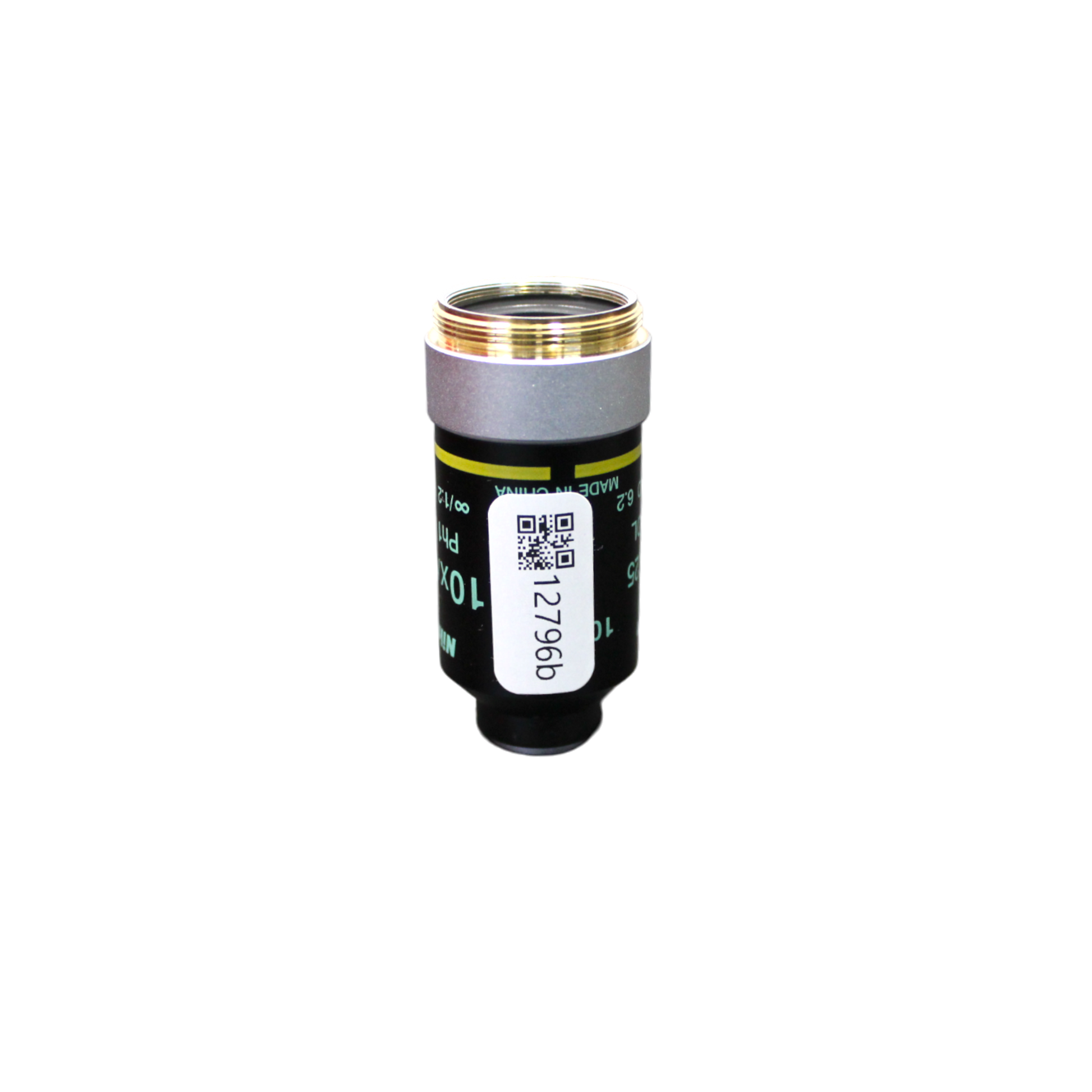

Nikon Achromat Ph1 ADL 10x/0.25 M25 Thread Size - MRP40102 (Used)
The Nikon Achromat Ph1 ADL 10x/0.25 is a high-quality achromatic phase contrast objective designed for phase contrast (Ph1), brightfield, and fluorescence microscopy. With a numerical aperture (NA) of 0.25, this objective provides excellent contrast, resolution, and flat-field correction, making it ideal for live-cell imaging, unstained sample observation, and routine laboratory use. The M25 thread size ensures compatibility with Nikon Eclipse and other M25-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Nikon Achromat Ph1 ADL 10x/0.25 Objective
Key Features
- 10x magnification for high-resolution imaging
- Phase Contrast (Ph1 ADL) optimized for unstained biological samples
- Achromatic optics for enhanced contrast and color correction
- Numerical aperture (NA) of 0.25 for improved light transmission
- M25 thread size for compatibility with Nikon Eclipse and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence, phase contrast, and brightfield microscopy with high transmission coatings
Applications
- Phase contrast microscopy (Ph1 ADL)
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 10x |
| Numerical Aperture (NA) | 0.25 |
| Working Distance | ~7.0 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Achromatic (Flat Field, High Contrast, Phase Contrast Optimized) |
| Thread Size | M25 (25mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Nikon Eclipse series and other M25-compatible models |
| Special Features | Optimized for phase contrast and fluorescence imaging, high transmission coatings for brightfield and live-cell imaging |
Additional Details
Additional Details
- Manufacturer: Nikon
- Model: Achromat Ph1 ADL 10x/0.25 M25 Thread Size
- Catalog Number: 12796b
- Serial Number: N/A
- Condition: Seller Refurbished
