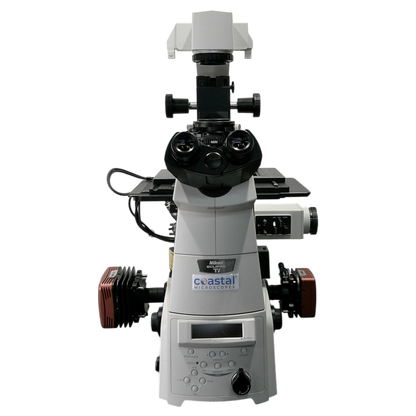

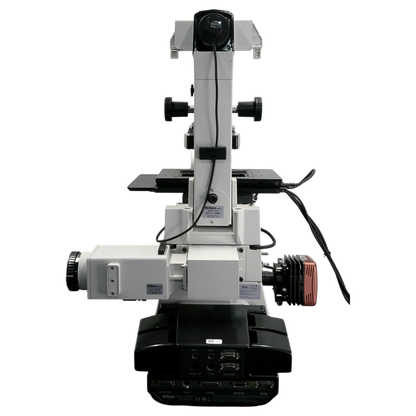

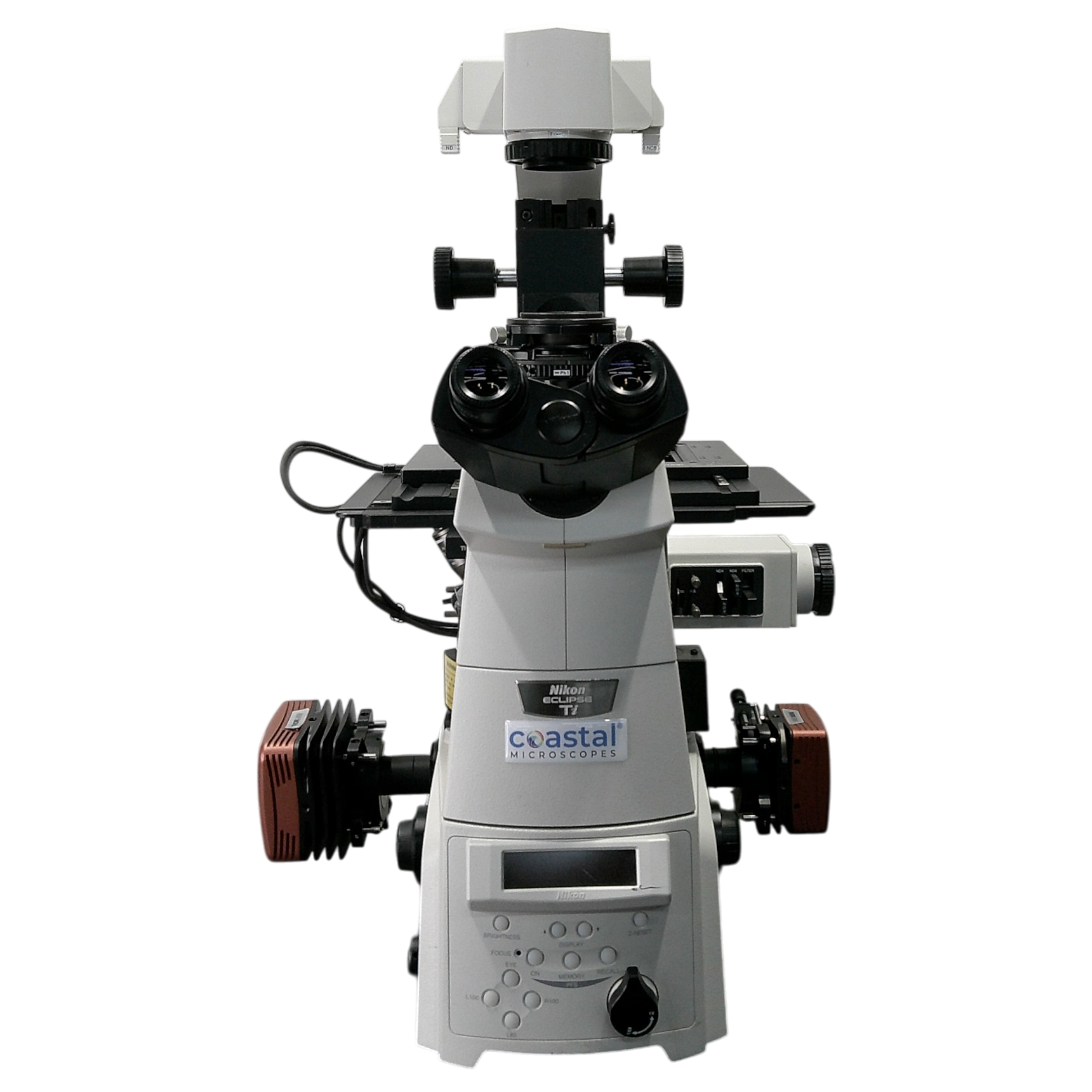

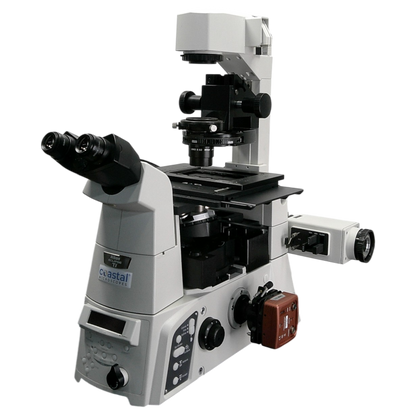

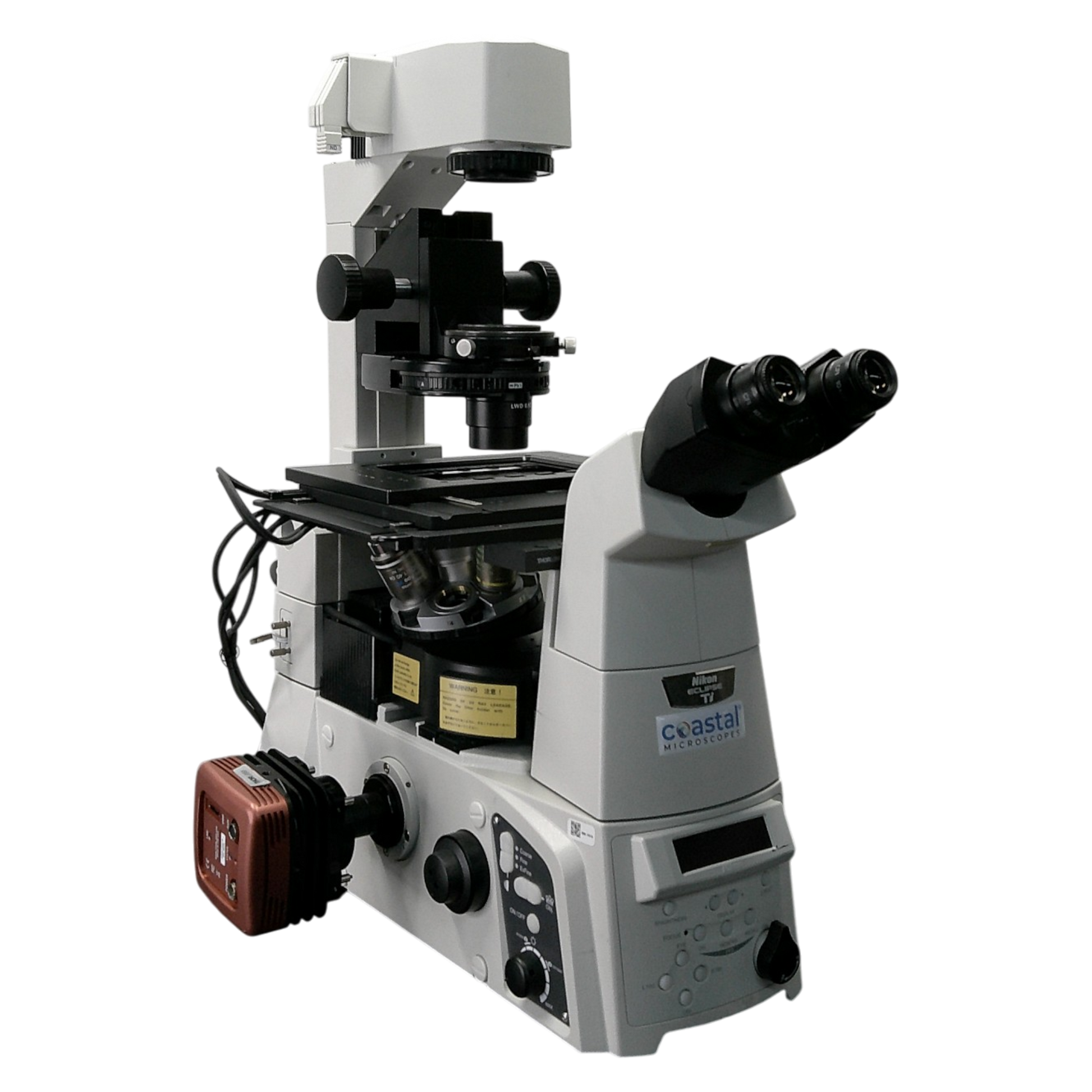

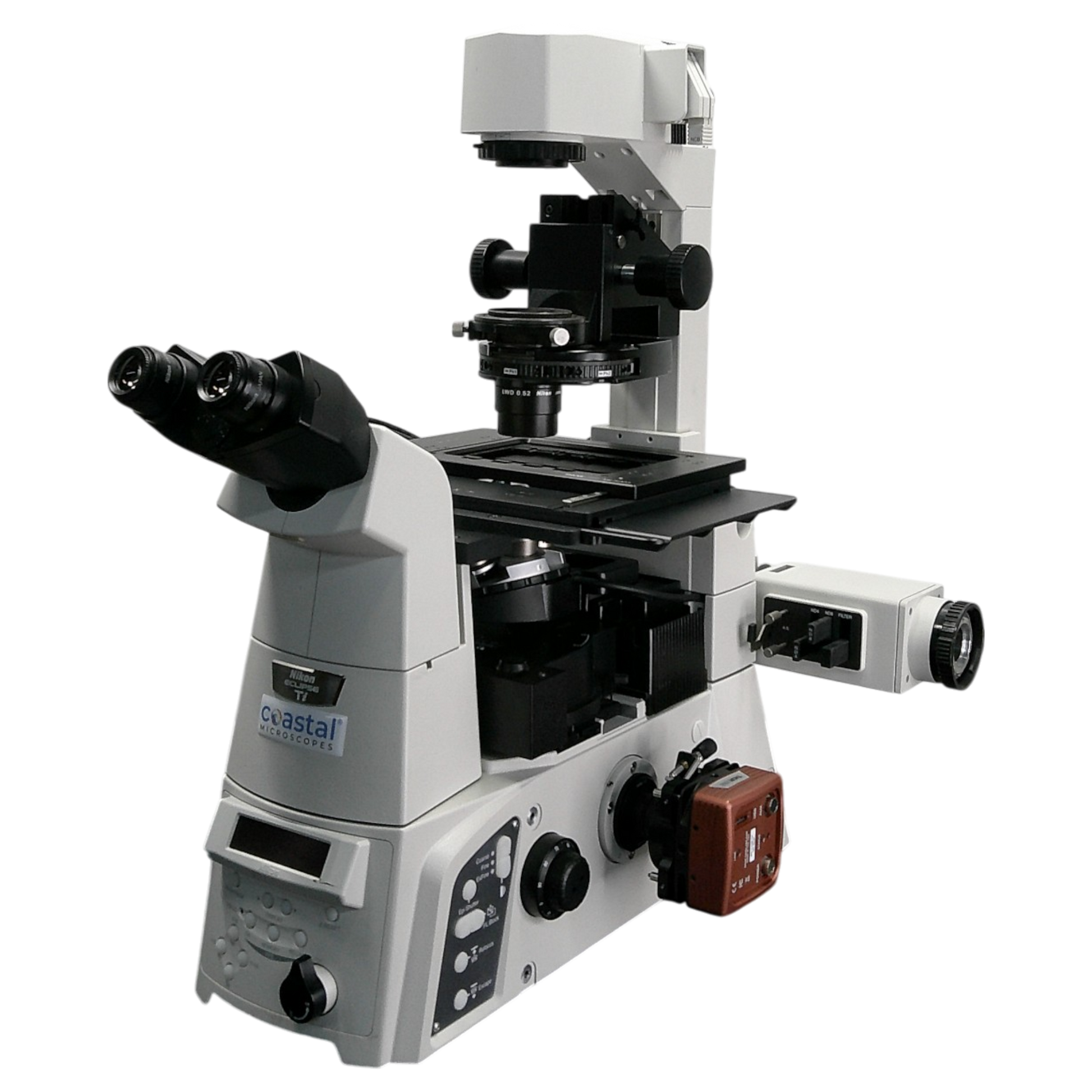

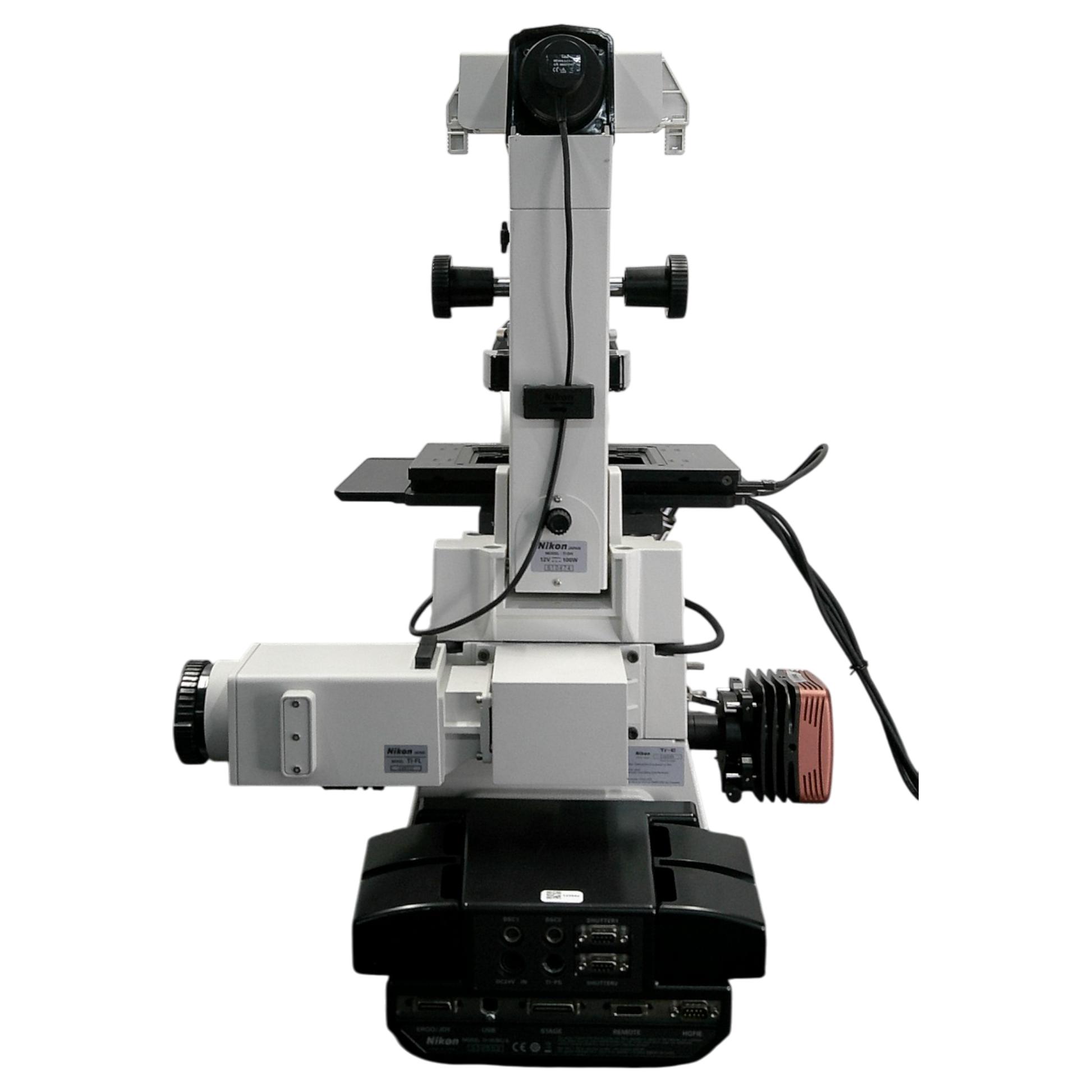

Nikon Eclipse Ti-E Inverted Phase Contrast Fluorescence Motorized w/ ThorLabs Package Microscope

Nikon Eclipse Ti-E Inverted Phase Contrast Fluorescence Motorized Microscope w/ Thorlabs Imaging Package (Used)

This specialized configuration of the Nikon Eclipse Ti-E combines the precision and automation of Nikon’s top-tier inverted microscope platform with a suite of integrated Thorlabs imaging components. Designed for fluorescence, transmitted light, and high-resolution color imaging, this system includes motorized components throughout and features Nikon’s high-end Plan Fluor and Plan APO objectives. The bundled Thorlabs illumination, stage, controllers, and dual-camera setup make this a powerful, turn-key solution for advanced microscopy workflows including time-lapse imaging, screening, and multichannel analysis.

Condition

Condition: Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)

Included Items

• Nikon Eclipse Ti-E Inverted Microscope Stand
• Trinocular Viewing Head with C-Mount Camera Port
• Motorized Z-Focus Drive
• Motorized 6-Position Nosepiece
• Motorized Condenser
• Motorized Fluorescence Filter Cube Turret
• Phase Contrast Slider
• ELWD Phase Contrast Condenser
• Fluorescence Illuminator: 100w Mercury with Power Supply
• (3) Filter Cubes
• Thorlabs DC2100 Adjustable LED Controller with COP1-A LED Light – Delivers precise and adjustable LED illumination
• Thorlabs MSD203 Motorized Stage with Oscar Engine Controller and Joystick – High-precision motorized control for advanced imaging
• Thorlabs 8051C-USB-TDI 8 MP Color CCD Camera (USB 3.0) – High-resolution color imaging
• Thorlabs 8050M-USB-TE 8 MP Monochrome CCD Camera (USB 3.0) – Optimized for fluorescence applications
• Objectives Included:
  • Plan Fluor 4x/0.13
  • Plan Fluor 10x/0.30 OFN25 DIC L/N1
  • Plan Fluor 20x/0.5 OFN25 DIC N2
  • Plan APO VC 20x/0.75 DIC N2
• Control Computer (configured for microscope control)
• Power Supply and Cabling

Customization and Optional Upgrades

• Additional Objectives: Full suite available upon request
• Additional Cameras: Scientific CMOS or EMCCD models available
• Filter Cubes: Additional Cubes available
• Software: MicroManager, Premium Software, Training and Method Development Available

Key Features

• Fully motorized Nikon Ti-E inverted research platform
• Integrated Thorlabs motorized stage, LED illuminator, and dual-camera system
• High-resolution color and monochrome CCD imaging
• Nikon CFI60 optics and wide 25mm field of view
• Plan Fluor and Plan APO objectives for crisp fluorescence and transmitted light imaging
• Ideal for live-cell workflows, Z-stacking, and high-content fluorescence imaging

Applications

• Live-Cell Fluorescence Imaging
• Dual-Channel Imaging (Color and Fluorescence)
• Time-Lapse and Z-Stack Acquisition
• Drug Screening and Quantitative Cell Analysis
• Education and Research in Cell Biology

Specifications

⚠️ Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
