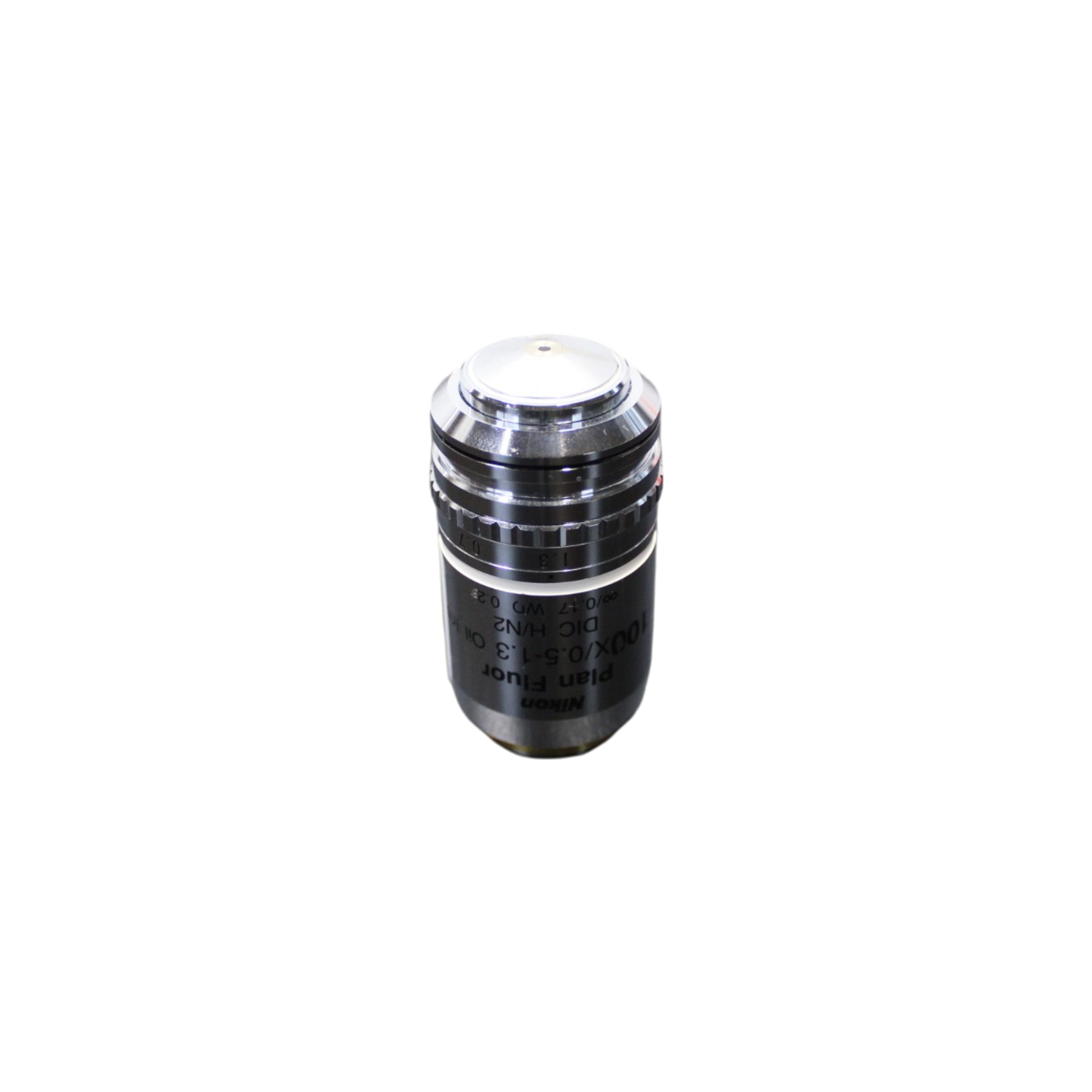

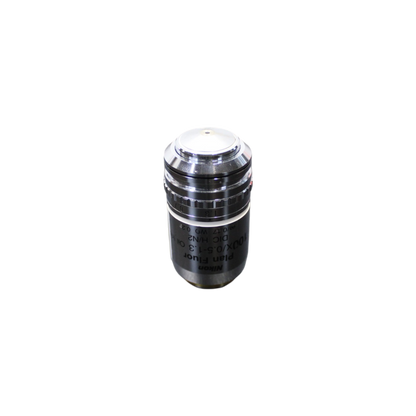

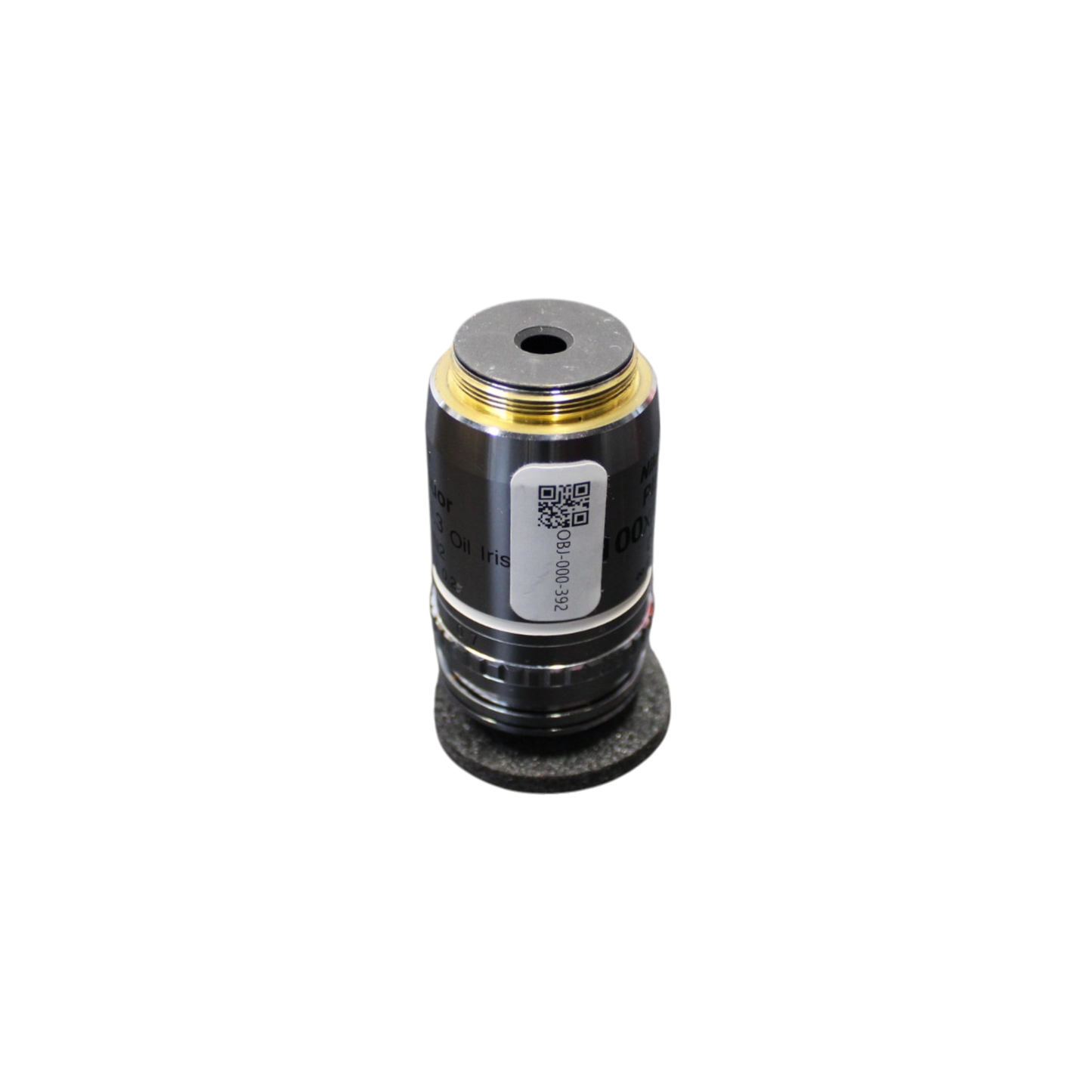

Nikon Plan Fluor DIC H/N2 100x/0.5-1.3 Oil Iris M25 Thread Size Microscope Objective

Nikon Plan Fluor DIC H/N2 100x/0.5-1.3 Oil Iris M25 Thread Size Objective (Used)

The Nikon Plan Fluor DIC H/N2 100x/0.5-1.3 Oil Iris is a high-performance infinity-corrected fluorite objective, designed for differential interference contrast (DIC), phase contrast, fluorescence, and brightfield microscopy. With an adjustable numerical aperture range of 0.5 to 1.3, this objective offers exceptional resolution, superior color correction, and enhanced contrast, making it ideal for live-cell imaging, research applications, and advanced microscopy techniques.

Condition

Refurbished/Used – This product has been inspected and verified to meet manufacturer specifications.

Key Features

• Magnification: 100x
• Numerical Aperture (NA): 0.5 - 1.3 (Adjustable via iris)
• Working Distance (WD): 0.20mm
• Optical Design: Fluorite (Plan Fluor) for high contrast and excellent color correction
• DIC Compatibility: H/N2 Differential Interference Contrast (DIC)
• Iris Diaphragm: Adjustable for optimized imaging across multiple applications
• Immersion Medium: Oil
• Thread Type: M25 (Infinity-Corrected)
• Application: DIC, Fluorescence, Phase Contrast, and Brightfield Microscopy

Applications

• Live-Cell Imaging
• High-Resolution Fluorescence Microscopy
• Differential Interference Contrast (DIC) Microscopy
• Phase Contrast Imaging
• Pathology and Histology
• Biomedical and Life Science Research

Specifications
