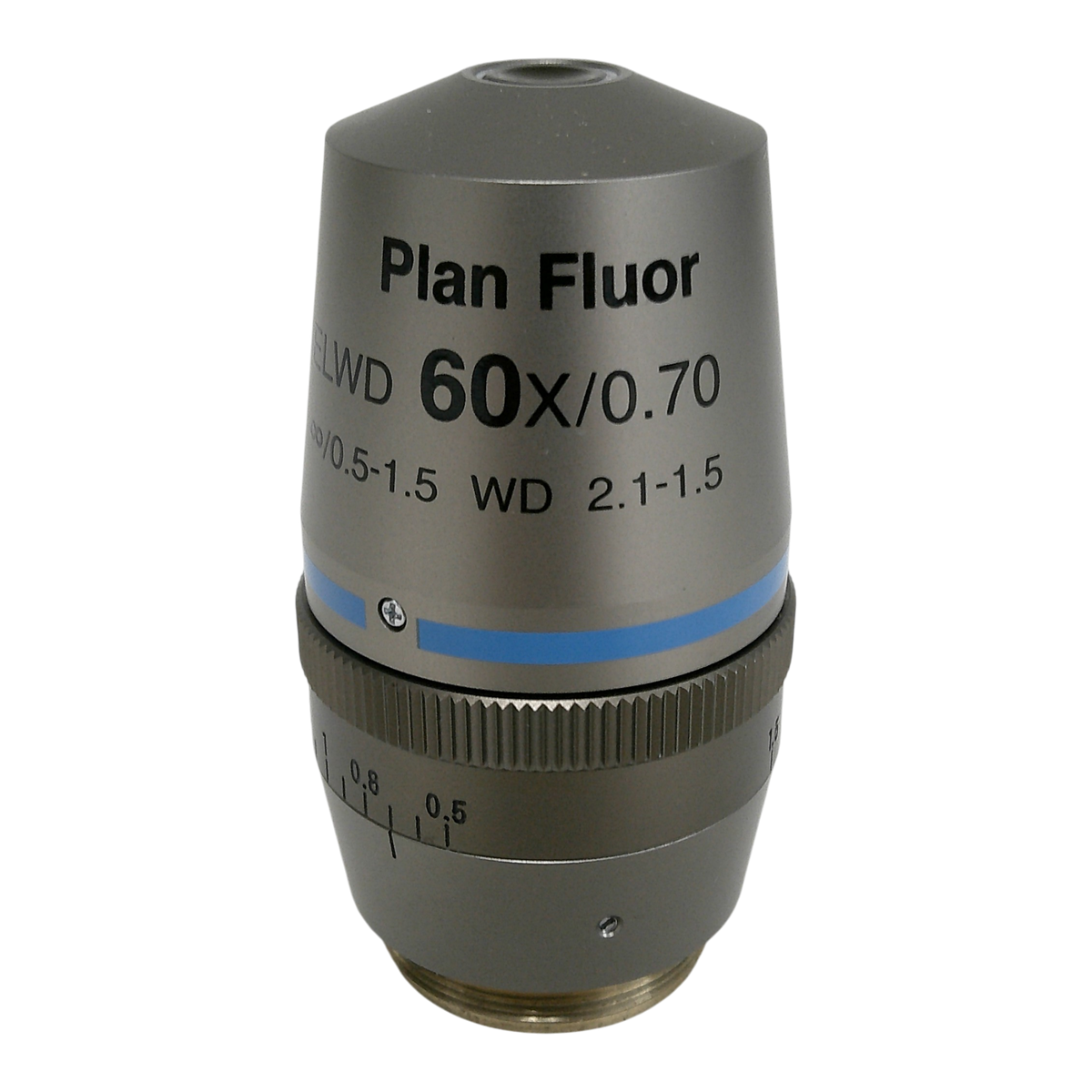

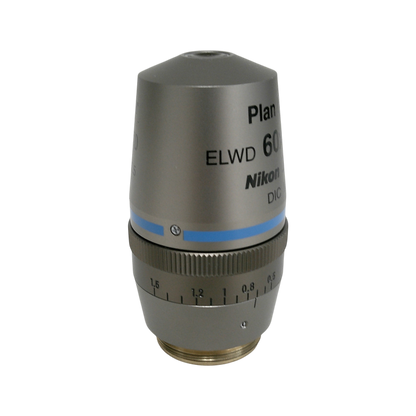

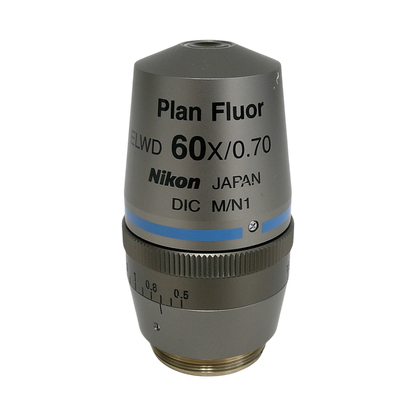

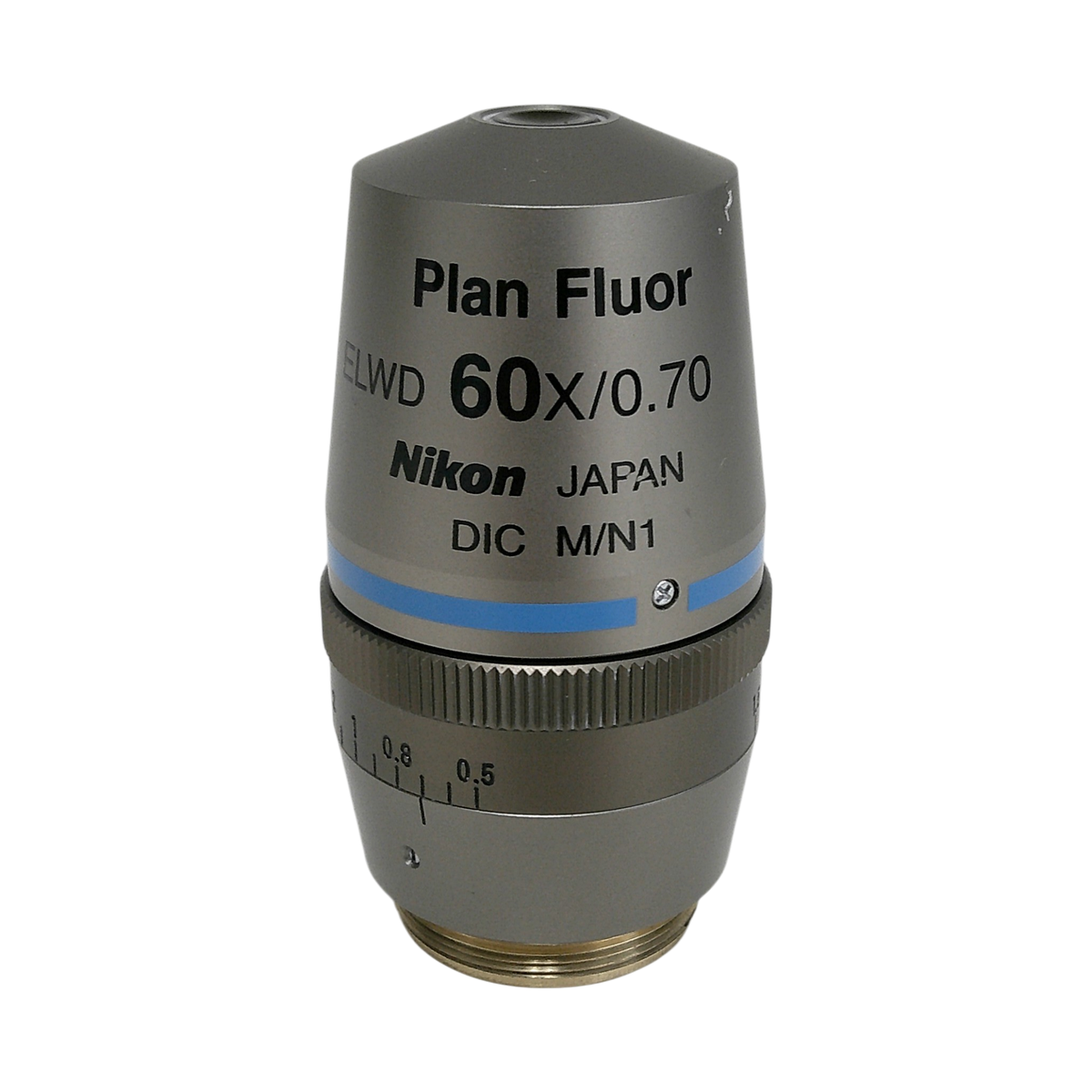

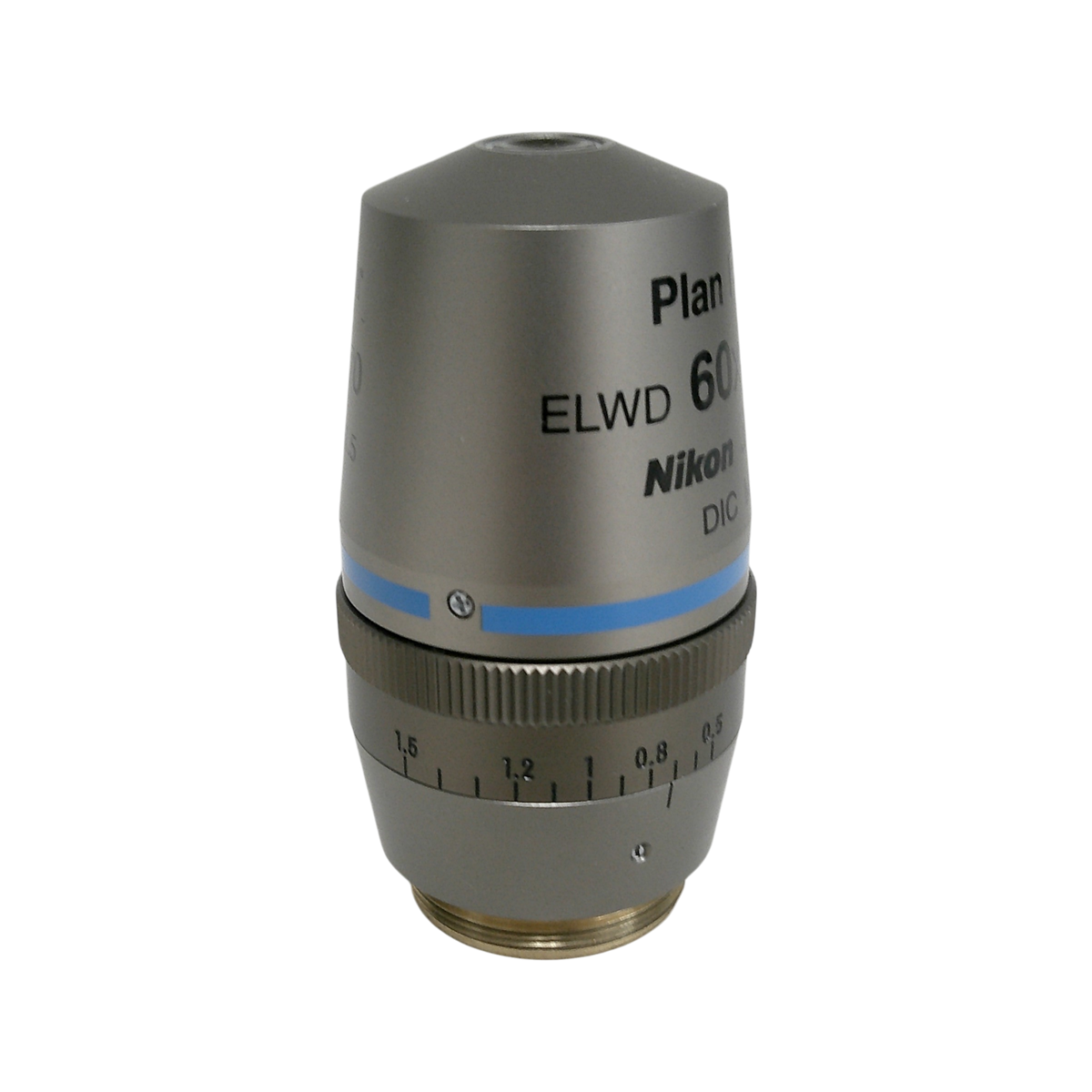

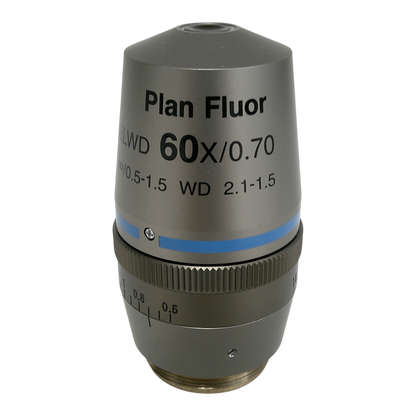

Nikon Plan Fluor ELWD 60x/0.70 M25 Thread Size Microscope Objective

Nikon CFI Plan Fluor ELWD 60xC Objective, 0.70 NA (MRH08620)

The Nikon CFI Plan Fluor ELWD 60xC (MRH08620) is a dry, extra-long working distance fluorite objective. It pairs a 0.70 NA with a 1.1–2.1 mm working distance, so it can image at high magnification through culture vessels, thick specimens, and plastic-bottom dishes without immersion oil. A correction collar compensates for vessel thicknesses from 0.5 to 1.5 mm, and the M25 thread fits current Nikon CFI60 microscopes.

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• 60x magnification with a 0.70 numerical aperture in a dry objective
• Extra-long 1.1–2.1 mm working distance for culture vessels and thick samples
• Correction collar for 0.5–1.5 mm vessel or cover glass thickness
• Plan Fluor (fluorite) optics for flat-field imaging and strong fluorescence transmission
• Suitable for brightfield, DIC, and fluorescence
• No immersion medium needed, which protects delicate and live samples
• Infinity-corrected CFI60 optics with M25 x 0.75 thread

Applications

• High-magnification live-cell imaging in dishes, flasks, and multi-well plates
• Fluorescence imaging through plastic-bottom vessels
• DIC of cultured cells
• Micromanipulation, microinjection, and patch-clamp setups that need working clearance
• Imaging thick tissue and specimens on inverted microscopes

Specifications
