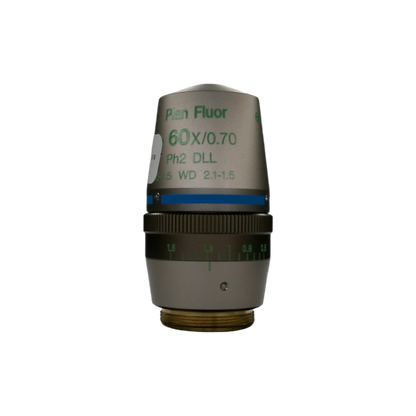

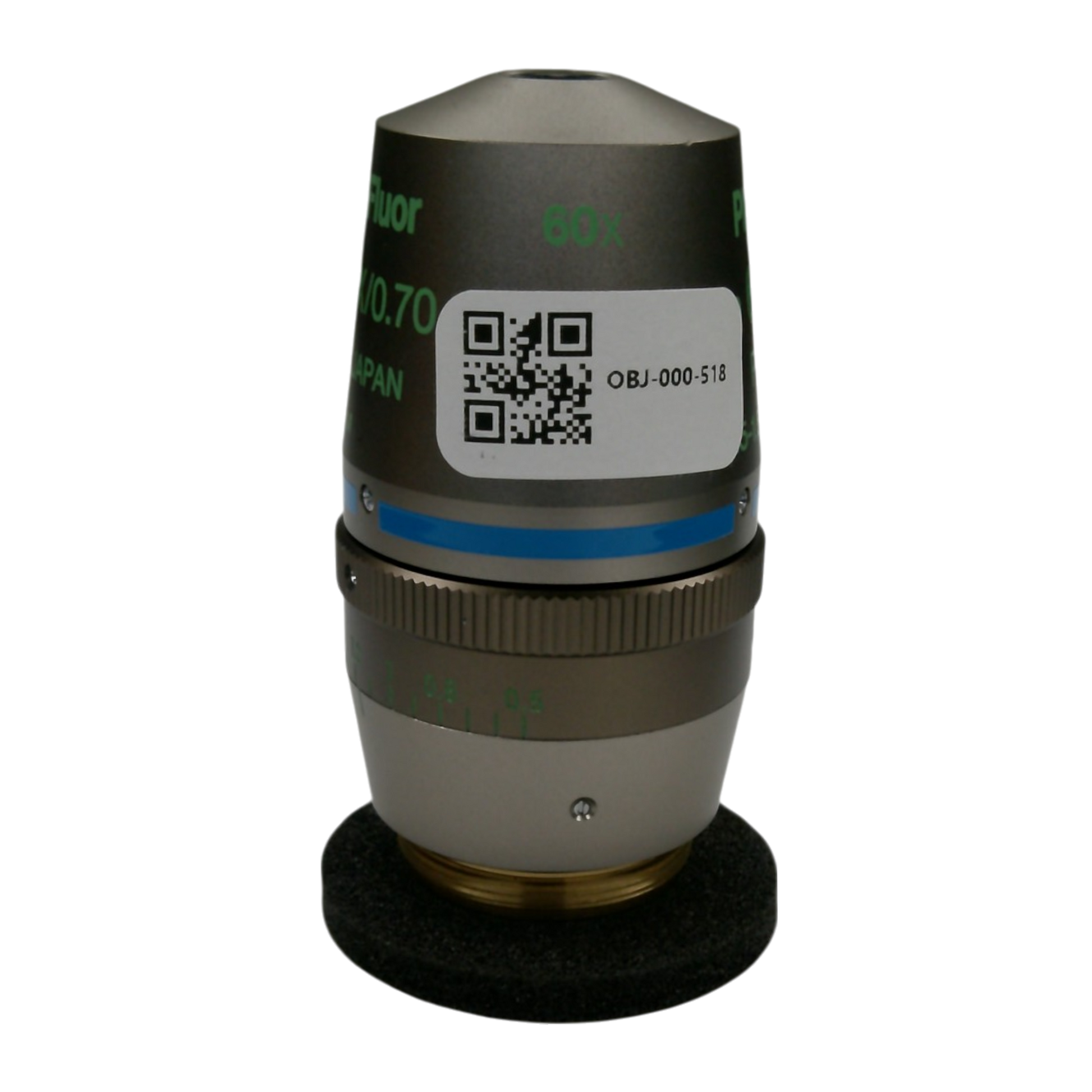

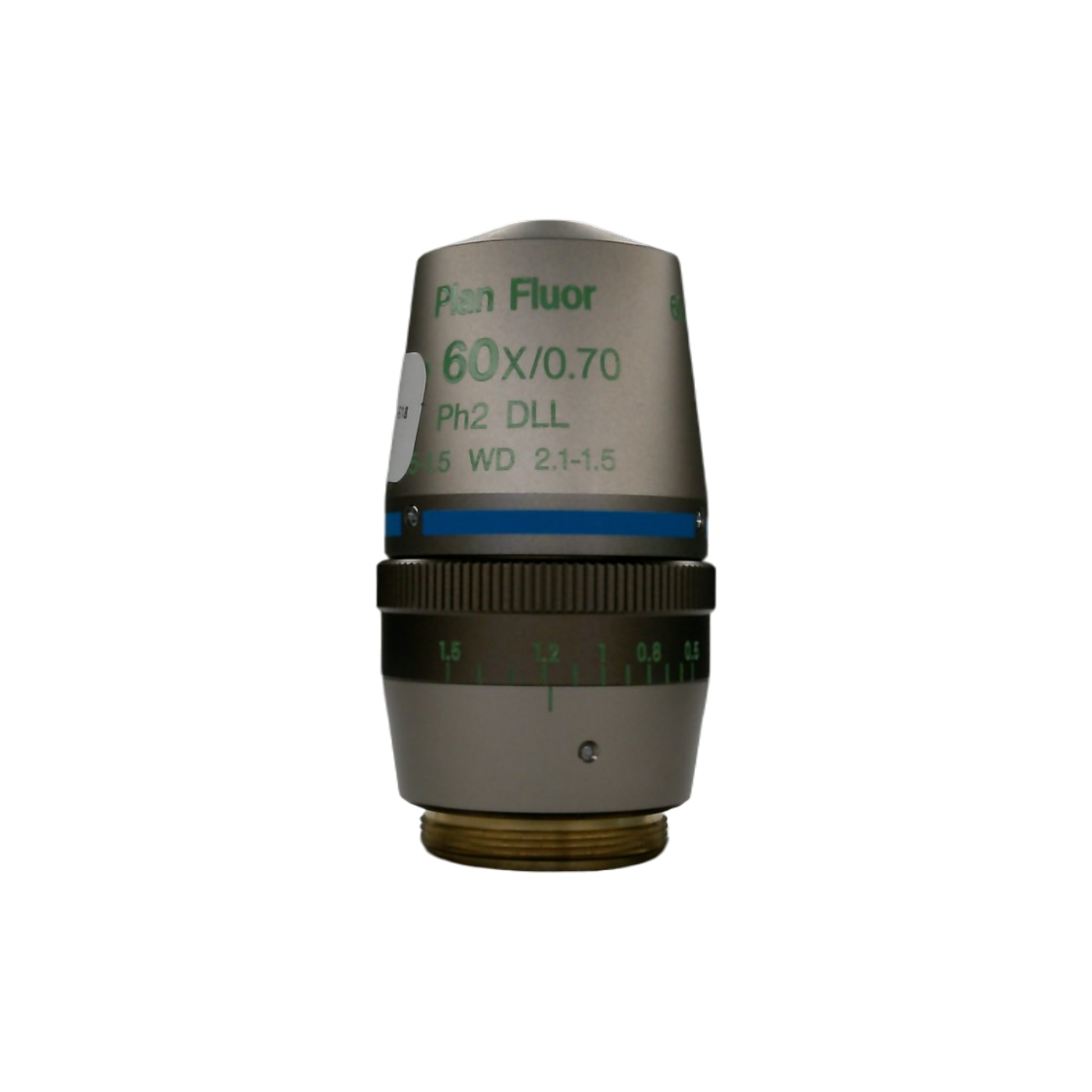

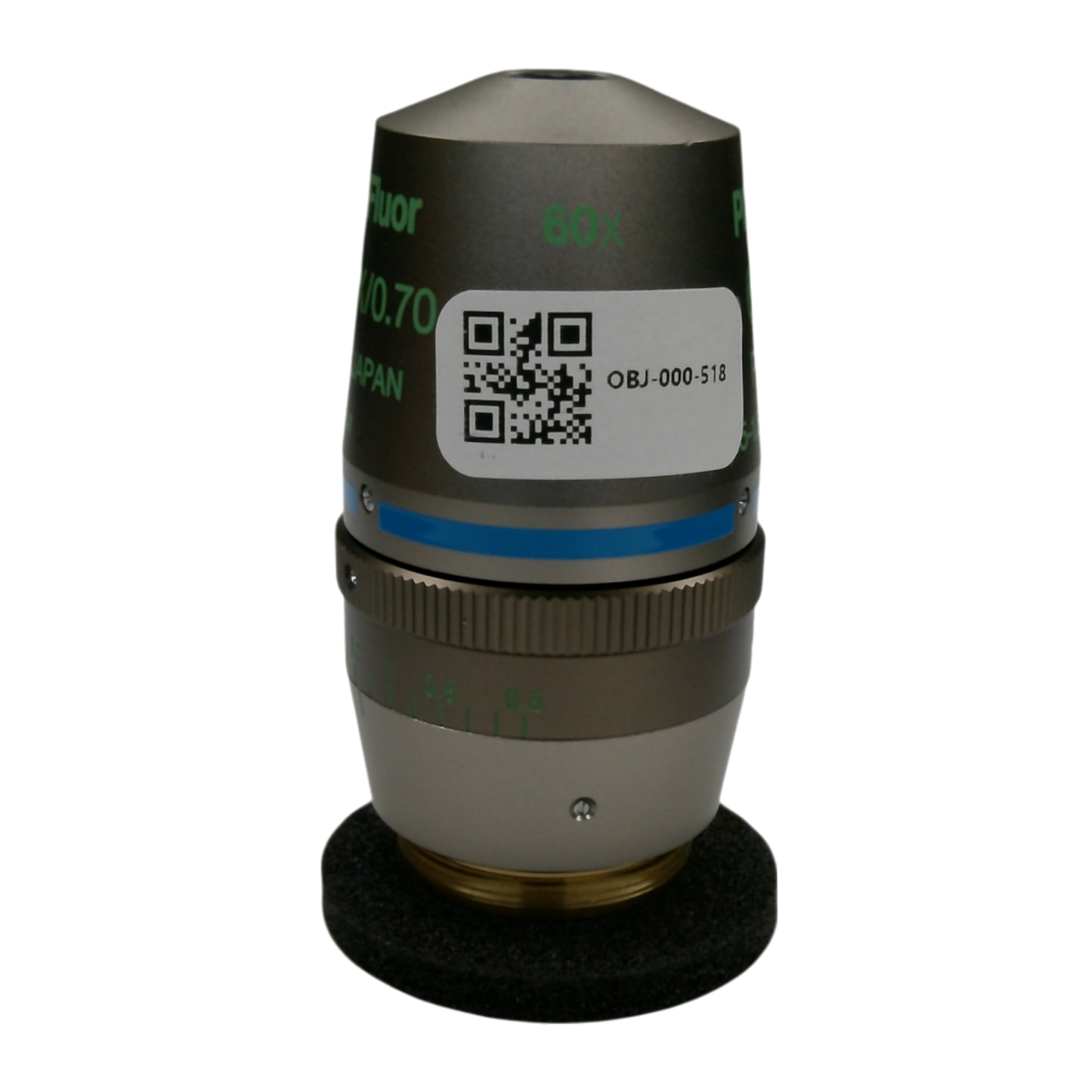

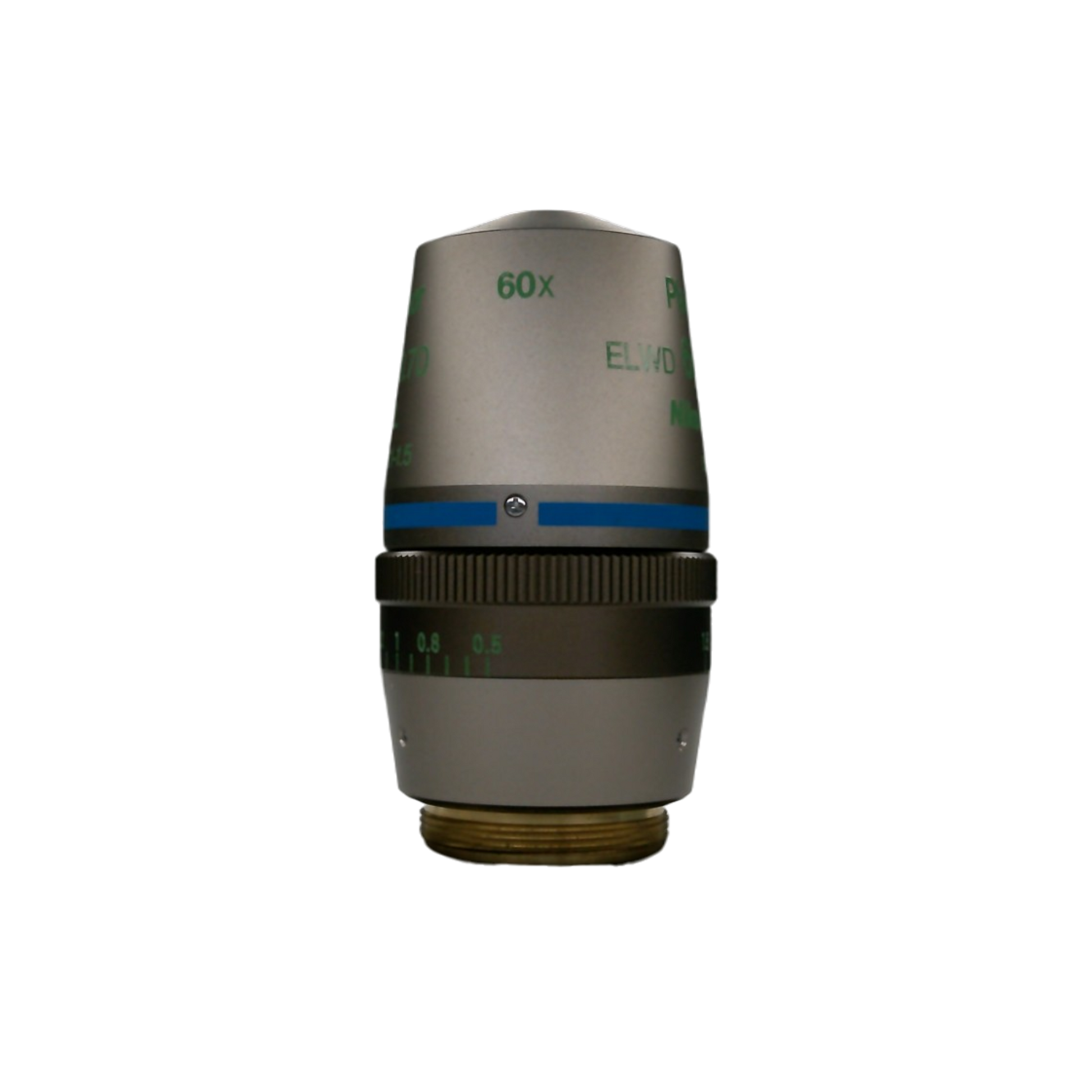

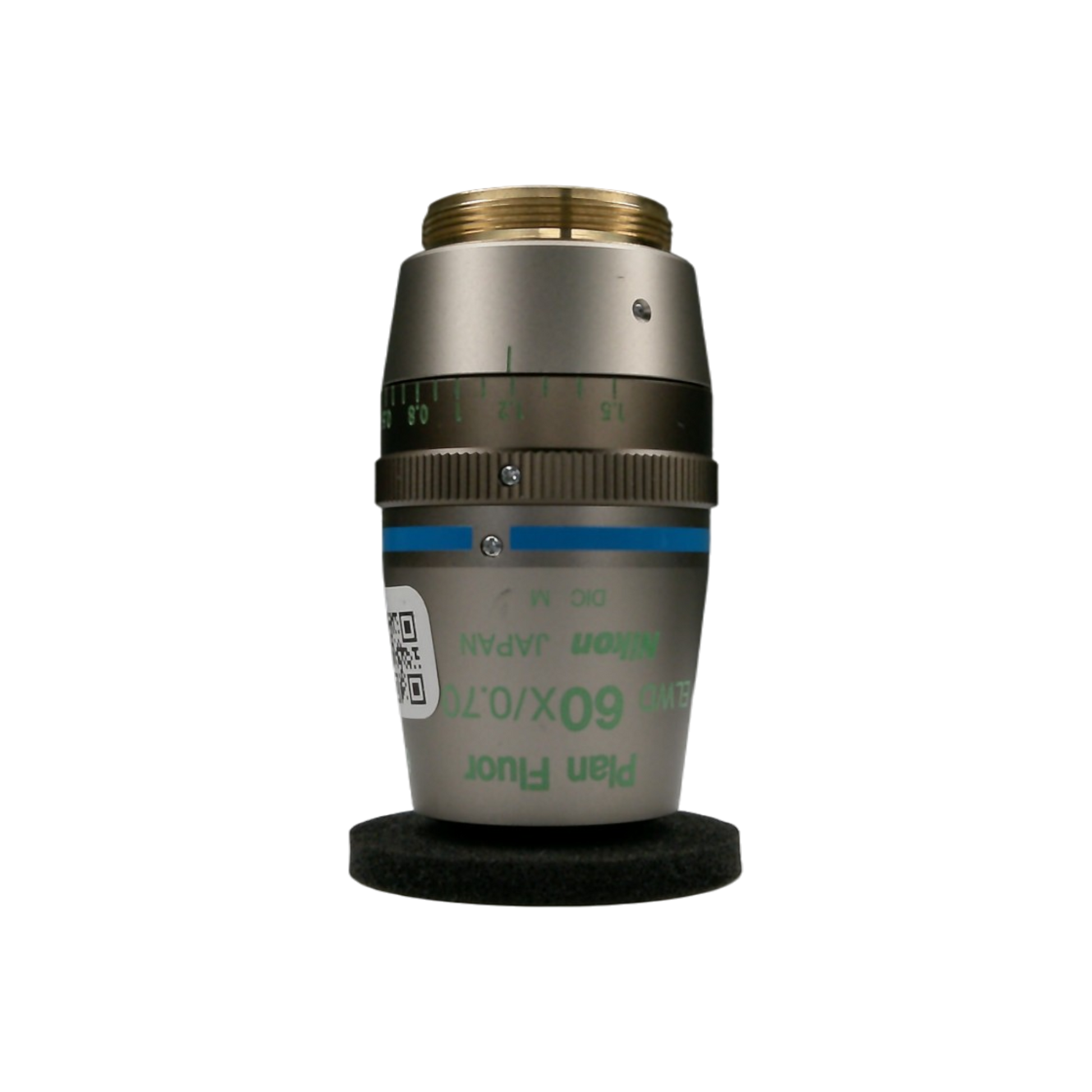

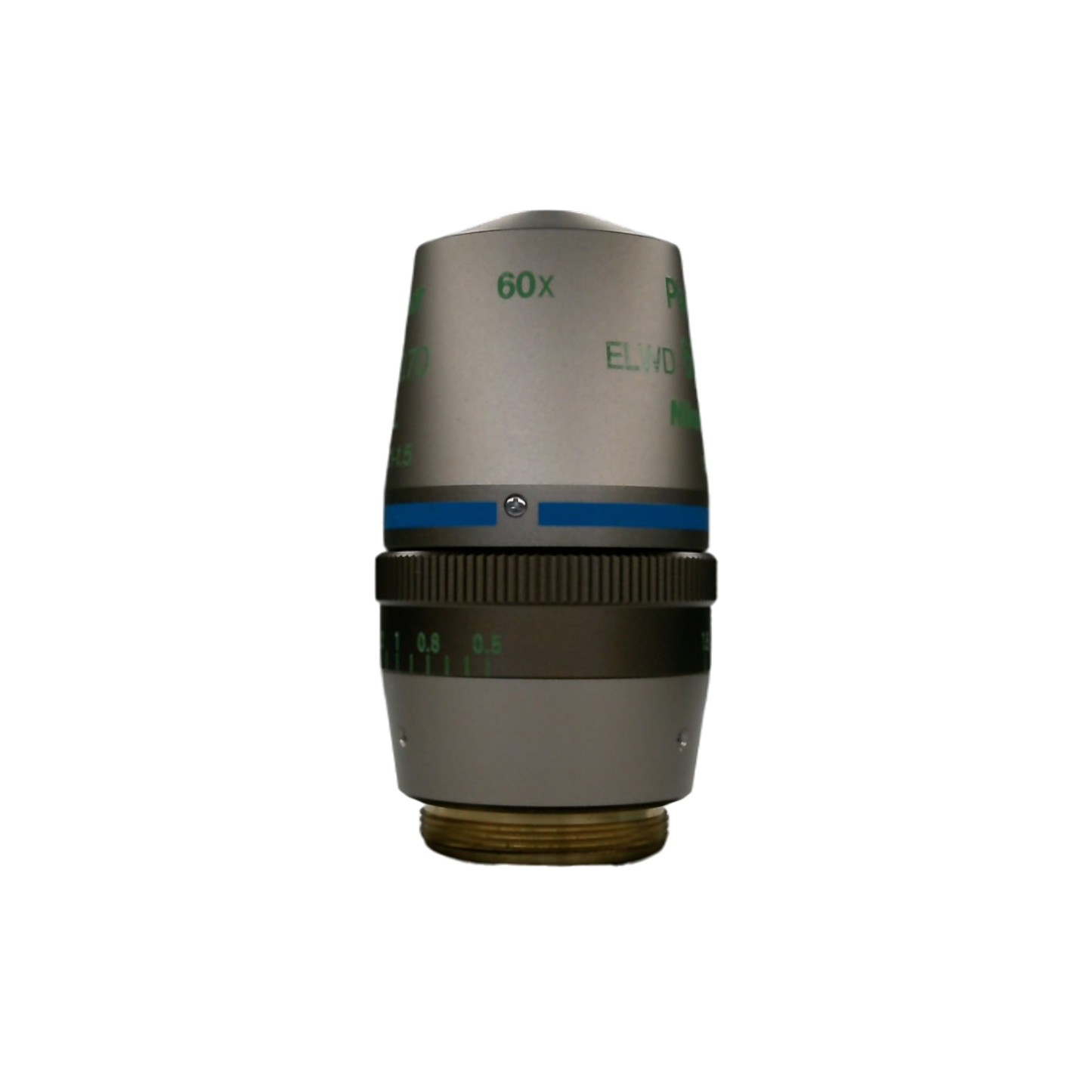

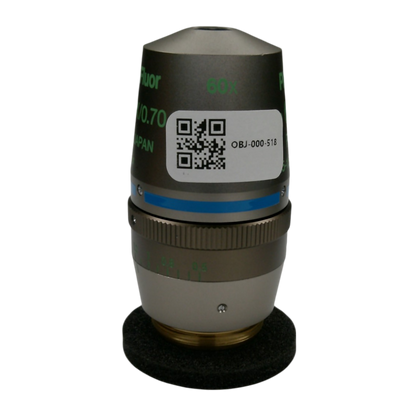

Nikon Plan Fluor ELWD Ph2 DIC M DLL 60x/0.70 M25 Thread Size Microscope Objective

Nikon Plan Fluor ELWD DIC M Ph2 DLL 60x/0.7 M25 Thread Size Objective (Used)

The Nikon Plan Fluor ELWD DIC M Ph2 DLL 60x/0.7 is a long-working-distance (ELWD) infinity-corrected fluorite objective, optimized for phase contrast (Ph2), differential interference contrast (DIC), and brightfield microscopy. With a numerical aperture of 0.70, this objective provides high-resolution imaging, excellent color correction, and enhanced contrast, making it ideal for live-cell imaging, fluorescence microscopy, and advanced research applications.

Condition

Refurbished/Used – This product has been inspected and verified to meet manufacturer specifications.

Key Features

• Magnification: 60x
• Numerical Aperture (NA): 0.70
• Working Distance (WD): 2.5mm (estimated)
• Optical Design: Plan Fluorite for high contrast and excellent color correction
• DIC Compatibility: M Differential Interference Contrast (DIC)
• Phase Contrast Compatibility: PH2 (Optimized for phase contrast applications)
• Correction: DLL (Designed for Distortion-Less Long Working Distance)
• Thread Type: M25 (Infinity-Corrected)
• Application: Brightfield, Fluorescence, Phase Contrast, and DIC Microscopy

Applications

• Phase Contrast Imaging
• High-Resolution Brightfield Microscopy
• Live-Cell Imaging
• Pathology and Histology
• Biomedical and Life Science Research

Specifications
