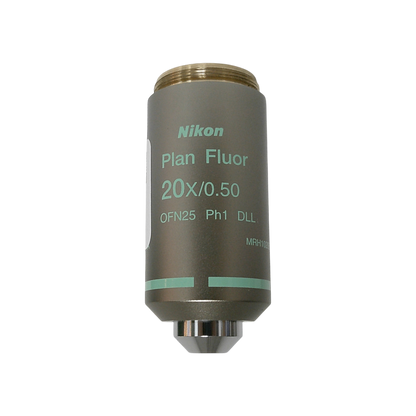

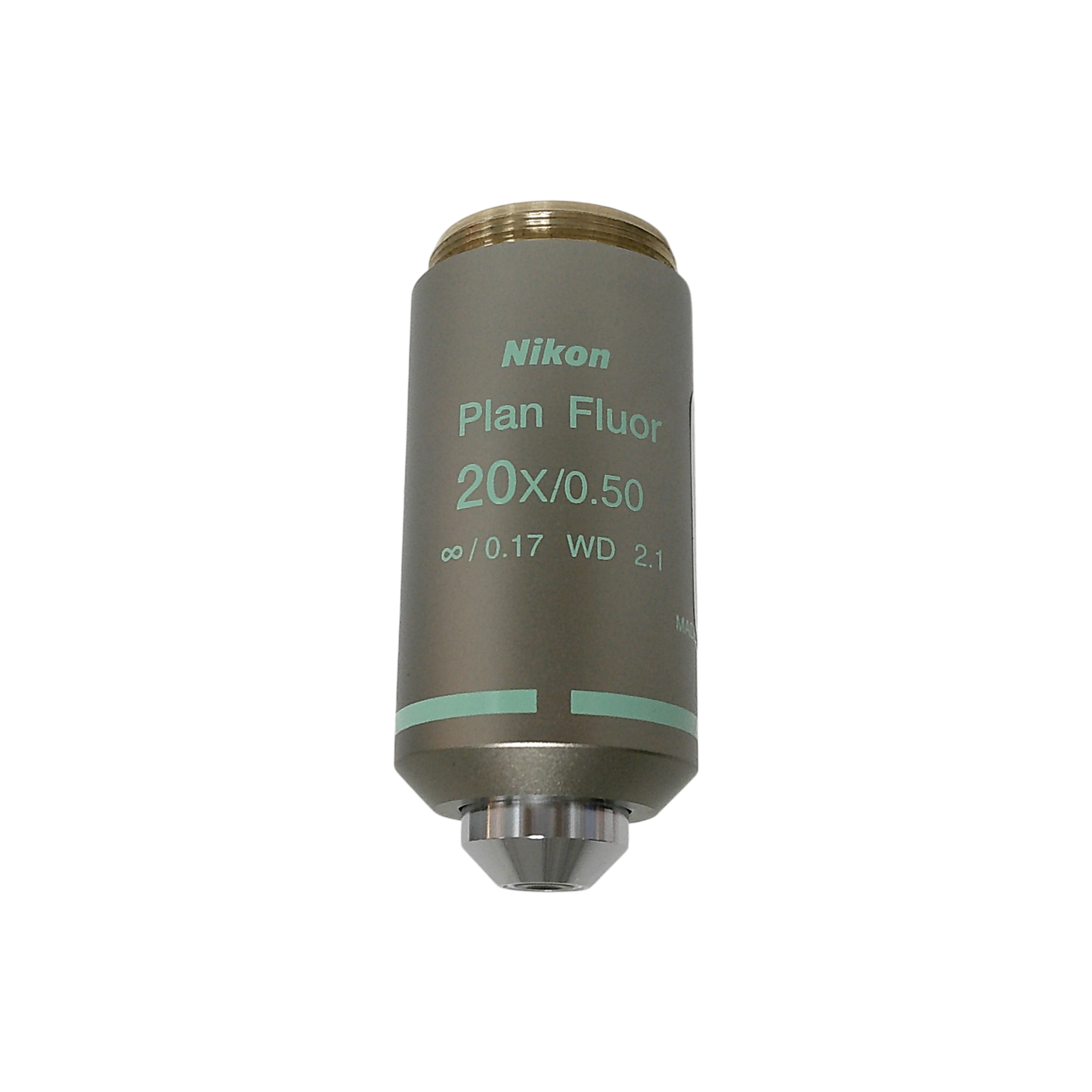

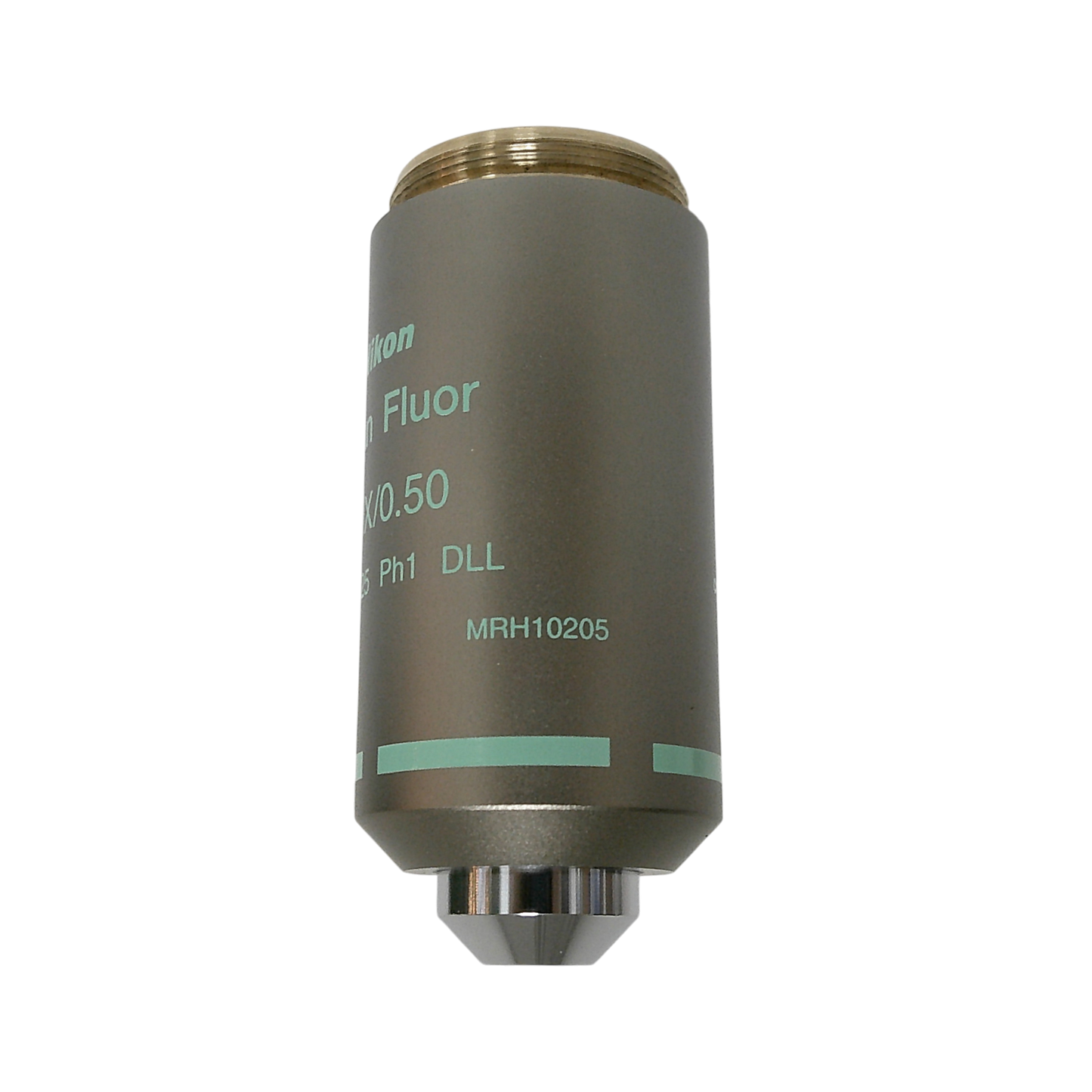

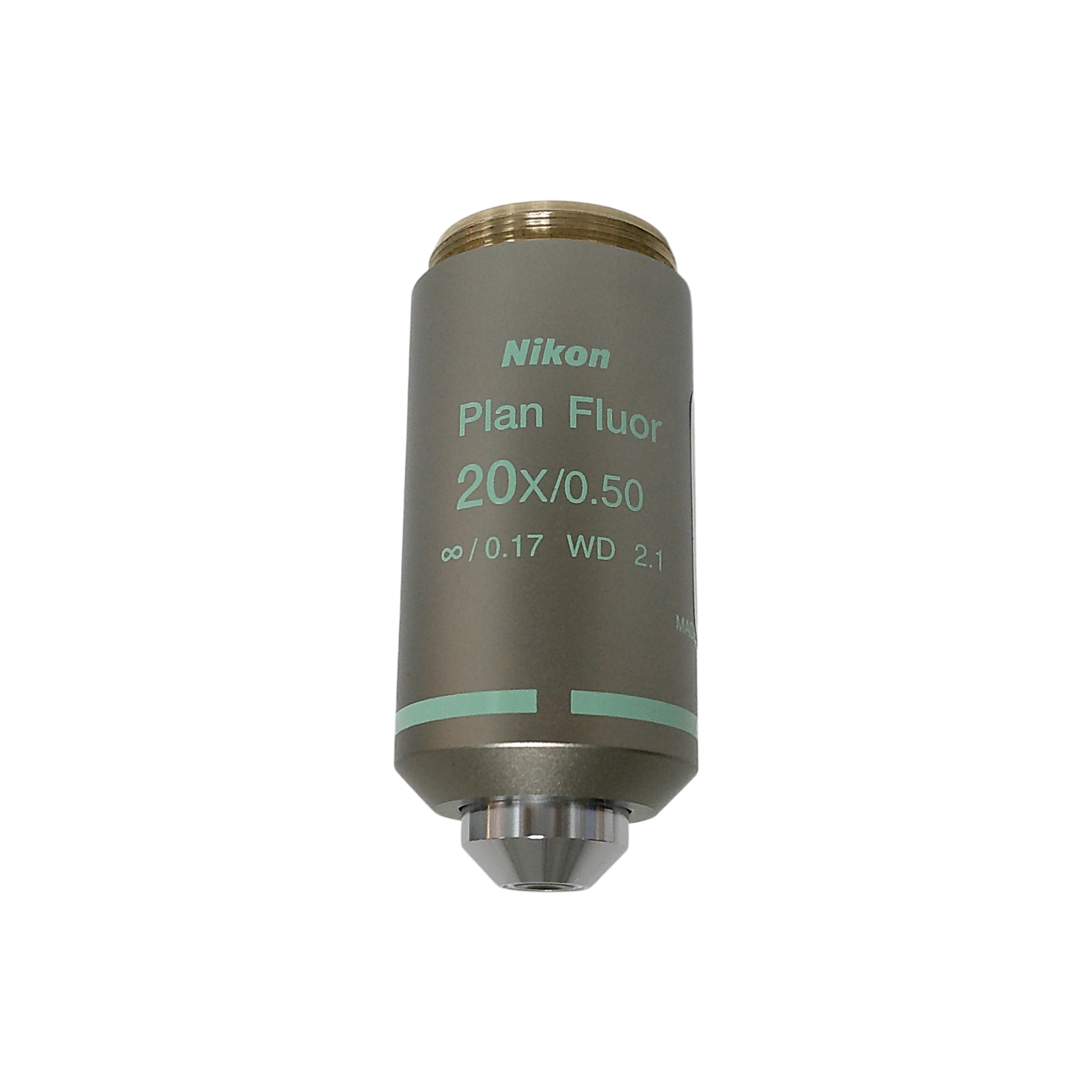

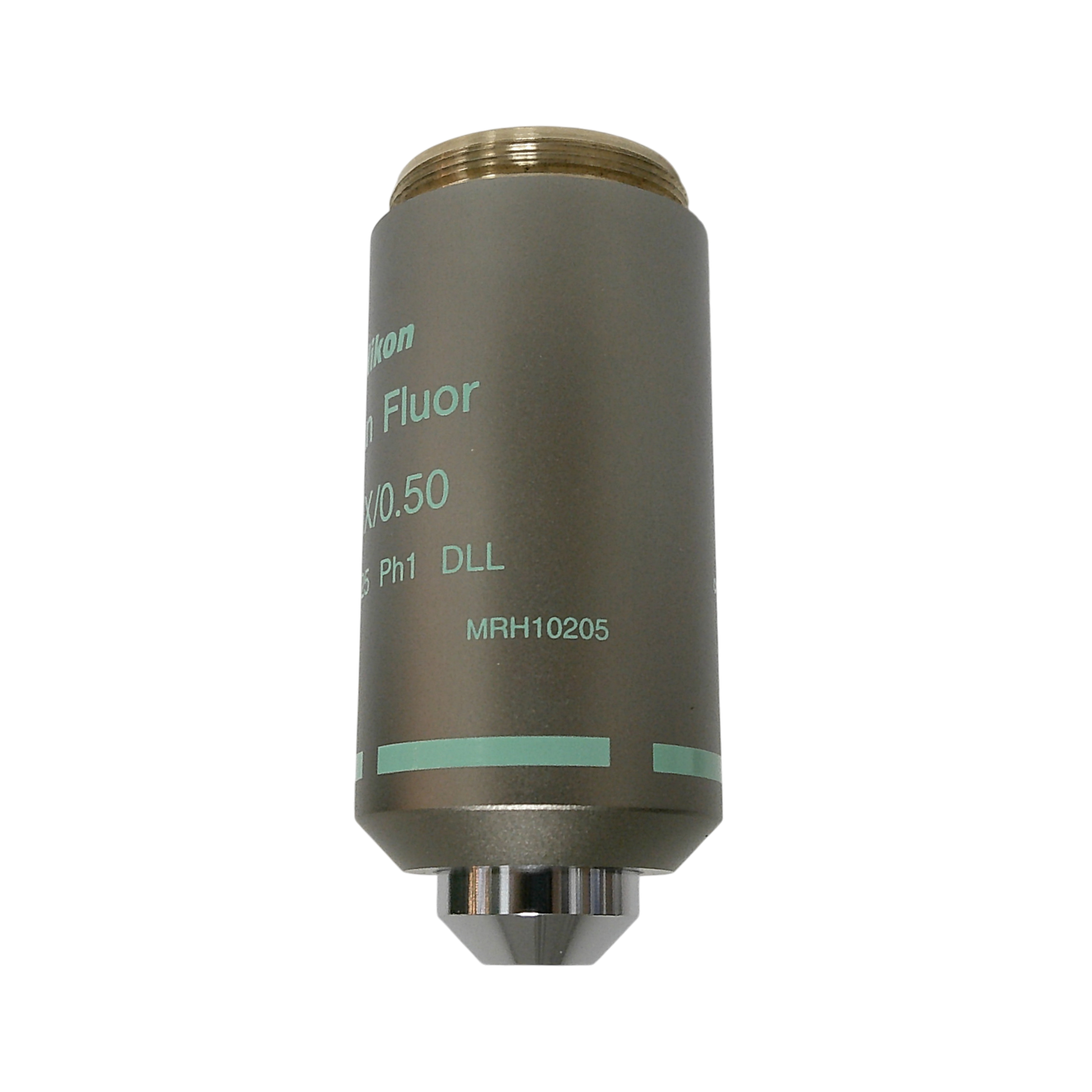

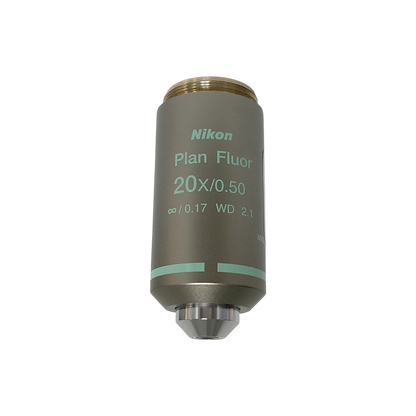

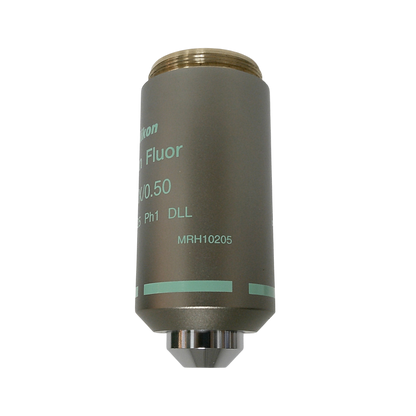

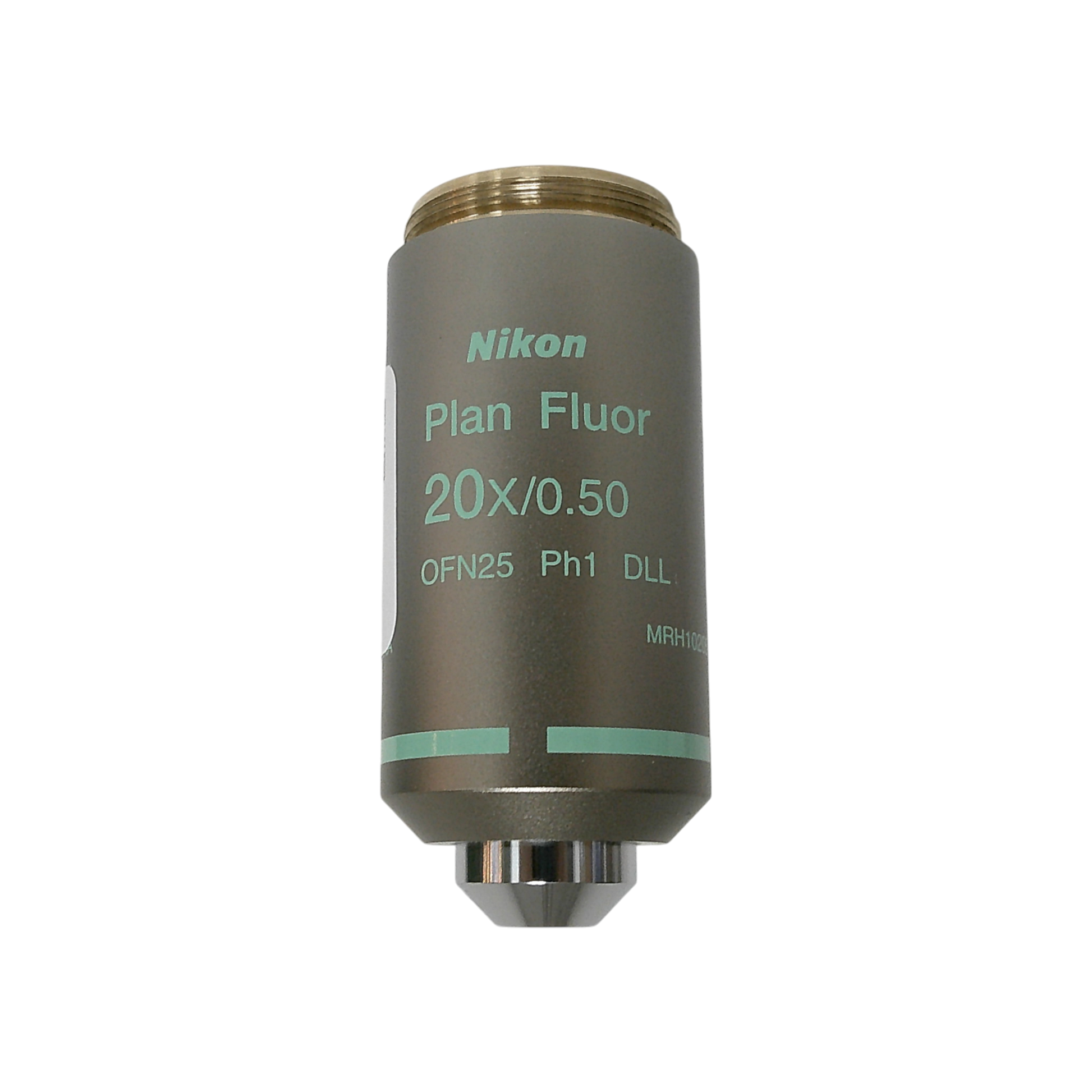

Nikon Plan Fluor Ph1 DLL 20x/0.50 M25 Thread Size Microscope Objective
Nikon Plan Fluor Ph1 DLL 20x/0.50 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Nikon Plan Fluor Ph1 20x/0.50 Phase Contrast Objective – M25 Thread
The Nikon Plan Fluor Ph1 20x/0.50 is a versatile and high-resolution objective designed for routine and advanced phase contrast microscopy. Featuring Nikon's Plan Fluor optics, this 20x objective provides high contrast, flat-field imaging across the visible spectrum. Its Phase 1 (Ph1) ring enables exceptional visualization of unstained transparent samples such as live cells and cultured tissues. Ideal for use with Nikon upright microscopes equipped with a phase turret or slider.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Plan Fluor optics for superior contrast and chromatic correction
- Phase 1 ring optimized for mid-magnification live-cell imaging
- Designed for use with 0.17 mm cover glass
- Compatible with M25-threaded nosepieces (Eclipse Ni, Ci, etc.)
- Excellent performance in brightfield and phase contrast modes
Applications
- Phase contrast microscopy
- Live-cell imaging
- Cell culture observation
- Biomedical research
- Educational and clinical labs
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Nikon |
| Model | Plan Fluor Ph1 20x/0.50 |
| Magnification | 20x |
| Numerical Aperture (NA) | 0.50 |
| Immersion Medium | Air (Dry) |
| Optical Design | Plan Fluorite |
| Contrast Technique | Phase Contrast (Ph1) |
| Cover Glass Thickness | 0.17 mm |
| Working Distance (WD) | ~1.0 mm (approximate) |
| Thread Type | M25 |
| Compatible Microscopes | Nikon Eclipse Ni, Ci, and other M25-threaded systems |
Additional Details
Additional Details
- Manufacturer: Nikon
- Model:
- Catalog Number: 51700d
- Serial Number:
- Condition: Used
