Nikon Plan Fluor PhL DL 4x/0.13 M25 Thread Size Microscope Objective
Nikon Plan Fluor PhL DL 4x/0.13 M25 Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

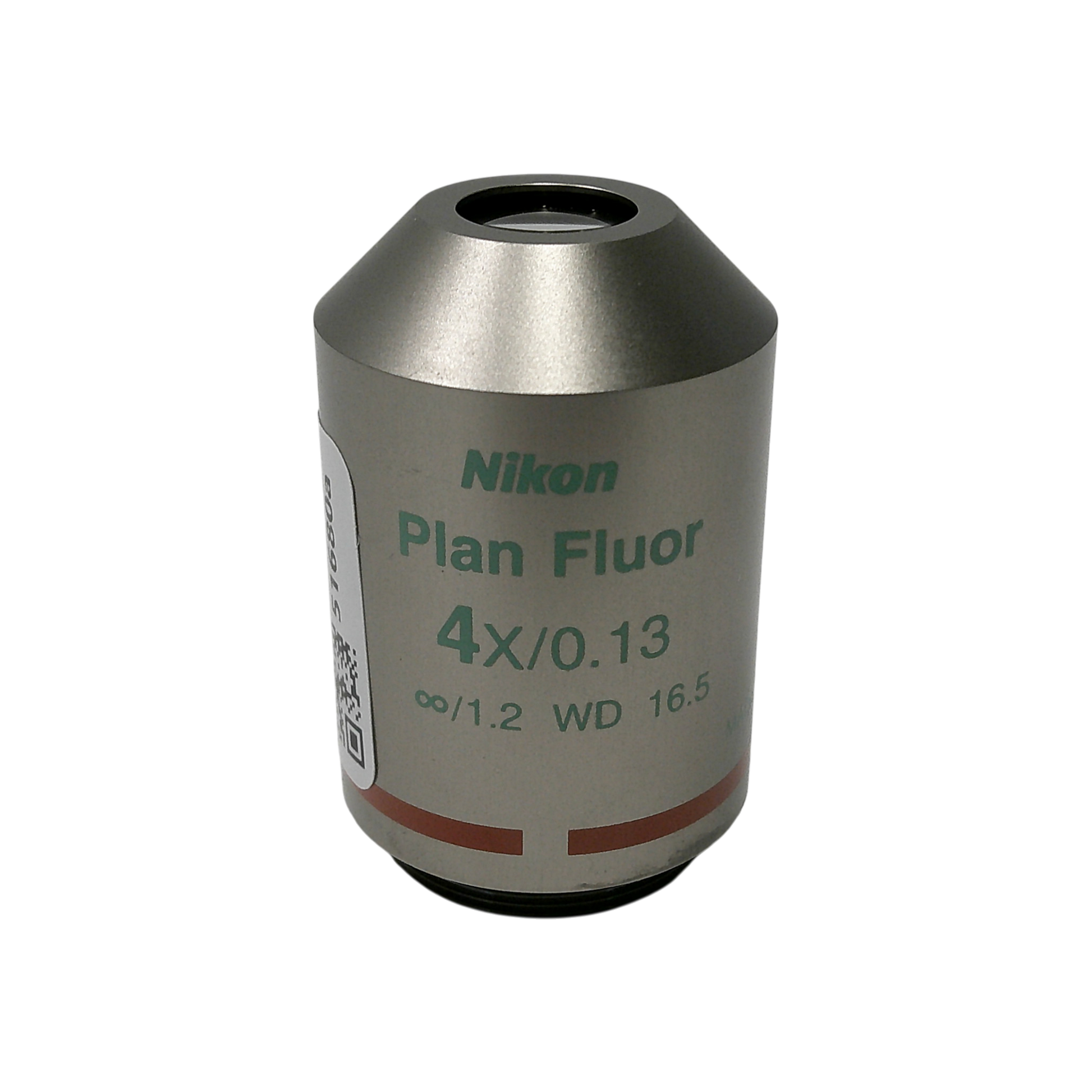

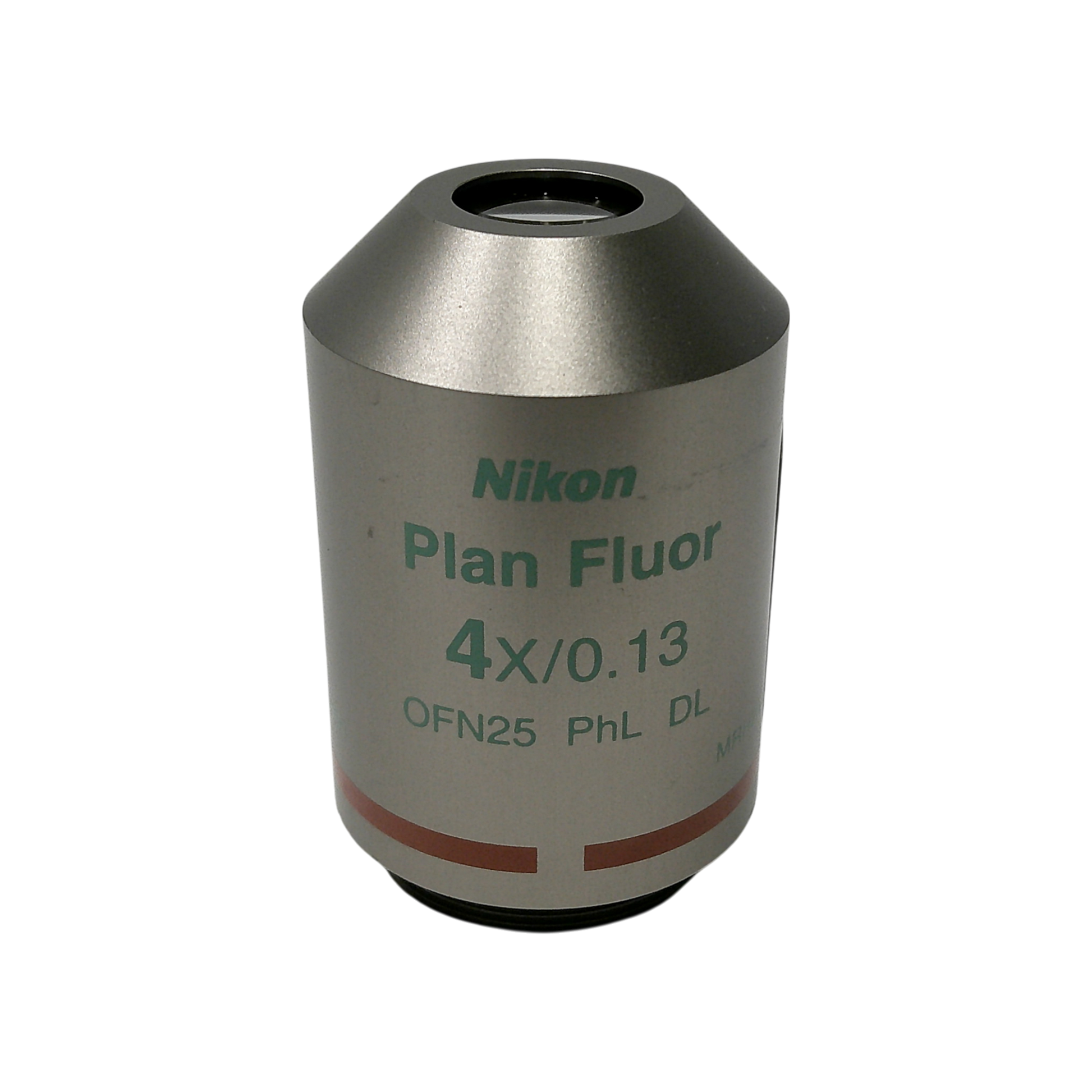

Nikon Plan Fluor PHL DL 4x/0.13 M25 Thread Size (Used)
The Nikon Plan Fluor PHL DL 4x/0.13 is a high-performance fluorite phase contrast objective designed for phase contrast (PHL), brightfield, and fluorescence microscopy. With a numerical aperture (NA) of 0.13, this objective provides superior resolution, contrast, and flat-field correction, making it ideal for live-cell imaging and unstained sample observation. The M25 thread size ensures compatibility with Nikon Eclipse and other M25-compatible microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Nikon Plan Fluor PHL DL 4x/0.13 Objective
Key Features
- 4x magnification for low-magnification, wide-field imaging
- Plan Fluor (Fluorite) optics for enhanced contrast and color correction
- Numerical aperture (NA) of 0.13 for improved light transmission
- Phase Contrast (PHL DL) optimized for unstained biological samples
- M25 thread size for compatibility with Nikon Eclipse and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence and brightfield microscopy with high transmission coatings
Applications
- Phase contrast microscopy (PHL DL)
- Fluorescence microscopy
- Brightfield microscopy
- Live-cell imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 4x |
| Numerical Aperture (NA) | 0.13 |
| Working Distance | ~17.2 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Fluor (Flat Field, High Contrast, Phase Contrast DL) |
| Thread Size | M25 (25mm thread diameter) |
| Parfocal Distance | 60 mm |
| Compatible Microscopes | Nikon Eclipse series and other M25-compatible models |
| Special Features | Optimized for phase contrast and fluorescence imaging, high transmission coatings for enhanced brightness |
Additional Details
Additional Details
- Manufacturer: Nikon
- Model:
- Catalog Number: 51680a
- Serial Number:
- Condition: Used
