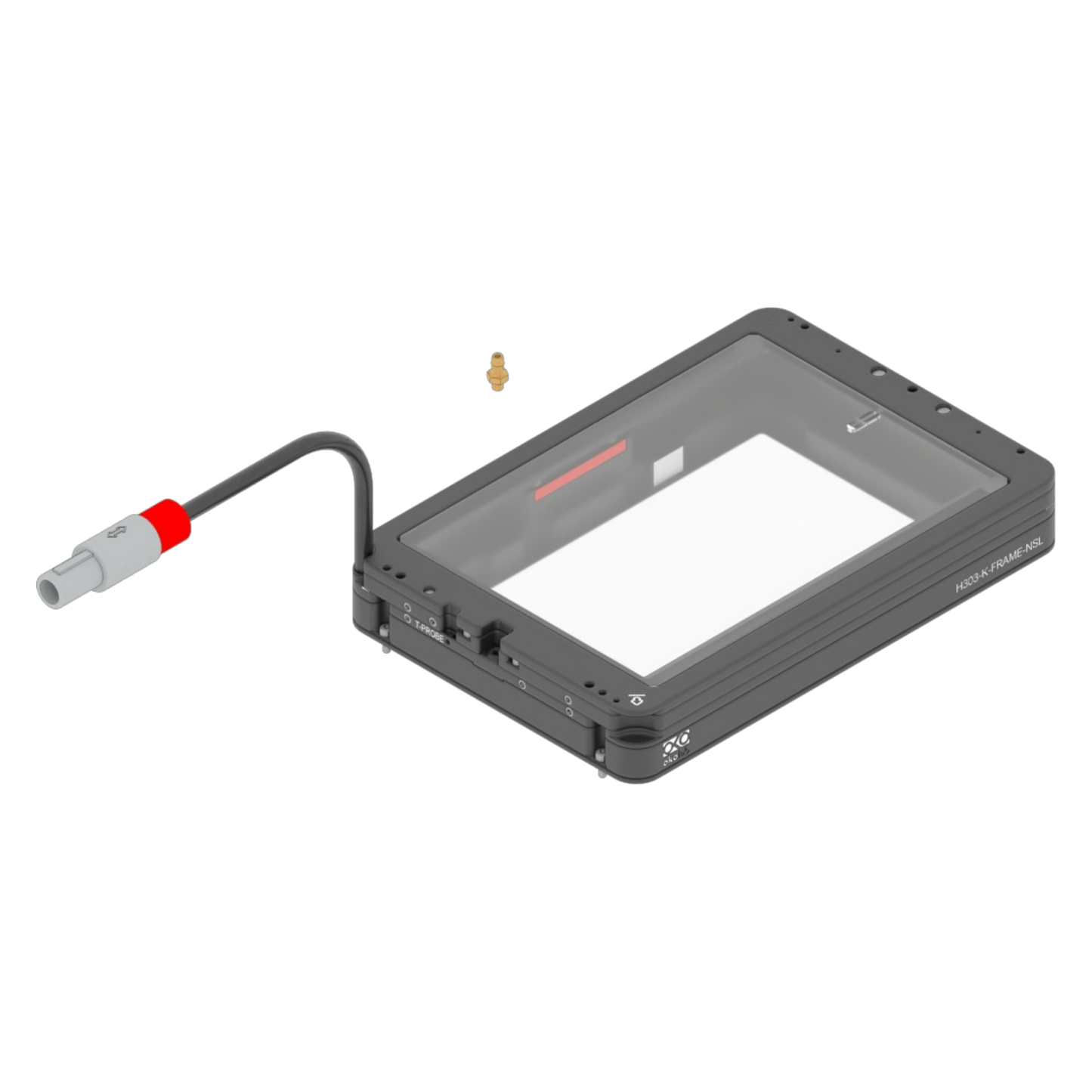

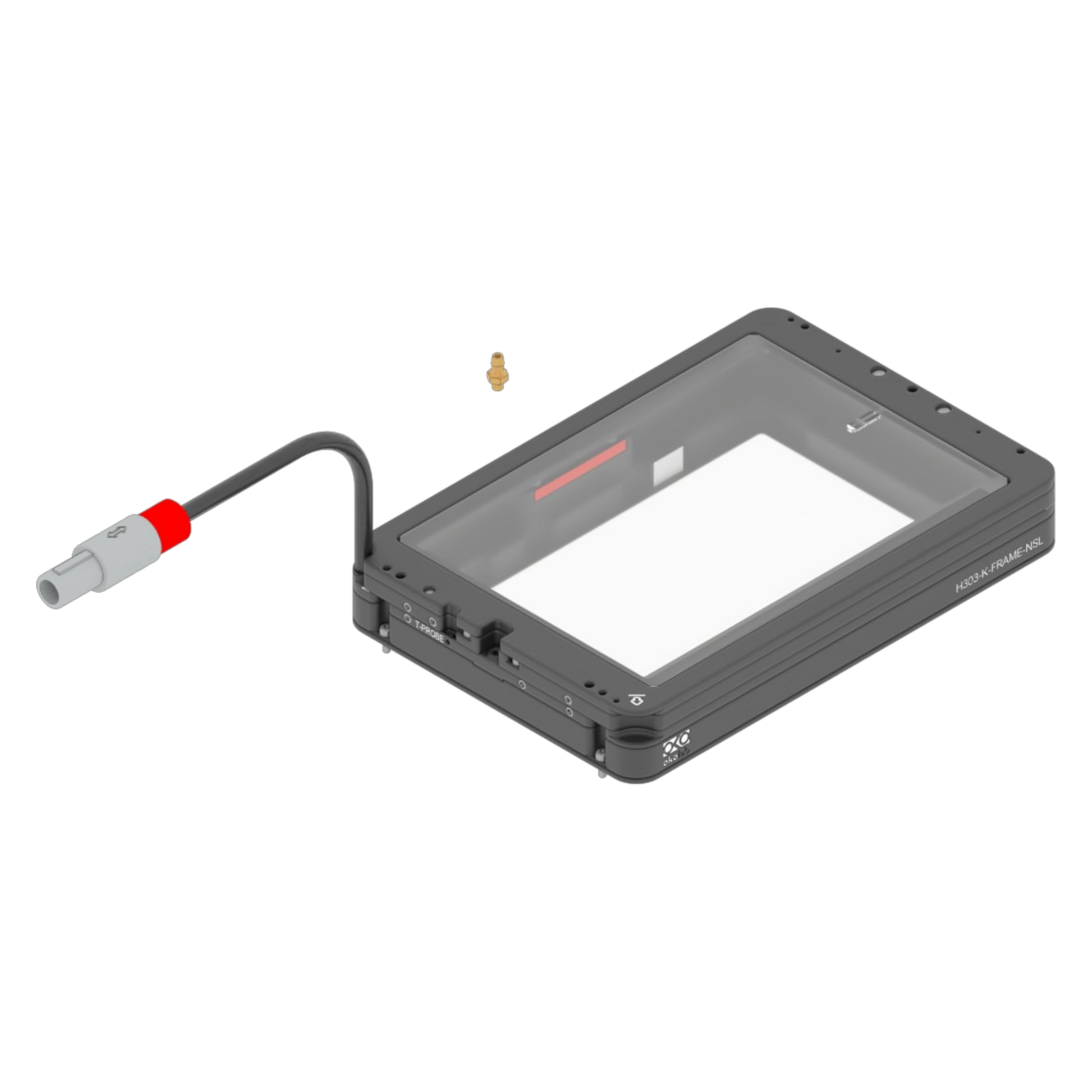

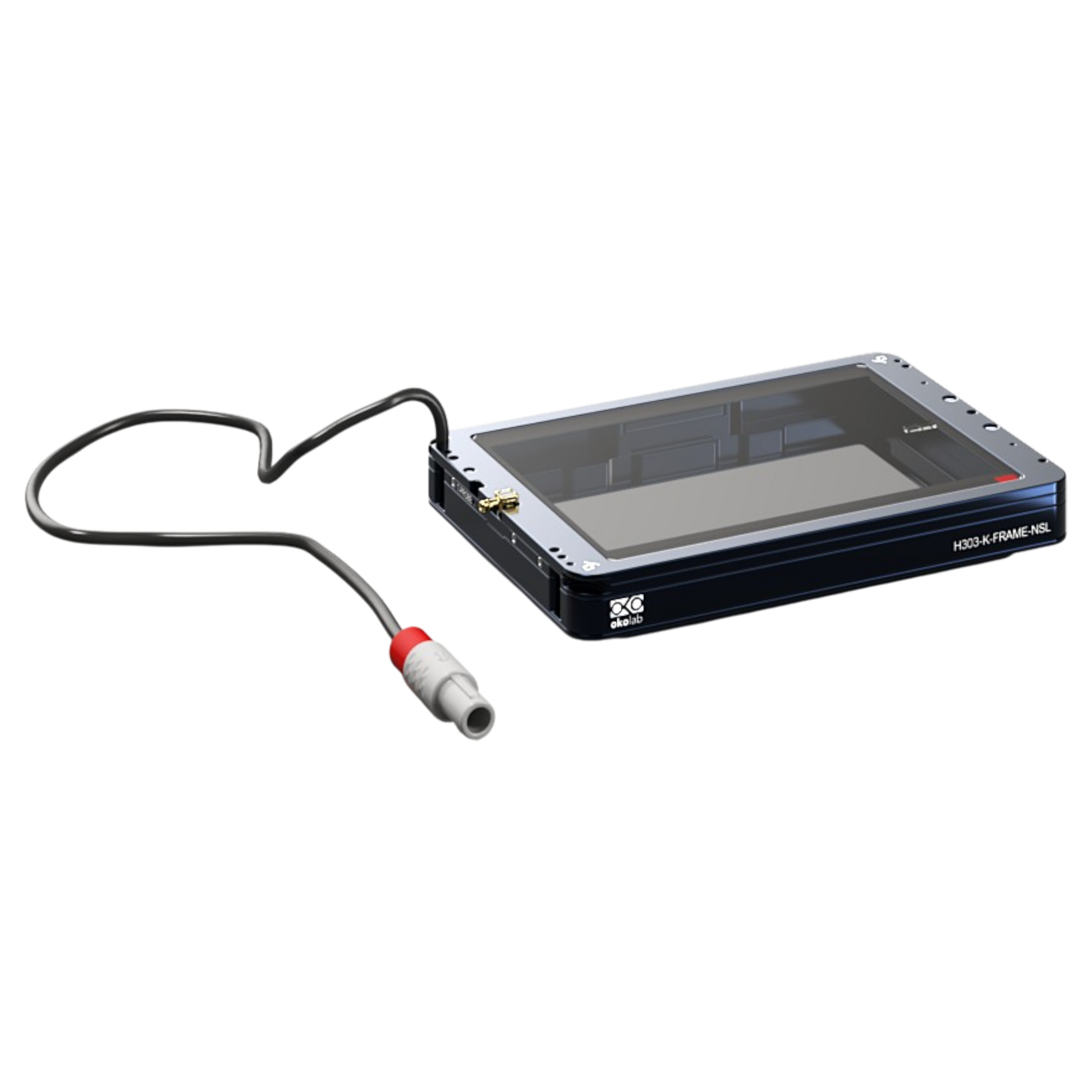

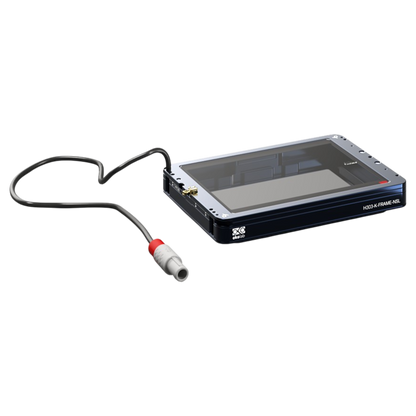

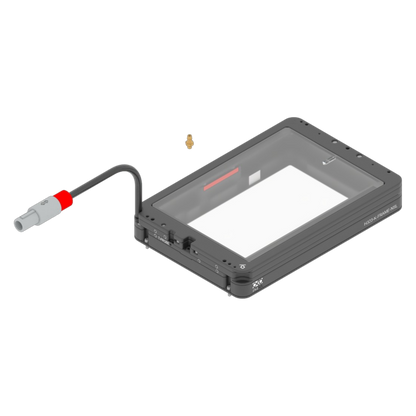

Okolab BL3 Electrically heated chamber for stages with k-frame insert (160x110mm), non-sliding lid for TIRF/laser safety covers | H303-K-FRAME-NSL
The Okolab H303-K-FRAME-NSL is a BL3 Electrically heated chamber for stages with k-frame insert (160x110mm) - Compatible with TIRF/lasersafety covers - non-sliding wireless lid.
Condition
New with Manufacturer Warranty
Key Features
- Compatible with Leica Bat Cave
- The chamber is uniformly heated by means of embedded electric resistances and is covered with a wireless temperature controlled conductive glass lid
- It hosts MW plates without addition of any insert
- Inserts are available to host Petri, Chambered Slides, Glass Slides, etc
- Inserts can be used on XY/Piezo stages even without gas chamber, provided that the XY/piezo stage is equipped with a MW holder, such as K-FRAME-MW-HOLDER
- Wireless heated non-sliding lid
- Compatible with the CO2-H-IN-CHAMBER SENSOR for in chamber closed loop control on CO2 and Humidity
Applications
- Live cell imaging
- Time lapse microscopy
- Stage top incubation with temperature, CO2 and humidity control
Specifications
| Manufacturer | Okolab |
| Model | BL3 Electrically heated chamber for stages with k-frame insert (160x110mm), non-sliding lid for TIRF/laser safety covers |
| Part Number | H303-K-FRAME-NSL |
| Product Line | Bold Line 3 (BL3) Top Stage Incubator |
| Perfusion Holes | #6, 2.5 mm O.D |
| Min. Condenser Working Distance | 28 mm |
| Size | 160x110mm |
| Compatible XY Stages | Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo) Prior H107 and 117, Leica (k-frame), Zeiss (k-frame), Olympus (k-frame) |
| Compatibility | Leica Bat Cave |
| In-Chamber CO2/Humidity Sensor | Compatible with CO2-H-IN-CHAMBER-SENSOR |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Okolab
- Model: BL3 - Electrically heated chamber for stages with k-frame insert (160x110mm) - Compatible with TIRF/lasersafety covers - non-sliding wireless lid
- Catalog Number: OKO-H303-K-FRAME-NSL
- Serial Number: N/A
- Condition: New
