Okolab Dual metal / glass warm plate for stages with k-frame insert (160x110mm) - Flat Environmental Control
Okolab Dual metal / glass warm plate for stages with k-frame insert (160x110mm) - Flat Environmental Control
Couldn't load pickup availability
- ✓ New, with the full manufacturer warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

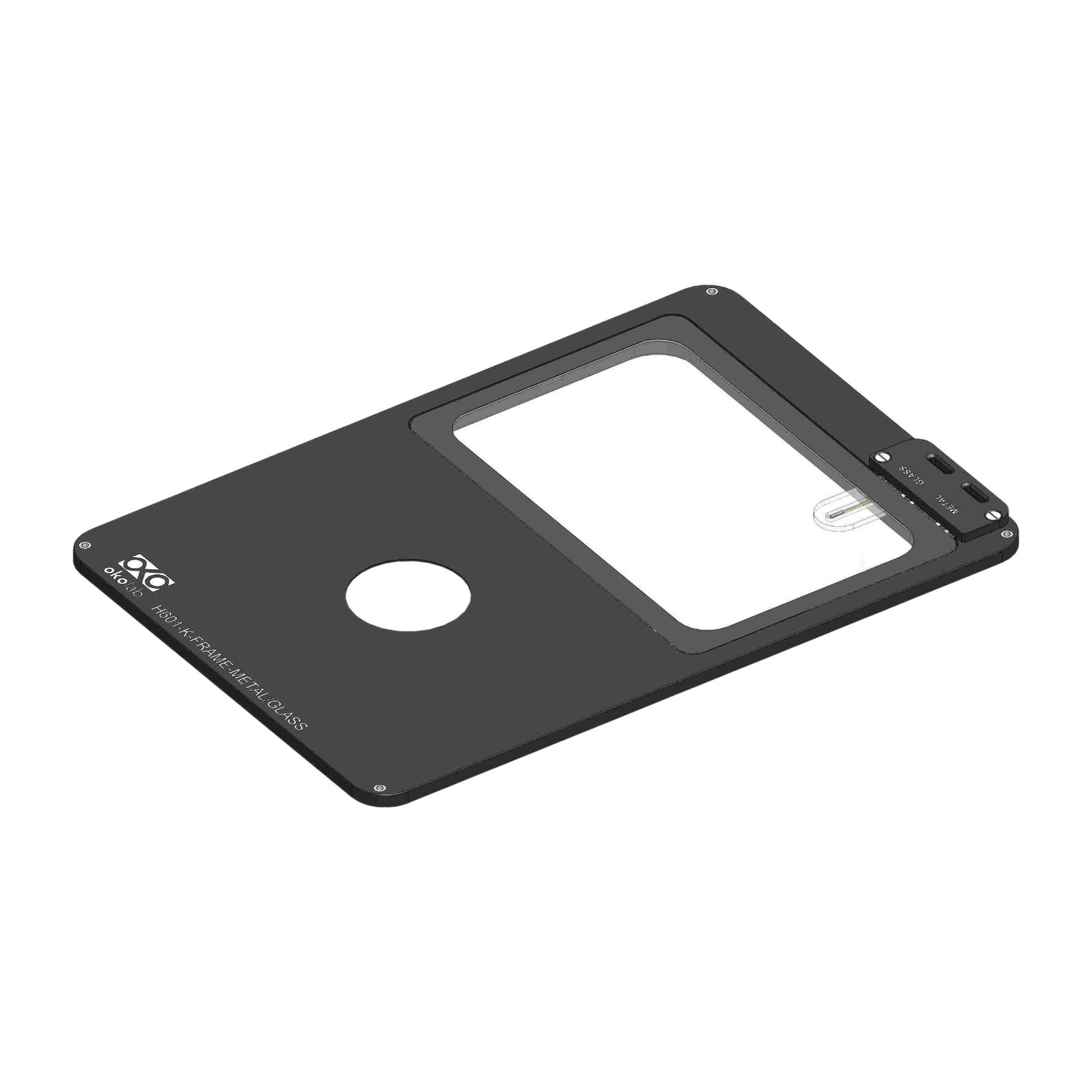

Okolab Dual metal / glass warm plate for stages with k-frame insert (160x110mm), Flat | H601-K-FRAME-METAL/GLASS
The Okolab H601-K-FRAME-METAL/GLASS is a dual metal / glass warm plate for stages with k-frame insert (160x110mm) - Flat.
Condition
New with Manufacturer Warranty
Key Features
- It fits in the k-frame opening of the XY stage and creates a flat temperature controlled surface at the same height as the rest of the XY stage
- The metal side of the insert features a trimmed 24 mm diameter observation opening for imaging with oil immersion lenses
- ITO glass side thickness: 0.5 mm
- The metal and glass sides have independent temperture sensors for independent temperature control of each side
- Features anti-scratch, anti-fingerprint, chemically strengthened Dragontrail Glass
- Metal side: 95x55 mm with observation opening of 24mm diameter
- Glass side: 95x55 mm
- Requires H401-T-CONTROLLER
- Uses both channels
- Dragontrail Glass - 10 Years Warranty
Applications
- Keeping samples at a controlled temperature on inverted, upright and stereo microscopes
- Heated sample handling and preparation
- Live specimen observation
Specifications
| Manufacturer | Okolab |
| Model | Dual metal / glass warm plate for stages with k-frame insert (160x110mm), Flat |
| Part Number | H601-K-FRAME-METAL/GLASS |
| Product Line | Warm Plates and Lens Heaters |
| Glass Thickness | 0.5 mm |
| Size | 160x110mm |
| Diameter | 24 mm |
| Compatible XY Stages | Marzhauser (all models), Ludl (all models), ASI (all models, including z-piezo), Prior H107 and H117, Leica (k-frame), Zeiss (k-frame), Olympus (k-frame) |
| Requires | H401-T-CONTROLLER |
Additional discounts may apply. Contact us for a quote.
Additional Details
Additional Details
- Manufacturer: Okolab
- Model: Dual metal / glass warm plate for stages with k-frame insert (160x110mm) - Flat
- Catalog Number: OKO-H601-K-FRAME-METAL/GLASS
- Serial Number: N/A
- Condition: New
