Okolab H601‑K‑FRAME‑GLASS‑RECESSED ITO Glass Plate with Heated Frame | Recessed Ø160×110 mm Heating Plate

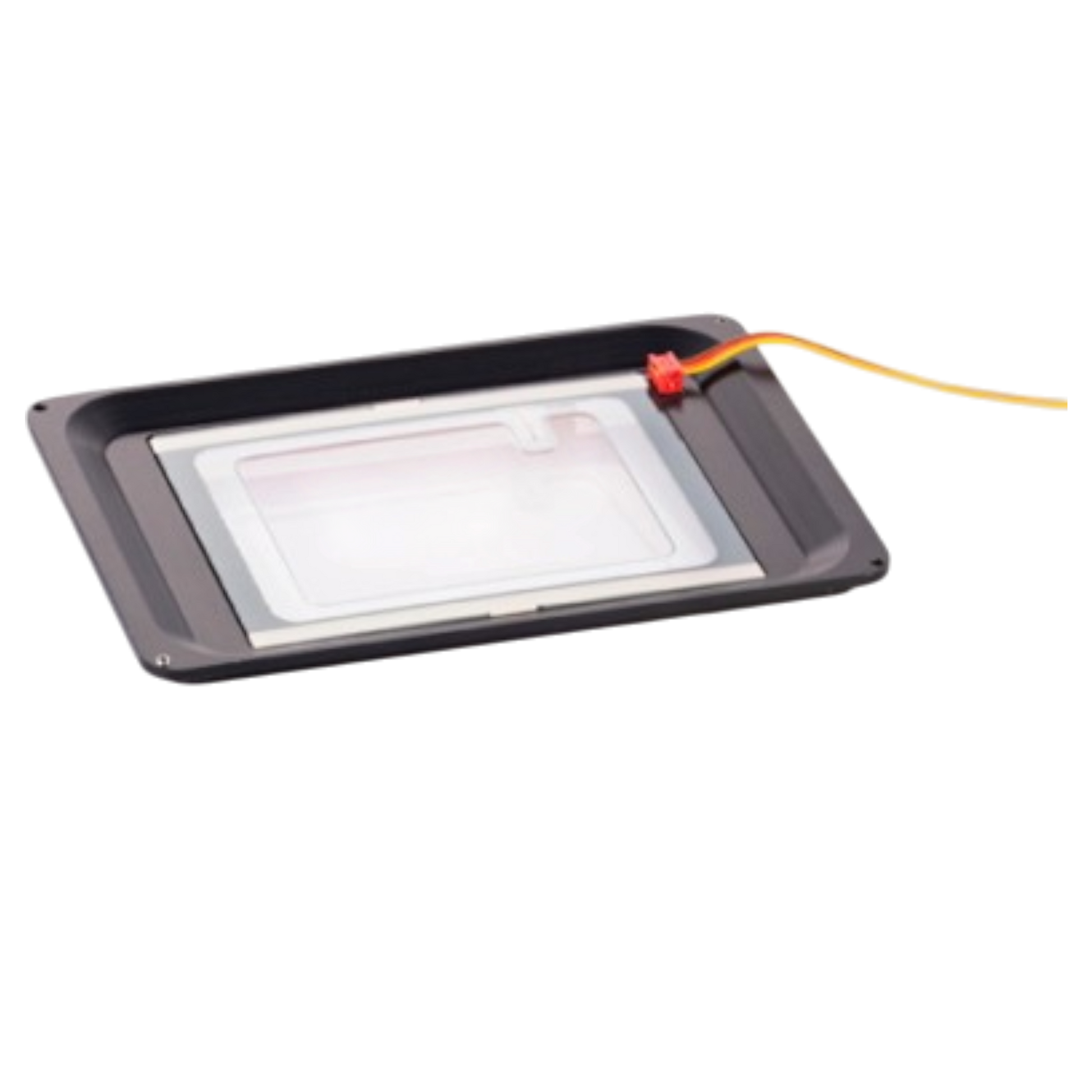

The Okolab H601‑K‑FRAME‑GLASS‑RECESSED is a precision dual-channel ITO glass plate embedded in a durable aluminum frame, designed to fit 160×110 mm K-frame microscope stages (Marzhauser, Ludl, ASI, Prior H107/H117, Leica, Zeiss, Olympus). Its recessed design maintains the native focal plane and delivers transparent, uniform heating ideal for live-cell, IVF, and time-lapse imaging workflows.

Condition

Condition: New with Manufacturer Warranty

Included Items

• One H601‑K‑FRAME‑GLASS‑RECESSED ITO glass heating plate (factory-sealed, brand new)

Key Features

• Flush-mounted, recessed design—only raises focal plane by ~1.5 mm :contentReference[oaicite:0]{index=0}
• Dual-channel heating: heats glass surface and metal frame independently for optimal thermal uniformity :contentReference[oaicite:1]{index=1}
• Temperature range: ambient to 60 °C; specimen accuracy ±0.3 °C via surface sensor regulation :contentReference[oaicite:2]{index=2}
• ITO-coated Dragontrail™ glass (0.5 mm thick), chemically strengthened and anti-scratch :contentReference[oaicite:3]{index=3}
• Rigid aluminum frame provides structural stability; 10-year glass warranty :contentReference[oaicite:4]{index=4}
• Requires H401‑T‑CONTROLLER (dual-channel touchscreen) or H401‑T‑PENNY for operation :contentReference[oaicite:5]{index=5}

Applications

• Live-cell, time-lapse, and IVF microscopy on K-frame inverted stages
• Oil-immersion and high-resolution imaging with consistent focal height
• Perfusion and environmental chamber workflows needing thermal precision

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
