Okolab Warm ITO glass plate with heated metal frame for Olympus stages with circular opening - Flat - 110 mm diameter Environmental Control

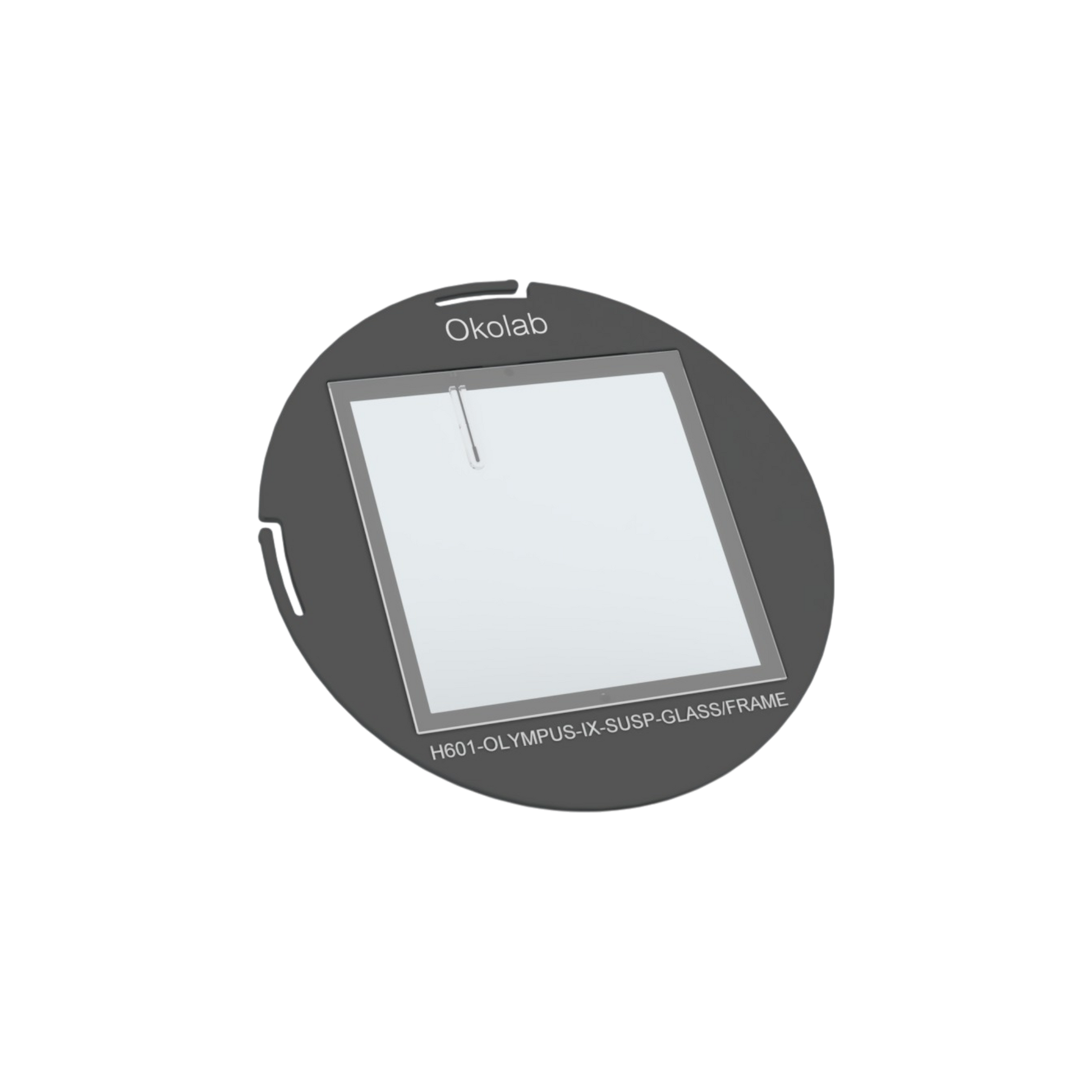

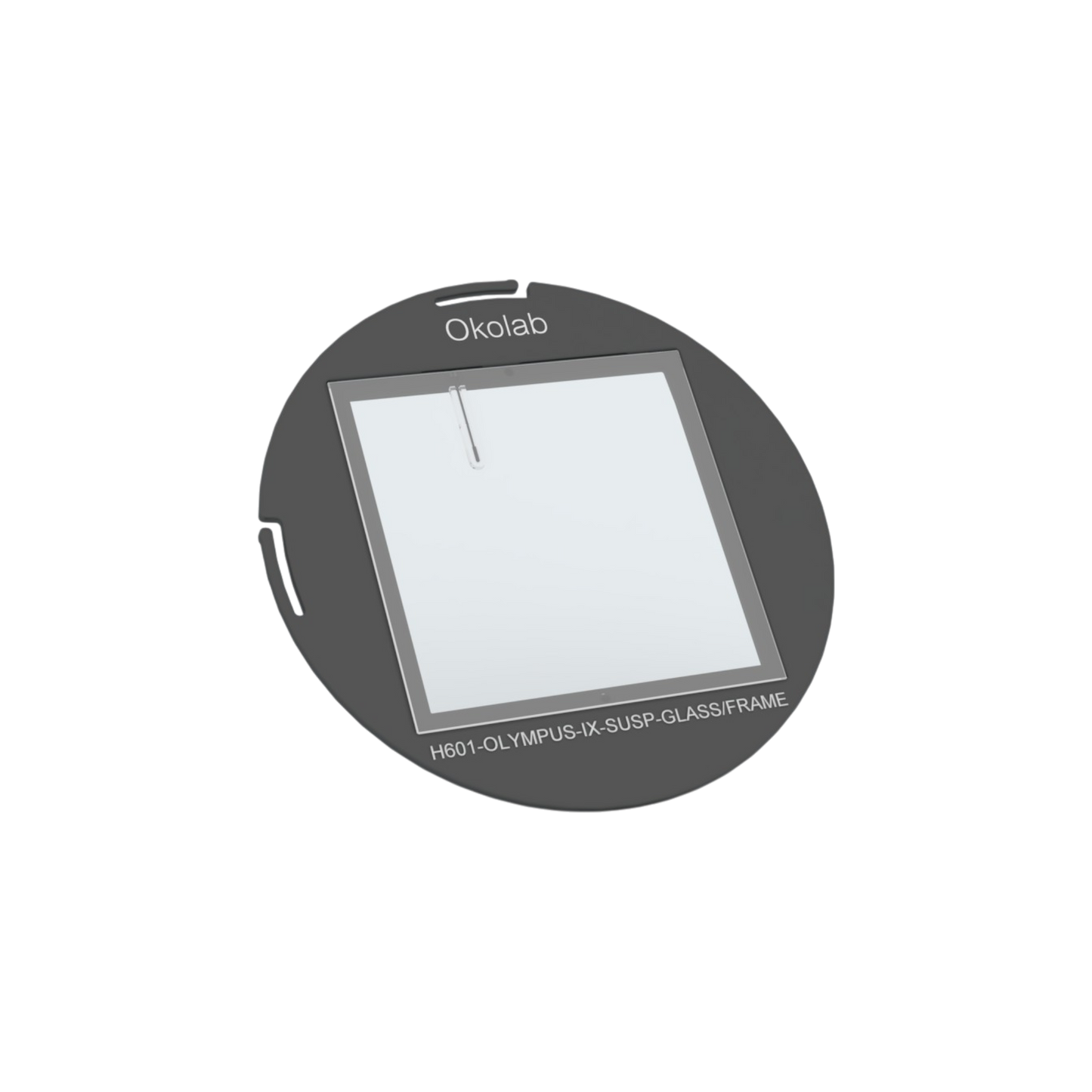

Okolab H601‑OLYMPUS‑IX‑SUSP‑GLASS/FRAME ITO Glass Plate with Heated Frame | Flat Heated Plate Ø 110 mm

The Okolab H601‑OLYMPUS‑IX‑SUSP‑GLASS/FRAME is a precision dual-channel heating plate featuring an ITO-coated Dragontrail™ glass surface encased in a heated aluminum frame. Designed to fit Olympus inverted microscope stages (IX‑SUSP, GX‑SVR, GX‑SFR, BX3‑SSU, IX2‑SFR, IX2‑SVL‑2), it delivers exceptional thermal uniformity and optical clarity.

Condition

Condition: New with Manufacturer Warranty

Included Items

• One H601‑OLYMPUS‑IX‑SUSP‑GLASS/FRAME heating plate (factory-sealed, brand‑new)

Key Features

• Dual-channel heating controls both glass and metal frame independently for superior temperature stability :contentReference[oaicite:0]{index=0}
• ITO-coated glass ensures transparent, uniform heating; Dragontrail™ glass is anti-scratch and chemically strengthened :contentReference[oaicite:1]{index=1}
• Flush-mounted design with 110 mm diameter, offering a Ø 24 mm observation window for high‑NA objectives :contentReference[oaicite:2]{index=2}
• Temperature range ambient to 60 °C; specimen accuracy ±0.3 °C :contentReference[oaicite:3]{index=3}
• Comes with a 10-year warranty on glass against damage :contentReference[oaicite:4]{index=4}
• Requires an H401‑T‑CONTROLLER (dual-channel 4.3″ touchscreen) for full operation :contentReference[oaicite:5]{index=5}

Applications

• Live‑cell, time‑lapse, and high‑resolution imaging on Olympus inverted microscopes
• Oil-immersion workflows needing stable heating and optical clarity
• Perfusion studies and environmental control experiments

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
