Okolab Warm metal plate for Leica manual 3-plate stage with 88mm circular opening - Flat - 88 mm diameter Environmental Control

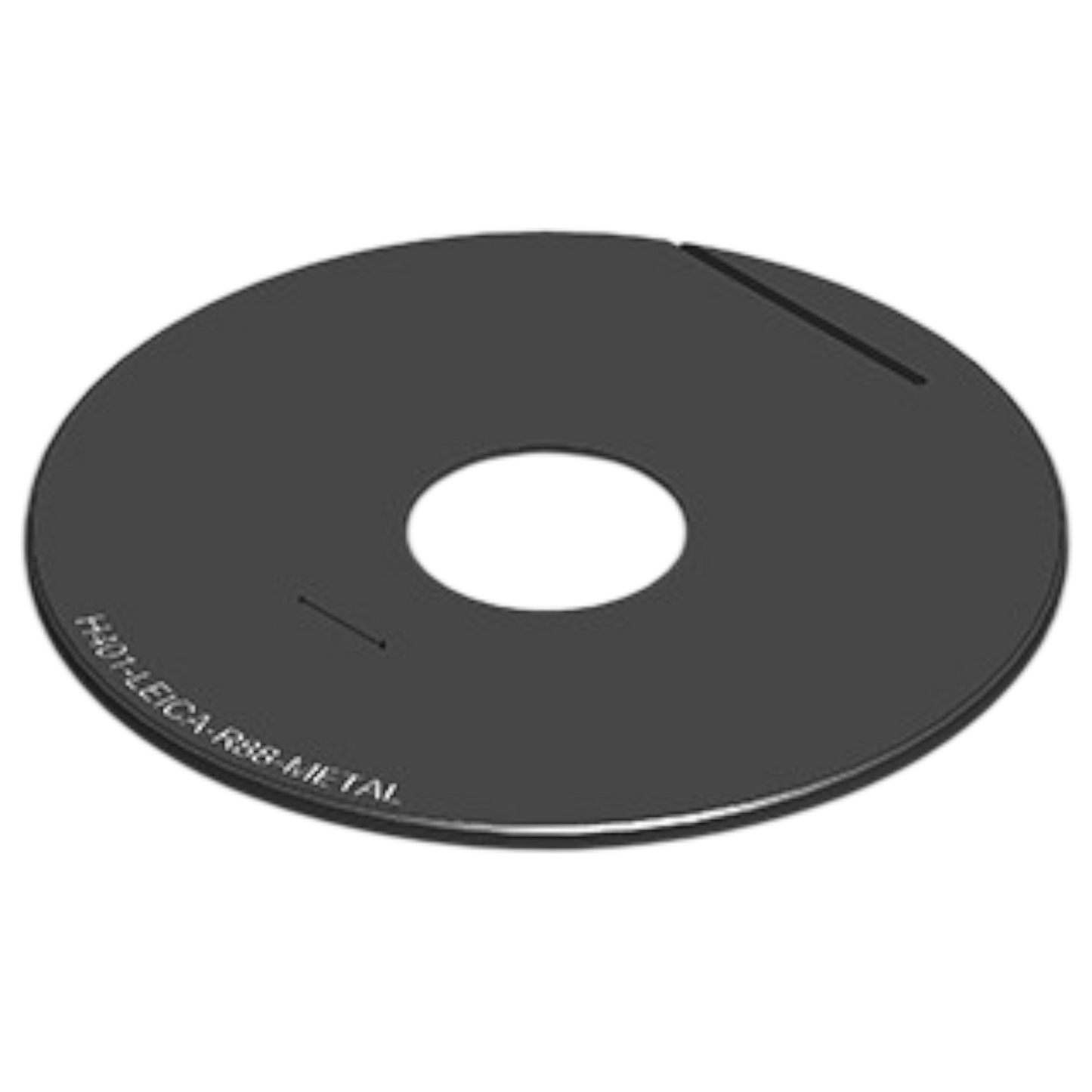

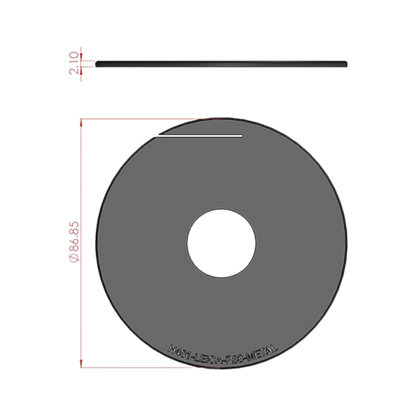

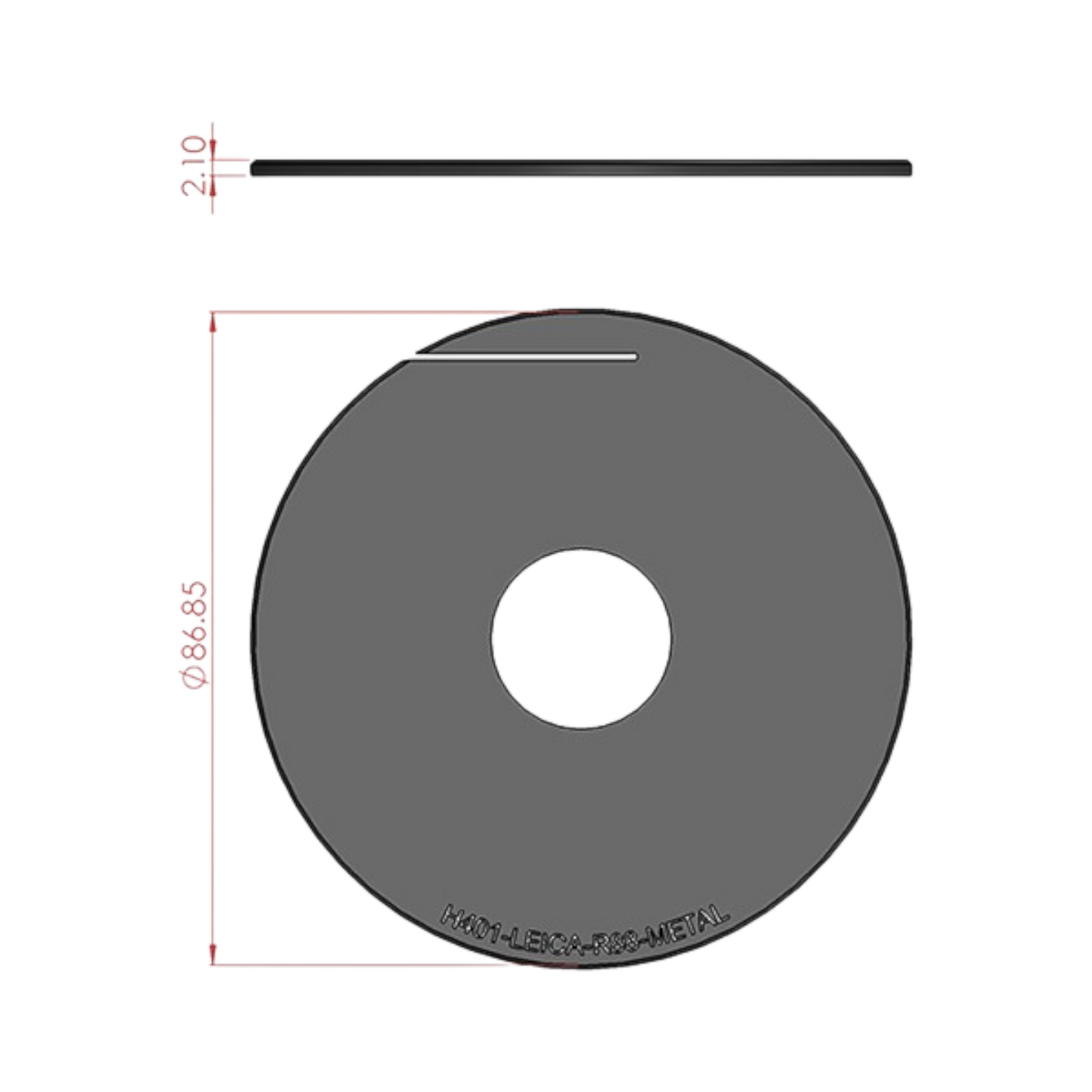

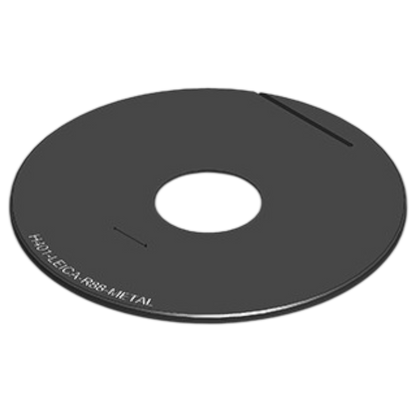

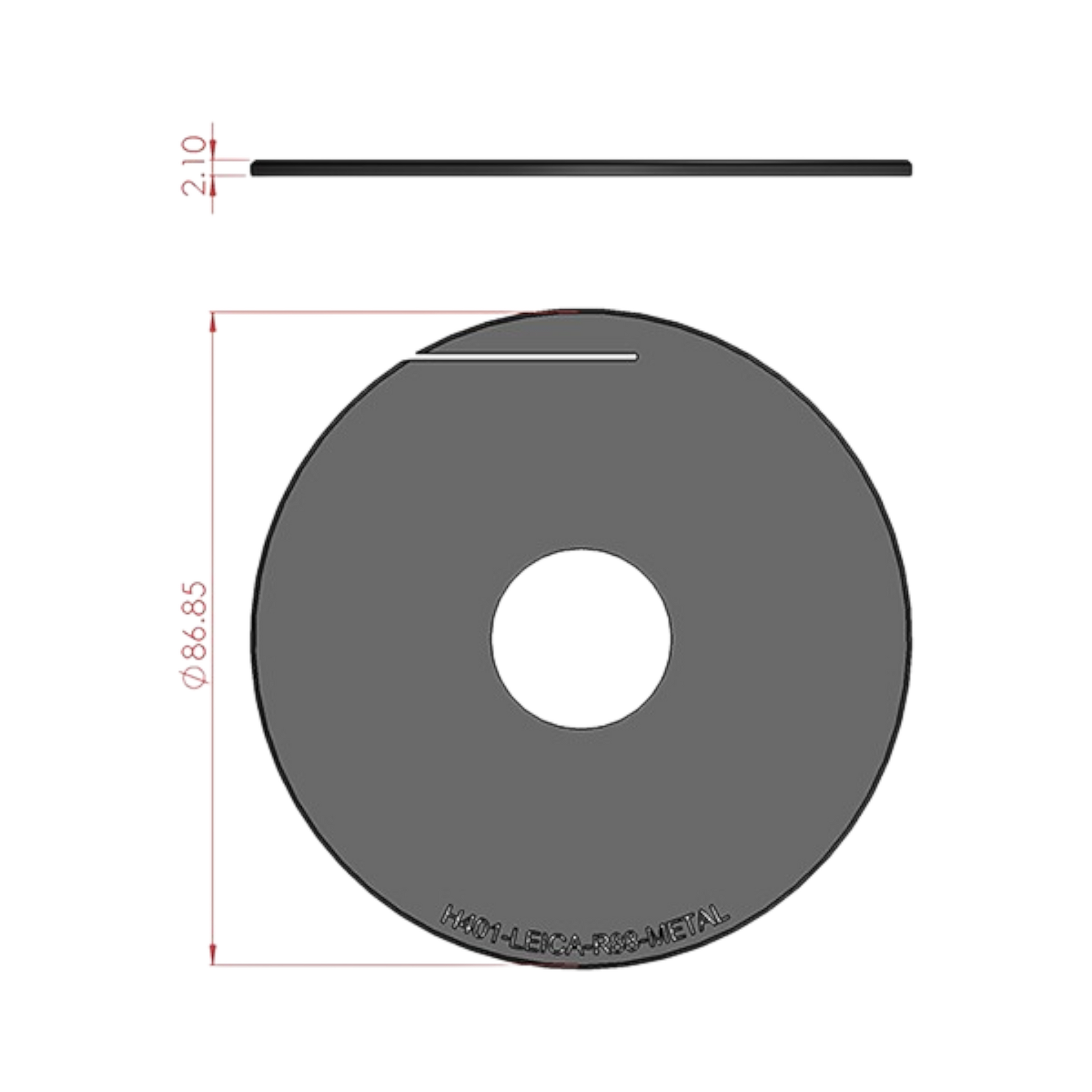

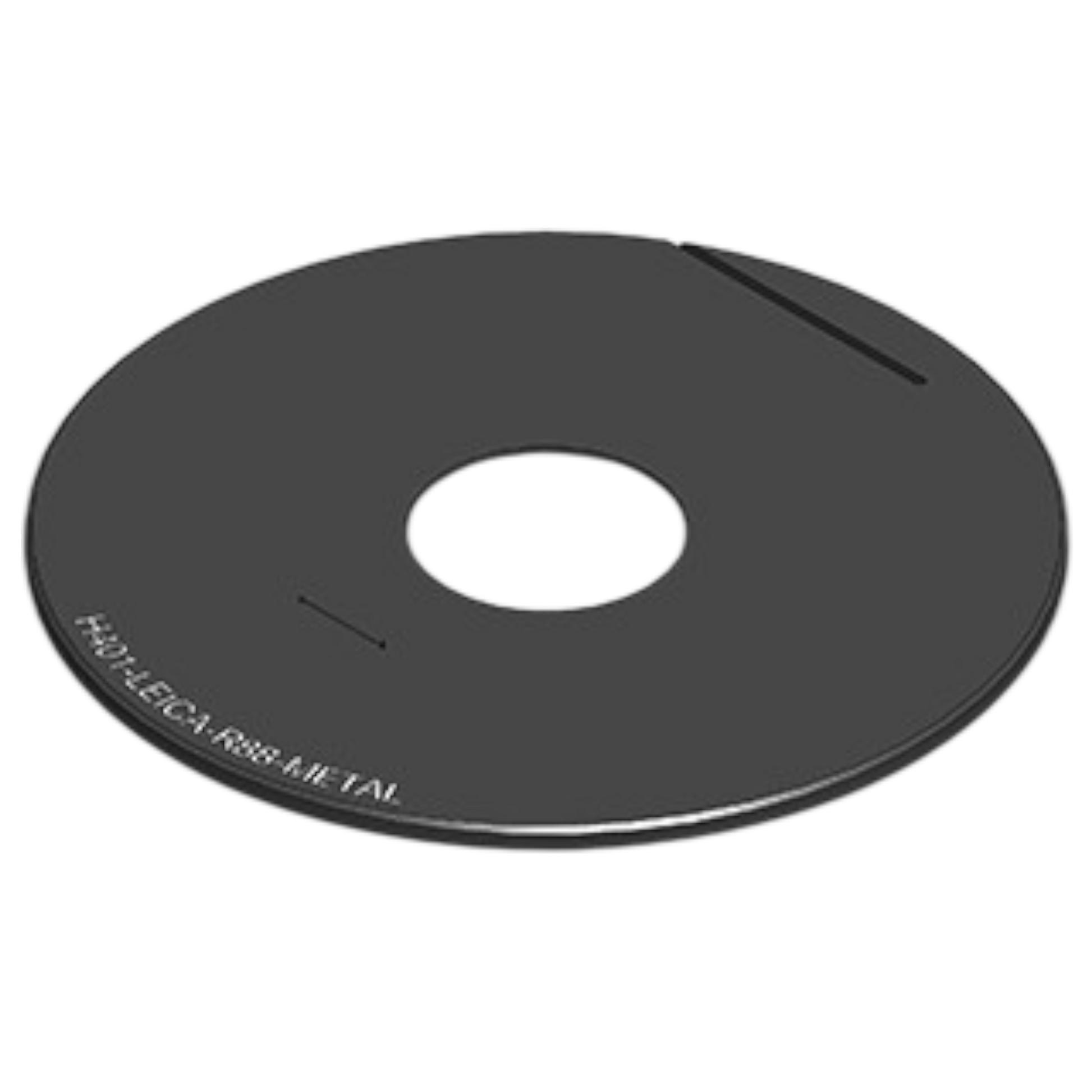

Okolab H401‑LEICA‑R88‑METAL Warm Metal Plate | Flat Heated Plate for Leica Manual 3‑Plate Stage (Ø 88 mm Opening)

The Okolab H401‑LEICA‑R88‑METAL is a precision-engineered, flat heated metal T‑plate designed to sit perfectly flush with Leica manual 3‑plate microscope stages featuring an 88 mm circular stage opening. It provides uniform, fast heating with exceptional accuracy—ideal for live-cell, time‑lapse, and high-resolution imaging workflows.

Condition

Condition: New with Manufacturer Warranty

Included Items

• One H401‑LEICA‑R88‑METAL heated metal plate (factory sealed, brand new)

Key Features

• Flush installation on Leica manual 3‑plate stages with 88 mm opening :contentReference[oaicite:1]{index=1}
• Temperature range: ambient to 60 °C; specimen accuracy ±0.3 °C :contentReference[oaicite:2]{index=2}
• 24 mm circular observation aperture for imaging :contentReference[oaicite:3]{index=3}
• Integrated surface temperature sensor ensures uniform heating and precise regulation :contentReference[oaicite:4]{index=4}
• Easy plate replacement for maintenance
• Requires H401‑T‑CONTROLLER with 4.3″ touchscreen (controls up to two plates, supports on-board data logging) :contentReference[oaicite:5]{index=5}

Applications

• Live-cell and time‑lapse imaging on Leica inverted systems
• Oil-immersion and high-resolution microscopy with critical temperature control
• Perfusion, environmental control, and IVF workflows

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
