Olympus CAch PhP 10x/0.25 RMS Thread Size Microscope Objective
Olympus CAch PhP 10x/0.25 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

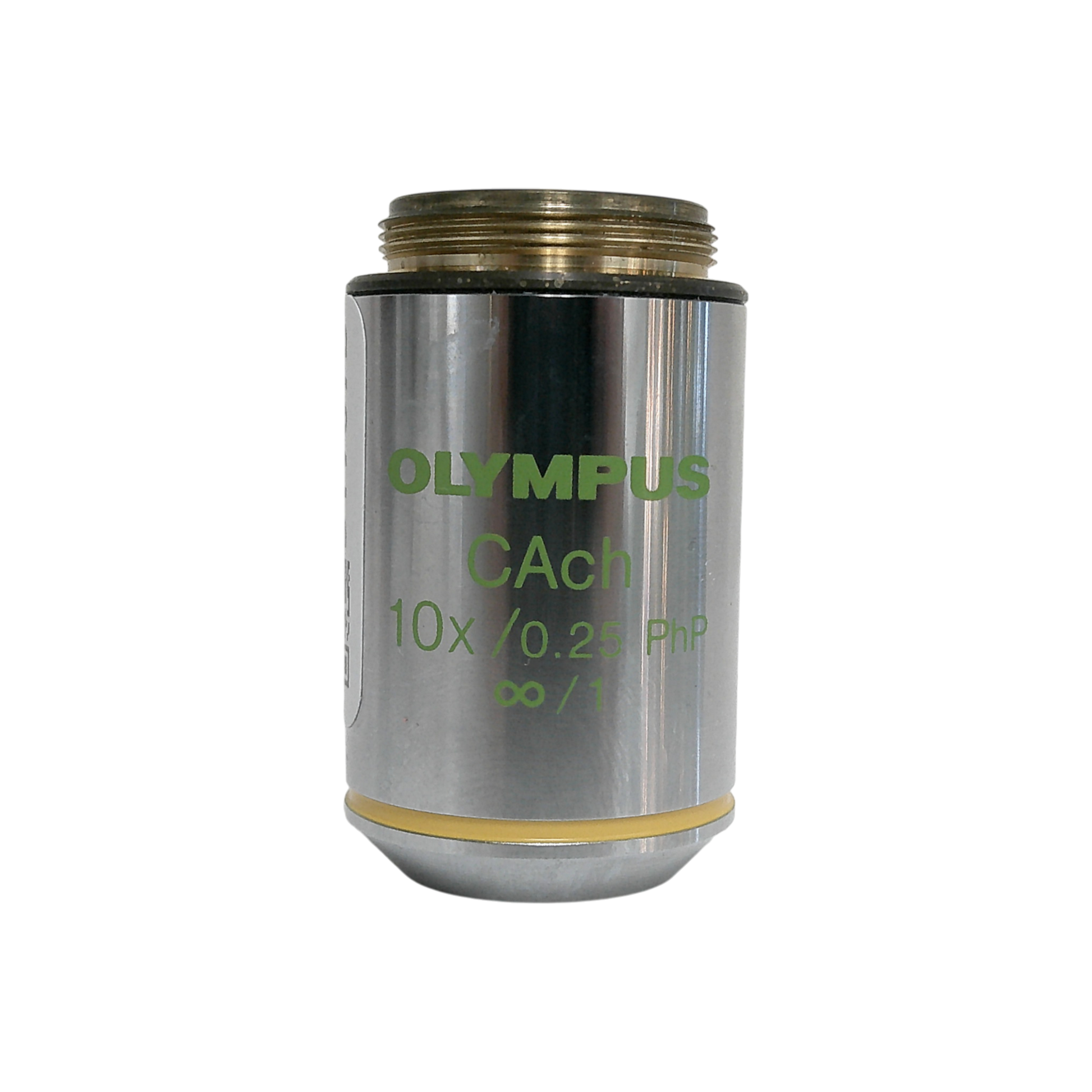

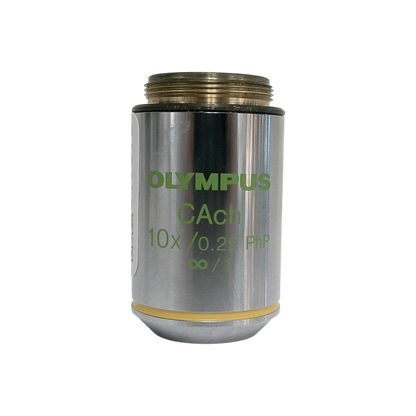

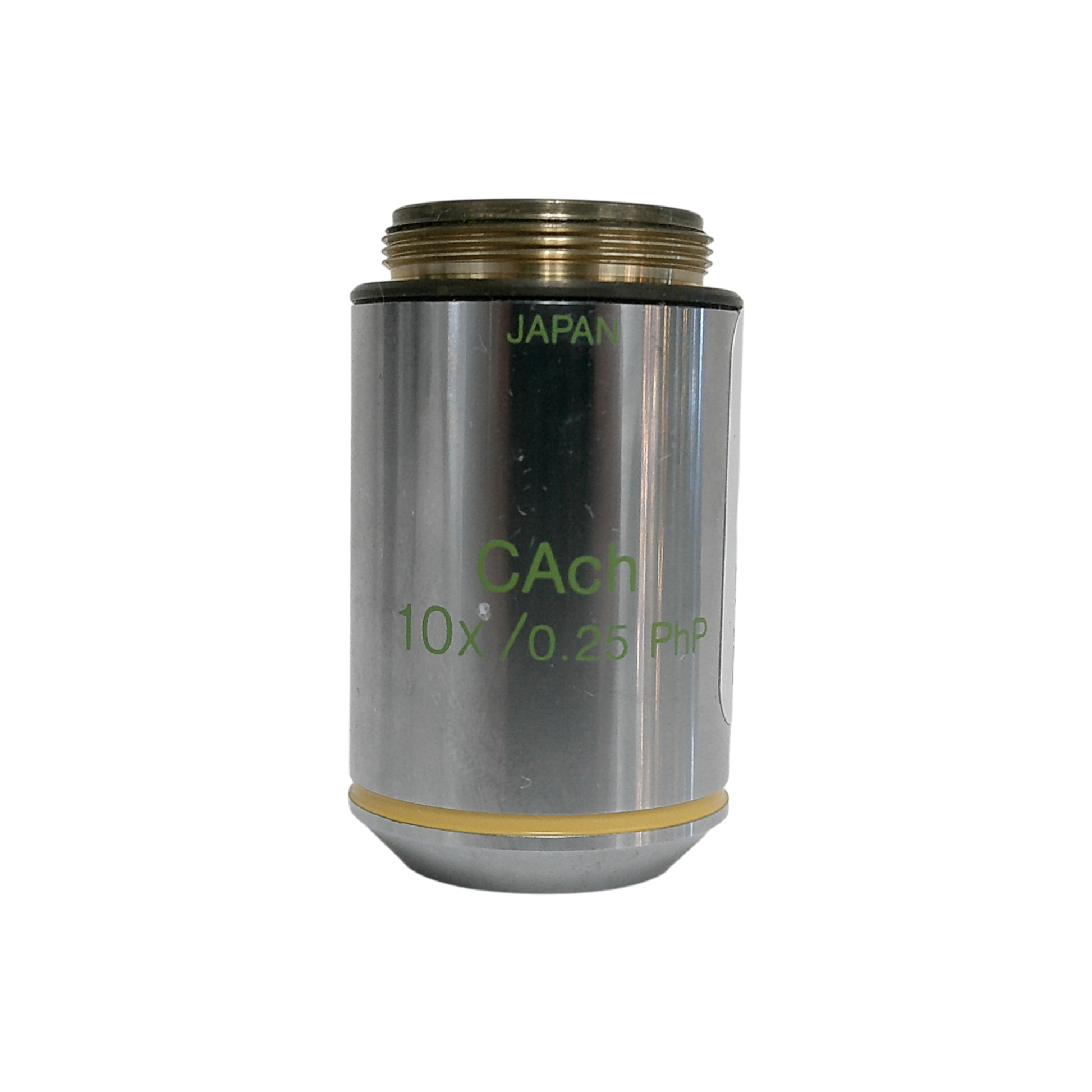

Olympus CAch PhP 10x/0.25 Microscope Objective – RMS Thread Size (Used)
The Olympus CAch PhP 10x/0.25 objective is a compact achromatic phase contrast objective designed for brightfield and phase imaging. Part of the Olympus CAch series, it offers reliable optical performance with flat-field correction for routine laboratory applications. The integrated PhP phase ring makes it ideal for live-cell and unstained specimen observation when used with a compatible phase condenser. It features an RMS thread for use with most standard upright microscopes.
Condition
Condition: Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 10x magnification with 0.25 numerical aperture
- CAch: Compact Achromat optical design
- PhP phase ring for phase contrast applications
- RMS thread for compatibility with standard nosepieces
- Ideal for cell culture, clinical labs, and educational use
Applications
- Phase contrast microscopy
- Brightfield imaging
- Live-cell and unstained specimen observation
- Clinical and laboratory diagnostics
- Educational microscopy
Specifications
| Feature | Specification |
|---|---|
| Magnification | 10x |
| Numerical Aperture | 0.25 |
| Optical Design | CAch (Compact Achromat) |
| Contrast Method | Phase contrast (PhP ring) |
| Thread Size | RMS |
| Working Distance | Approx. 6.7 mm (varies by system) |
| Warranty | 30-day parts and labor warranty |
⚠️ Configuration shown is for demonstration purposes. Contact us to confirm compatibility with your Olympus microscope or to request a matched phase contrast setup.
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 51718b
- Serial Number:
- Condition: Used
