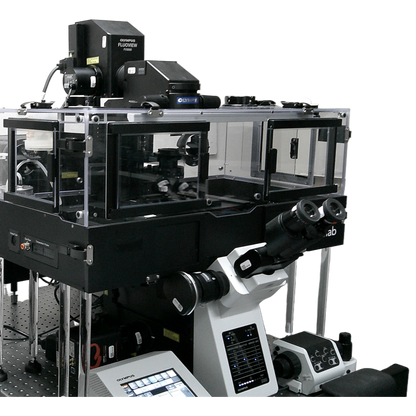

Olympus Fluoview FV3000 Laser Scanning Confocal w/IX83 P2ZF Inverted Phase Contrast Fluorescence Motorized w/ optional Zero Drift Confocal

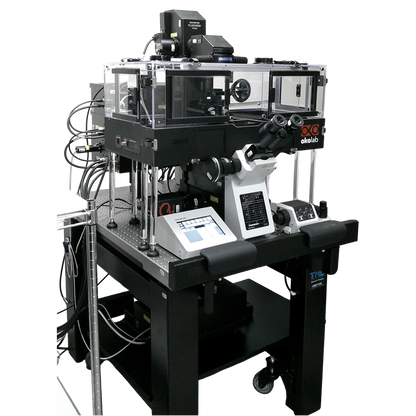

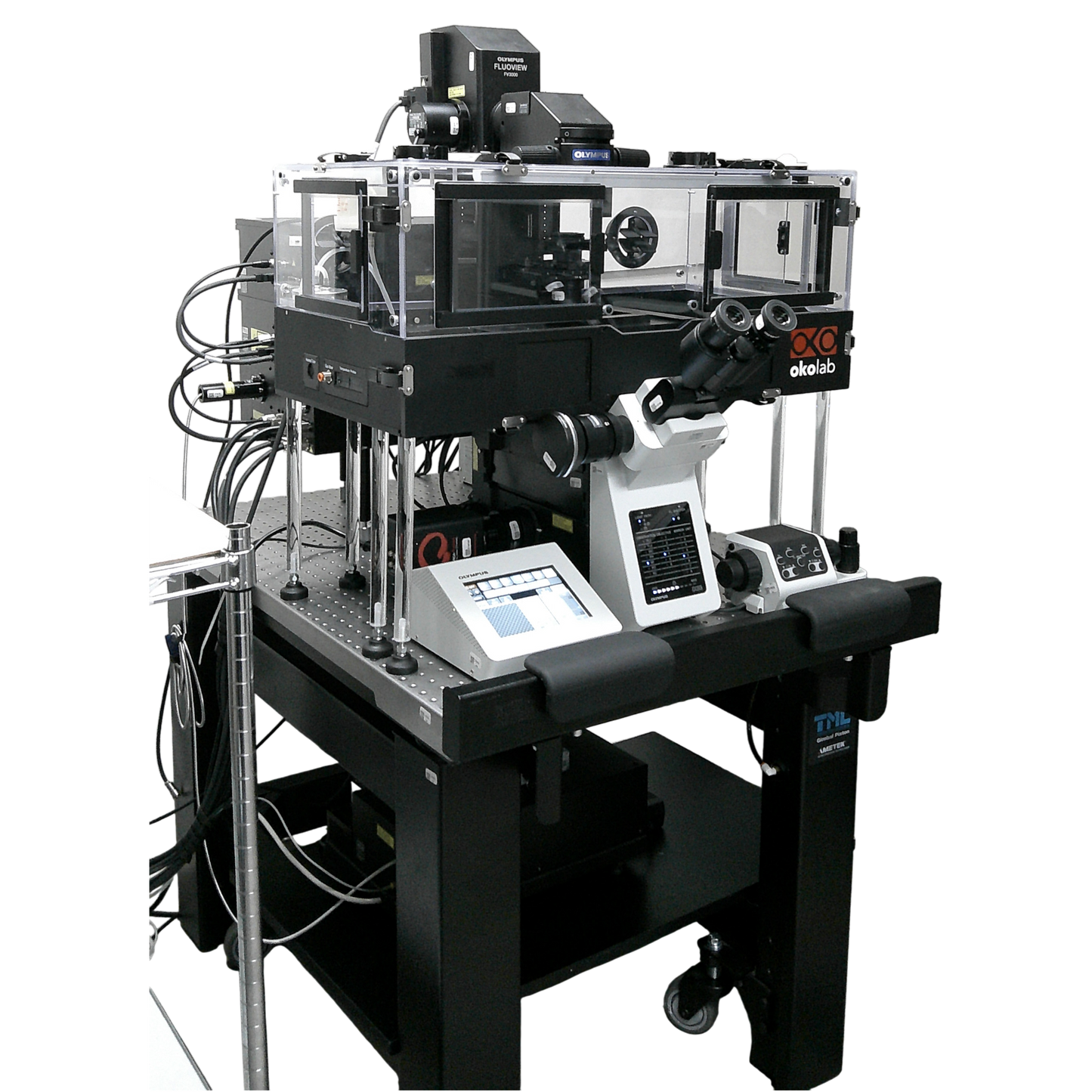

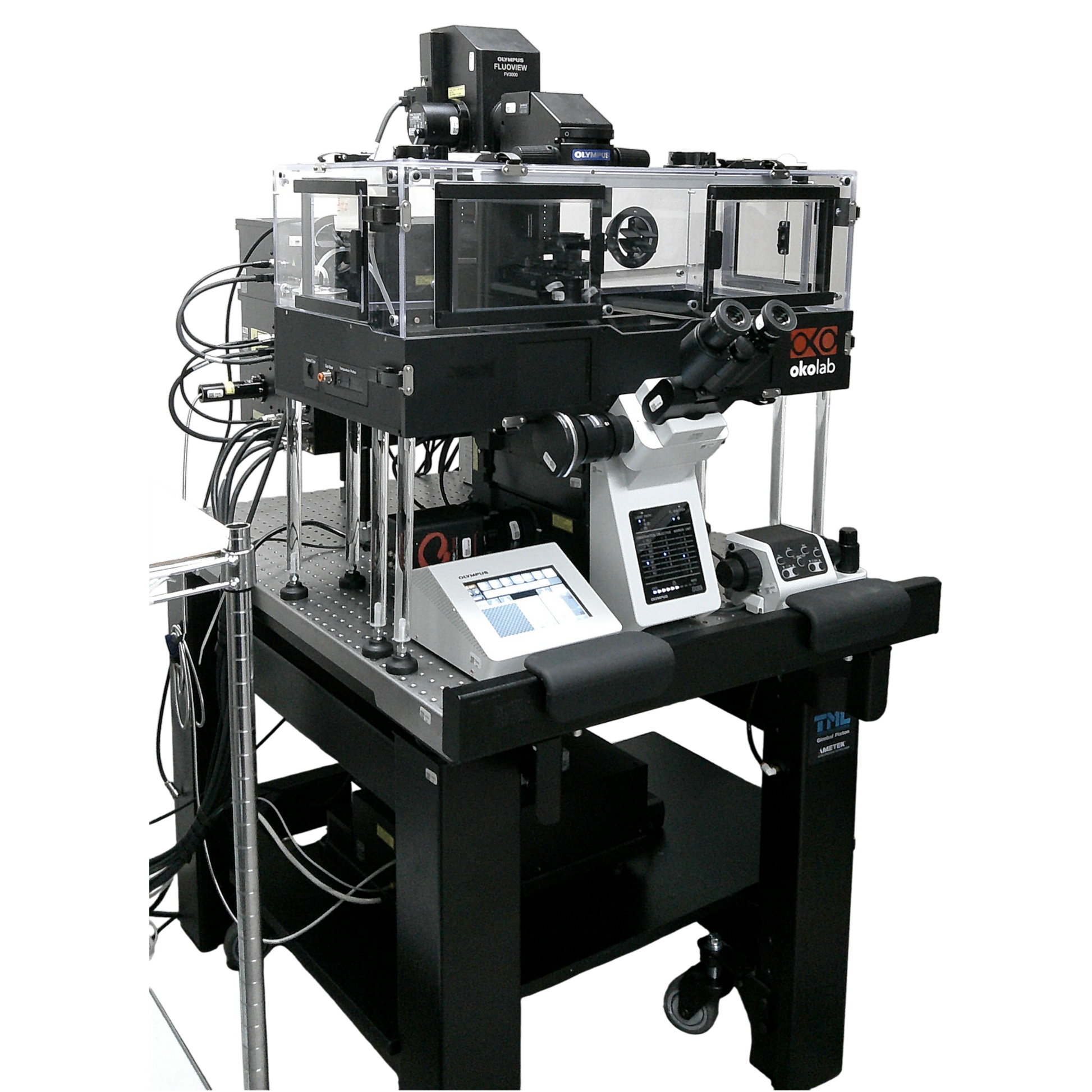

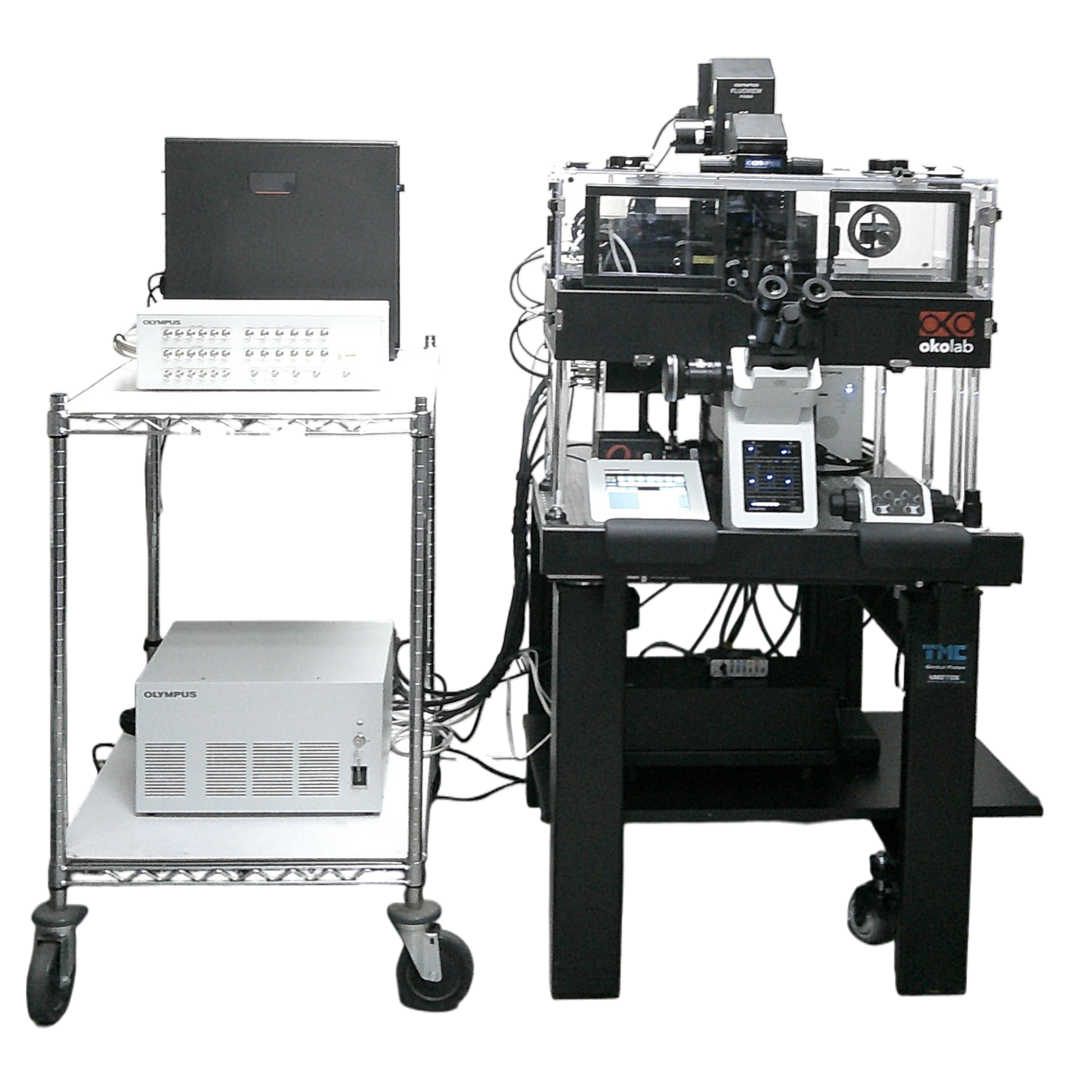

Olympus FV3000RS Laser Scanning Confocal with IX83 P2ZF Inverted Microscope – Refurbished

The Olympus FV3000RS Confocal system, combined with the IX83 P2ZF inverted motorized stand, offers high-speed, multi-channel fluorescence imaging with both galvanometer and resonant scanning. Designed for advanced research applications, this system supports optical sectioning, live-cell time-lapse, and high-resolution imaging with integrated modules for laser control, signal detection, and system stability.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Included Items

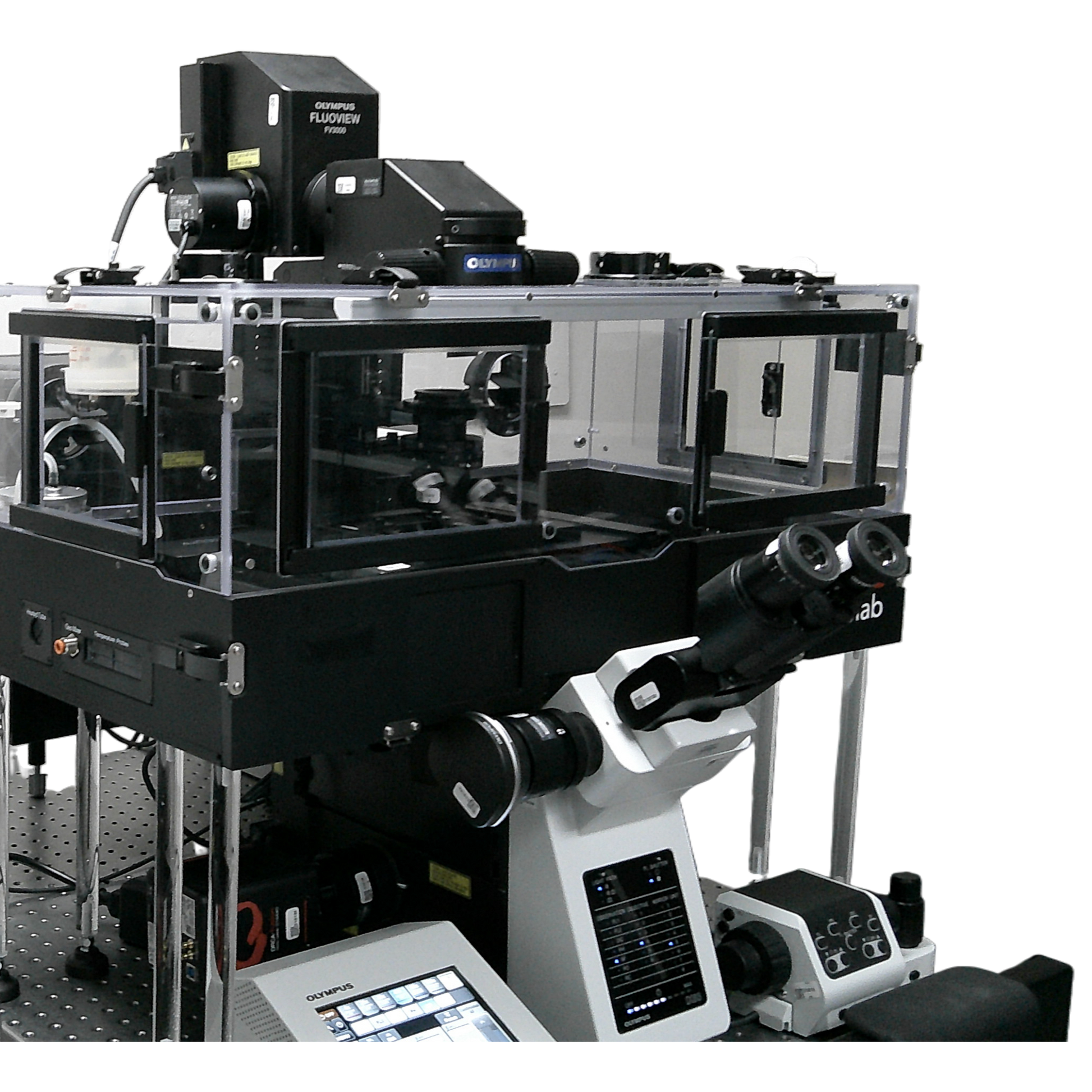

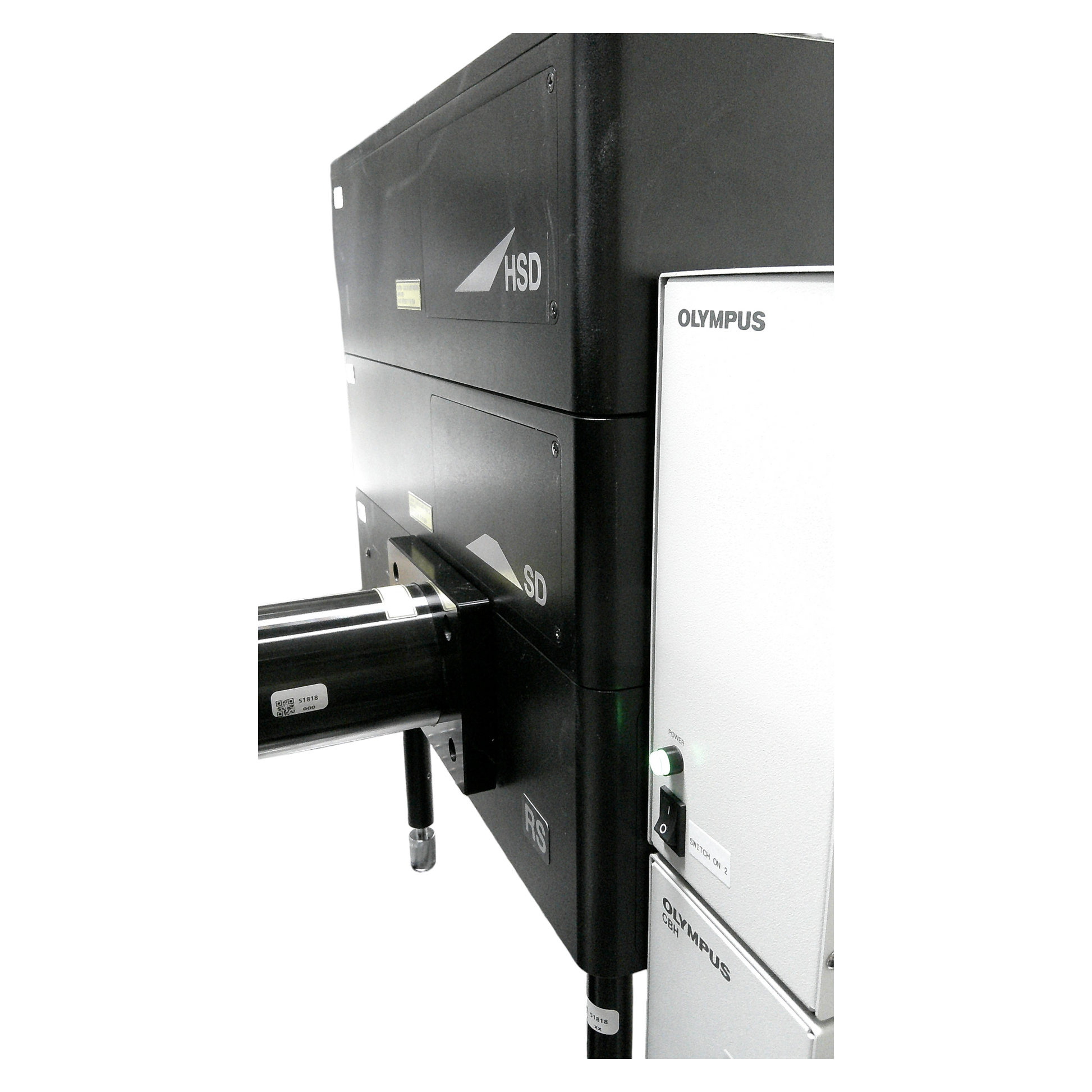

• Olympus FV3000 Confocal Scanner Unit
• High Speed Resonant Scanner

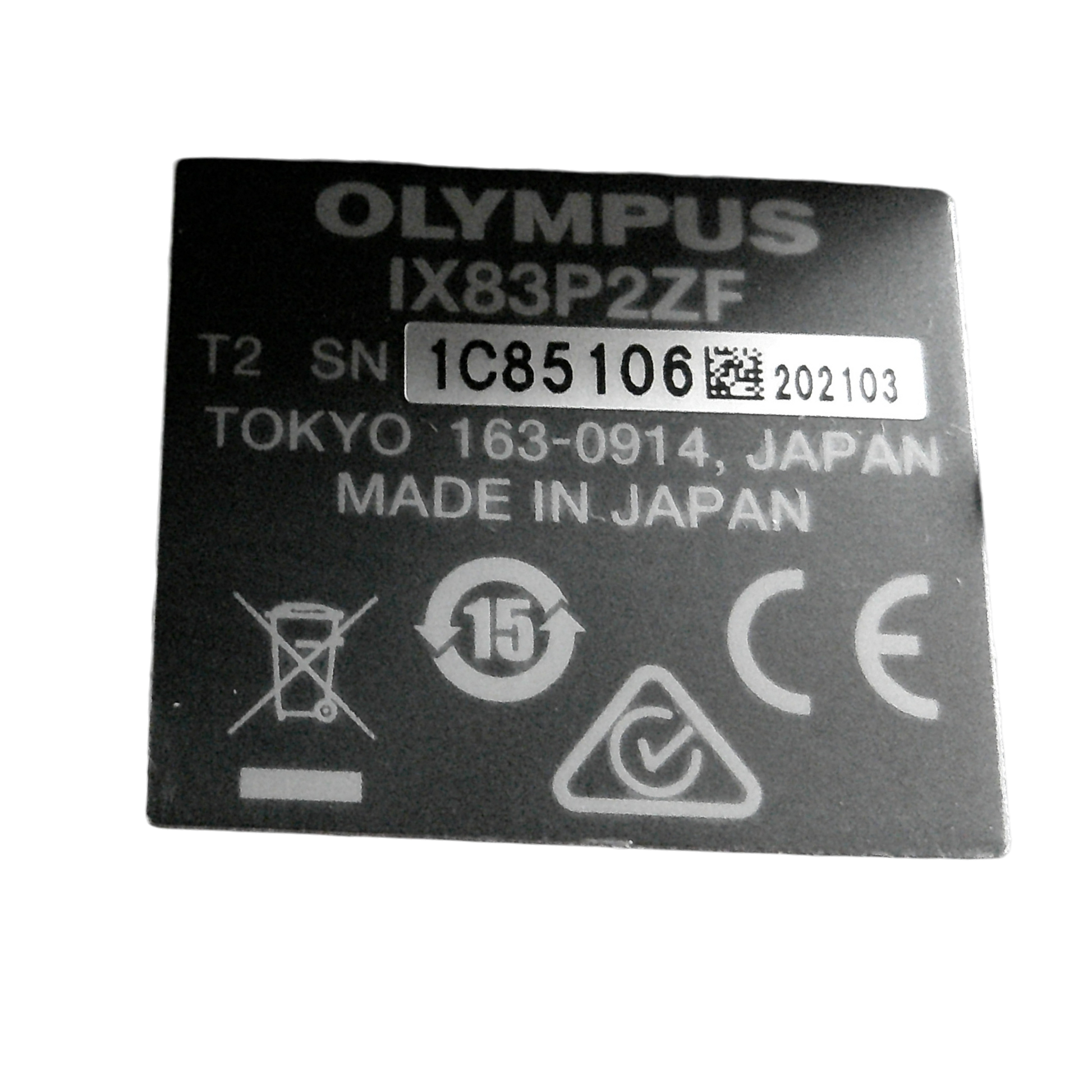

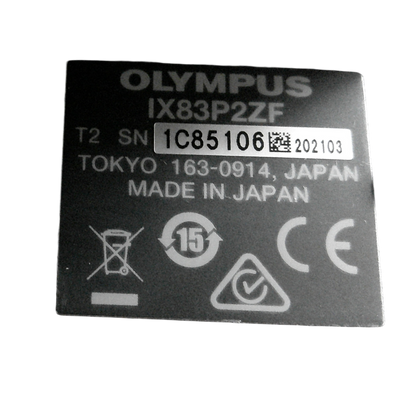

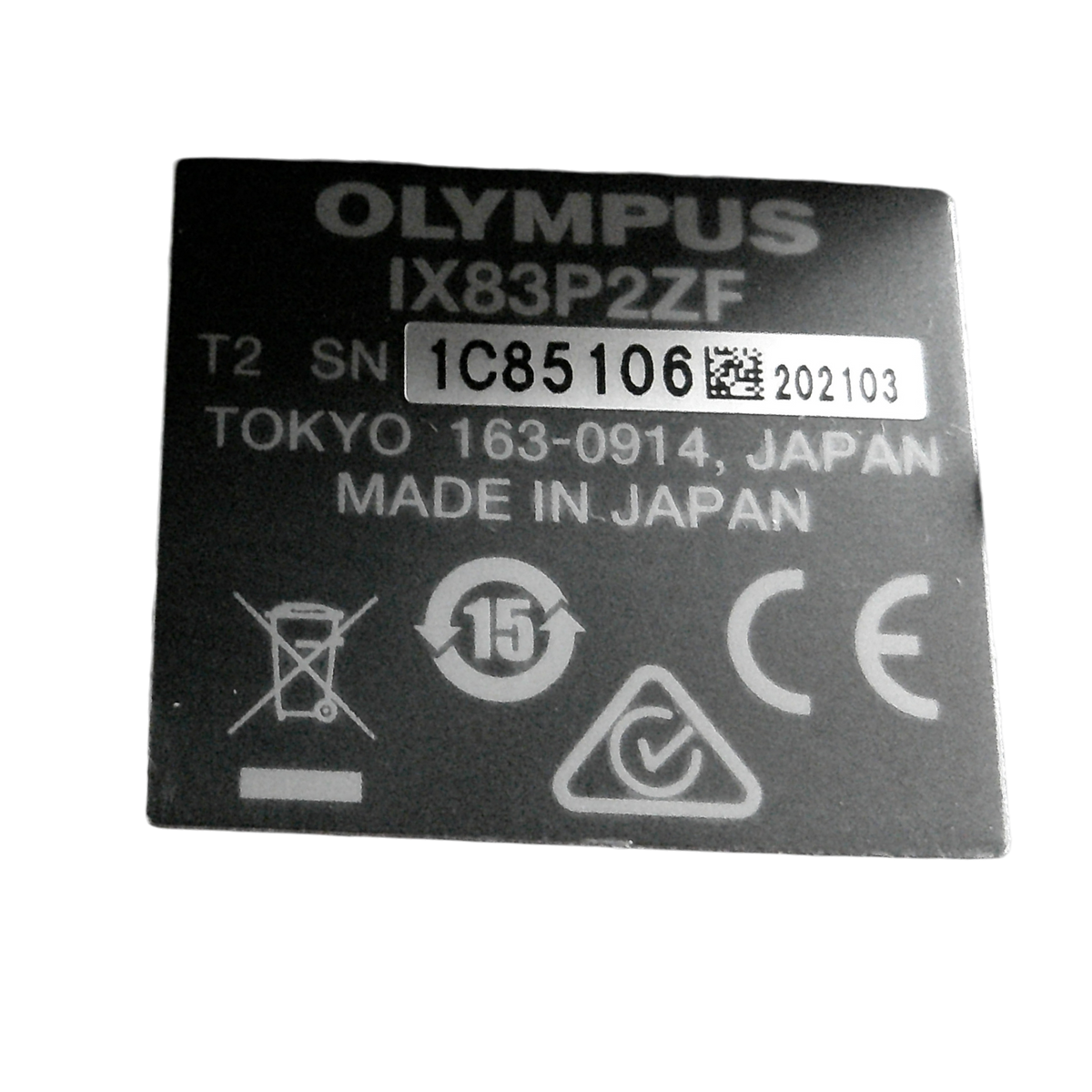

• Olympus IX83 P2ZF Inverted Microscope, Motorized, Phase Contrast, Fluorescence
• Coherent OBIS Lasers:
  • 405 nm (1306092)
  • 488 nm (OBIS 488-20 LS CW 1306398)
  • 514 nm (1306091)
  • 561 nm (OBIS 561-20 LS CW 1306400)
  • 640 nm (1306090)
• Coherent FV31-MCOMB Laser Combiner
• FV31-DF Spectral Detection Filter Wheel
• FV31-HSD High-Sensitivity GaAsP Detector
• IX3-LHLEDC Integrated LED Transmitted Light Illuminator
• Olympus IX3-TV1XTL Tube Lens
• Olympus IX2-LWUCD Universal Condenser
• Olympus IX3-SSU Substage Unit
• Olympus CBHIX3-CBH Control Box
• Olympus FV31-LETD Laser Safety Unit
• Olympus FV30-Analog and FV30-RFACA Modules
• Olympus FV12-ICOV Imaging Controller

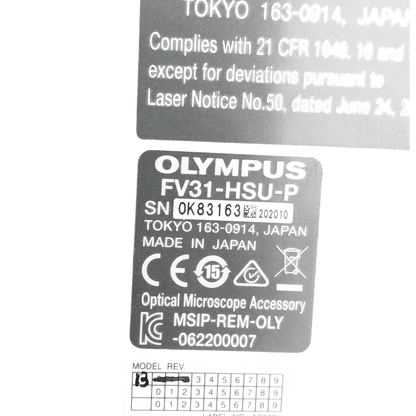

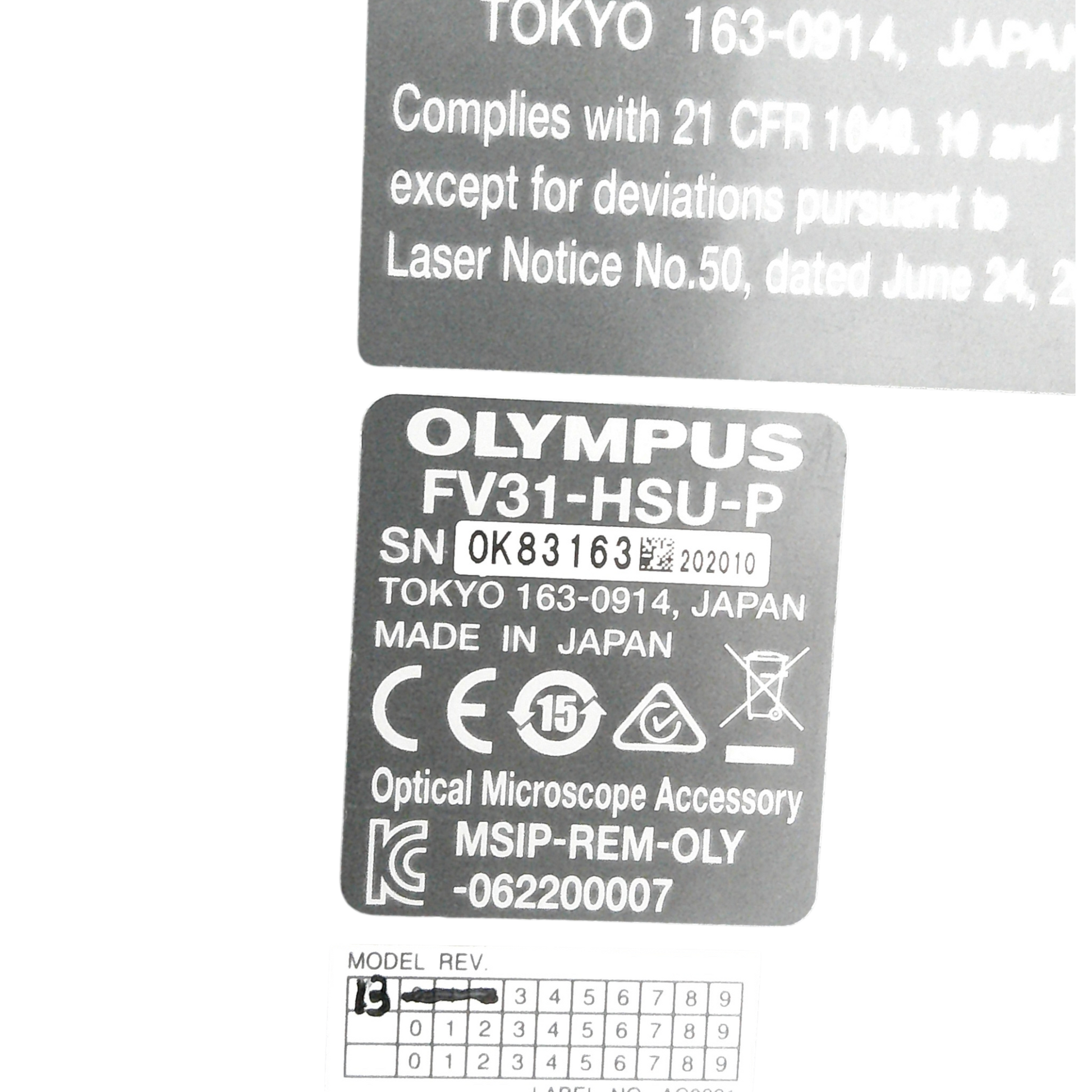

• Olympus FV31-HSU-P Scan Unit
• Olympus U-TBI90 Binocular Head
• Olympus U-CMT, U-MCZ, WBN10X-H/22 Eyepieces
• Olympus GX-SPU, I3-TPC Control Systems
• Nosepiece: 6-Position Motorized Nosepiece
• (3) Filter Cubes of your choice (Additional Cubes Available for purchase)
• Included Software Modules:
  • FV31S-SW (Base Software – User PC Required)
  • FV31S-WELNVG (Well Navigator)
  • FV31S-VCH (Virtual Channel)
  • FV30S-PIEZO (Piezo Drive Control)
  • FV30S-MS (Multiple Area Time Lapse)
  • CS-S-DI-V* (cellSens Dimension V3)
  • CS-S-MP (Multiposition)
  • CS-S-WN (Well Plate Navigator)
  • CS-S-DE (Deconvolution)

Available Options

• Objectives (Please discuss your application or preferred configuration with our team. We have a full suite of options available.)
• Stage: Motorized and Manual options available
• Environmental Incubation System
• Olympus IX3-ZDC2 Zero Drift Compensation Unit
• Optical Table: New and Refurbished options available

Illuminator (Choose One):

• 100w Mercury w/ Power Supply
• Upgrade to: Used Metal Halide
• Upgrade to: New X-Cite 110LED System with Adapter. Includes: X-Cite 110LED, speedDIAL remote, 3mm x 1500mm Liquid Light Guide
• Upgrade to: New X-Cite mini+ System. Includes: LED head, miniCUBE controller, speedDIAL remote, Microscope Coupling Flange
• Upgrade to: New X-Cite XYLIS II, XT730S w/1.5m LLG. Includes: X-Cite XYLIS (XT720S), speedDIAL remote, 3mm x 1500mm Liquid Light Guide

Key Features

• FV3000RS confocal scanner with galvanometer and high-speed resonant scanning
• FV31-HSD GaAsP detector for high-sensitivity fluorescence detection
• FV31-DF multi-position filter wheel for spectral detection
• Five-line Coherent OBIS laser excitation: 405, 488, 514, 561, and 640 nm
• Motorized IX83 inverted stand for fluorescence and transmitted light applications
• IX3-LHLEDC transmitted LED illumination for phase contrast and brightfield
• Optional IX3-ZDC2 module maintains focus for long-term live-cell imaging
• Optional motorized stage and environmental incubation
• Integrated FluoView and cellSens software suite, including deconvolution and well plate navigation
• Compatible with Z-stacks, multi-channel acquisition, multi-area time-lapse, and tiling

Applications

• High-resolution fluorescence imaging
• Live-cell confocal time-lapse
• Organoids and tissue sections
• High-speed ratiometric and FRET imaging
• FRAP and ROI-guided photostimulation
• Z-stack optical sectioning
• Multi-label protein localization
• Signal quantification and intensity tracking
• Well plate and multi-position imaging

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
