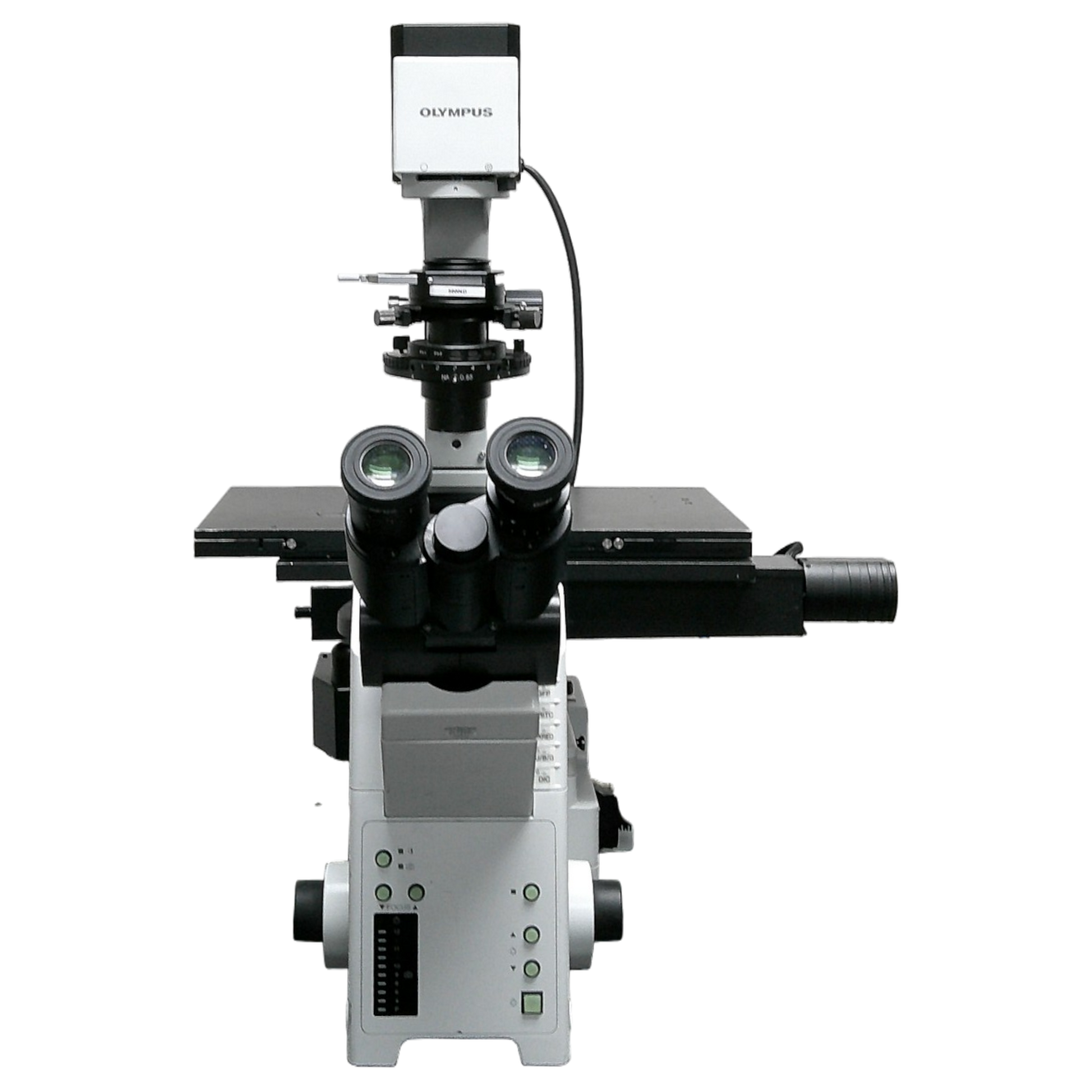

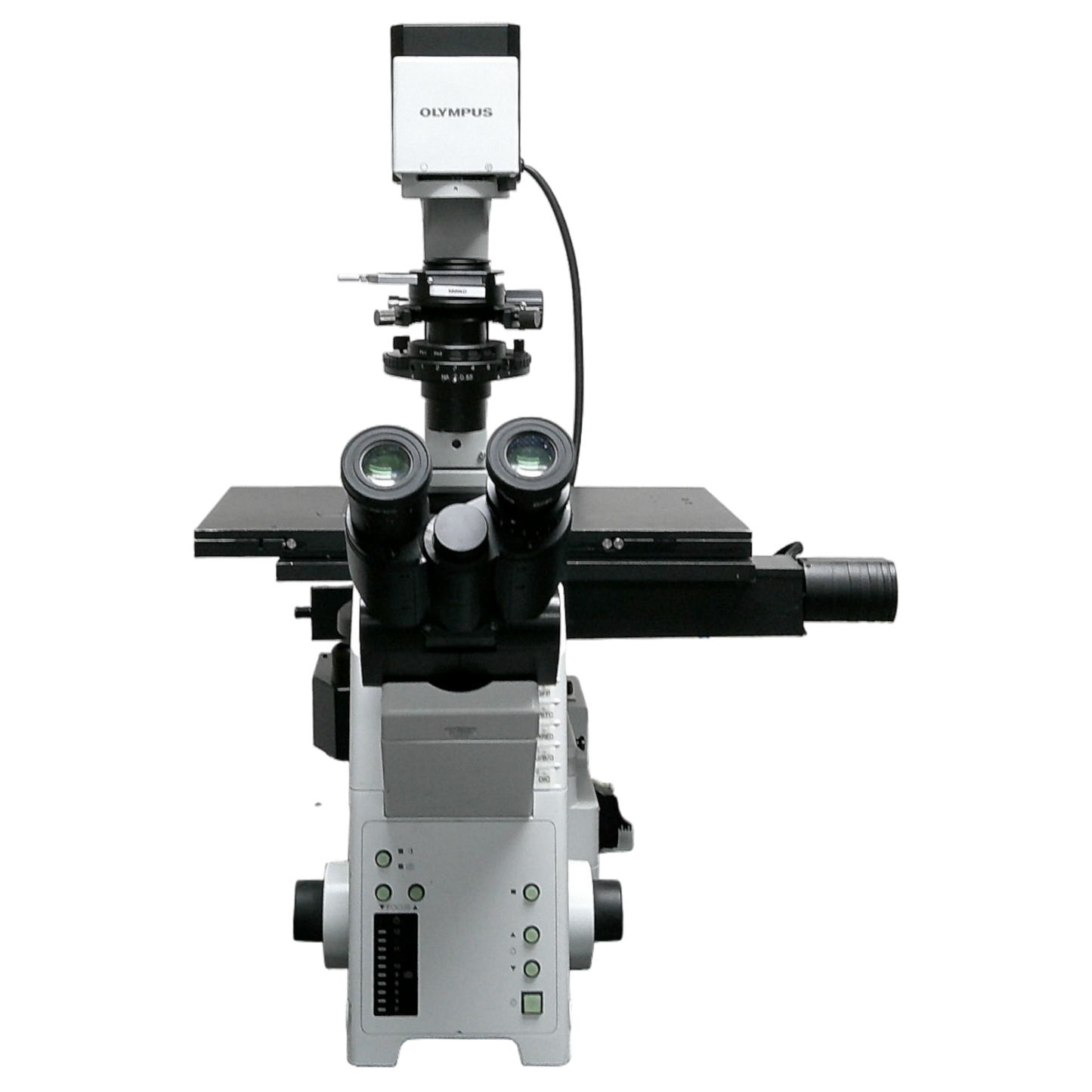

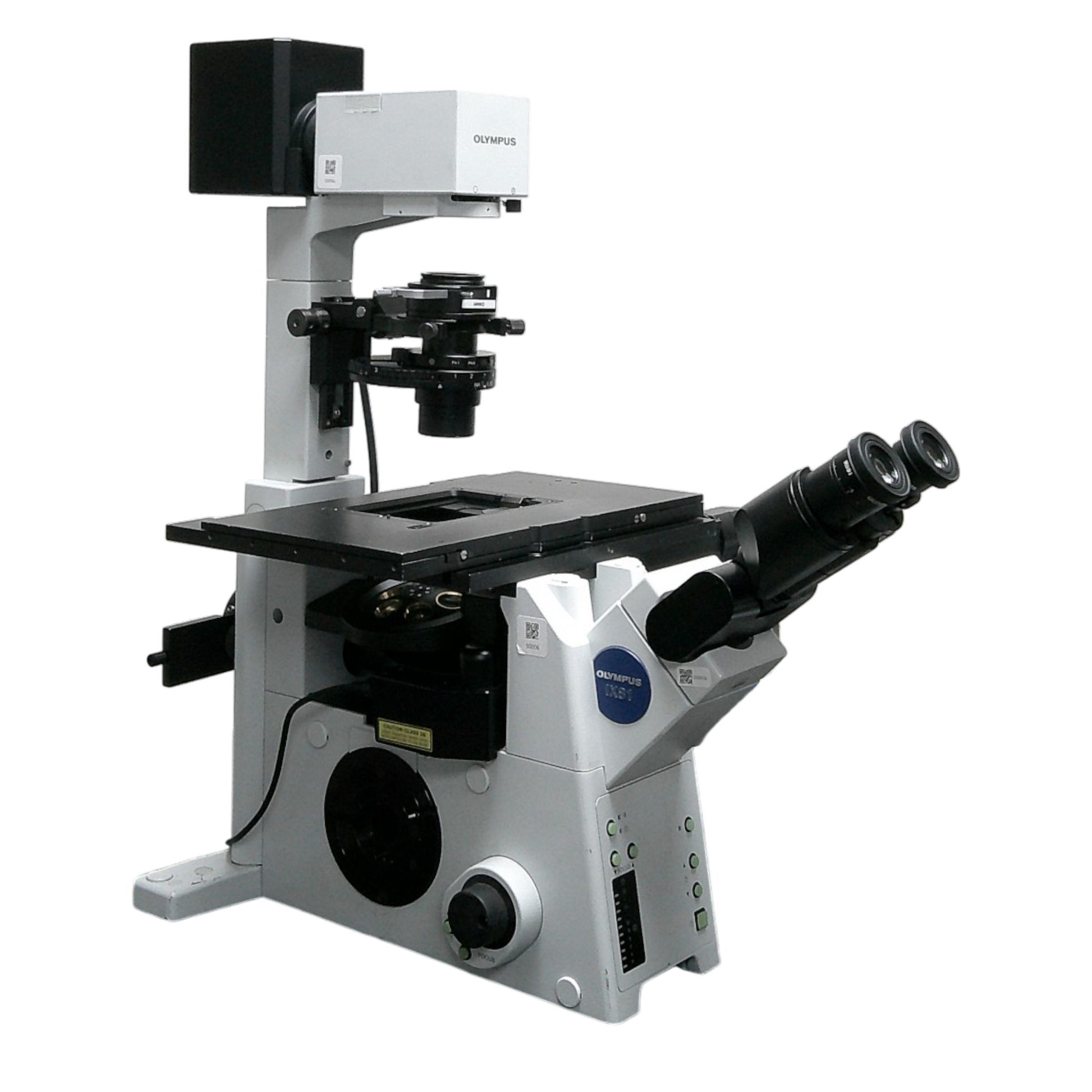

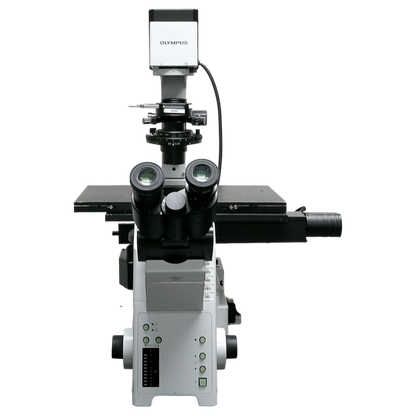

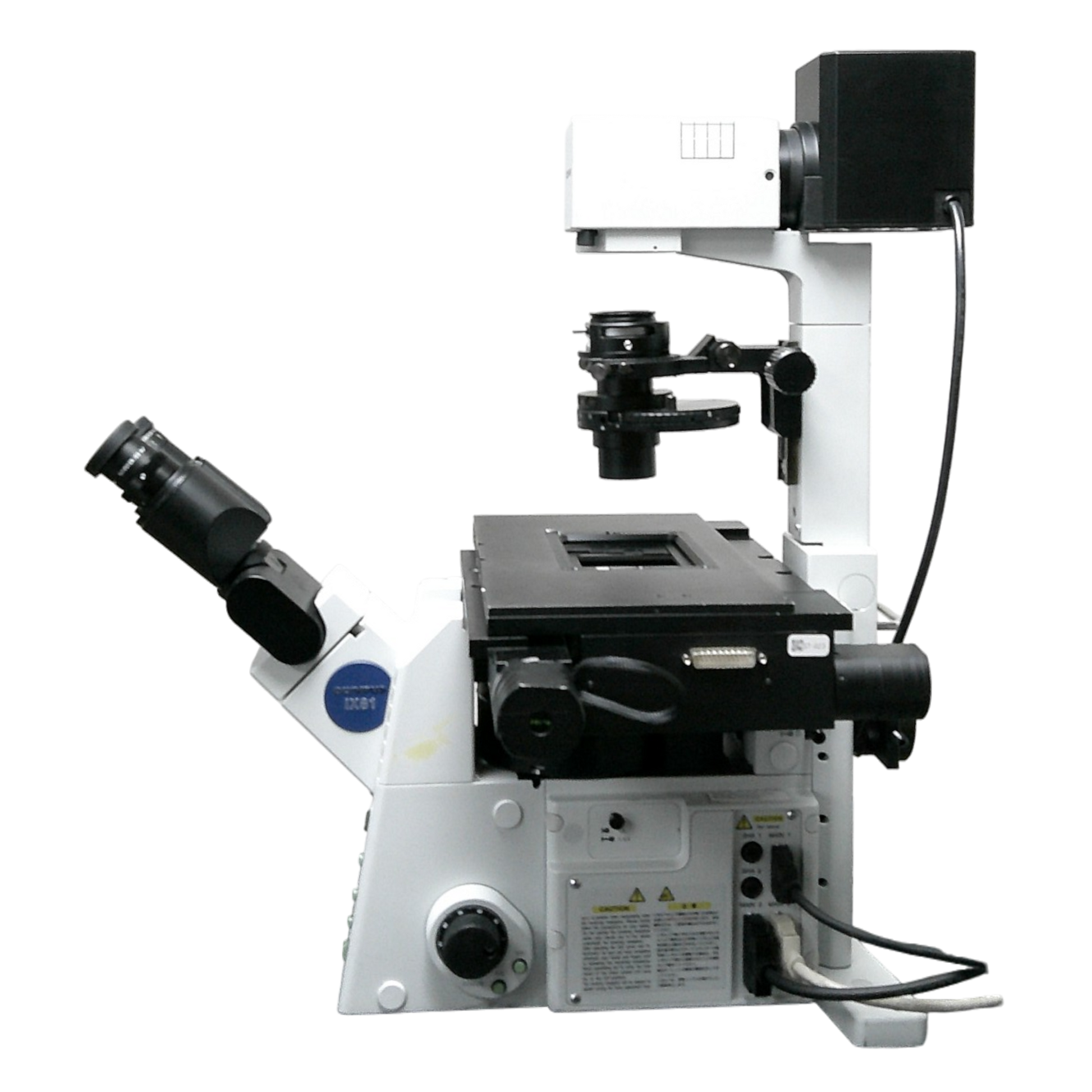

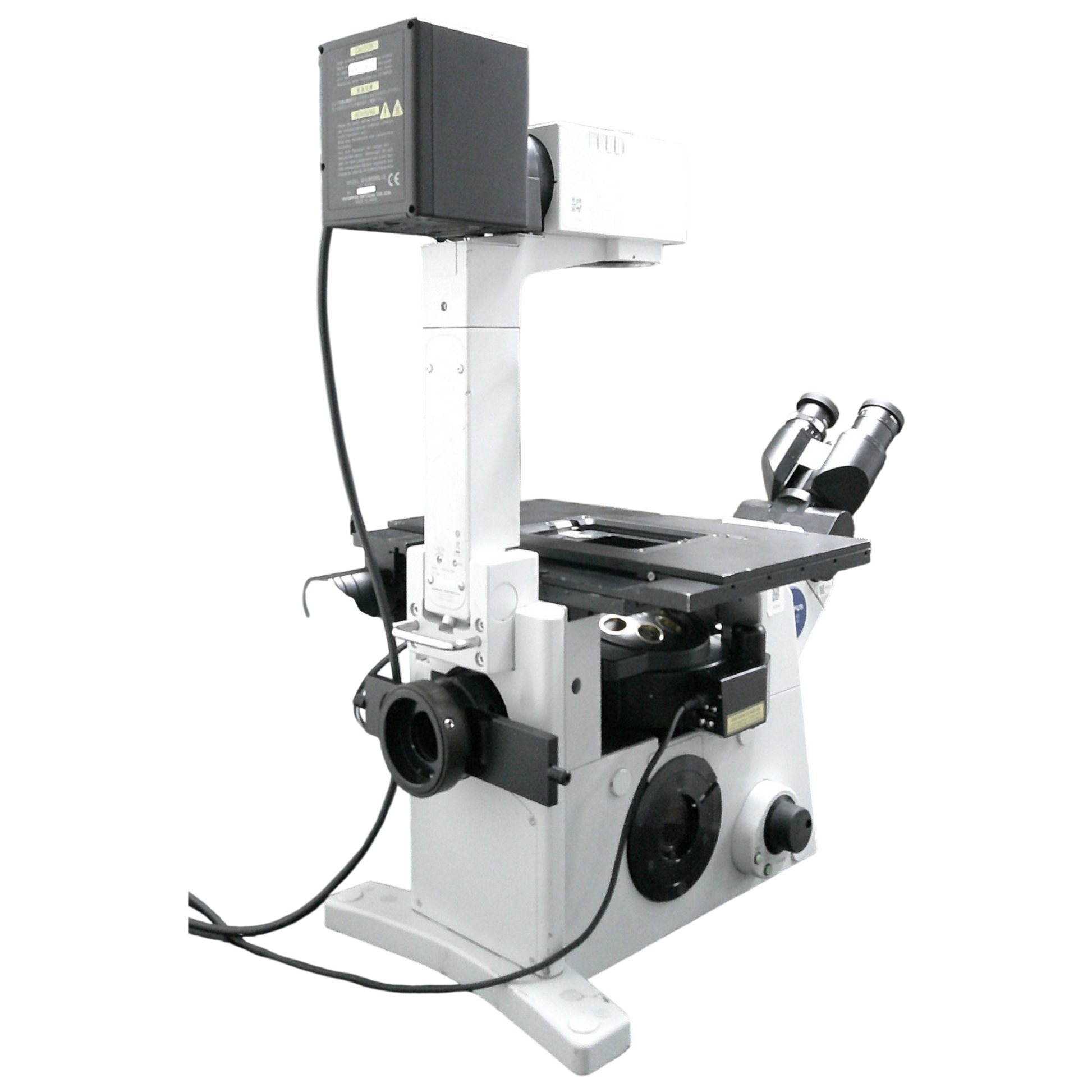

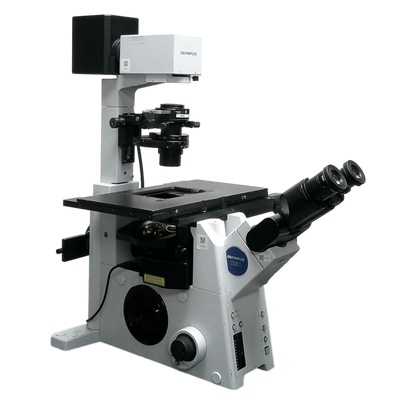

Olympus IX81 Inverted Phase Contrast Fluorescence Motorized w/ Optional ZDC Microscope.

Olympus IX81 Inverted Phase Contrast Fluorescence Motorized Microscope with Optional ZDC Autofocus

The Olympus IX81 is a fully motorized, high-end inverted fluorescence and phase contrast research microscope engineered for advanced biological imaging applications including live-cell imaging, high-throughput fluorescence microscopy, and automated time-lapse studies. Designed with a flexible modular frame and Olympus’ UIS2 infinity-corrected optics, the IX81 is capable of automated multi-dimensional imaging with excellent optical performance, precision, and reliability.

This configuration includes all essential motorized components, a left-side camera port, and a right-side magnification changer. It also supports integration with Olympus’ ZDC (Zero Drift Compensation) autofocus system (optional) for long-term focus stability in time-lapse and multi-position experiments.

Condition

Refurbished/Used
This product has been inspected and verified to meet manufacturer specifications.

Included Items

• Olympus IX81 Microscope Body (Inverted, Fully Motorized)
• Binocular Viewing Head with Eyepieces

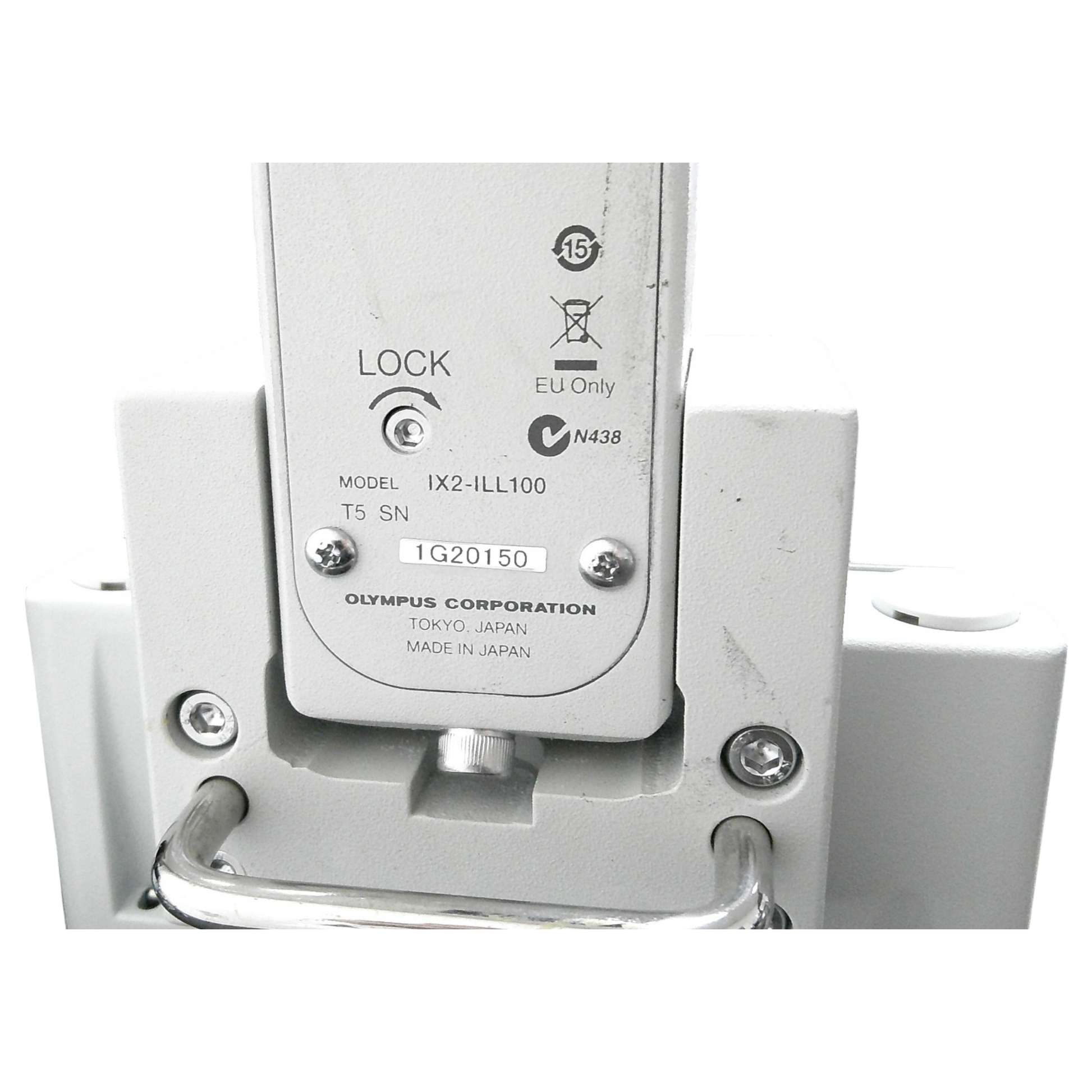

• Transmitted Light Arm, Lamphouse, and Power Supply
• Manual Condenser – Supports transmitted light and phase contrast
• Motorized Nosepiece – Typically 6-position
• Motorized Fluorescence Filter Cube Turret – Includes (3) filter cubes of your choice (additional cubes available)
• 100w Mercury Lamphouse and Power Supply – Upgrade options available
• Motorized Focus & Z-Control
• Motorized Light Path Selector
• Left-Side C-Mount Camera Port
• Right-Side Magnification Changer (1x–1.6x)
• Computer System Pre-Configured with Micro-Manager – Includes monitor, keyboard, and mouse

Key Features

• Fully motorized platform for automated imaging and repeatability
• Olympus UIS2 infinity-corrected optics for outstanding image clarity and contrast
• Motorized filter turret and nosepiece support rapid fluorescence switching
• Phase contrast capability with manual condenser
• Optional ZDC autofocus module for long-term focus stability
• Left-side C-mount camera port and right-side magnification changer (1x–1.6x)
• Supports multiple illumination types (mercury, metal halide, LED)
• Compatible with Micro-Manager and open imaging platforms

Applications

• Live Cell Imaging and Time-Lapse Microscopy
• Fluorescence Microscopy (Multi-Wavelength)
• Automated Z-Stack and Multi-Position Acquisition
• Immunofluorescence Labeling and Quantification
• Cell Biology, Neuroscience, Cancer Research, and Drug Discovery

Specifications

Feature	Specification
Microscope Type	Inverted Fluorescence & Phase Contrast
Viewing Head	Binocular
Focus Mechanism	Motorized Z-Focus and Fine Control
Optical System	Olympus UIS2 Infinity-Corrected
Nosepiece	Motorized, typically 6-position
Filter Cube Turret	Motorized, 3 cubes included
Condenser	Manual (Supports Phase Contrast)
Light Path Selector	Motorized
Camera Port	Left-Side C-Mount
Magnification Changer	Right-Side 1x–1.6x
Stage	Manual or Motorized (Specify)
Fluorescence Illumination	100w Mercury (upgradeable to LED or Metal Halide)
Autofocus System	Optional Olympus ZDC (Zero Drift Compensation)
Computer System	Included – Pre-configured with Micro-Manager
Software	Micro-Manager (Open Source); Olympus software not included

Illuminator Options

• 100w Mercury with Power Supply (Included)
• Upgrade Options:
  • Used Metal Halide
  • New X-Cite 110LED System (Includes Adapter, SpeedDIAL Remote, 3mm x 1500mm Liquid Light Guide)
  • New X-Cite Mini+ System (Includes LED Head, MiniCUBE Controller, SpeedDIAL Remote, Microscope Coupling Flange)
  • New X-Cite XYLIS II XT730S (Includes XT720S, SpeedDIAL Remote, 3mm x 1500mm Liquid Light Guide)

Objectives

Please discuss your preferred configuration with our team. Olympus UIS2 phase, fluorite, and apochromatic objectives are available.

Stage

Manual or motorized options available.

(3) Fluorescence Filter Cubes of Your Choice

(Additional cubes available for purchase)

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
