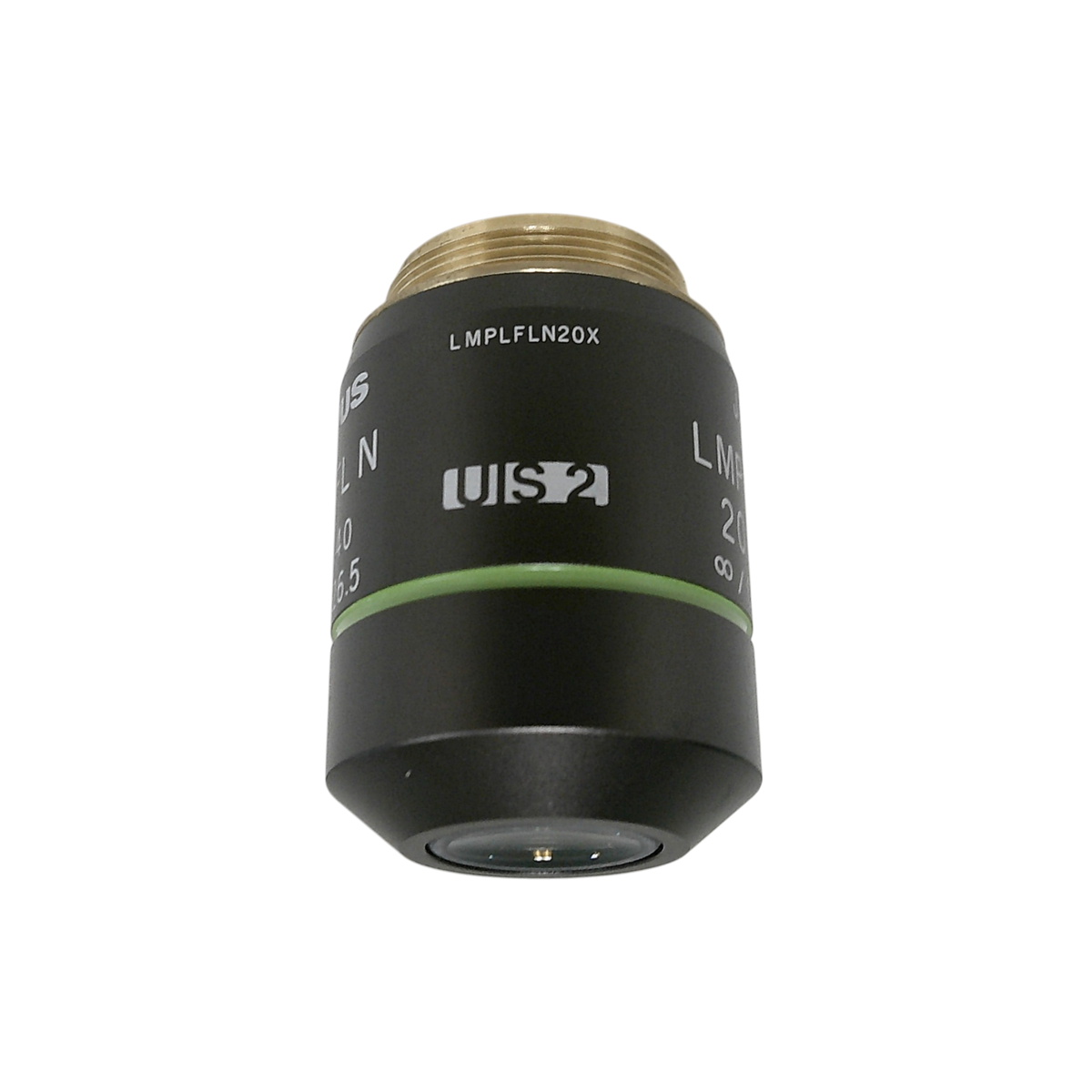

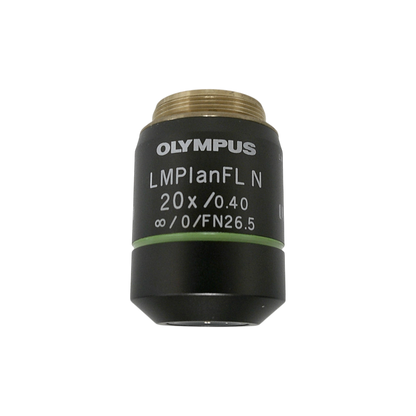

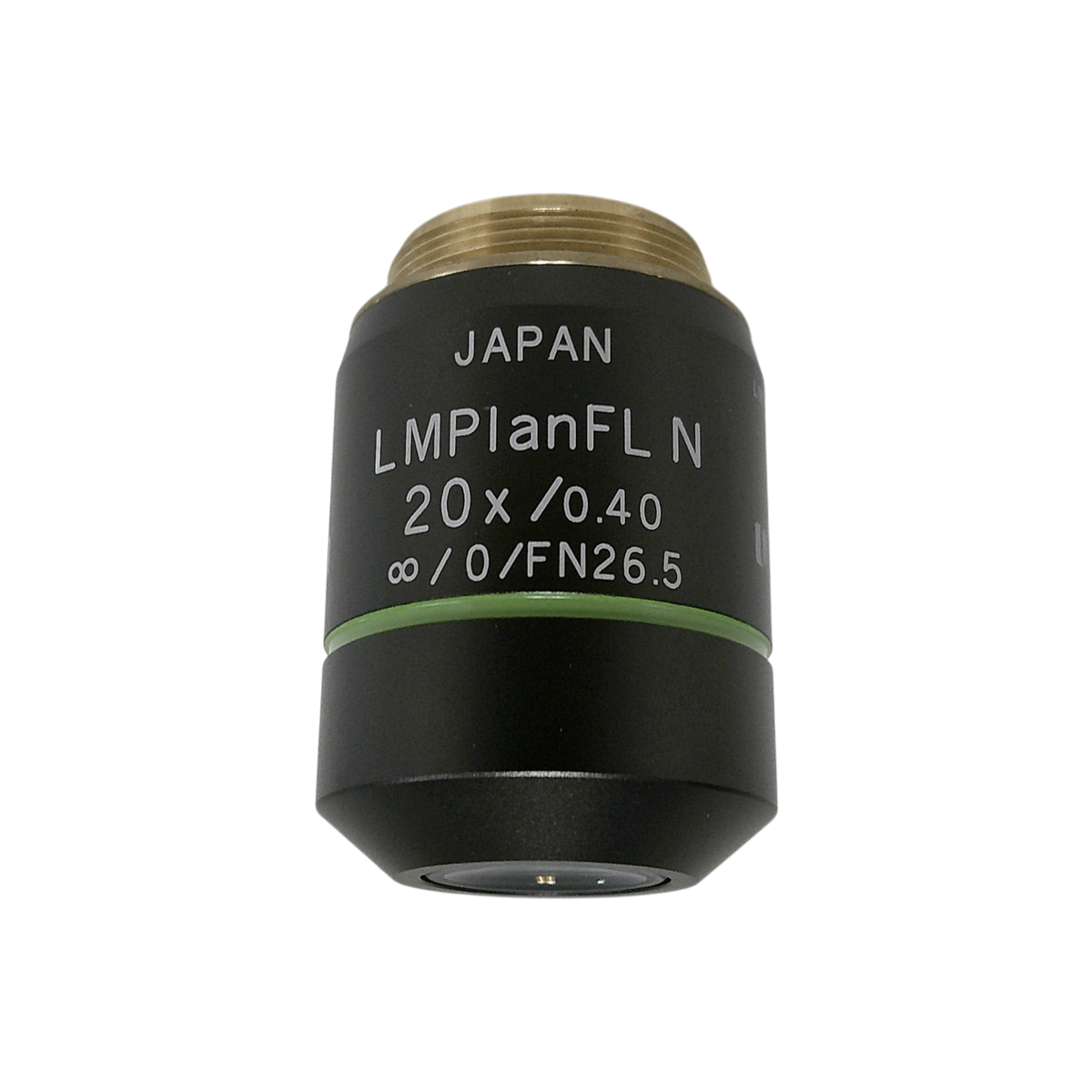

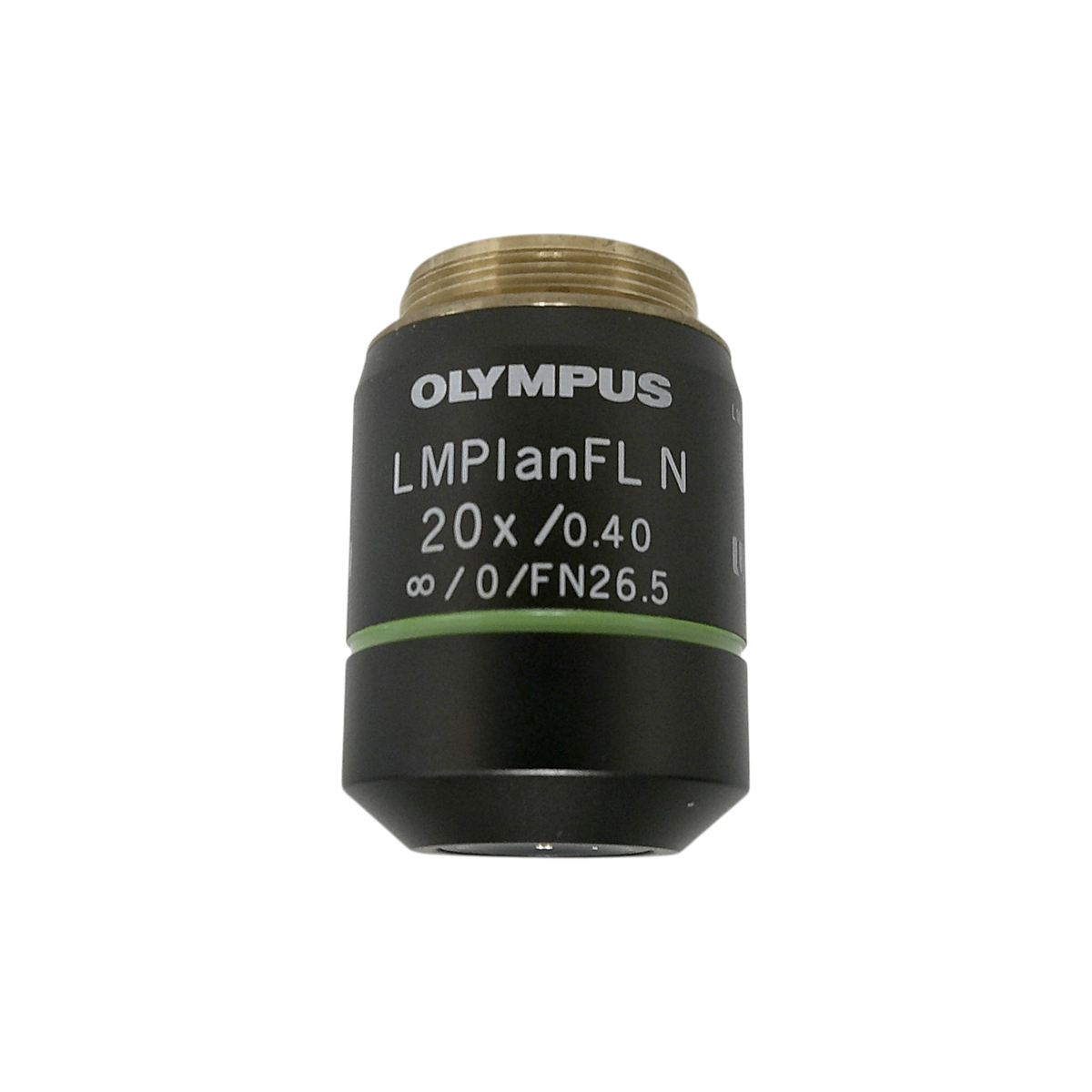

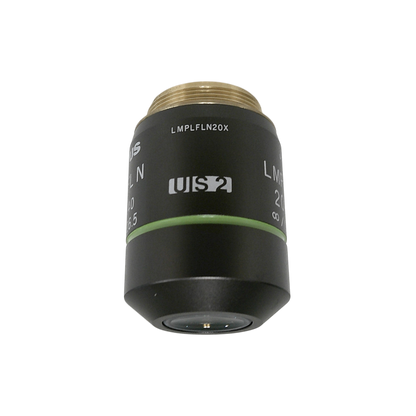

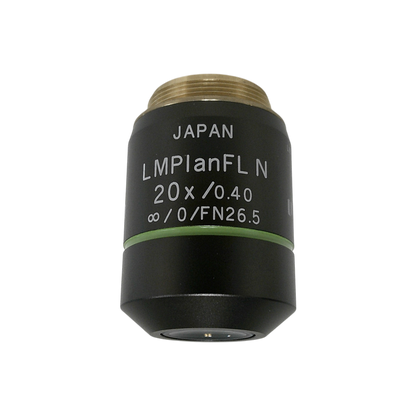

Olympus L MPlanFL N 20x/0.40 RMS Thread Size Microscope Objective

Olympus LMPlanFL N 20x/0.40 Long Working Distance Microscope Objective, RMS Thread

The Olympus LMPlanFL N 20x/0.40 is a long working distance plan semi-apochromat (fluorite) objective designed for materials science and industrial inspection. Its 12.0mm working distance provides generous clearance for uneven, bulky, or delicate samples, reducing the risk of specimen and objective damage. Excellent flatness across a wide 26.5mm field number and high transmission from 400–700nm deliver sharp, high-contrast images, and the standard pupil position supports DIC and polarization. It is designed for use without a cover glass on Olympus BX and MX series microscopes.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Long 12.0mm working distance for bulky, uneven, or delicate samples
• Plan semi-apochromat (fluorite) correction for flat-field, high-contrast imaging
• 0.40 numerical aperture at 20x
• Wide 26.5mm field number
• Suitable for brightfield, DIC, polarization, and fluorescence
• High transmission from 400–700nm
• Designed for use without a cover glass
• Infinity-corrected; RMS objective thread

Applications

• Materials science and metallurgy
• Semiconductor and electronics inspection
• Industrial quality control
• DIC and polarized light inspection
• Imaging of bulky or uneven samples

Specifications
