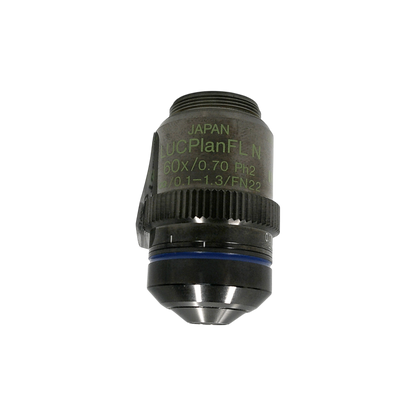

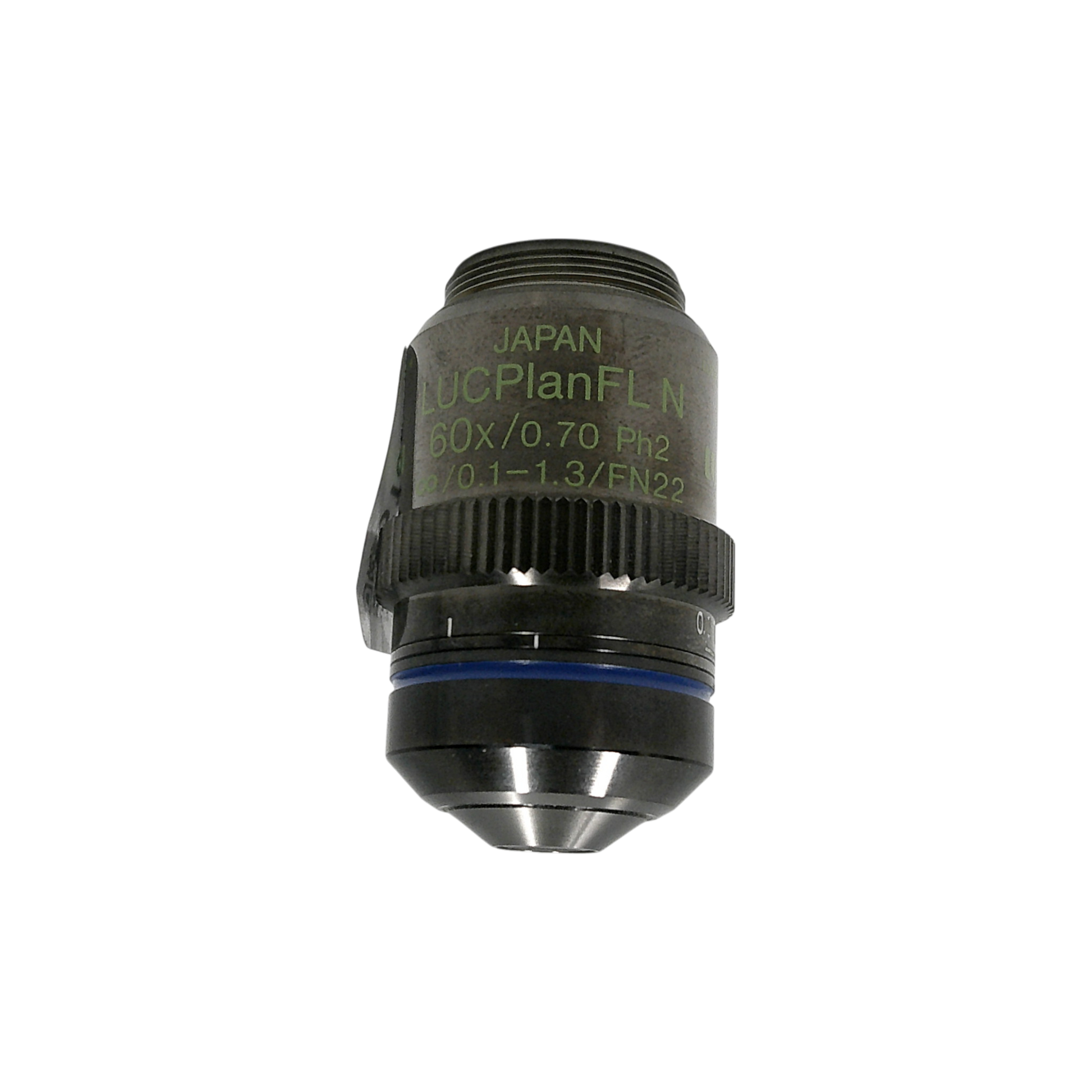

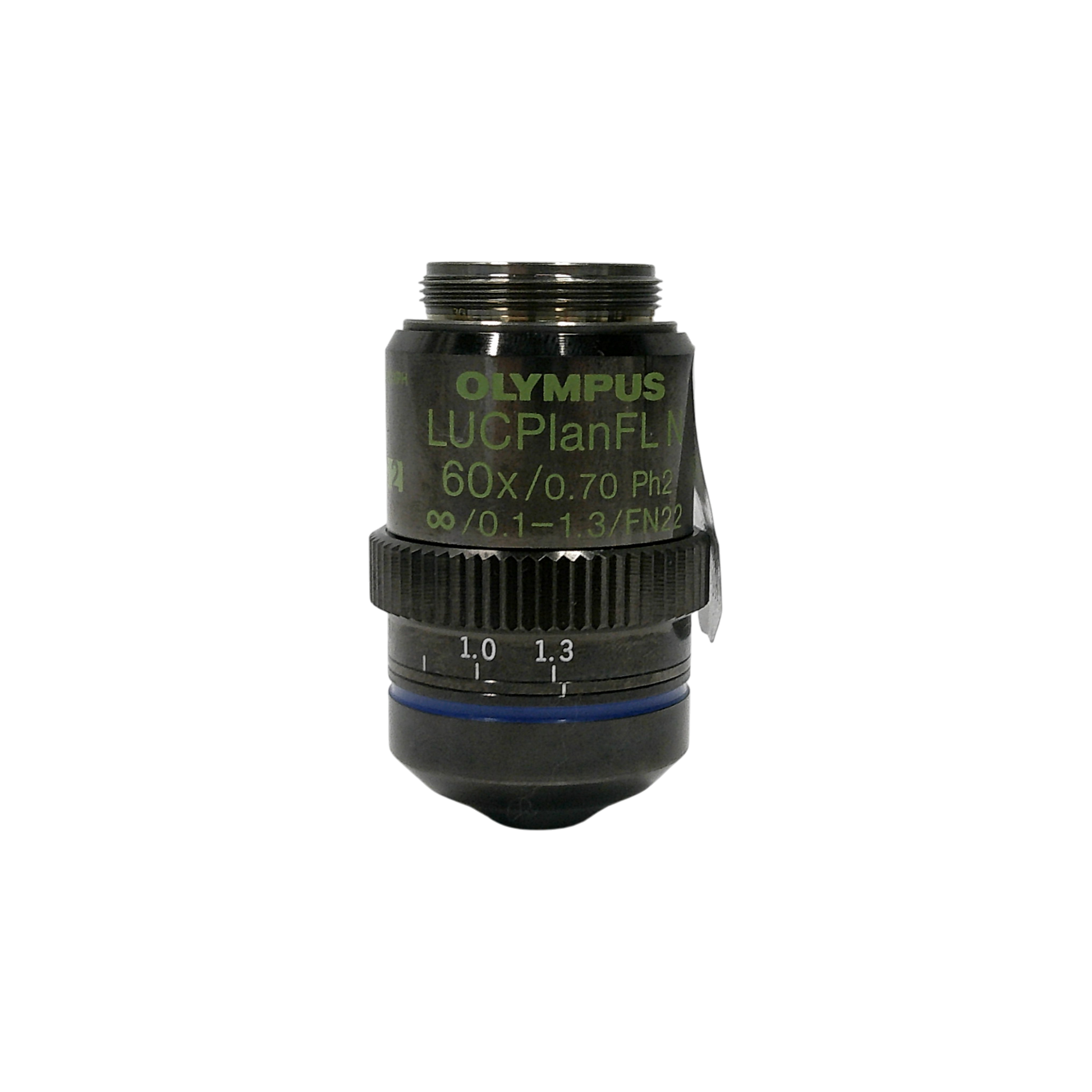

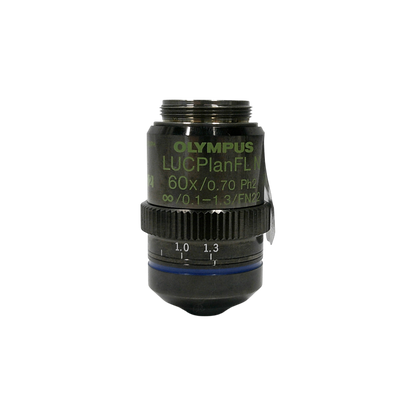

Olympus LUCPlan FL N Ph2 60x/0.70 RMS Thread Size Microscope Objective
Olympus LUCPlan FL N Ph2 60x/0.70 RMS Thread Size Microscope Objective
Couldn't load pickup availability
Olympus LUCPlan FL N Ph2 60x/0.70 Phase Contrast Objective – Catalog #LUCPLFLN60XPH
The Olympus LUCPlan FL N Ph2 60x/0.70 is a long working distance, semi-apochromatic phase contrast objective designed for high-quality imaging in live-cell and transmitted light microscopy. This objective combines plan fluorite optics with Phase 2 contrast capability, making it ideal for observing unstained, transparent specimens with exceptional clarity. With RMS threading and compatibility with standard 0.17 mm cover slips, it's suited for a wide range of upright microscopes and applications in cell biology and routine research.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- Plan Fluorite optics for high-contrast, flat field imaging
- Phase 2 contrast (Ph2) ring for enhanced visualization of transparent samples
- Long working distance suitable for plastic or glass-bottom dishes
- Dry objective with wide numerical aperture for sharp resolution
- Compatible with RMS-threaded microscope systems
Applications
- Live-cell imaging
- Phase contrast microscopy
- Tissue culture observation
- Quantitative imaging
- Research and clinical lab use
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Olympus |
| Model | LUCPlan FL N Ph2 60x/0.70 |
| Catalog Number | LUCPLFLN60XPH |
| Magnification | 60x |
| Numerical Aperture (NA) | 0.70 |
| Immersion Medium | Air (Dry) |
| Optical Design | Plan Fluorite (Semi-Apochromat) |
| Contrast Technique | Phase Contrast (Ph2) |
| Cover Glass Thickness | 0.17 mm |
| Working Distance (WD) | ~1.5–2.0 mm (Long Working Distance) |
| Thread Type | RMS (20.32 mm) |
| Compatible Microscopes | Olympus BX series and other RMS-thread systems |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 51809b
- Serial Number:
- Condition: Used
