SKU: PRODUCT ID:52049e

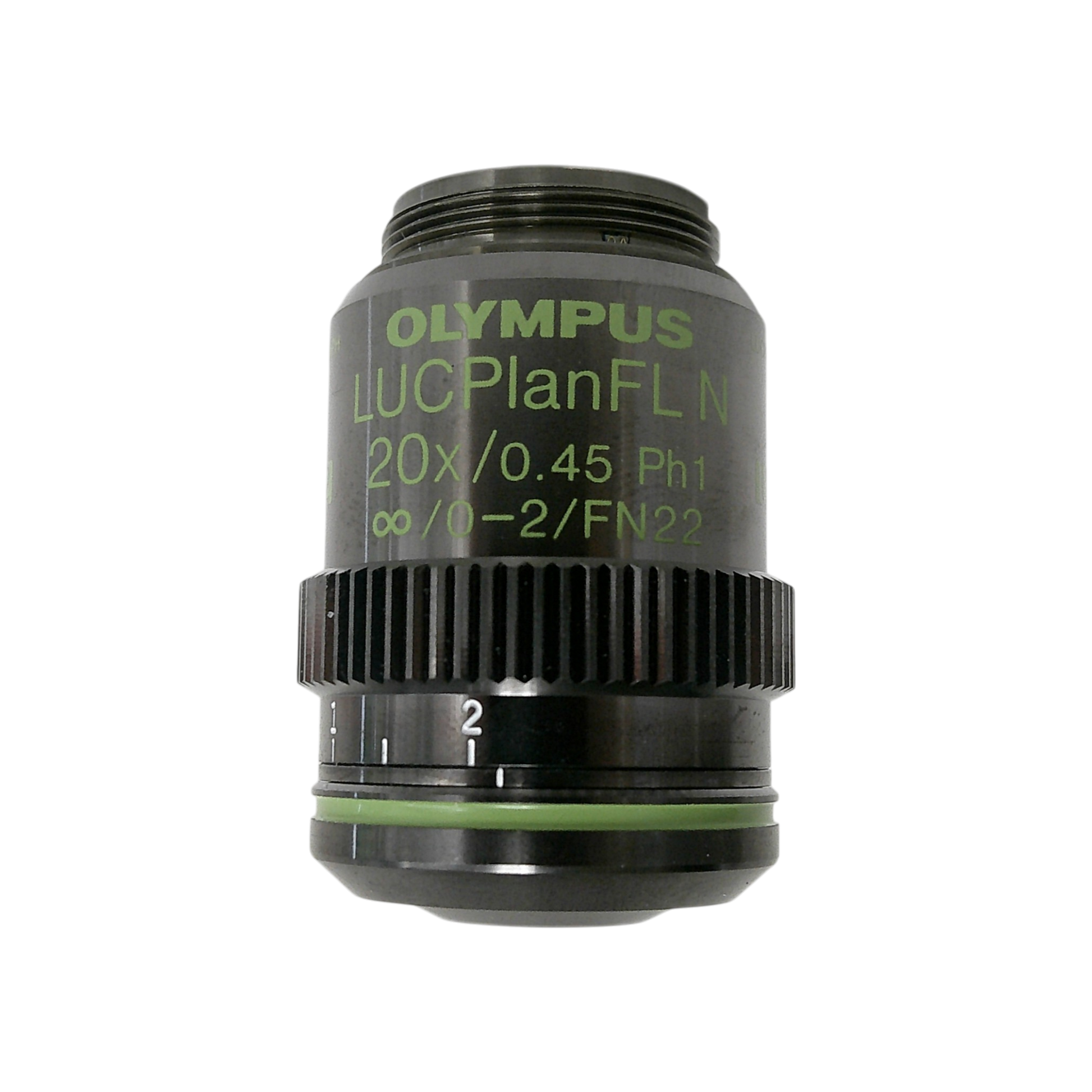

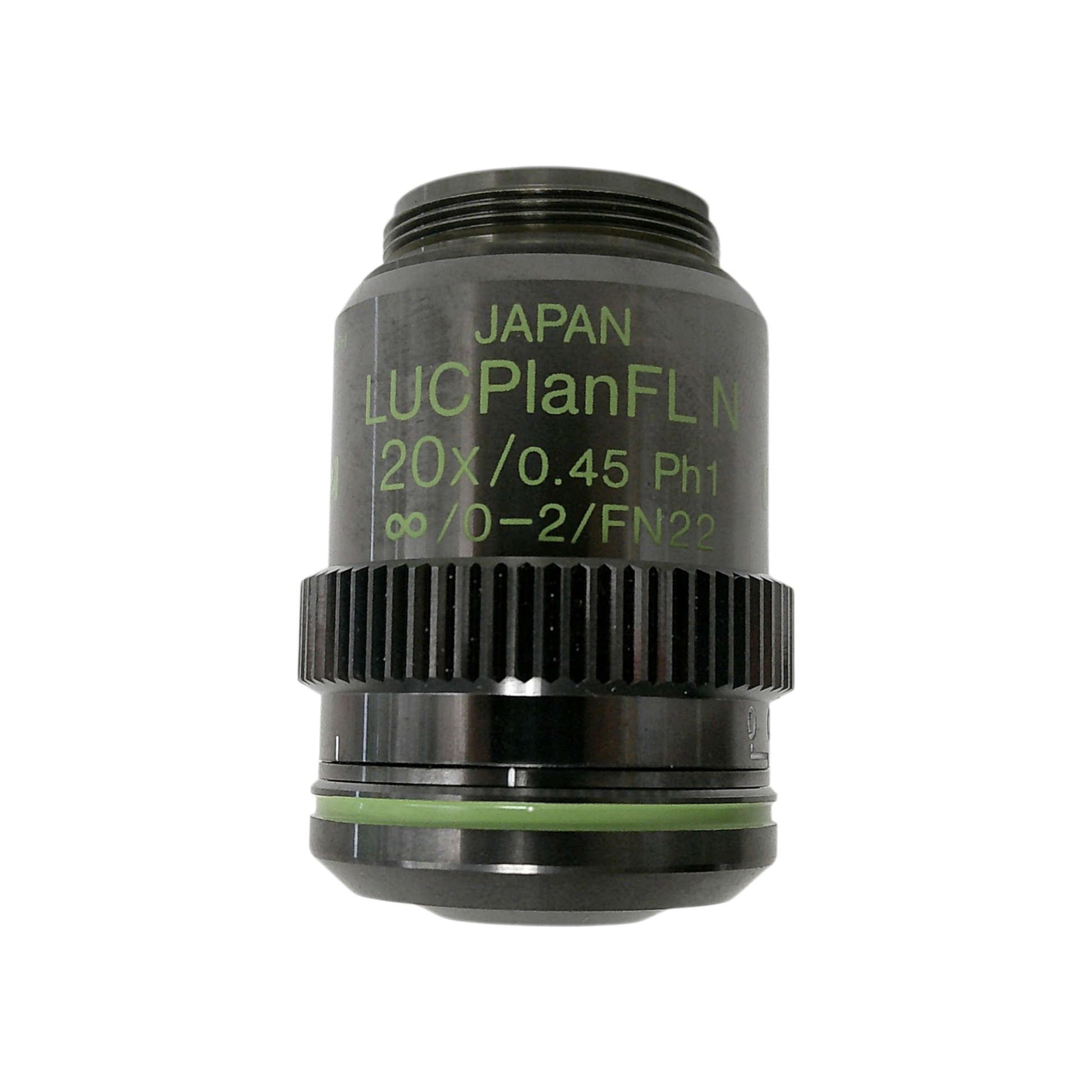

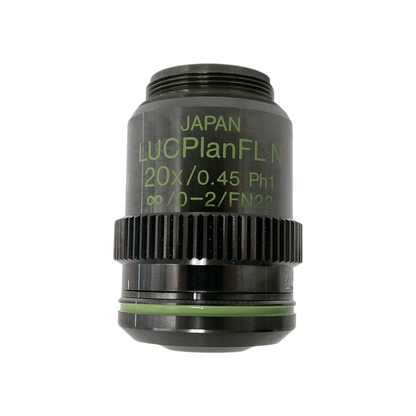

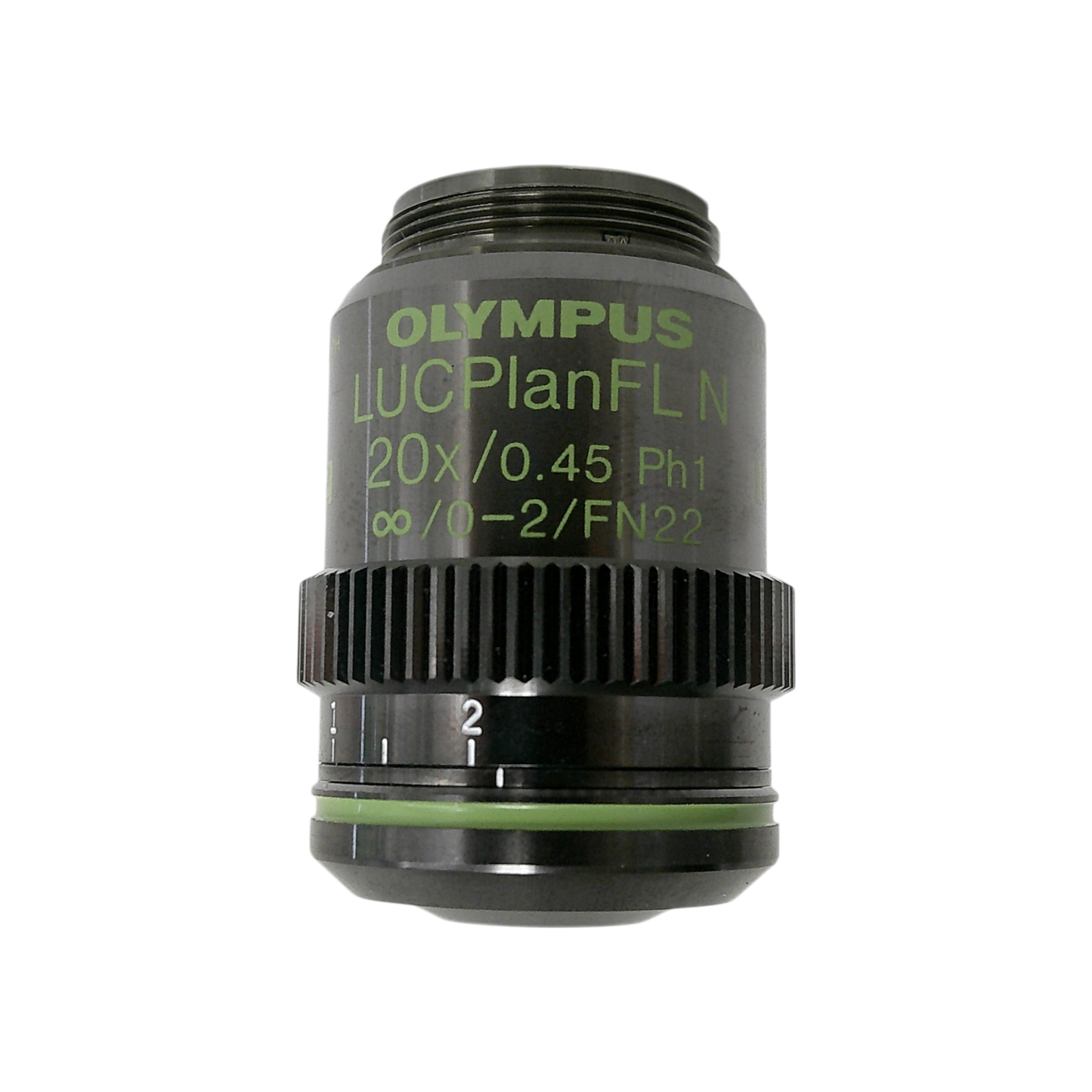

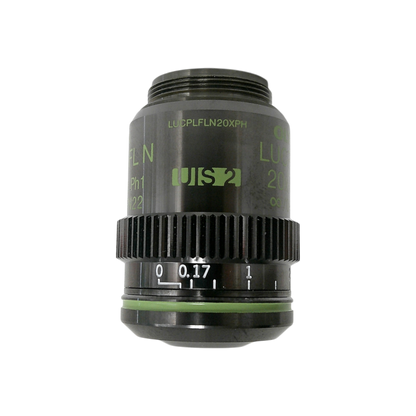

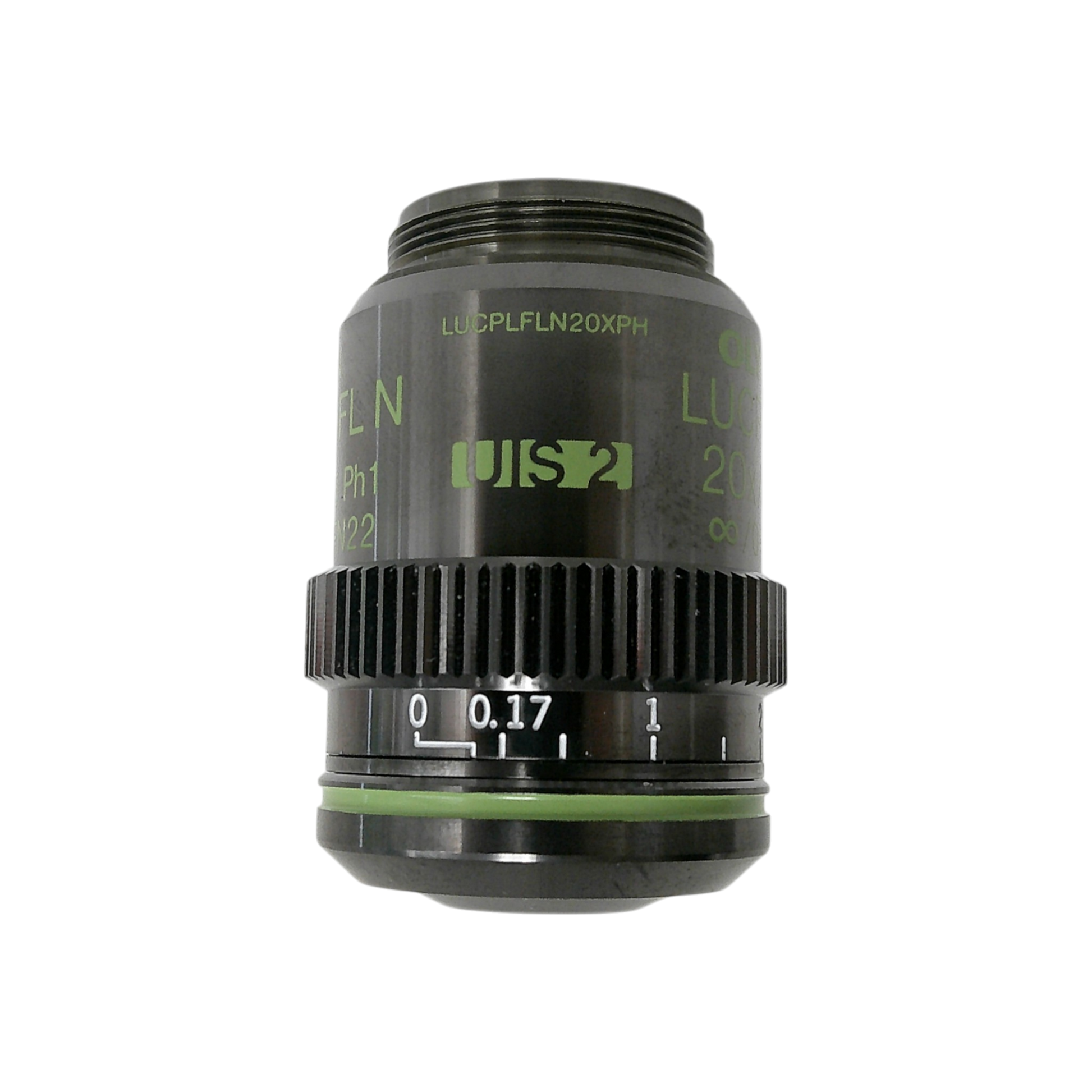

Olympus LUCPlanFL N Ph1 20x/0.45 RMS Thread Size Microscope Objective
Olympus LUCPlanFL N Ph1 20x/0.45 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Olympus LUCPlanFL N Ph1 20x/0.45 RMS Thread Size – LUCPLFLN20XPH (Used)
The Olympus LUCPlanFL N Ph1 20x/0.45 is a long working distance fluorite phase contrast objective designed for high-contrast imaging in phase applications. This objective provides excellent optical performance with a high numerical aperture, making it ideal for live cell imaging and other phase contrast microscopy techniques.
Condition
Refurbished/Used – This product has been inspected and verified to meet manufacturer specifications.
Key Features
- Magnification: 20x
- Numerical Aperture (NA): 0.45
- Working Distance (WD): 5.91mm
- Phase Contrast: Yes, Phase 1 (Ph1)
- Thread Type: RMS (Royal Microscopical Society Standard)
- Optical Design: Long Working Distance (LWD) for enhanced sample clearance
- Fluorite (Semi-Apochromat) Lens: Provides superior contrast and resolution
Applications
- Live Cell Imaging
- Phase Contrast Microscopy
- Biological Research
- Pathology and Histology
- Cell Culture Studies
Specifications
| Specification | Details |
|---|---|
| Magnification | 20x |
| Numerical Aperture (NA) | 0.45 |
| Working Distance (WD) | 5.91mm |
| Thread Size | RMS |
| Phase Contrast | Ph1 |
| Optical Type | Long Working Distance (LWD) |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 52049e
- Serial Number:
- Condition: Used
