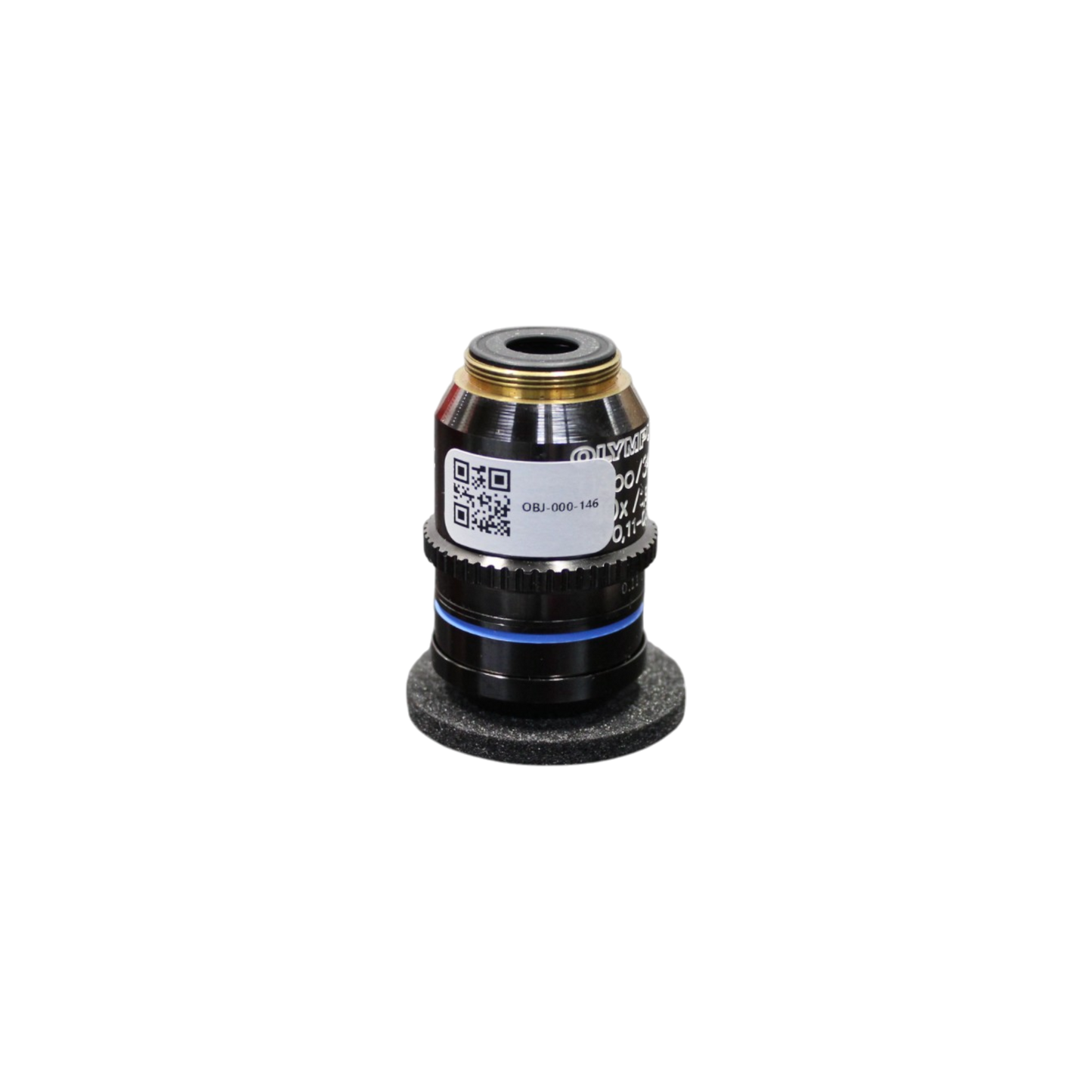

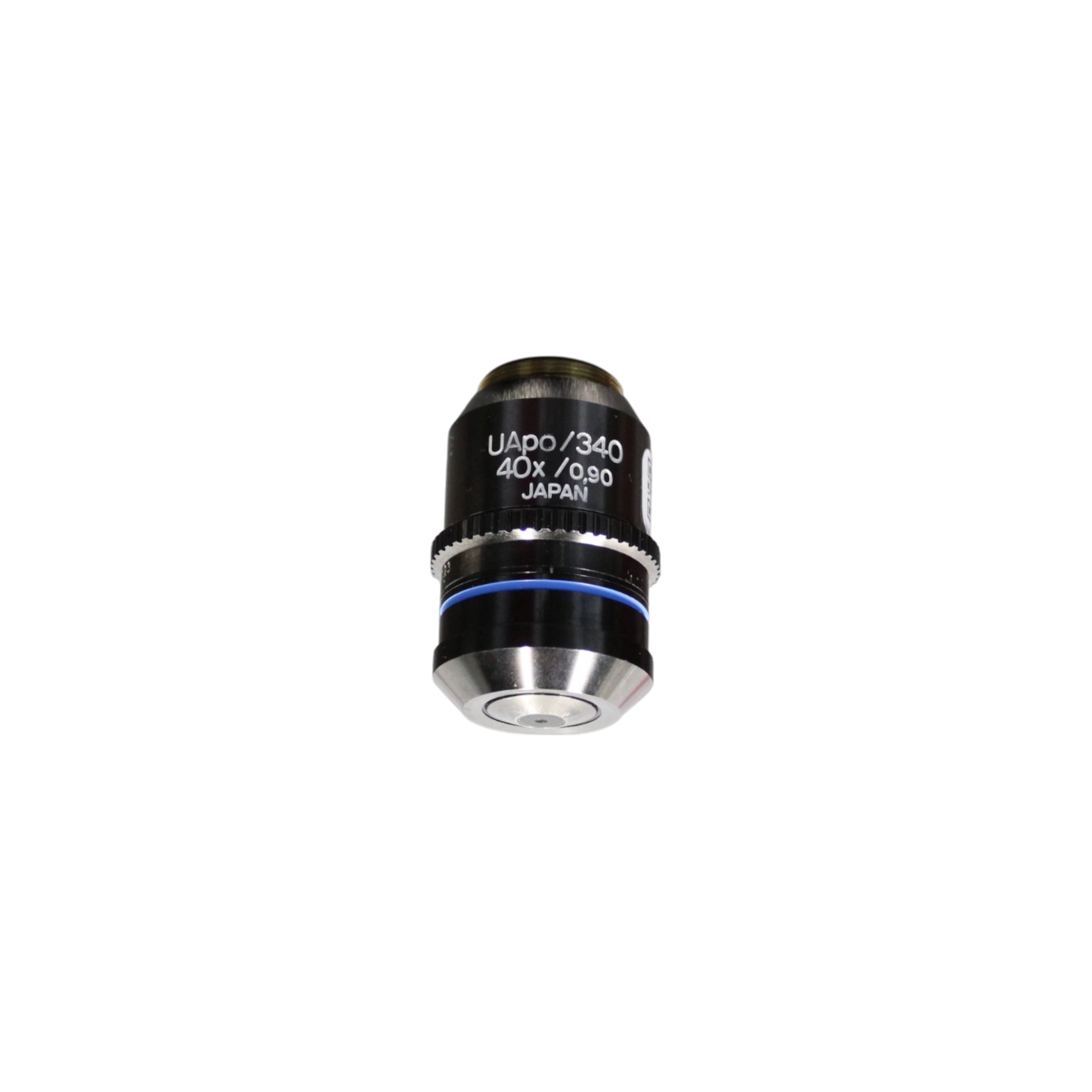

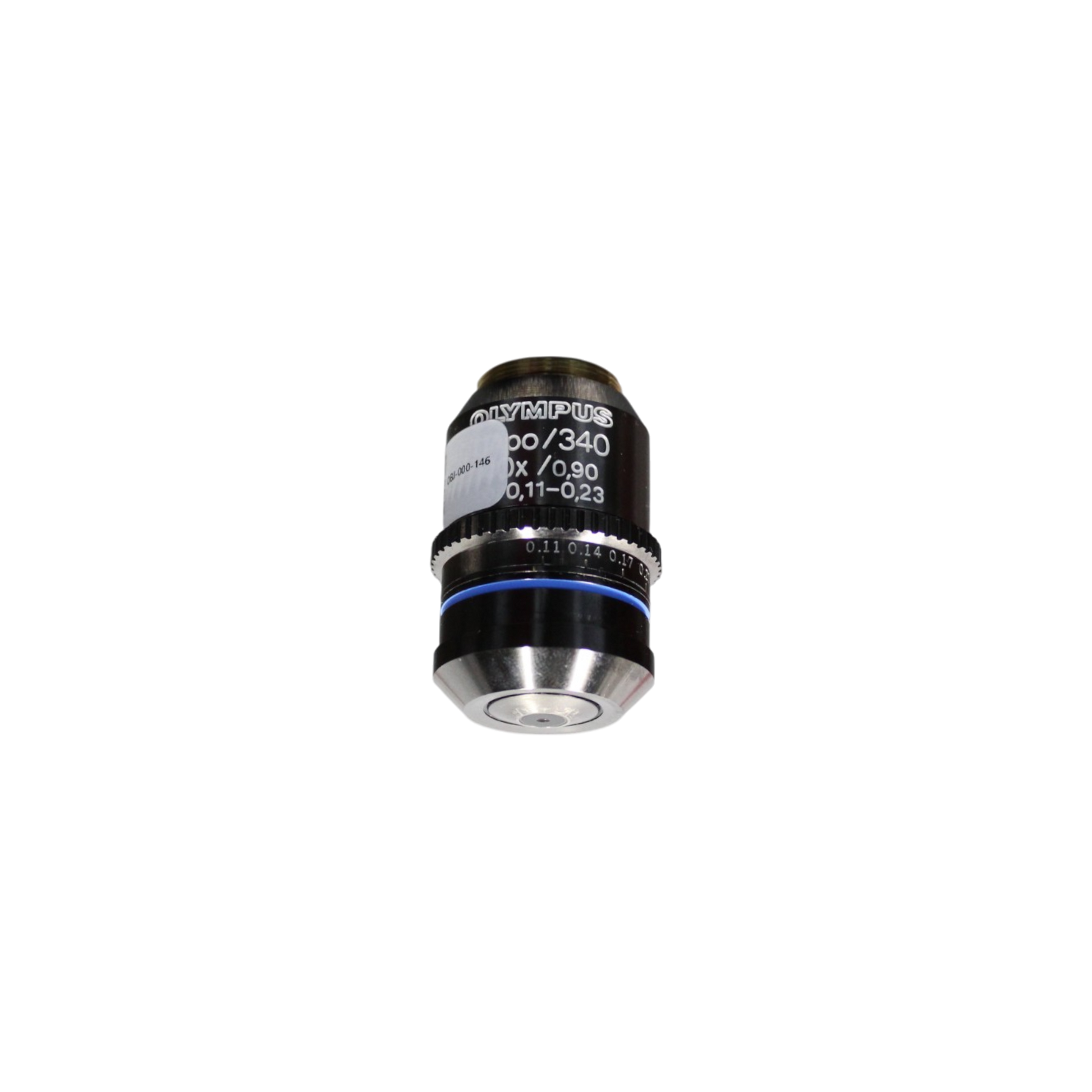

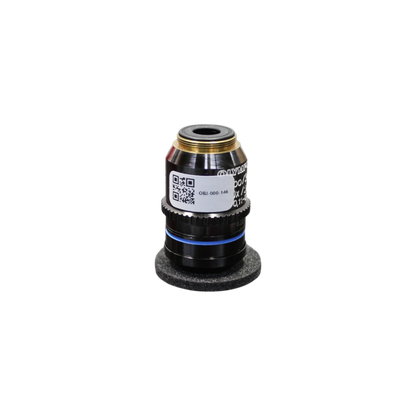

Olympus UApo 340 40x/0.9 RMS Thread Size Microscope Objective
Olympus UApo 340 40x/0.9 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Olympus UApo 340 40x/0.9 RMS Thread Size
The Olympus UApo 340 40x/0.9 is a high-performance ultra apochromatic (UApo) objective designed for advanced UV fluorescence and visible light microscopy. With a numerical aperture (NA) of 0.9, this objective provides exceptional resolution, contrast, and chromatic aberration correction. The RMS thread size ensures compatibility with Olympus and other standard research-grade microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Olympus UApo 340 40x/0.9 Objective
Key Features
- 40x magnification for high-resolution imaging
- Ultra apochromatic (UApo) optics for superior color correction and minimal chromatic aberrations
- Numerical aperture (NA) of 0.9 for enhanced light-gathering capability
- Optimized for 340nm UV fluorescence and visible spectrum imaging
- RMS thread size for compatibility with Olympus and other standard microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Designed for fluorescence and brightfield microscopy
Applications
- UV fluorescence microscopy (340nm excitation)
- Brightfield microscopy
- Live-cell imaging
- Confocal and multiphoton microscopy
- Neuroscience and biological research
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.9 |
| Working Distance | 0.21 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Ultra Apochromatic (UApo) – High Contrast, Minimal Chromatic Aberration |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Olympus BX, IX, FV series and other RMS-compatible models |
| Special Features | Optimized for UV fluorescence at 340nm, high transmission for deep-tissue imaging |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model: UApo 340 40x/0.9 RMS Thread Size
- Catalog Number: OBJ-000-146
- Serial Number: N/A
- Condition: Seller Refurbished
