Olympus UPlanApo 4x/0.16 RMS Thread Size Microscope Objective
Olympus UPlanApo 4x/0.16 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

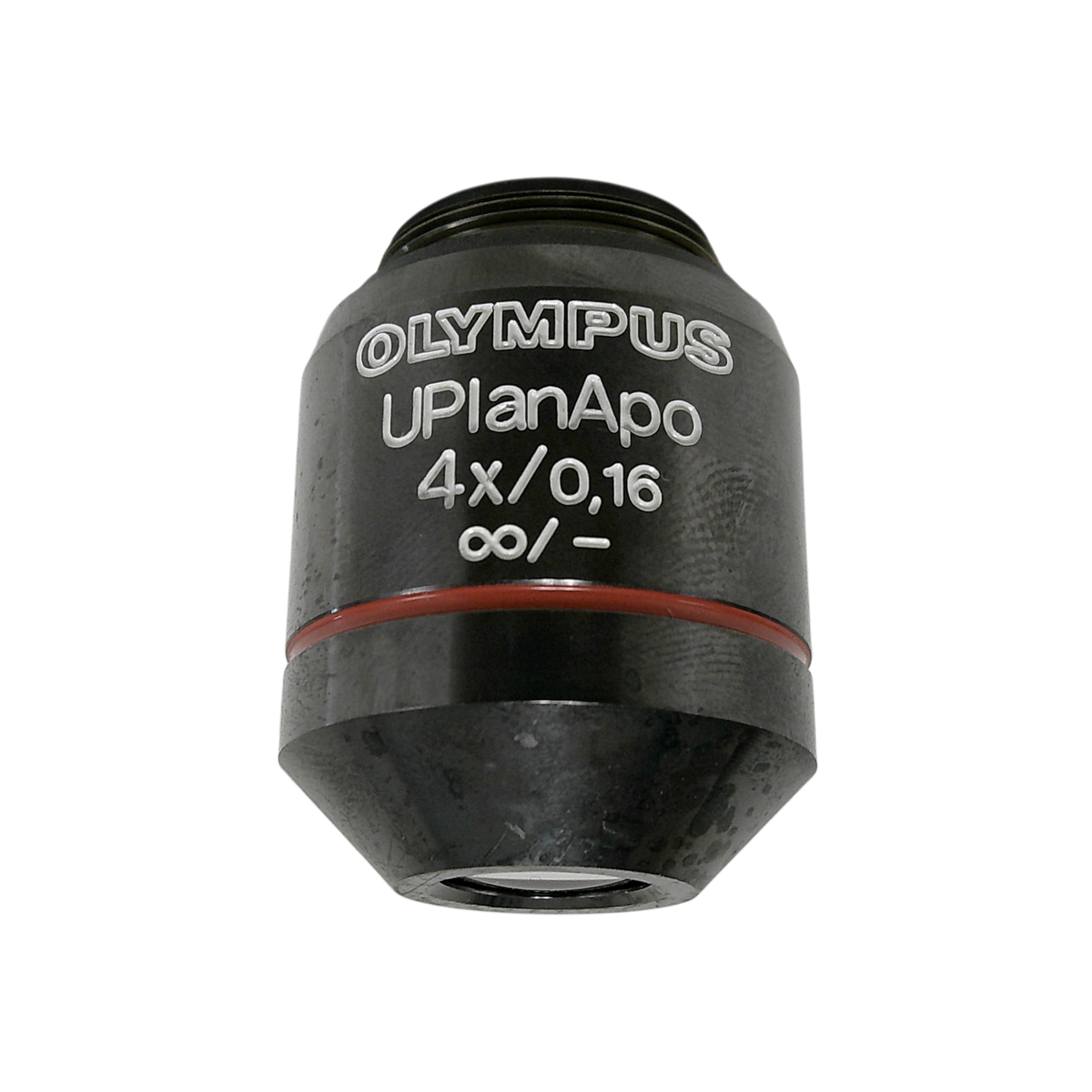

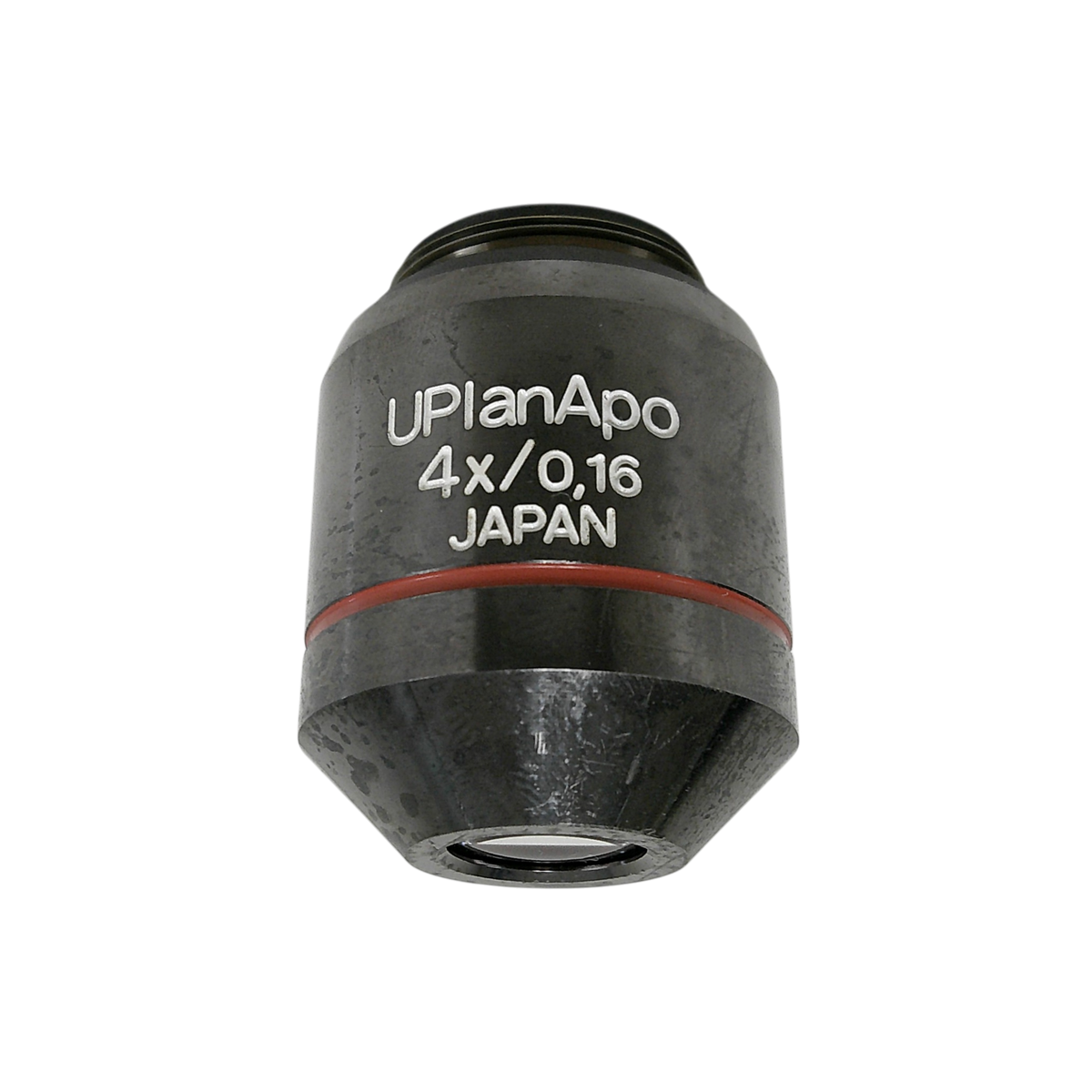

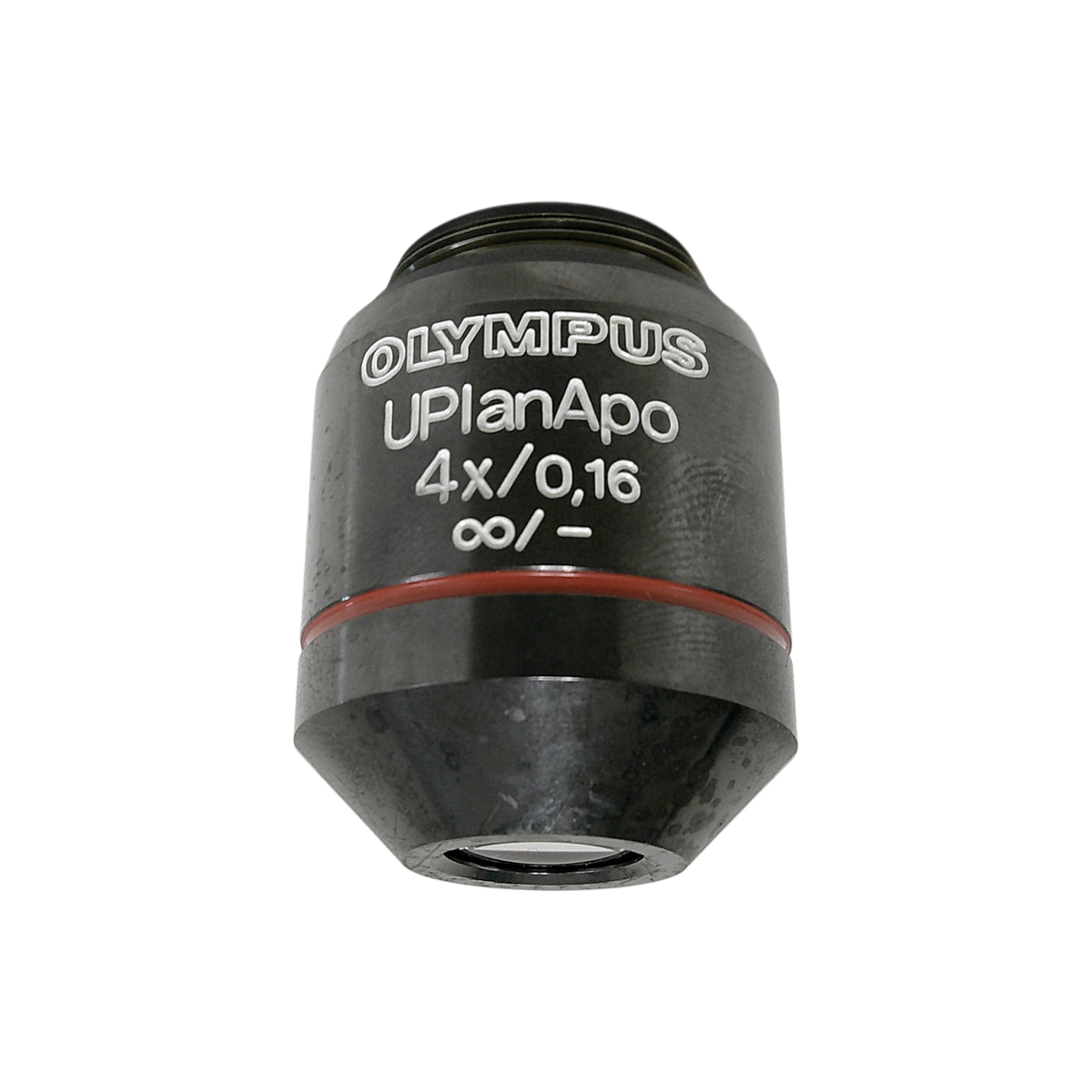

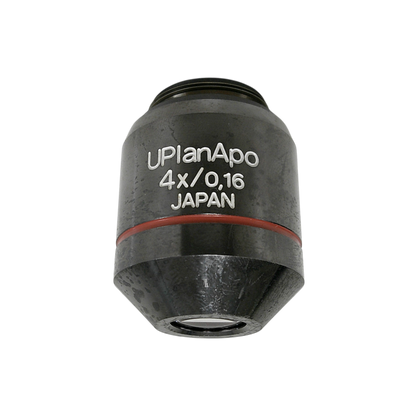

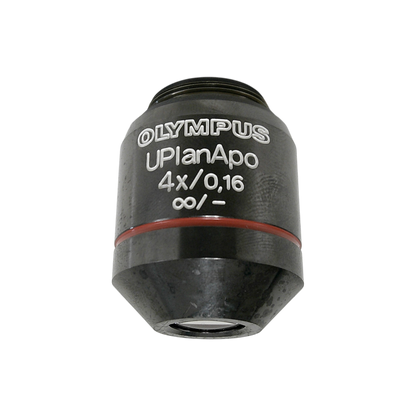

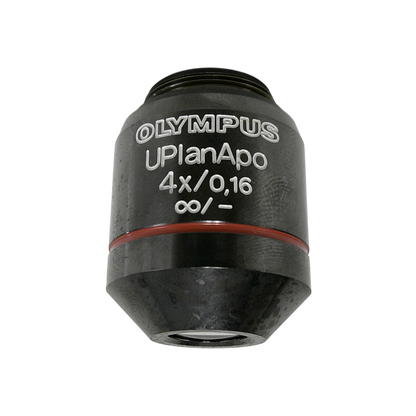

Olympus UPlanApo 4x/0.16 RMS Microscope Objective
The Olympus UPlanApo 4x/0.16 is a plan apochromatic microscope objective designed for high-quality fluorescence and transmitted-light microscopy. Featuring 4x magnification, a 0.16 numerical aperture, and an RMS mounting thread, this dry objective provides a wide field of view with excellent optical correction, making it well suited for specimen overview, navigation, and large-area biological imaging.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 4x magnification
- 0.16 numerical aperture
- UPlanApo plan apochromatic optical design
- Dry / air objective
- Infinity-corrected optical system
- Wide field of view for specimen overview and navigation
- Plan correction for a flat image field
- Apochromatic correction for excellent chromatic performance
- RMS objective mounting thread
- Suitable for fluorescence and transmitted-light microscopy
- Well suited for large-area imaging and specimen screening
Applications
- Fluorescence microscopy
- Brightfield microscopy
- Specimen overview and navigation
- Large-area biological imaging
- Tissue and histology imaging
- Cell culture observation
- Slide scanning and specimen screening
- Low-magnification documentation
- Biomedical and life science research
Specifications
| Manufacturer | Olympus |
| Model | UPlanApo 4x/0.16 |
| Objective Type | Plan Apochromat |
| Optical Series | UPlanApo |
| Magnification | 4x |
| Numerical Aperture (NA) | 0.16 |
| Immersion Medium | Dry / Air |
| Optical Correction | Plan Apochromatic |
| Optical System | Infinity-corrected |
| Objective Thread | RMS |
| Fluorescence Compatibility | Yes |
| Transmitted-Light Compatibility | Yes |
| Primary Applications | Fluorescence, brightfield, specimen overview, large-area imaging, and general biological microscopy |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 52254b
- Serial Number:
- Condition: Used
