SKU: PRODUCT ID:OBJ-000-629

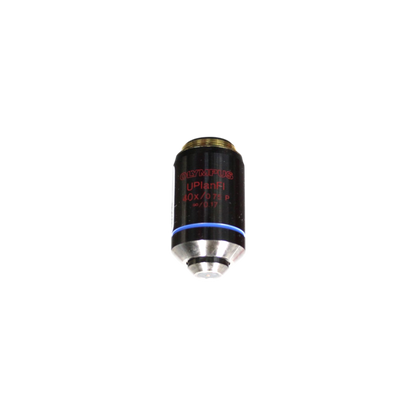

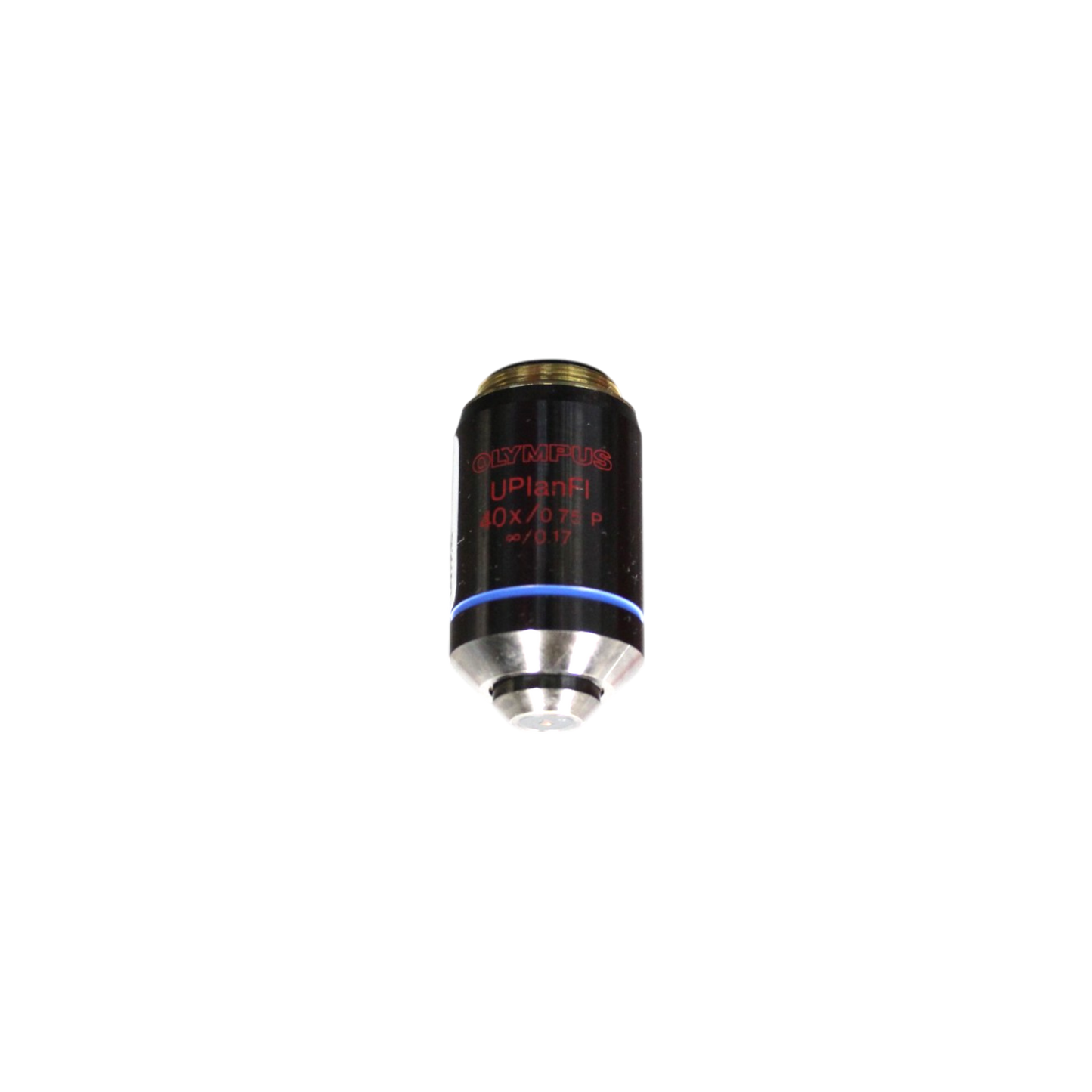

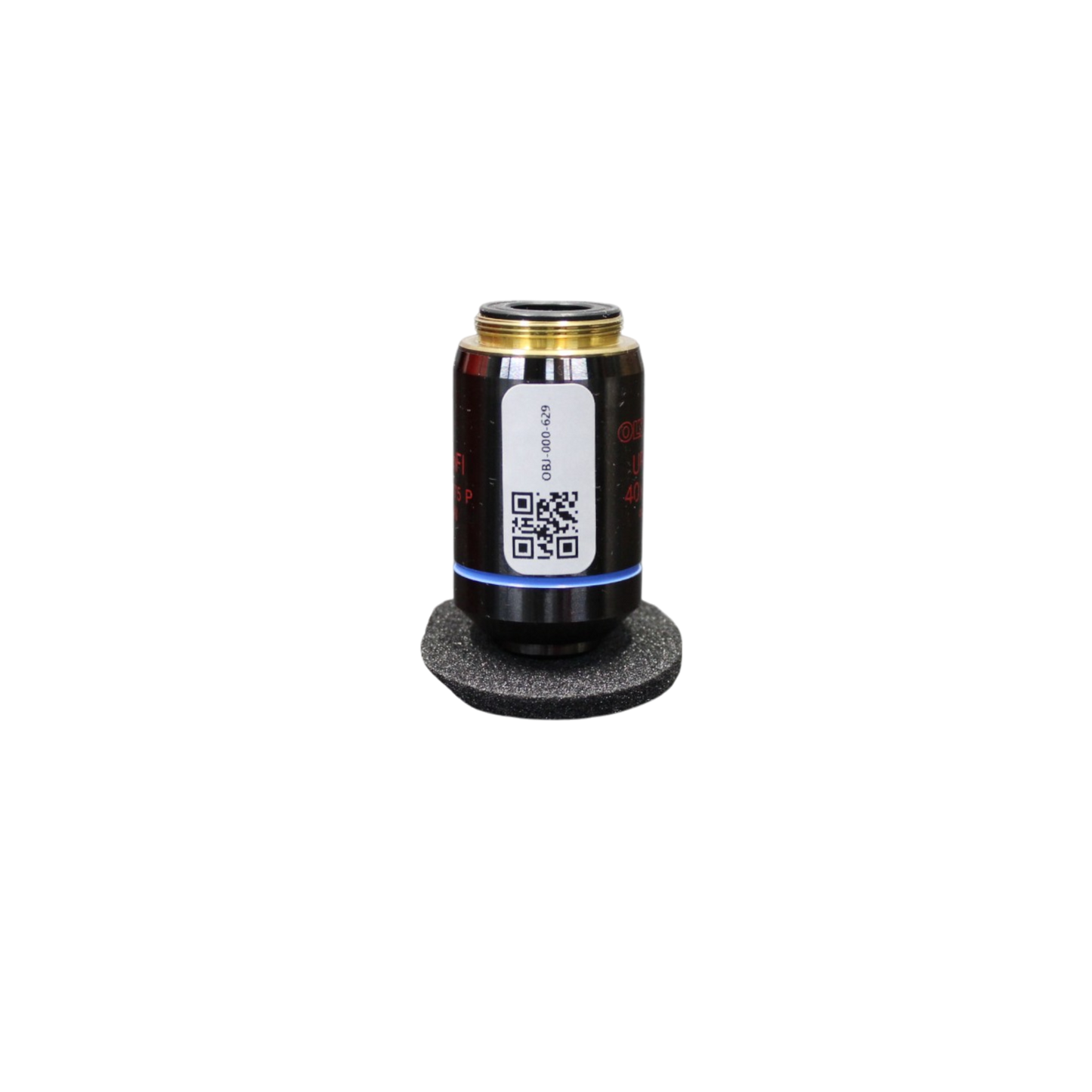

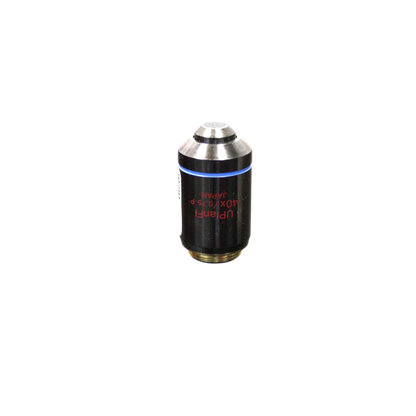

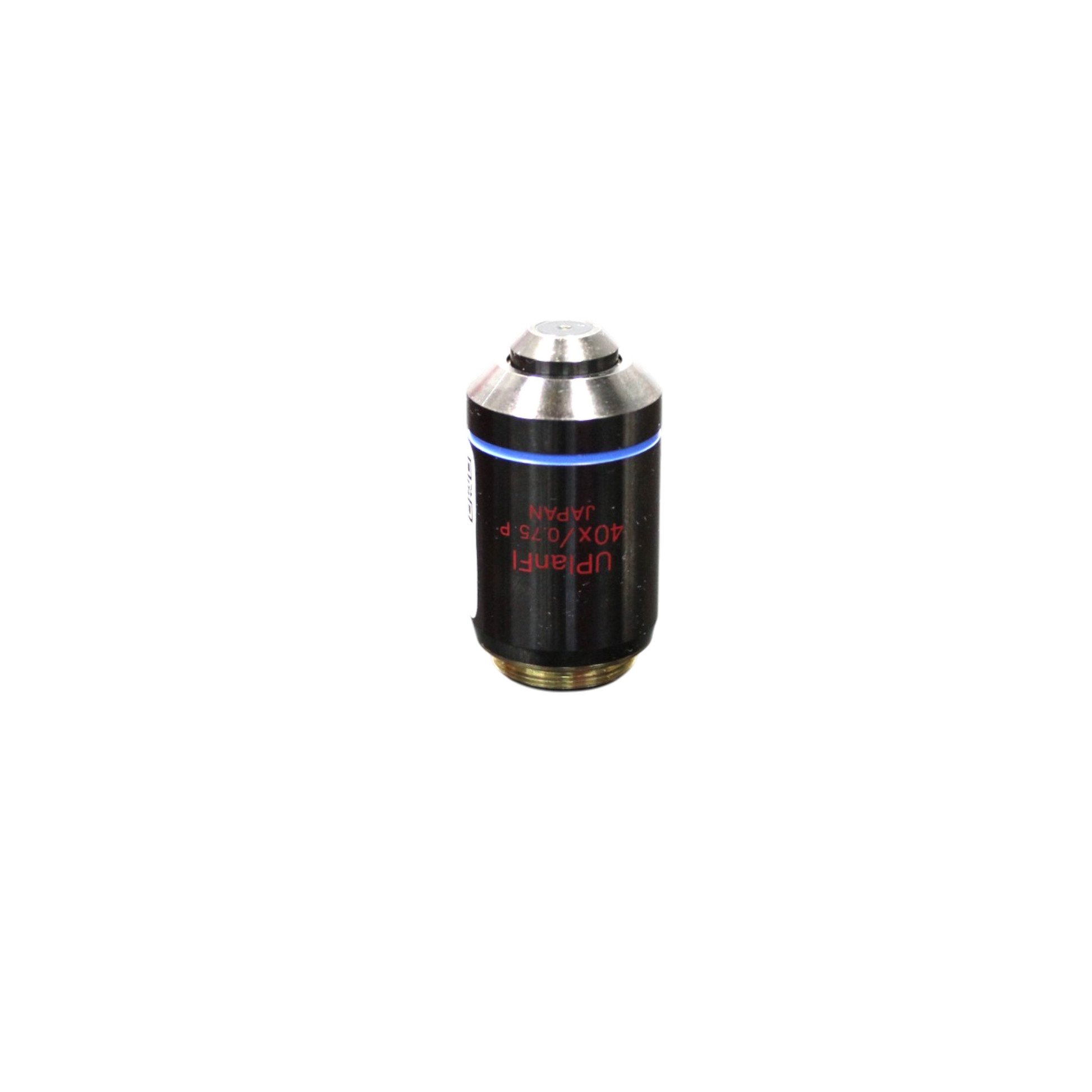

Olympus UPlanFl 40x/0.75 P RMS Thread Size Microscope Objective
Olympus UPlanFl 40x/0.75 P RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Olympus UPlanFl 40x/0.75 P RMS Thread Size – UPLFL40XP
The Olympus UPlanFl 40x/0.75 P is a plan fluorite objective designed for high-resolution microscopy, offering excellent contrast and flat field correction across the entire image. With a numerical aperture (NA) of 0.75, this objective provides superior light-gathering capability, making it ideal for fluorescence, brightfield, and phase contrast microscopy. It features a RMS thread size, ensuring compatibility with Olympus and other standard microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Olympus UPlanFl 40x/0.75 P Objective
Key Features
- 40x magnification for high-detail imaging
- Plan fluorite (semi-apochromatic) optics for enhanced contrast and resolution
- 0.75 numerical aperture (NA) for excellent light transmission
- RMS thread size for compatibility with standard Olympus microscopes
- Flat field correction for sharp, edge-to-edge imaging
- Optimized for fluorescence microscopy
Applications
- Fluorescence microscopy
- Brightfield microscopy
- Phase contrast microscopy
- Live-cell imaging
- Pathology and histology
Specifications
| Specification | Details |
|---|---|
| Magnification | 40x |
| Numerical Aperture (NA) | 0.75 |
| Working Distance | 0.51 mm |
| Immersion Medium | Air (Dry) |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Plan Fluorite (Flat Field, High Contrast) |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Olympus BX, IX, and other RMS-compatible models |
| Special Features | High transmission coatings for fluorescence |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model: UPlanFl 40x/0.75 P RMS Thread Size
- Catalog Number: OBJ-000-629
- Serial Number: N/A
- Condition: Seller Refurbished
