Olympus UPlanFL N Ph1 10x/0.30 RMS Thread Size Microscope Objective
Olympus UPlanFL N Ph1 10x/0.30 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

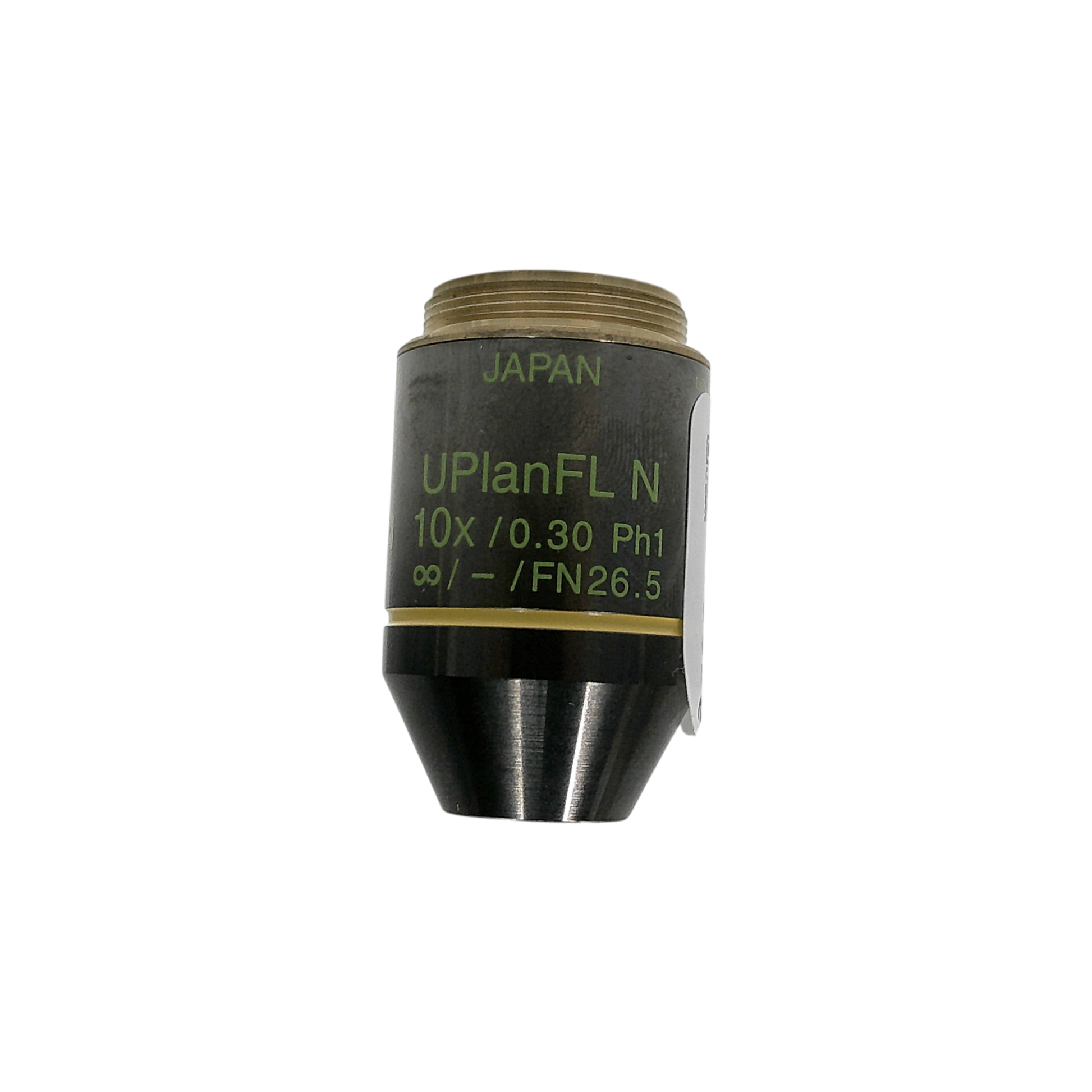

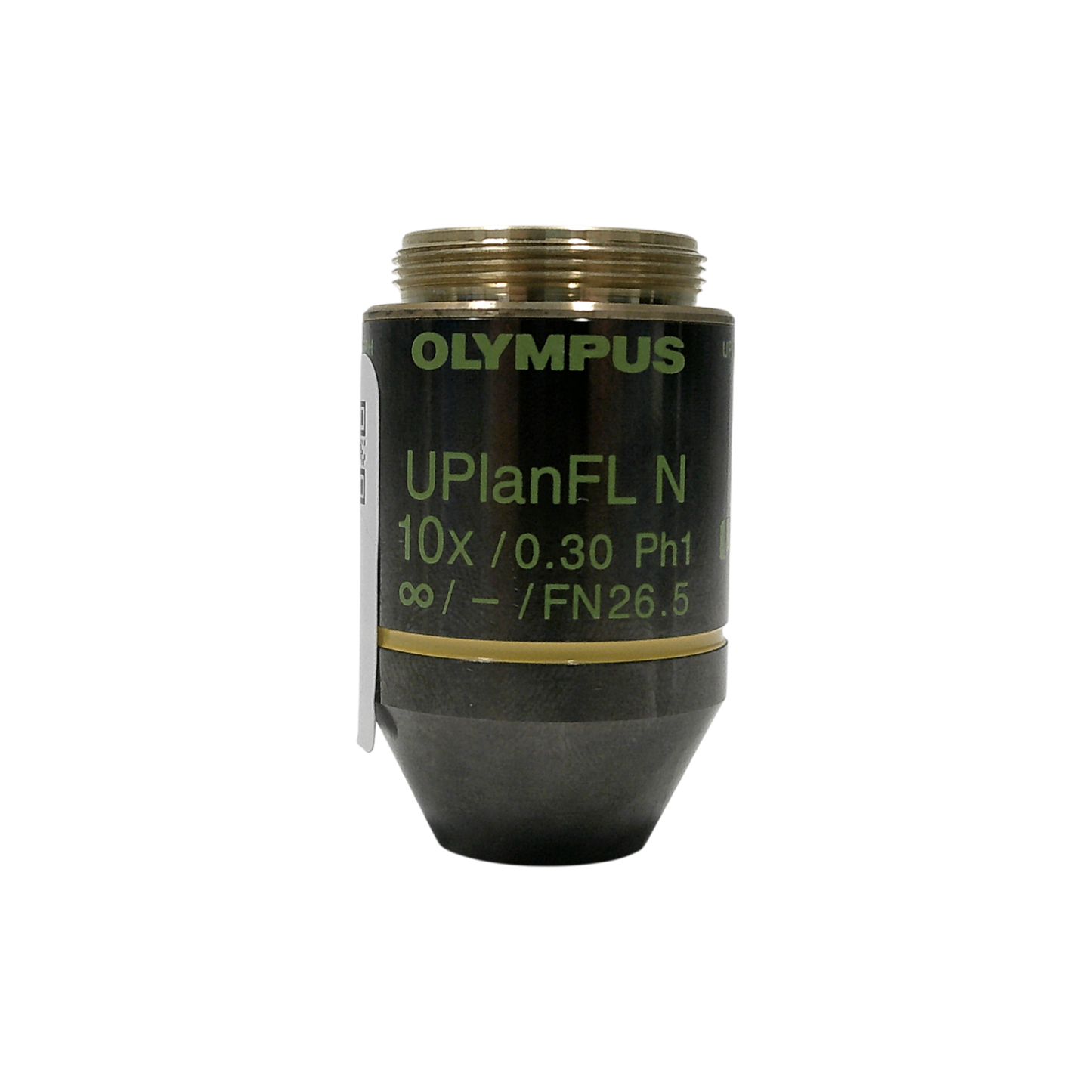

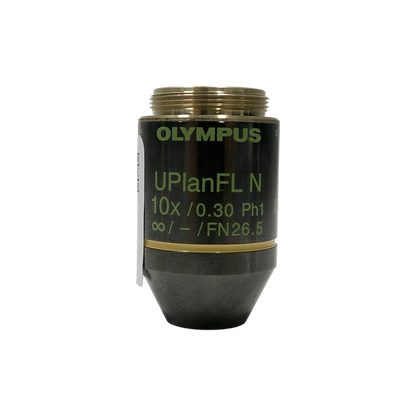

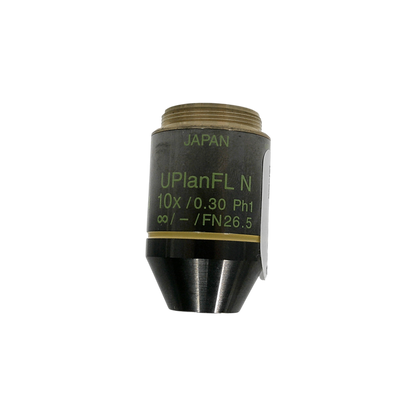

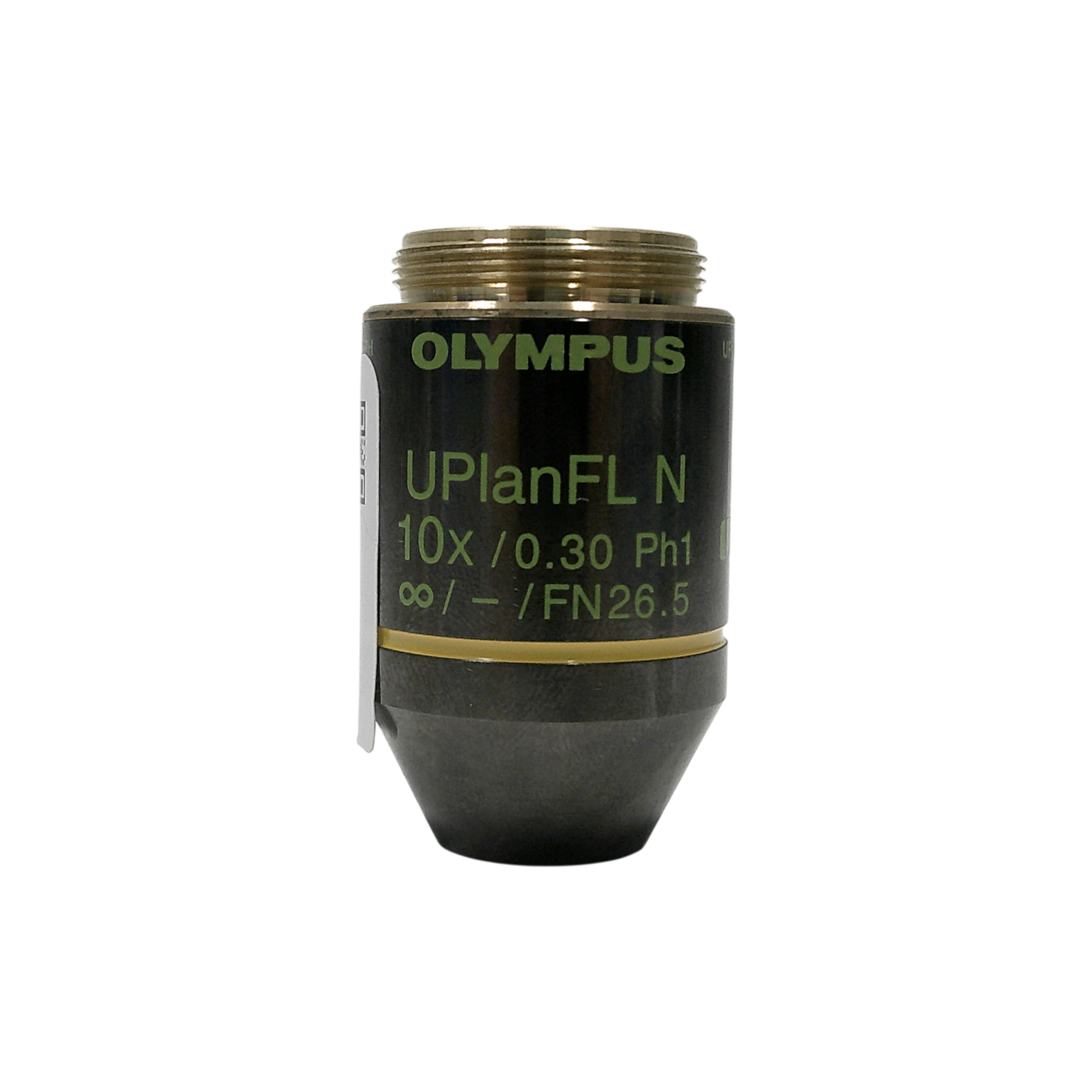

Olympus UplanFL N 10x/0.30 Ph1 RMS Objective – Used
Enhance your phase contrast imaging with the Olympus UplanFL N 10x/0.30 Ph1 objective. Designed for superior flatness across the field of view and excellent optical performance, this infinity-corrected objective is ideal for routine to advanced phase contrast microscopy. With a numerical aperture of 0.30 and phase ring (Ph1) for optimized contrast, it offers crisp and clear imaging, especially in live cell or unstained specimen applications.
Condition
Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications).
Key Features
- Infinity-corrected design (UplanFL N series)
- Magnification: 10x
- Numerical Aperture: 0.30
- Phase Contrast: Ph1 ring for enhanced contrast imaging
- High transmission and flat-field imaging across the full field of view
- RMS thread size for broad microscope compatibility
- Designed for routine biological or live cell applications
Applications
- Live cell imaging
- Routine biological phase contrast microscopy
- Unstained sample observation
- Tissue culture monitoring
Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Olympus |
| Model | UplanFL N |
| Magnification | 10x |
| Numerical Aperture (NA) | 0.30 |
| Phase Contrast Ring | Ph1 |
| Optical Correction | Infinity-corrected, Plan Fluorite |
| Thread Size | RMS (0.8”–36 TPI) |
| Cover Glass Thickness | 0.17 mm |
| Immersion Medium | Air |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 51809e
- Serial Number:
- Condition: Used
