SKU: PRODUCT ID:51709a

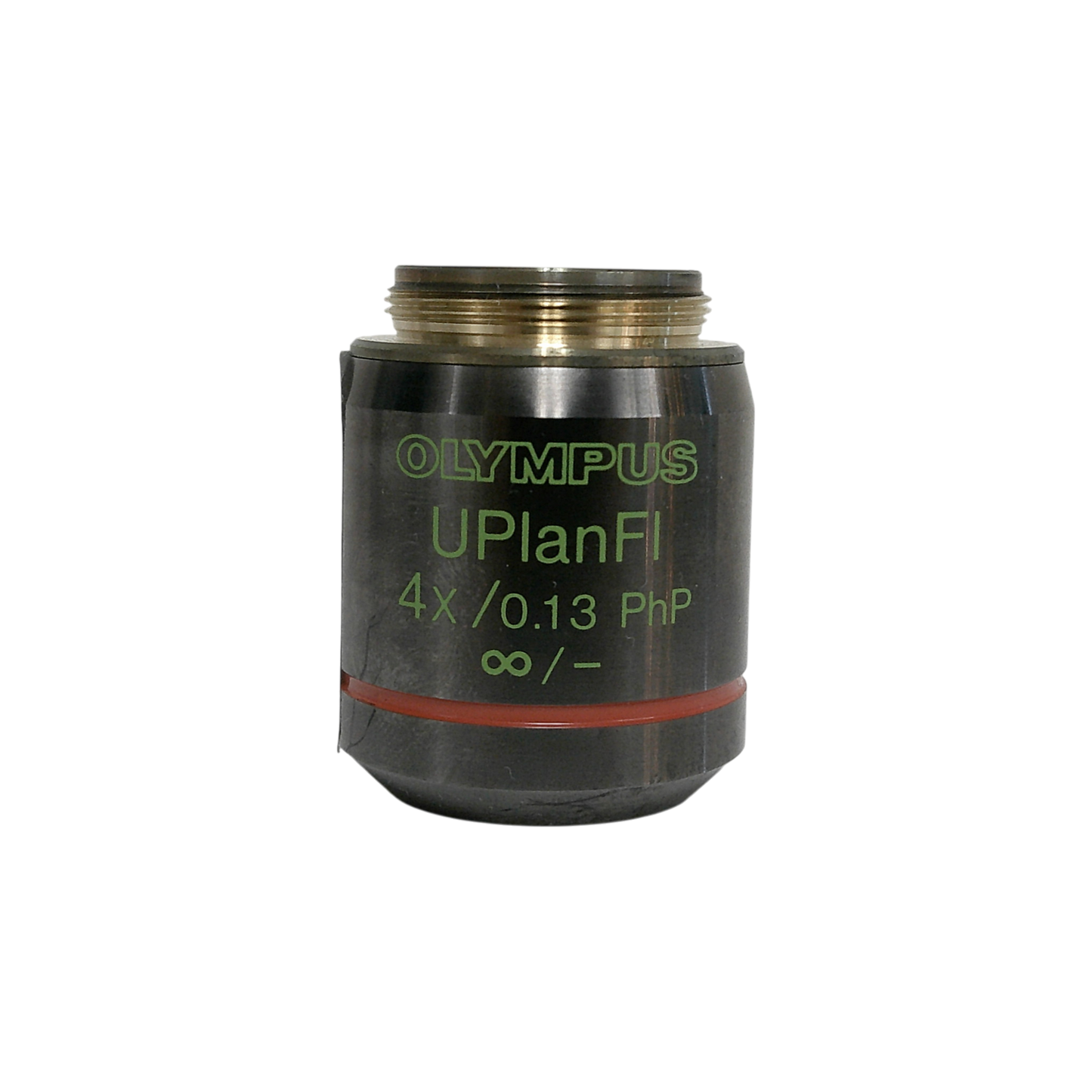

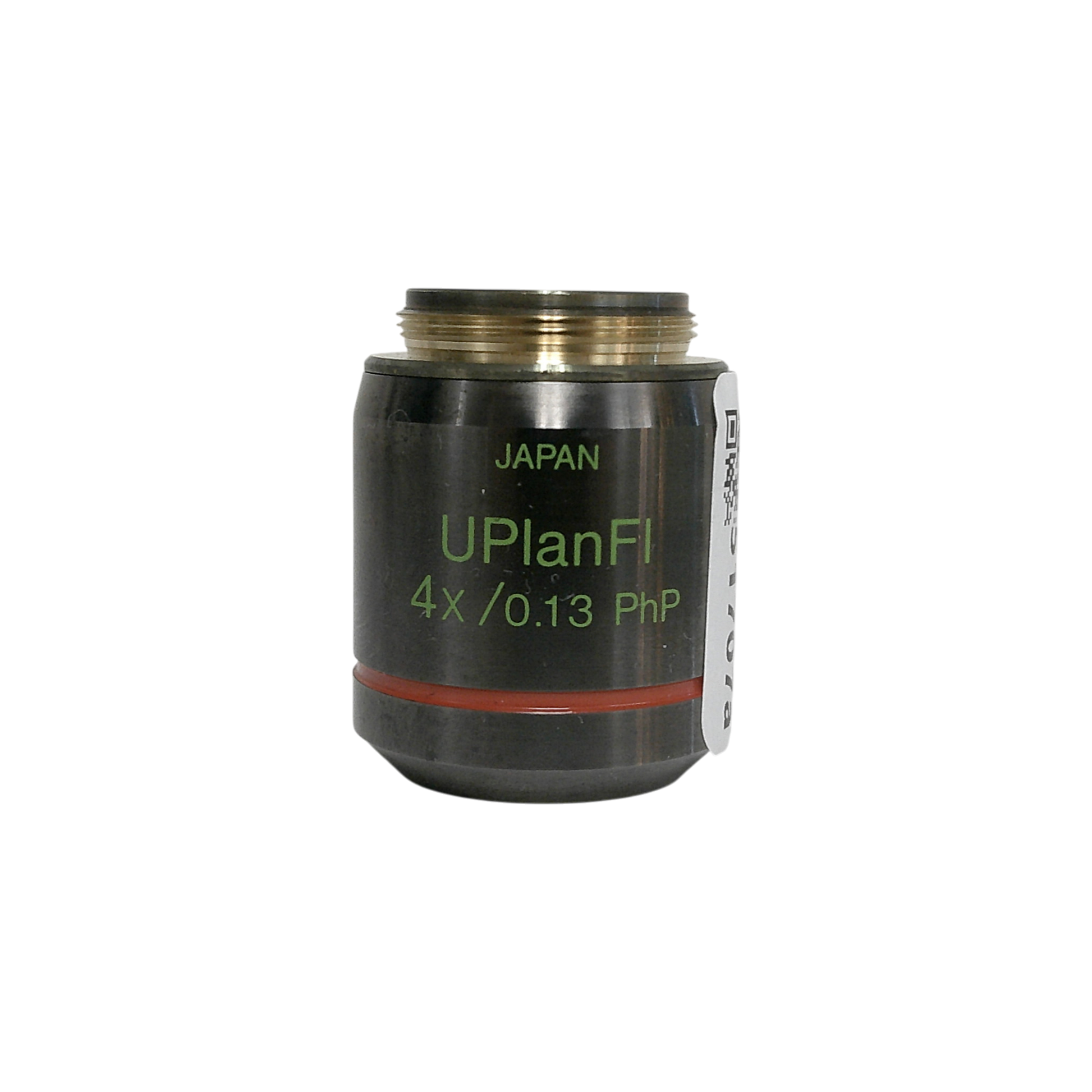

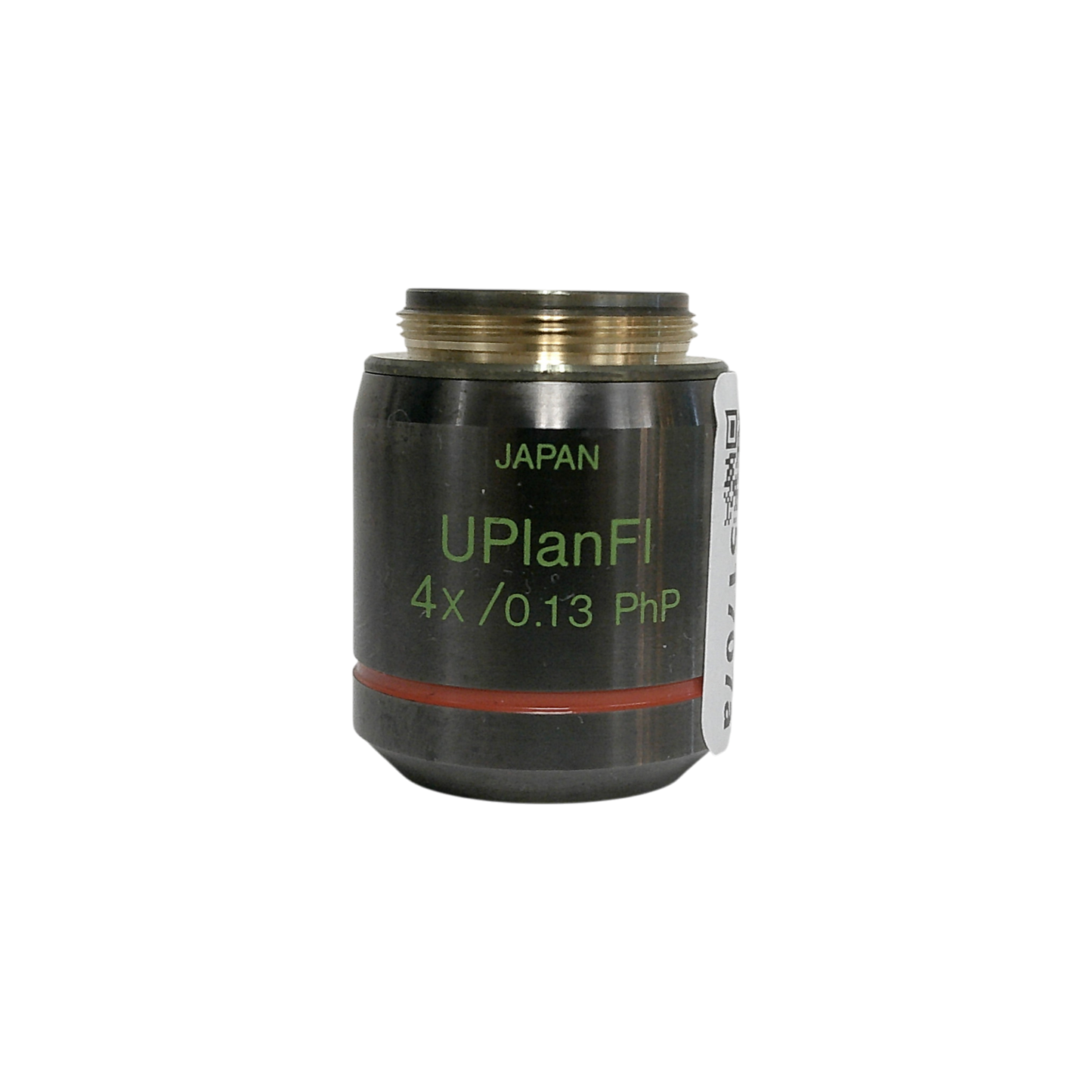

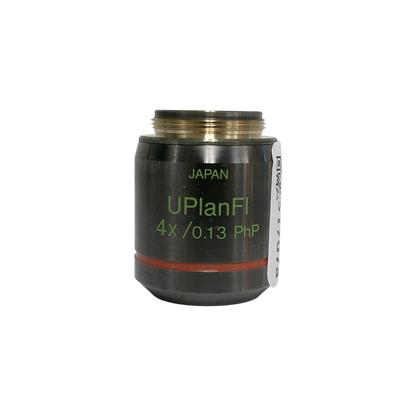

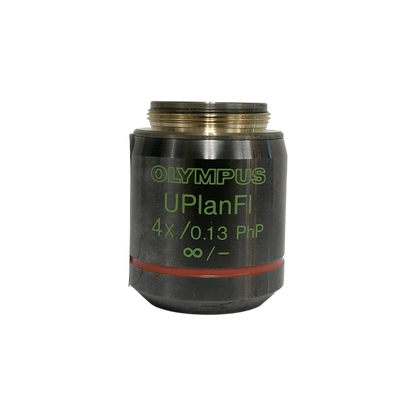

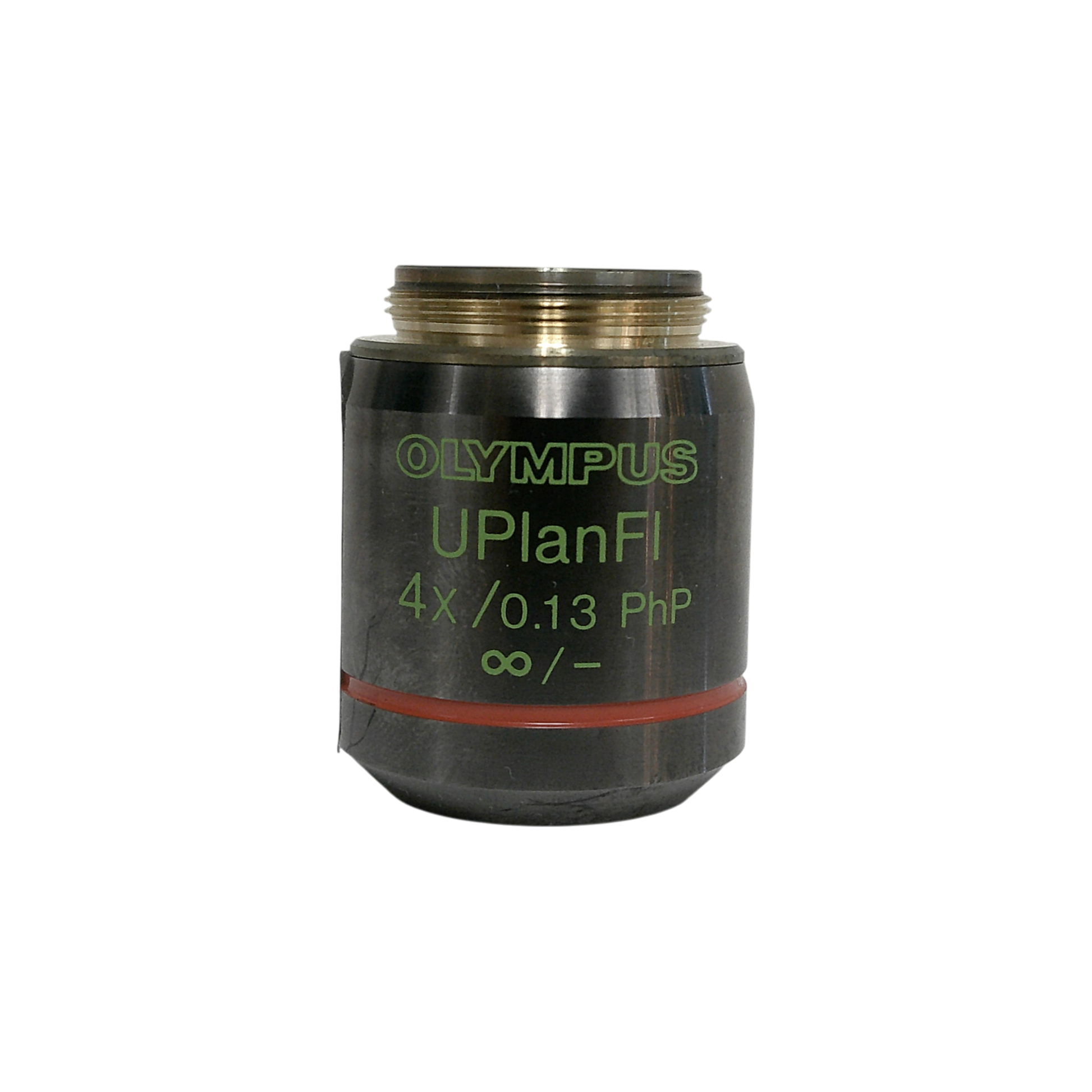

Olympus UPlanFl PhP 4x/0.13 RMS Thread Size Microscope Objective
Olympus UPlanFl PhP 4x/0.13 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com
Olympus UPlanFl PhP 4x/0.13 Microscope Objective – RMS Thread Size (Used)
The Olympus UPlanFl PhP 4x/0.13 is a universal plan fluorite phase contrast objective designed for brightfield and phase imaging applications. Offering flat-field correction across the field of view, this objective is ideal for routine and research-level microscopy. It supports phase contrast imaging using a compatible Ph condenser annulus and is compatible with Olympus infinity-corrected optical systems.
Condition
Condition: Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications)
Key Features
- 4x magnification with 0.13 numerical aperture
- UPlanFl: Universal Plan Fluorite correction for flat-field imaging
- PhP phase ring for phase contrast imaging
- RMS thread for compatibility with standard microscope nosepieces
- Ideal for live-cell, fixed-cell, and routine imaging applications
Applications
- Phase contrast microscopy
- Brightfield imaging
- Cell culture observation
- General laboratory imaging
- Educational and research applications
Specifications
| Feature | Specification |
|---|---|
| Magnification | 4x |
| Numerical Aperture | 0.13 |
| Optical Design | UPlanFl (Plan Fluorite) |
| Contrast Method | Phase contrast (PhP ring) |
| Thread Size | RMS |
| Working Distance | Approx. 17.2 mm (varies by system) |
| Warranty | 30-day parts and labor warranty |
⚠️ Configuration shown is for demonstration purposes. Contact us to confirm compatibility with your Olympus microscope or to request a matched phase contrast system.
Additional Details
Additional Details
- Manufacturer: Olympus
- Model:
- Catalog Number: 51709a
- Serial Number:
- Condition: Used
