SKU: PRODUCT ID:OBJ-000-100
Olympus UPlanSApo 4x/0.16 RMS Thread Size Microscope Objective
Olympus UPlanSApo 4x/0.16 RMS Thread Size Microscope Objective
Couldn't load pickup availability
- ✓ Tested in house. 30-day warranty
- ✓ Typical delivery in 1 to 3 weeks, depending on parts
- ✓ Prices shown exclude freight, insurance, tariffs and applicable taxes
- ✓ Installation, training and service available from our engineers (quoted separately)
- ✓ SAM.gov registered (CAGE 10ZU5). Purchase orders welcome
- ✓ Leasing and finance companies available
Questions? Call (877) 564-2767 or email sales@coastalmicroscopes.com

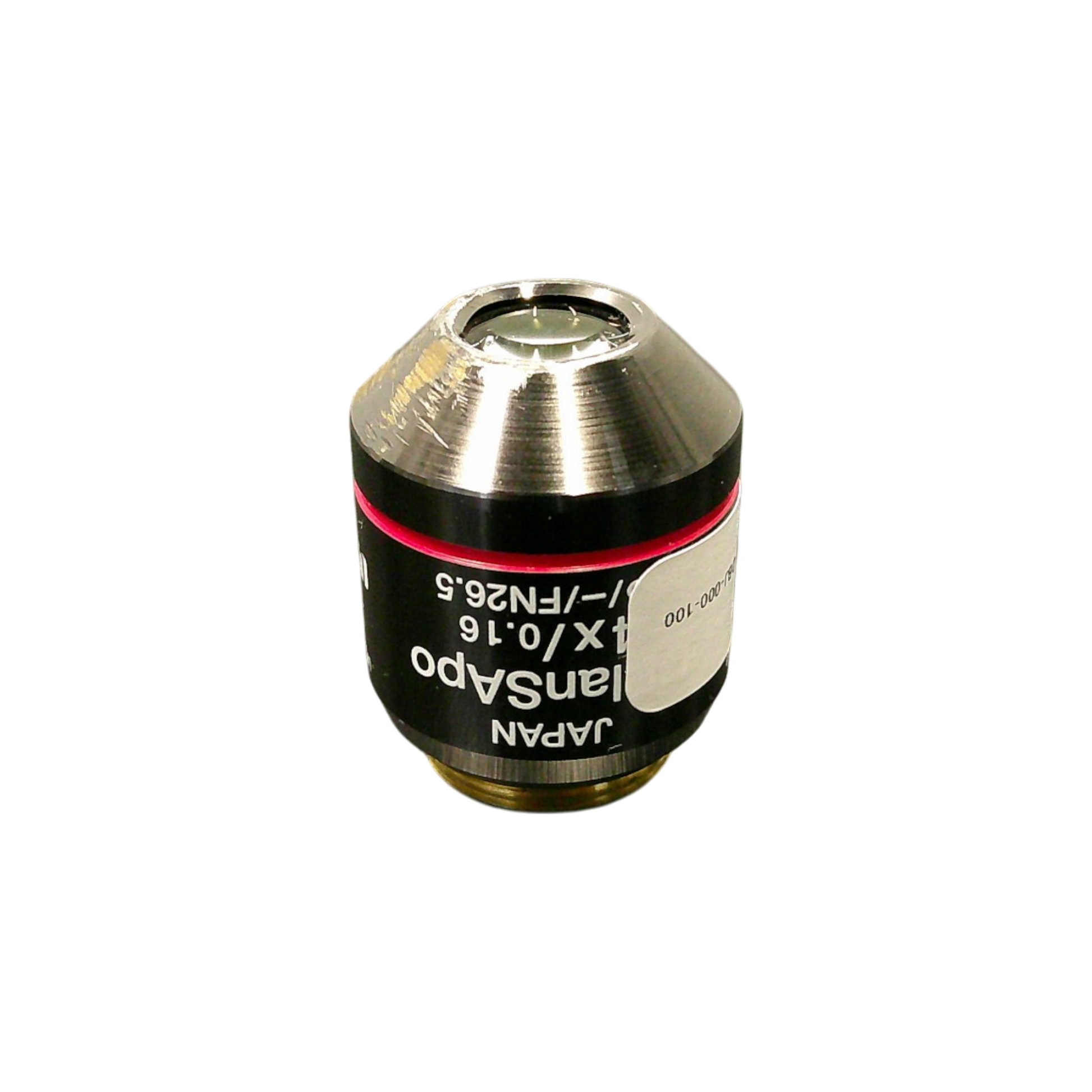

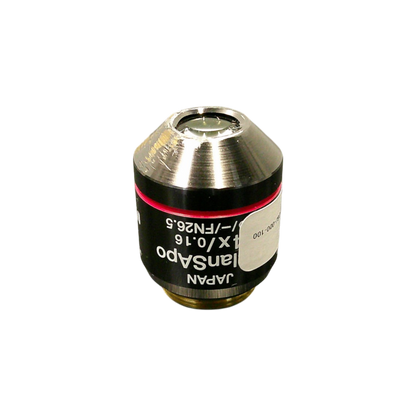

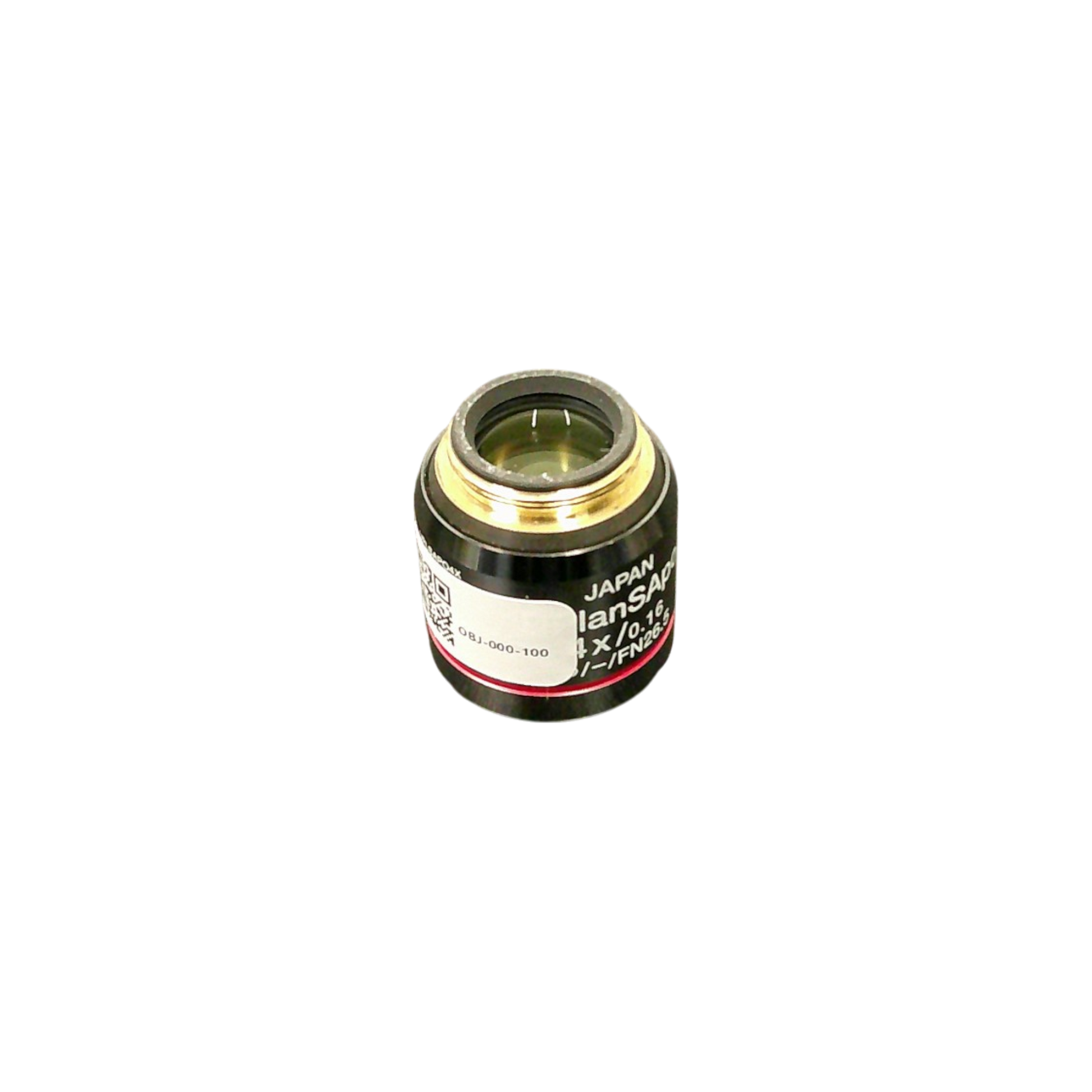

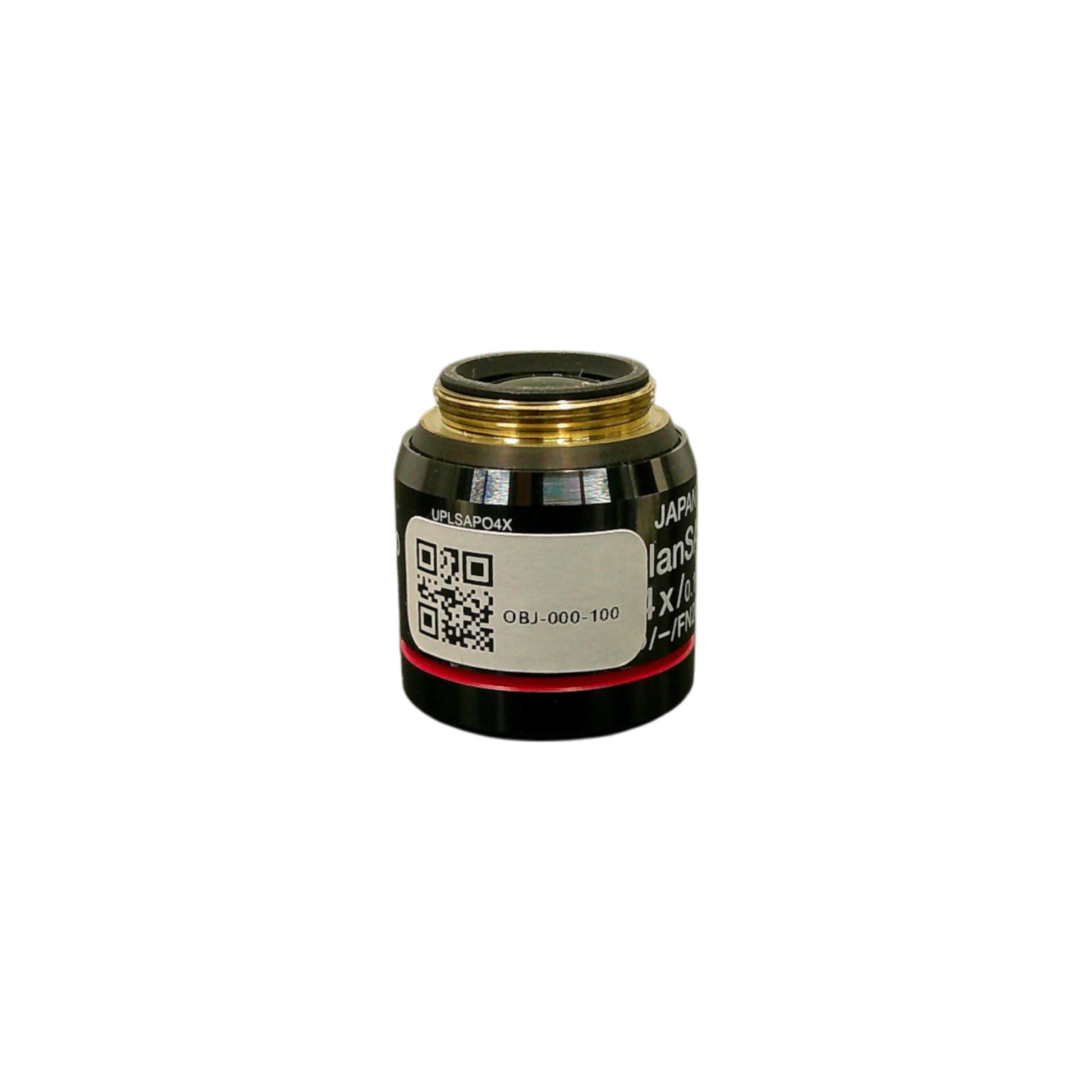

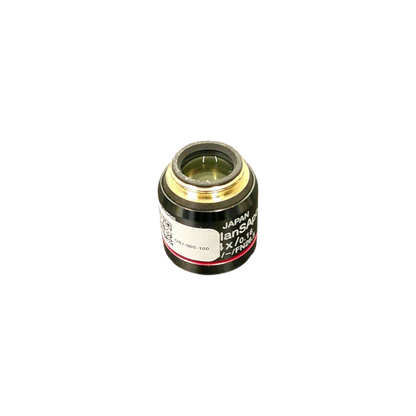

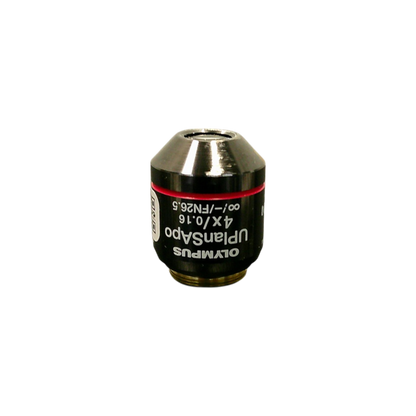

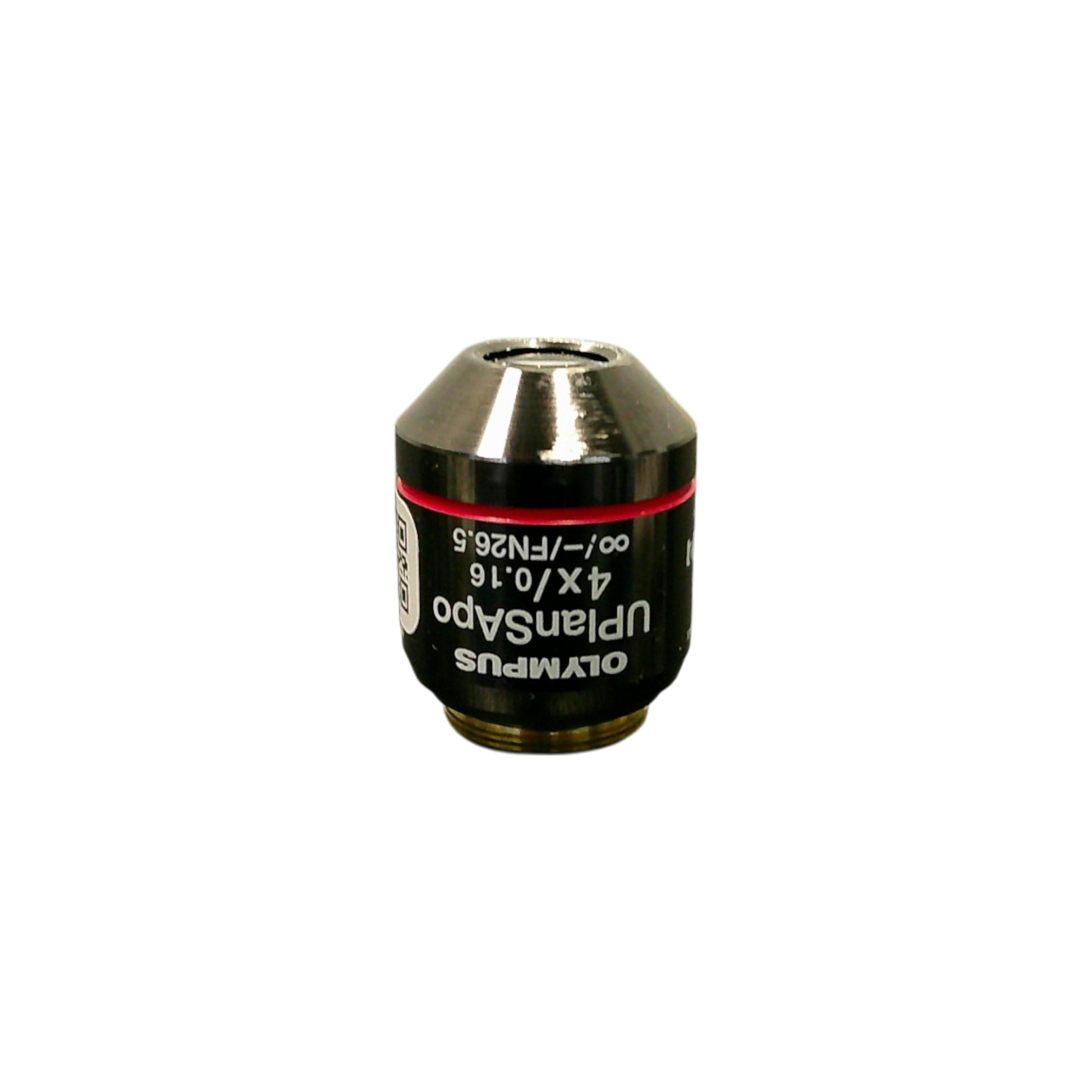

Olympus UPlanSApo FN26.5 4x/0.16 RMS Thread Size (Used)
The Olympus UPlanSApo FN26.5 4x/0.16 is a high-performance super apochromatic (SApo) objective designed for fluorescence, brightfield, and advanced microscopy applications. With a numerical aperture (NA) of 0.16, this objective provides outstanding resolution, contrast, and chromatic aberration correction. The wide field number (FN26.5) ensures an expansive field of view, making it ideal for imaging large specimens. The RMS thread size ensures compatibility with Olympus and other standard research-grade microscopes.
Condition
Refurbished/Used
(This product has been inspected and verified to meet manufacturer specifications.)
Included Items
- Olympus UPlanSApo FN26.5 4x/0.16 Objective
Key Features
- 4x magnification for low-magnification, wide-field imaging
- Super Apochromatic (SApo) optics for superior chromatic aberration correction
- Numerical aperture (NA) of 0.16 for enhanced light transmission
- Wide field of view (FN26.5) for large-sample imaging
- Flat field correction for sharp, edge-to-edge imaging
- RMS thread size for compatibility with Olympus and other standard microscopes
- Optimized for fluorescence and brightfield microscopy with high transmission coatings
Applications
- Fluorescence microscopy
- Brightfield microscopy
- Whole-slide imaging
- Pathology and histology
- Biological and clinical research
Specifications
| Specification | Details |
|---|---|
| Magnification | 4x |
| Numerical Aperture (NA) | 0.16 |
| Working Distance | ~13 mm |
| Immersion Medium | Air (Dry) |
| Field Number (FN) | 26.5 |
| Cover Glass Thickness | 0.17 mm |
| Optical Correction | Super Apochromatic (SApo) – High Contrast, Chromatic Aberration Correction |
| Thread Size | RMS (0.8" / 20.32mm diameter, 0.706mm pitch) |
| Parfocal Distance | 45 mm |
| Compatible Microscopes | Olympus BX, IX, and other RMS-compatible models |
| Special Features | High transmission coatings for fluorescence, wide field of view (FN26.5), optimized for high-precision imaging |
Additional Details
Additional Details
- Manufacturer: Olympus
- Model: UPlanSApo FN26.5 4x/0.16 RMS Thread Size
- Catalog Number: OBJ-000-100
- Serial Number: N/A
- Condition: Seller Refurbished
