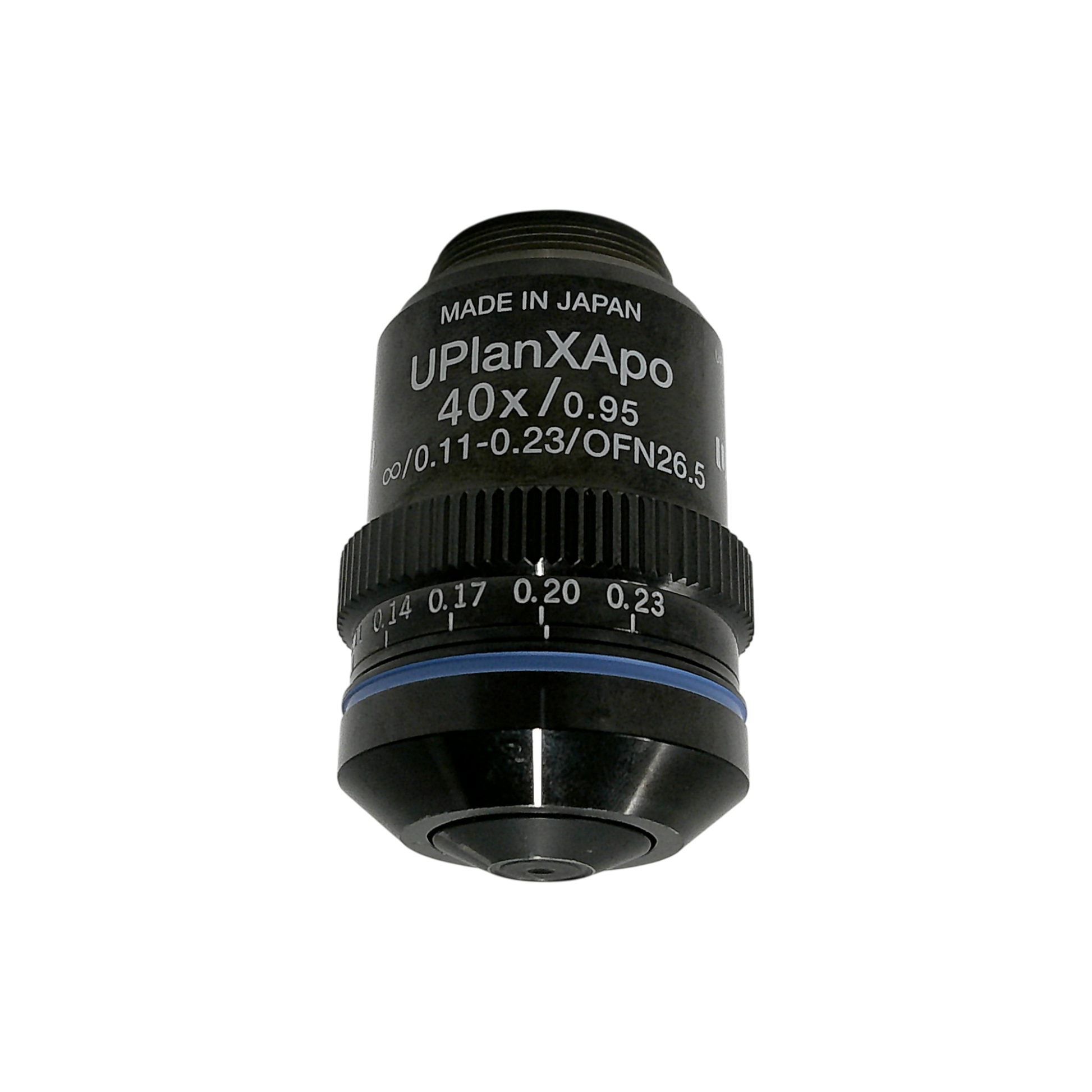

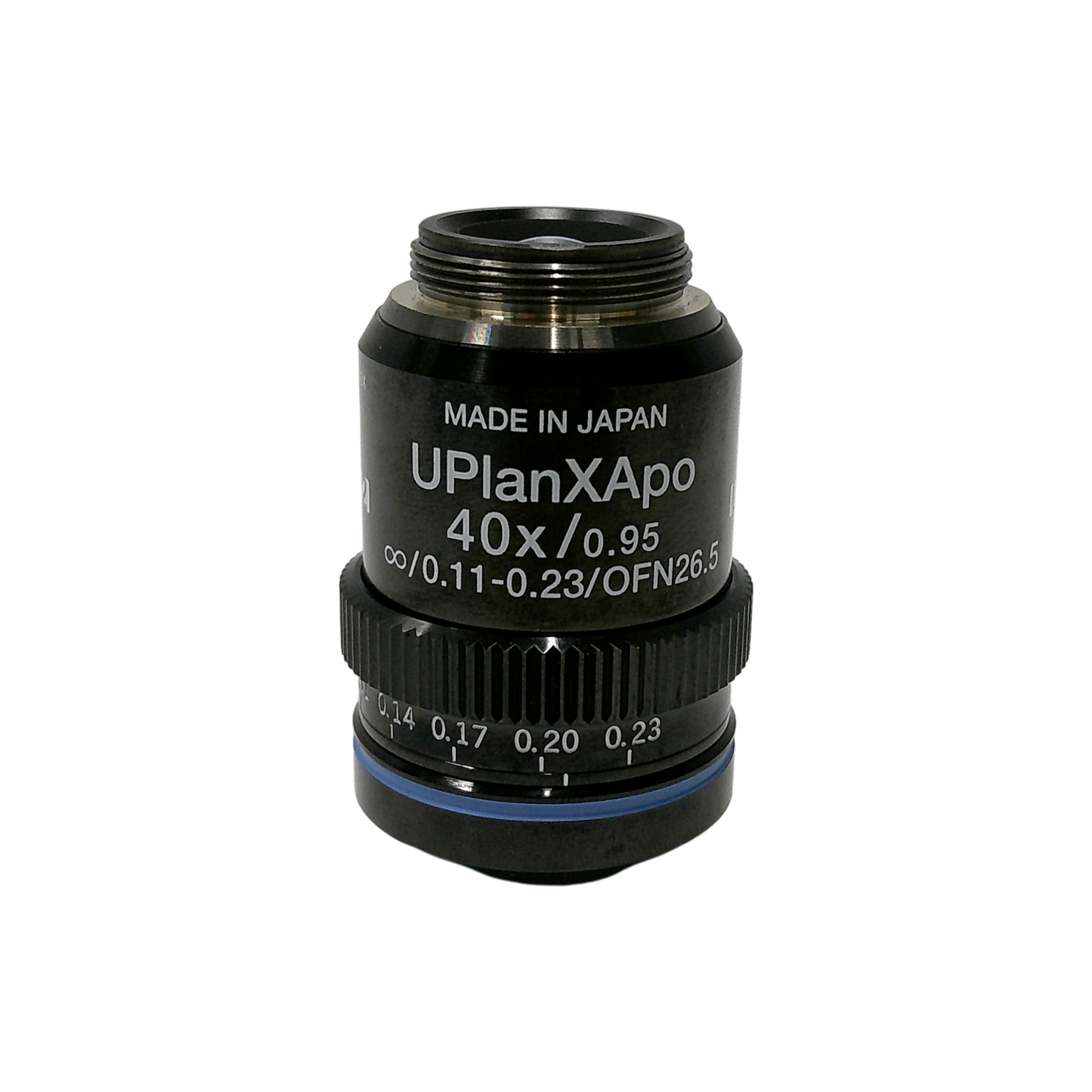

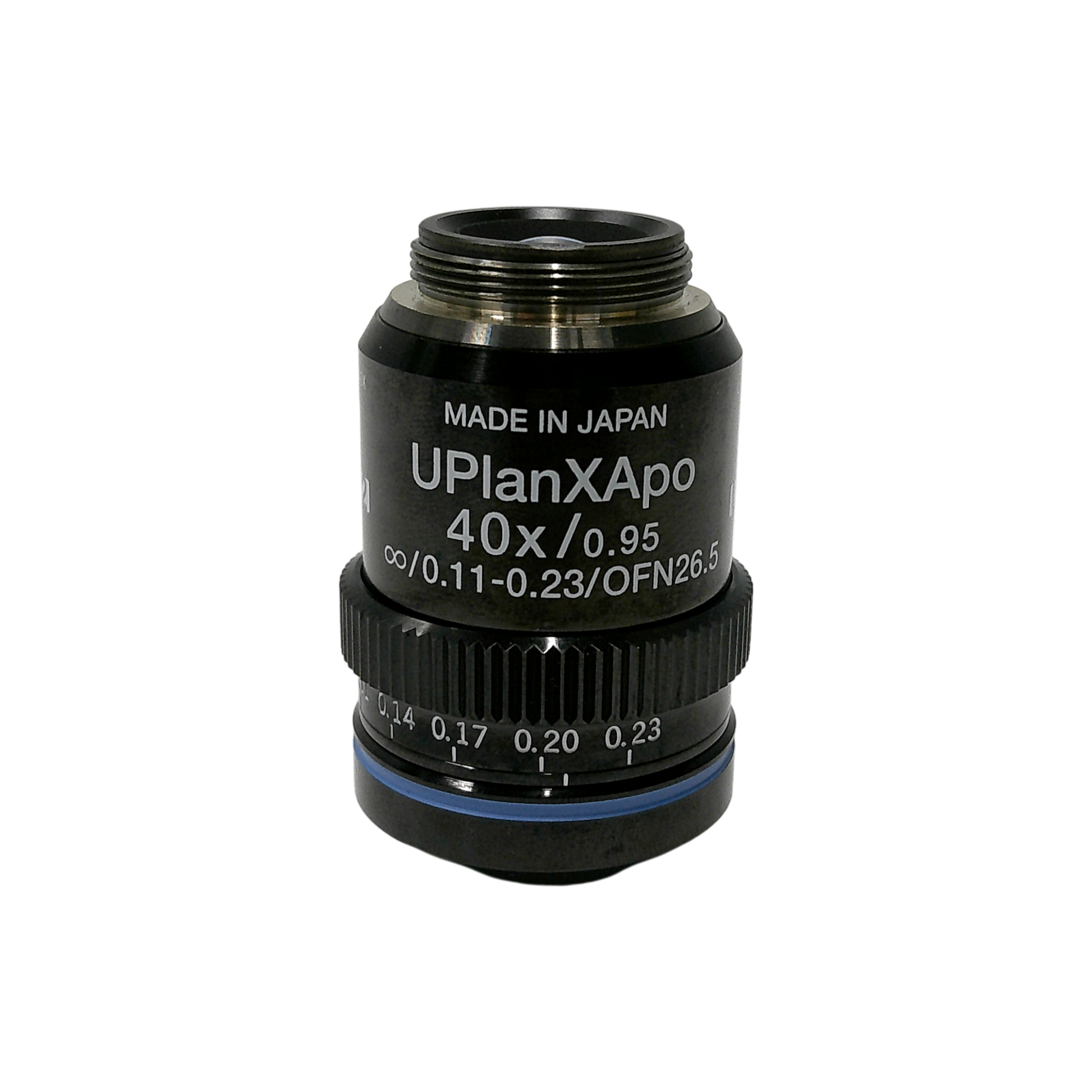

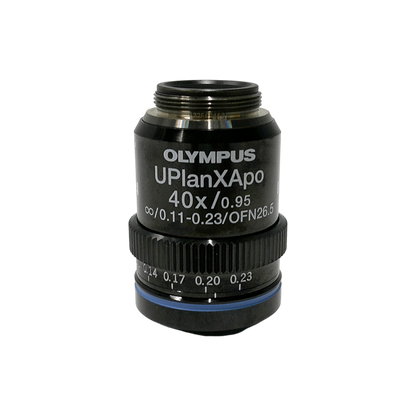

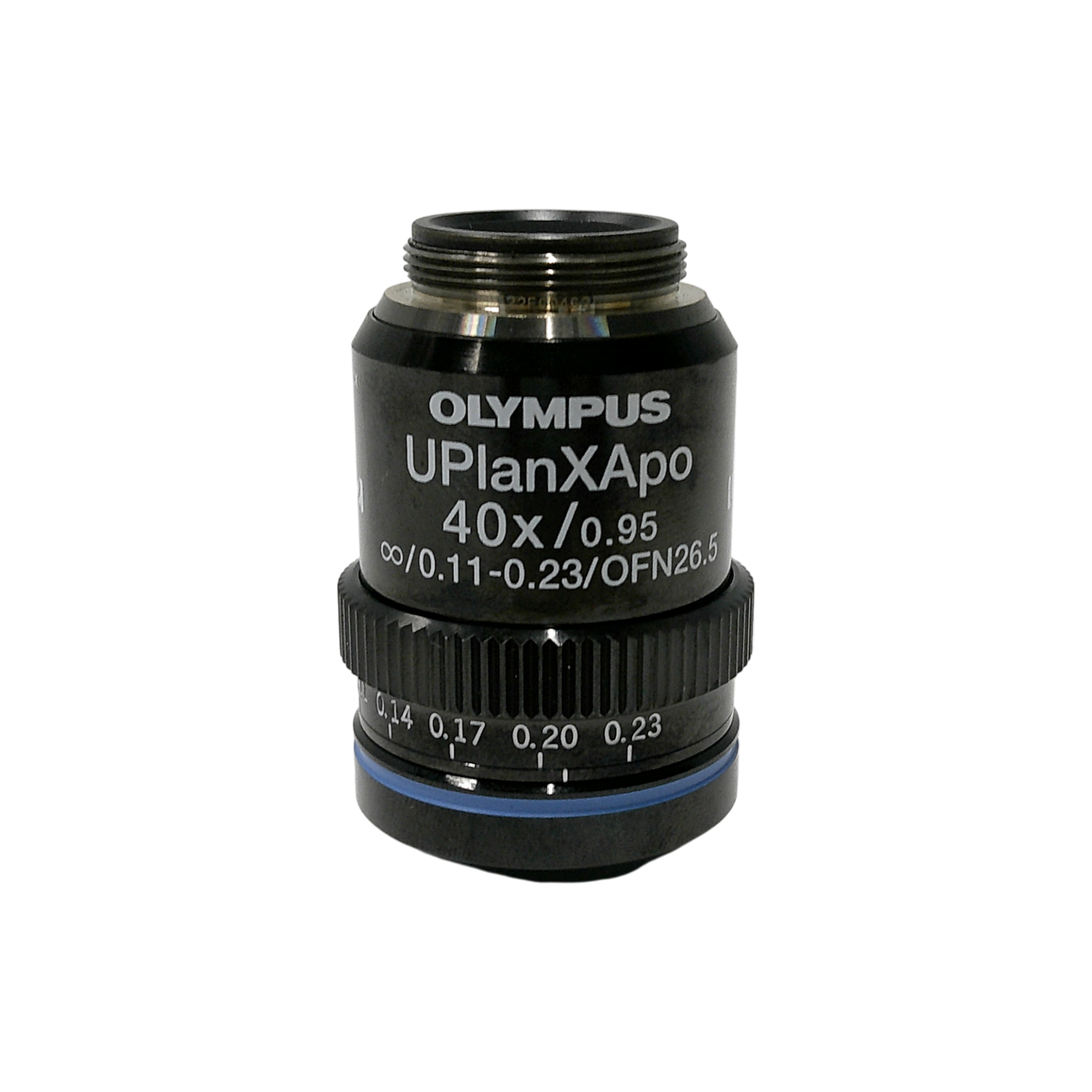

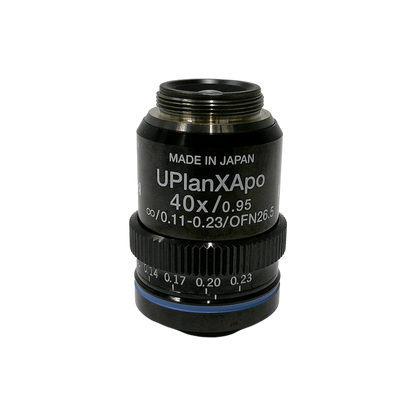

Olympus UPlanXApo 40x/0.95 RMS Thread Size Microscope Objective – UPLXAPO40X (Refurbished/Used)

Overview
The Olympus UPlanXApo 40x/0.95 RMS microscope objective (Catalog: UPLXAPO40X) is a high‑performance apochromatic infinity‑corrected objective designed for demanding imaging applications. This dry objective features a high numerical aperture for excellent resolution and light collection, along with a precision correction collar for optimal performance across cover glass thickness variations. Ideal for brightfield, fluorescence, and advanced microscopy systems.

Condition

Condition: Refurbished/Used (This product has been inspected and verified to meet manufacturer specifications)

Key Features

• Magnification: 40× linear magnification for detailed imaging
• Numerical Aperture (NA): High 0.95 NA for superior resolution and light gathering
• Correction Collar: Adjustable to compensate for cover glass thickness variations (~0.11–0.23 mm)
• RMS Thread Mount: Standard RMS (20.32 mm × 36 TPI) fitting for broad microscope compatibility
• Infinity‑Corrected Optics: Designed for modern microscope systems
• Broad Wavelength Range: Effective over ~400–1000 nm for visible to near‑IR imaging
• Chromatic Aberration Correction: High correction across a wide spectral range for accurate color reproduction

Applications

• Brightfield microscopy
• Fluorescence imaging
• Quantitative imaging and image analysis
• Multicolor and confocal microscopy

Specifications

Configuration shown is for demonstration purposes. Contact us to discuss your application and needs for a customized quote.
