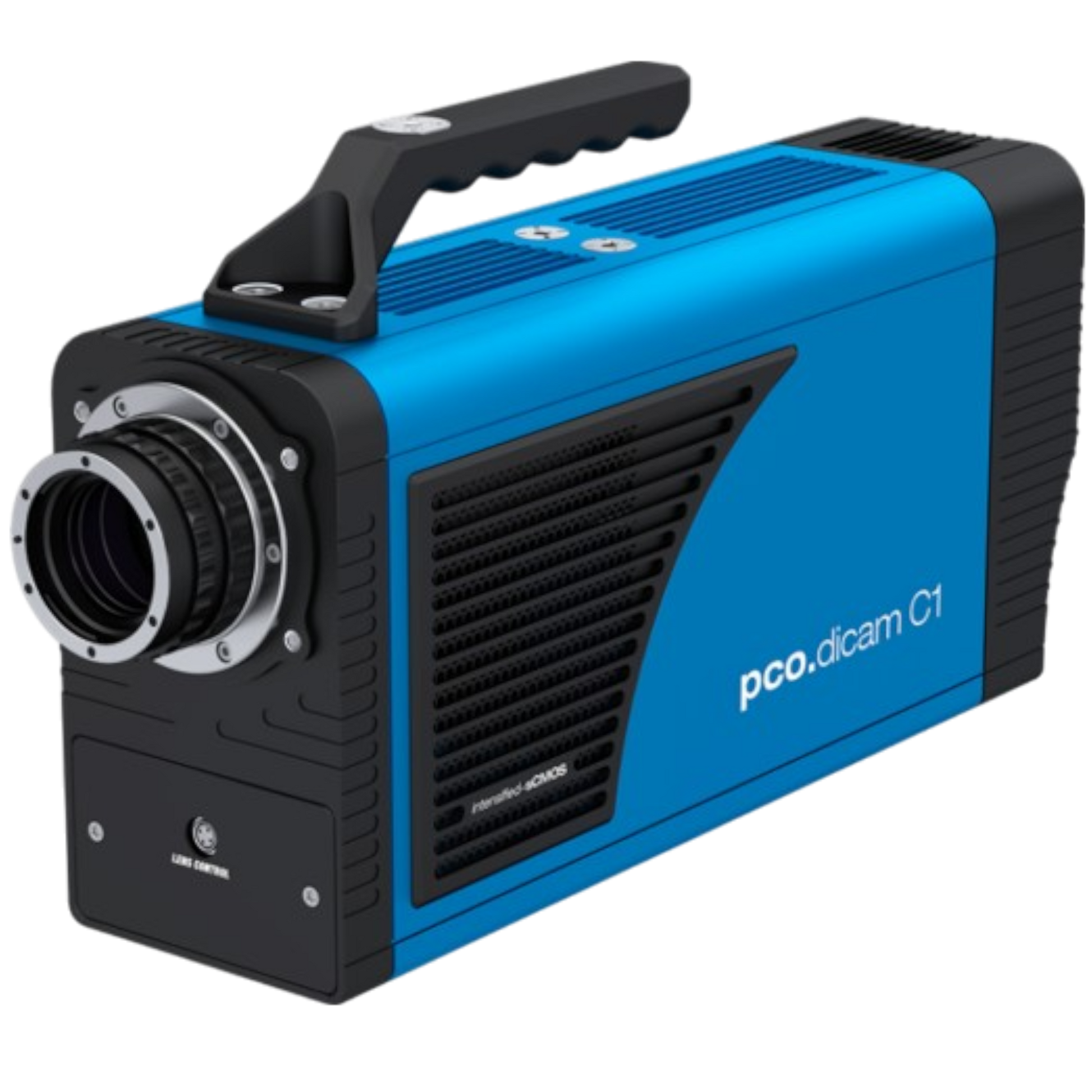

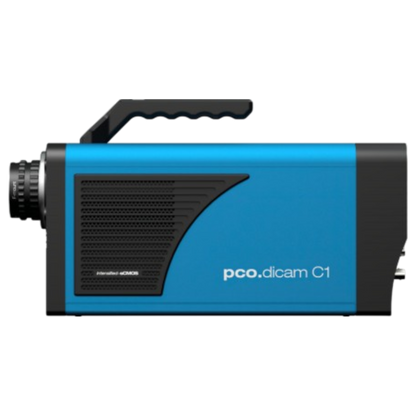

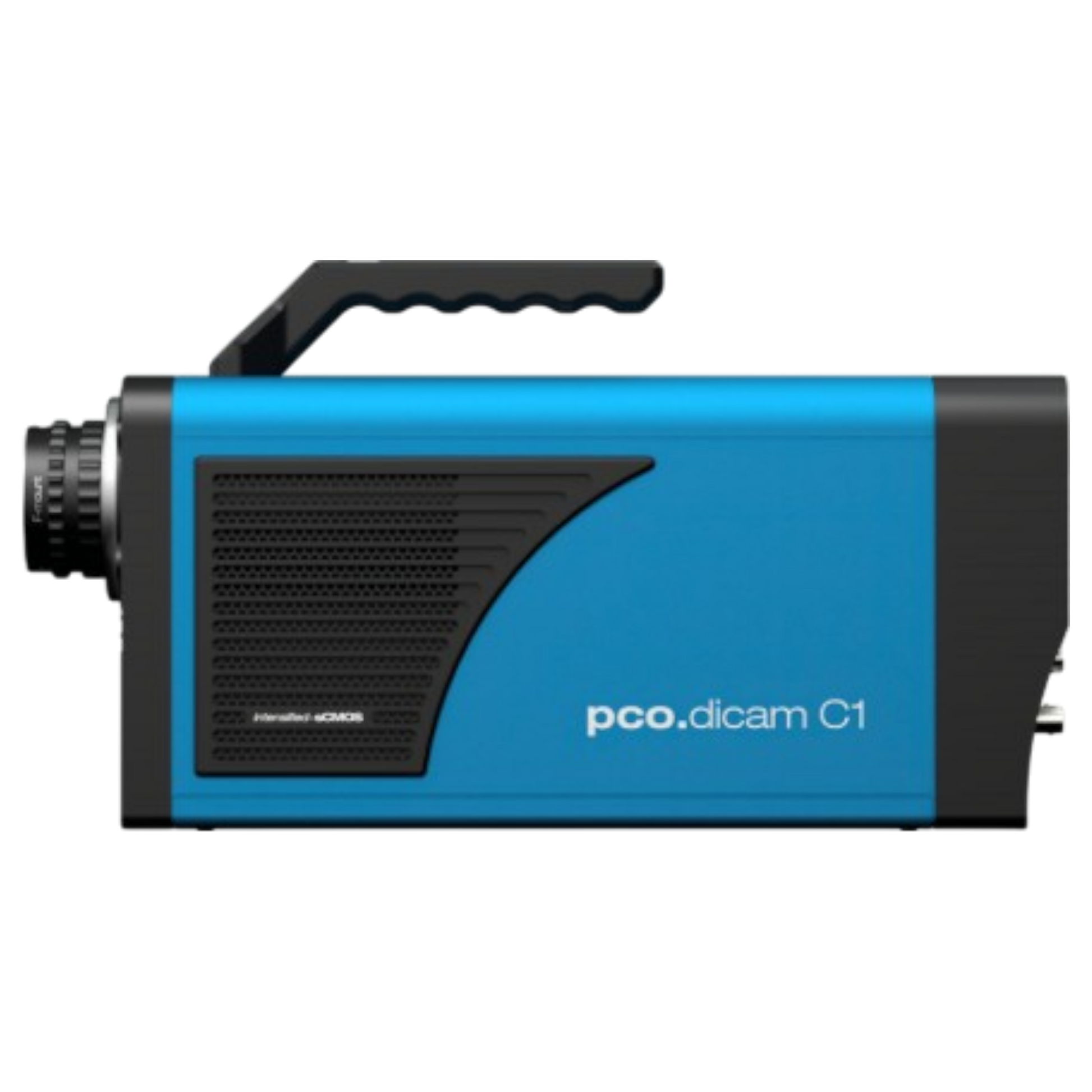

PCO pco.dicam C1 25-GAAS-P46 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C1 25-GAAS-P46 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001007

The PCO pco.dicam C1 25-GAAS-P46 SEL is a high-end intensified sCMOS camera optimized for extreme low-light and ultrafast imaging. Combining a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm GaAs image intensifier and fast-decay P46 phosphor, the SEL (Selected) version offers sub-nanosecond gating capability. This configuration is ideal for capturing transient phenomena in fluorescence lifetime imaging, combustion diagnostics, and single-photon experiments.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C1 Camera Head with 25 mm GaAs/P46 Intensifier
• High-Speed Gating Electronics
• Power Supply
• PCO Control Software and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAs photocathode image intensifier
• P46 phosphor for rapid signal decay and low afterglow
• SEL configuration for sub-nanosecond gating
• High quantum efficiency and minimal read noise

Applications

• Time-Resolved Fluorescence and Phosphorescence Imaging
• Laser-Induced Fluorescence (LIF)
• Plasma, Combustion, and Shockwave Analysis
• Biophotonics and Single-Photon Detection
• Time-Correlated and High-Speed Gated Imaging

Specifications
