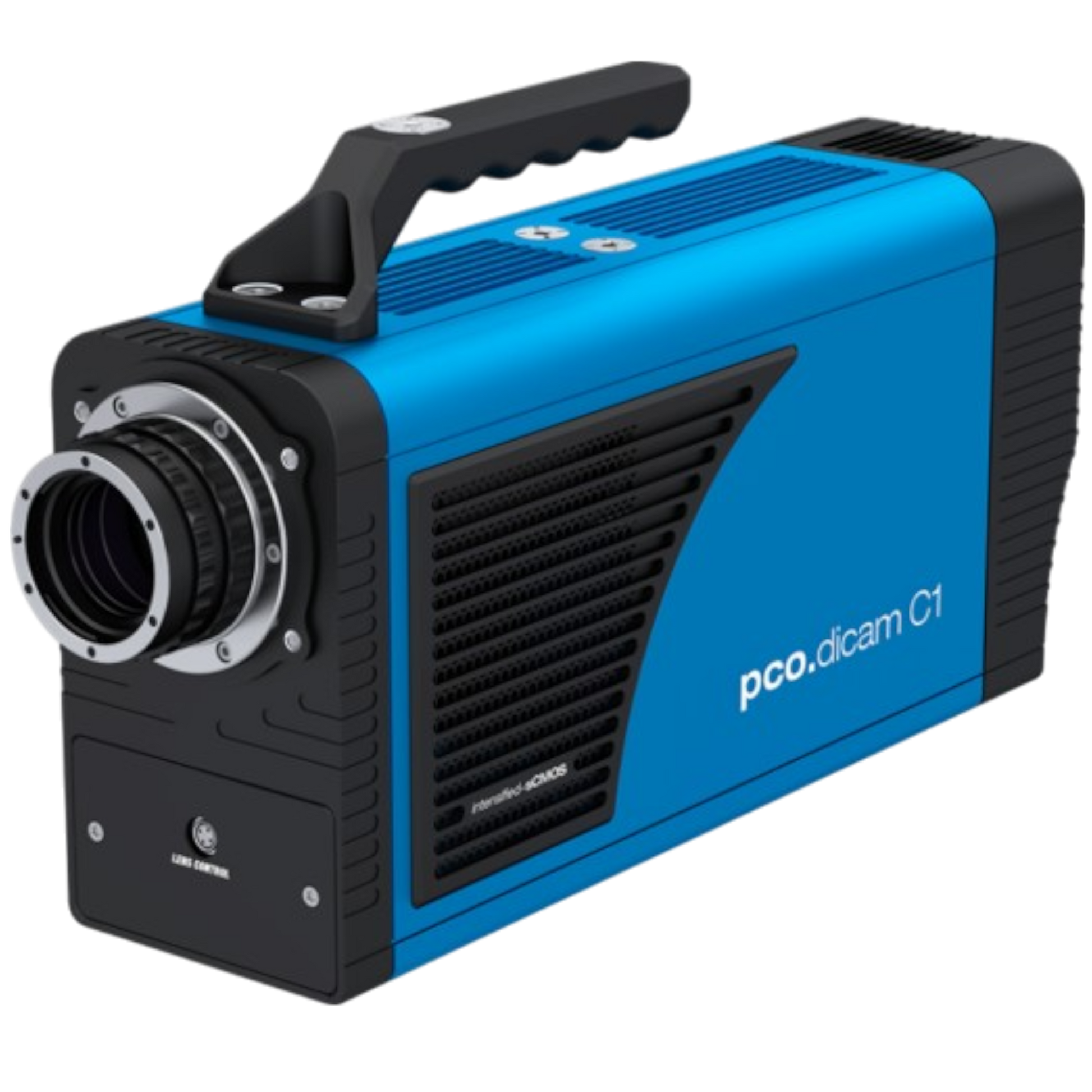

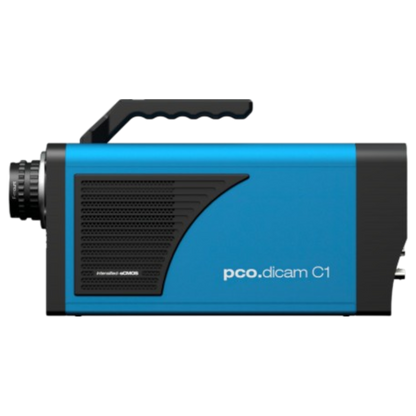

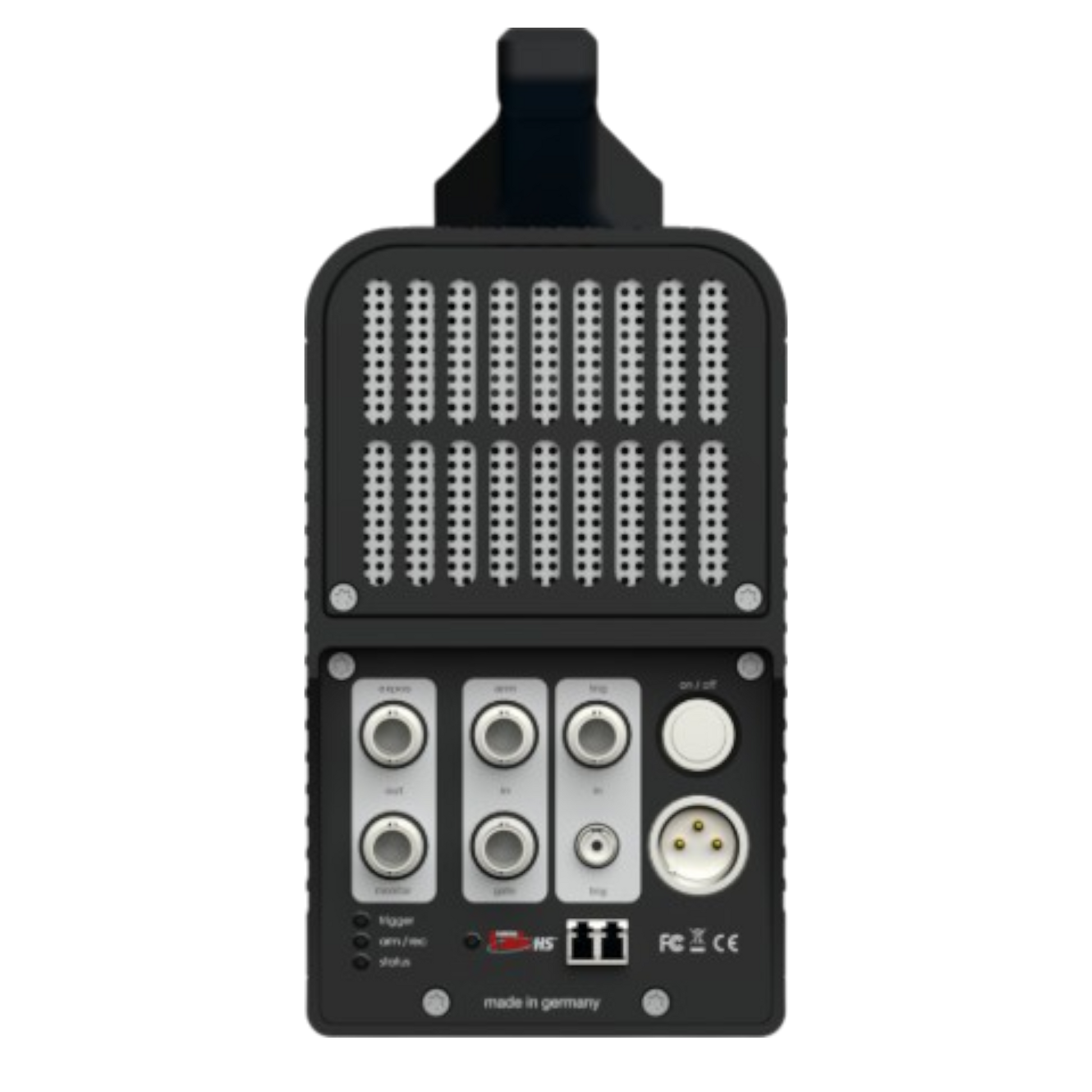

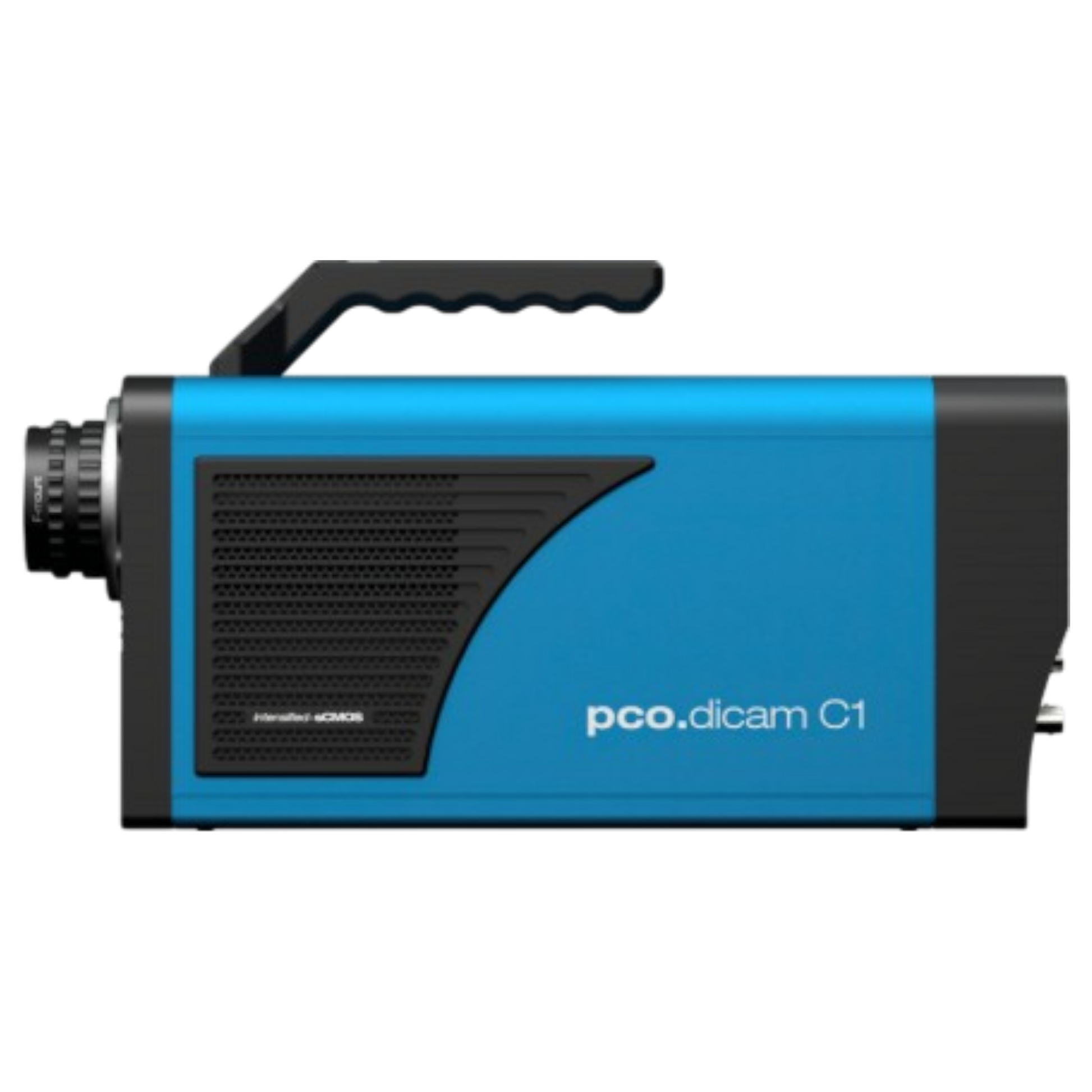

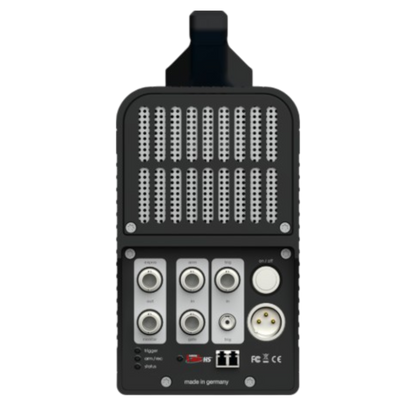

PCO pco.dicam C1 25-S20-P43 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C1 25-S20-P43 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001002

The PCO pco.dicam C1 25-S20-P43 SEL is a high-resolution intensified sCMOS camera combining a 4.2 MP scientific CMOS sensor (2048 x 2048) with a 25 mm image intensifier. Featuring an S20 photocathode and P43 phosphor, this configuration is optimized for nanosecond-scale gating and ultra-sensitive low-light detection. Ideal for time-resolved imaging, the SEL model enables high-speed synchronization and gating precision for advanced scientific applications.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C1 Camera Head with 25 mm S20/P43 Intensifier
• Gating Electronics Module
• Power Supply
• Software and Driver Package

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm image intensifier with S20 photocathode and P43 phosphor
• SEL (Selected) configuration for ultra-fast gating performance
• High sensitivity and low noise for single-photon detection
• Supports precise time-gated imaging and fluorescence lifetime applications

Applications

• Time-Resolved Fluorescence Imaging
• Laser-Induced Fluorescence (LIF)
• Plasma and Combustion Diagnostics
• Single-Photon Detection and Biophotonics
• Scientific and Industrial Time-Gated Imaging

Specifications
