PCO pco.dicam C1 UHS 18-GAAS-P43 STD 1.5MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C1 UHS 18-GAAS-P43 STD – 1.5 Megapixels Monochrome Intensified sCMOS Camera – 85108001055

The PCO pco.dicam C1 UHS 18-GAAS-P43 STD is a high-sensitivity intensified sCMOS camera system designed for time-resolved and ultra-low light imaging. It features a 1.5 megapixel sCMOS sensor (1280 x 1024 resolution) combined with an 18 mm GaAs photocathode image intensifier and fast P43 phosphor. The STD configuration provides nanosecond gating precision with excellent photon detection in the visible to near-infrared range.

Condition

New with Manufacturer Warranty

Included Items

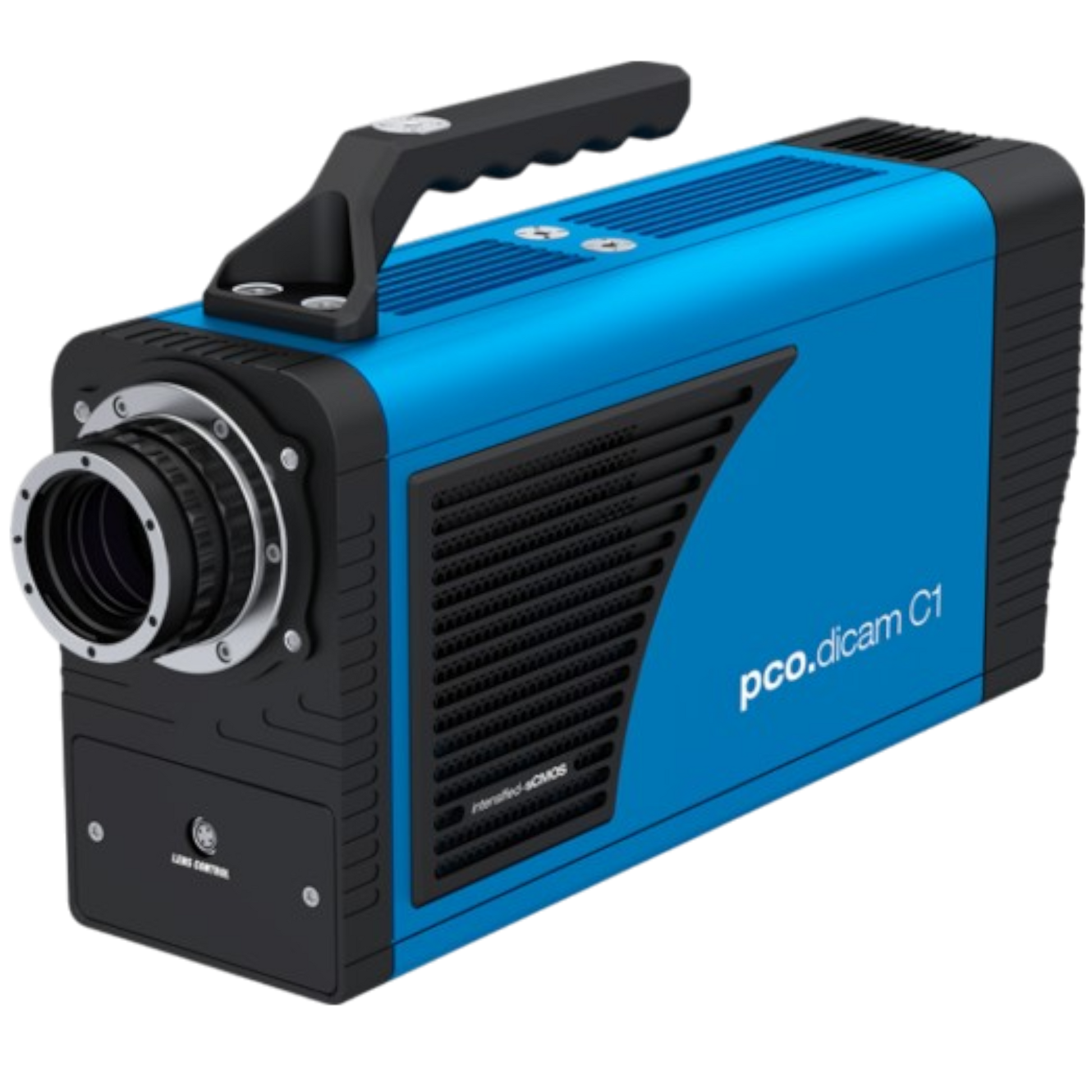

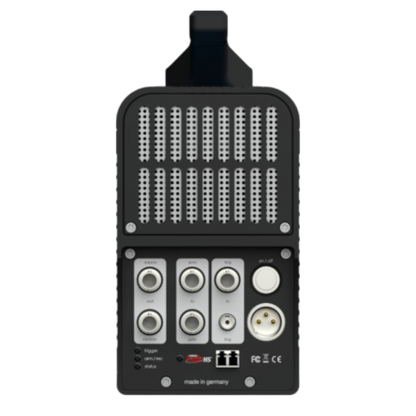

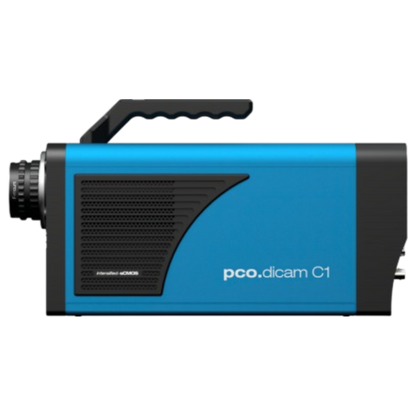

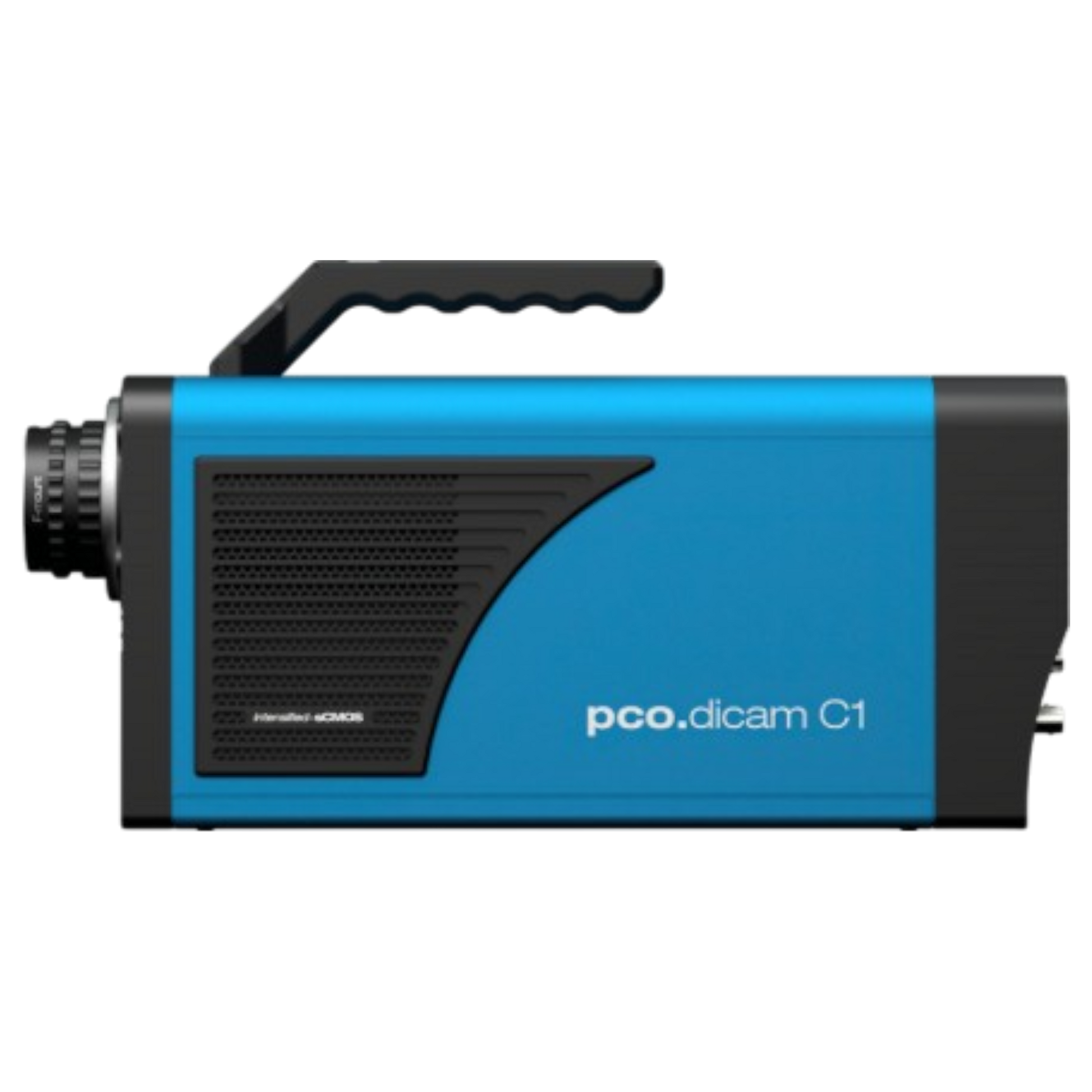

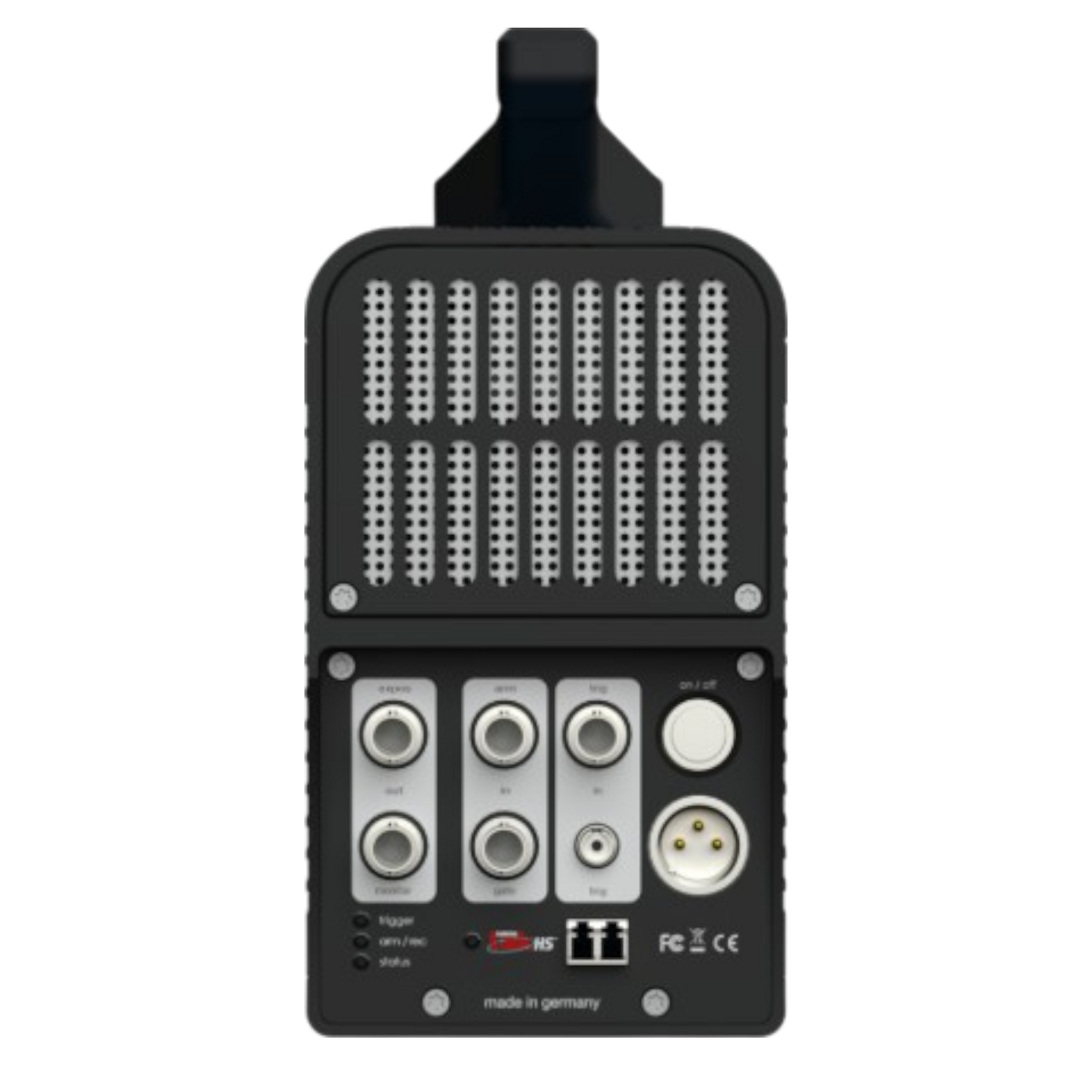

• PCO pco.dicam C1 UHS Camera Head with 18 mm GaAs/P43 Intensifier
• Standard Gating Controller (nanosecond range)
• Power Supply
• PCO Software & Drivers

Key Features

• 1.5 Megapixel sCMOS sensor (1280 x 1024 resolution)
• 18 mm GaAs photocathode for high QE in visible and NIR spectrum
• P43 phosphor for fast-decay time and minimal persistence
• Standard gating with nanosecond resolution
• Optimized for time-resolved and single-photon experiments

Applications

• Laser-Induced Fluorescence (LIF)
• Time-Gated Imaging in Combustion and Plasma Research
• Time-Resolved Fluorescence and Phosphorescence
• Single-Photon Detection in Biophotonics
• Ultralow-Light Scientific Imaging

Specifications
