PCO pco.dicam C4 25-GAASP-P43 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C4 25-GAASP-P43 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera

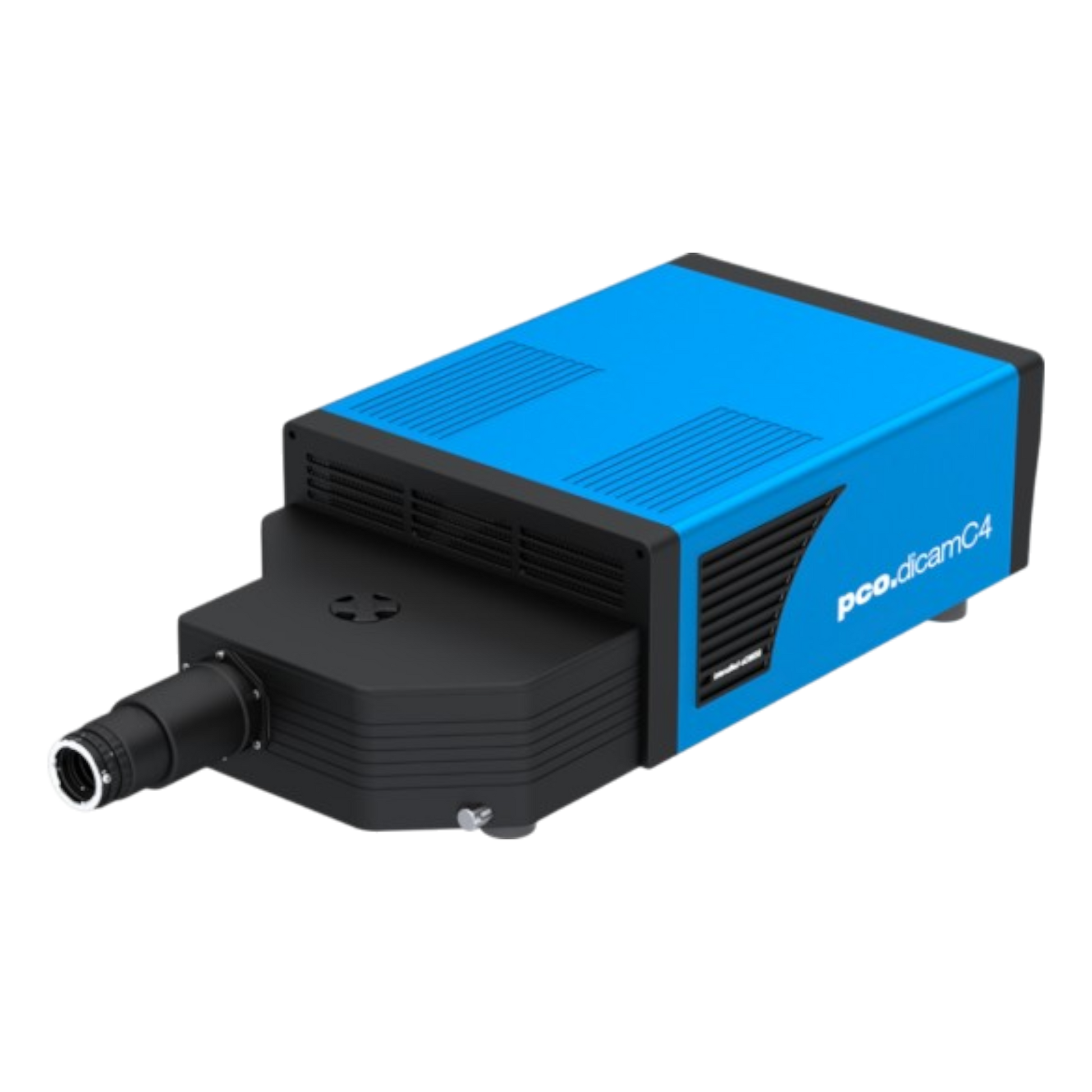

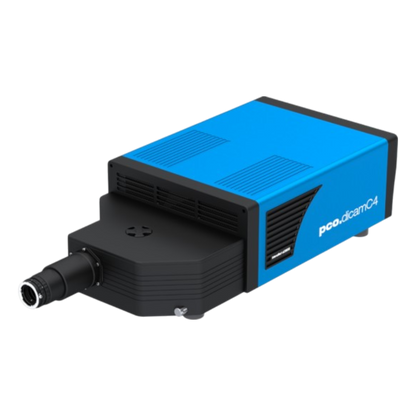

The PCO pco.dicam C4 25-GAASP-P43 SEL is a high-resolution, ultra-sensitive intensified sCMOS camera designed for advanced time-resolved imaging. This system pairs a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm GaAsP photocathode image intensifier and P43 fast-decay phosphor. The SEL (Selected) configuration enables sub-nanosecond gating, offering precise temporal resolution and high quantum efficiency for photon-limited applications across the visible spectrum.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C4 Camera Head with 25 mm GaAsP/P43 Intensifier

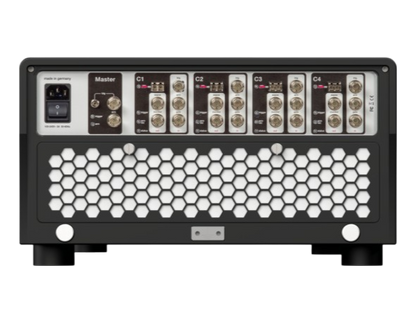

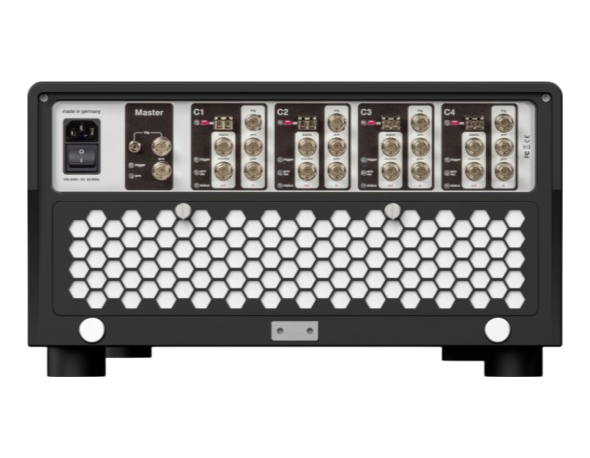

• Sub-Nanosecond Gating Controller (SEL)
• Power Supply
• PCO Software and Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm GaAsP photocathode for peak sensitivity in the visible range
• P43 phosphor for fast-decay response and minimal afterglow
• SEL configuration supports sub-nanosecond gating for precise timing
• Optimized for photon-limited, high-speed gated imaging

Applications

• Fluorescence Lifetime Imaging (FLIM)
• Laser-Induced Fluorescence (LIF)
• Single-Photon and Ultralow-Light Imaging
• Time-Resolved Plasma and Combustion Studies
• Biophotonics, Photophysics, and Shockwave Analysis

Specifications
