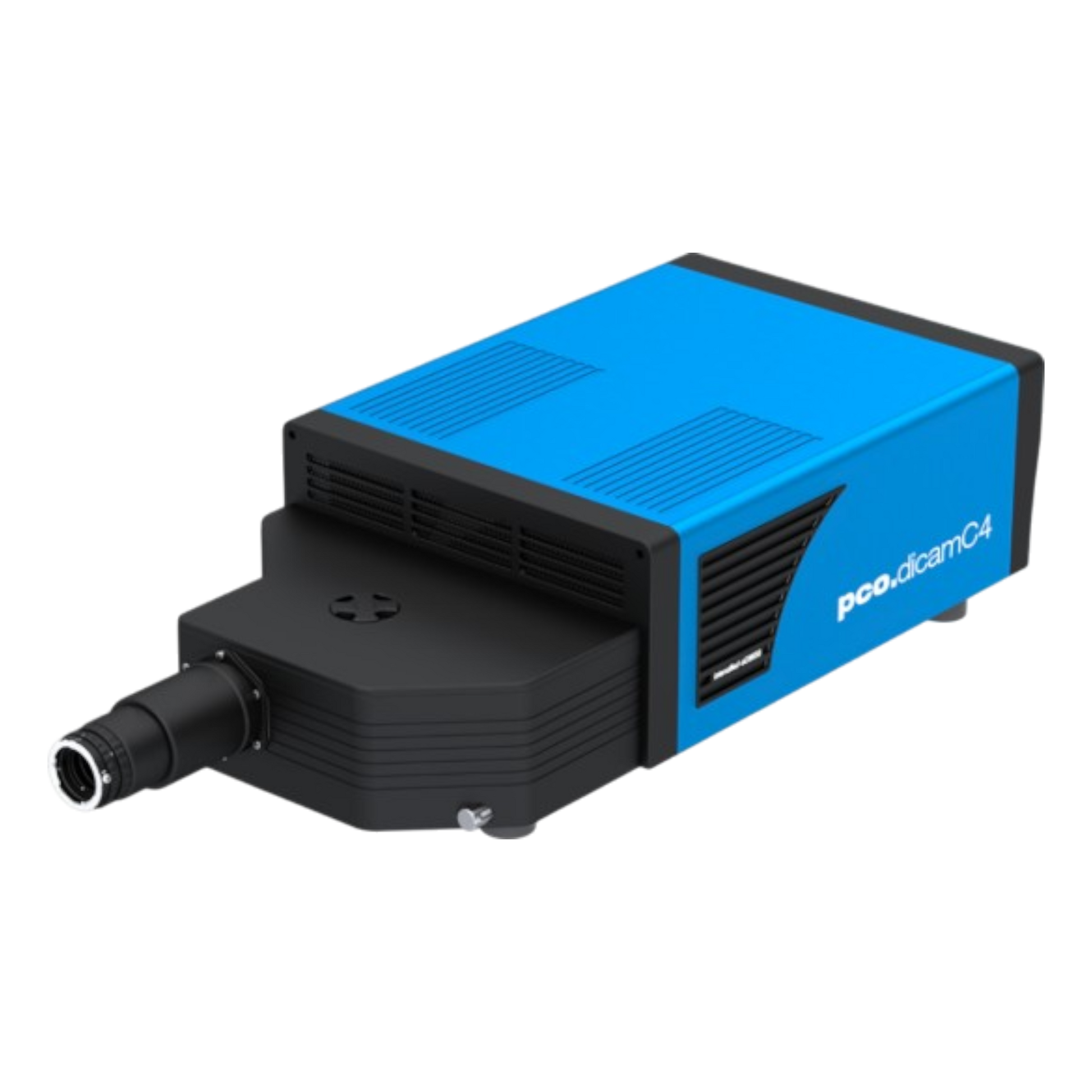

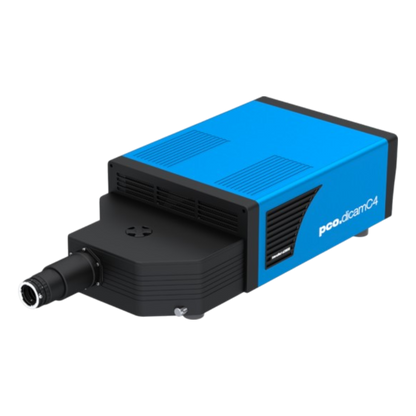

PCO pco.dicam C4 25-S20-P43 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C4 25-S20-P43 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001504

The PCO pco.dicam C4 25-S20-P43 SEL is a high-resolution, high-sensitivity intensified sCMOS camera built for advanced time-resolved imaging. This system combines a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm image intensifier featuring an S20 photocathode and fast-decay P43 phosphor. The SEL configuration provides sub-nanosecond gating, ideal for ultrafast photon detection, laser-induced fluorescence, and other time-critical optical measurements.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C4 Camera Head with 25 mm S20/P43 Intensifier

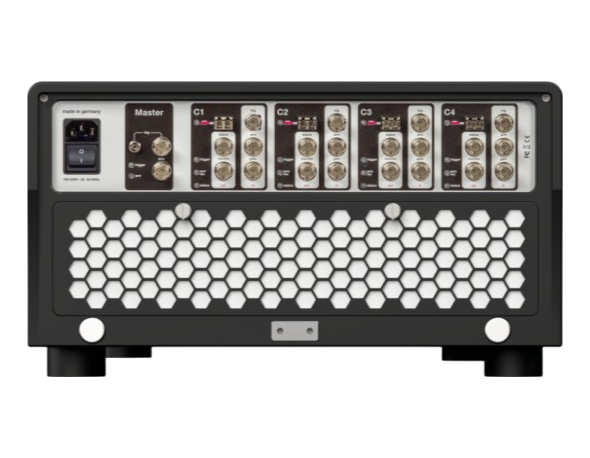

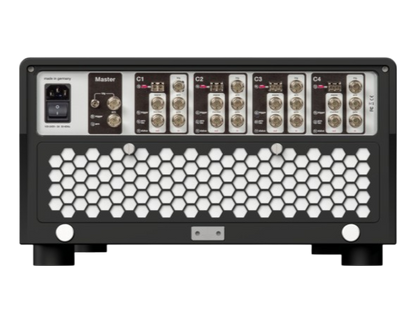

• Sub-Nanosecond Gating Controller (SEL)
• Power Supply
• PCO Software and Driver Suite

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm S20 photocathode with P43 phosphor for fast signal decay
• Sub-nanosecond gating enabled via SEL electronics
• High signal-to-noise ratio and temporal precision
• Designed for photon-starved, high-speed experimental environments

Applications

• Time-Resolved Fluorescence and Phosphorescence
• Laser-Induced Fluorescence (LIF)
• Plasma and Combustion Imaging
• Single-Photon Detection and Biophotonics
• Gated Imaging in Physics and Engineering Research

Specifications
