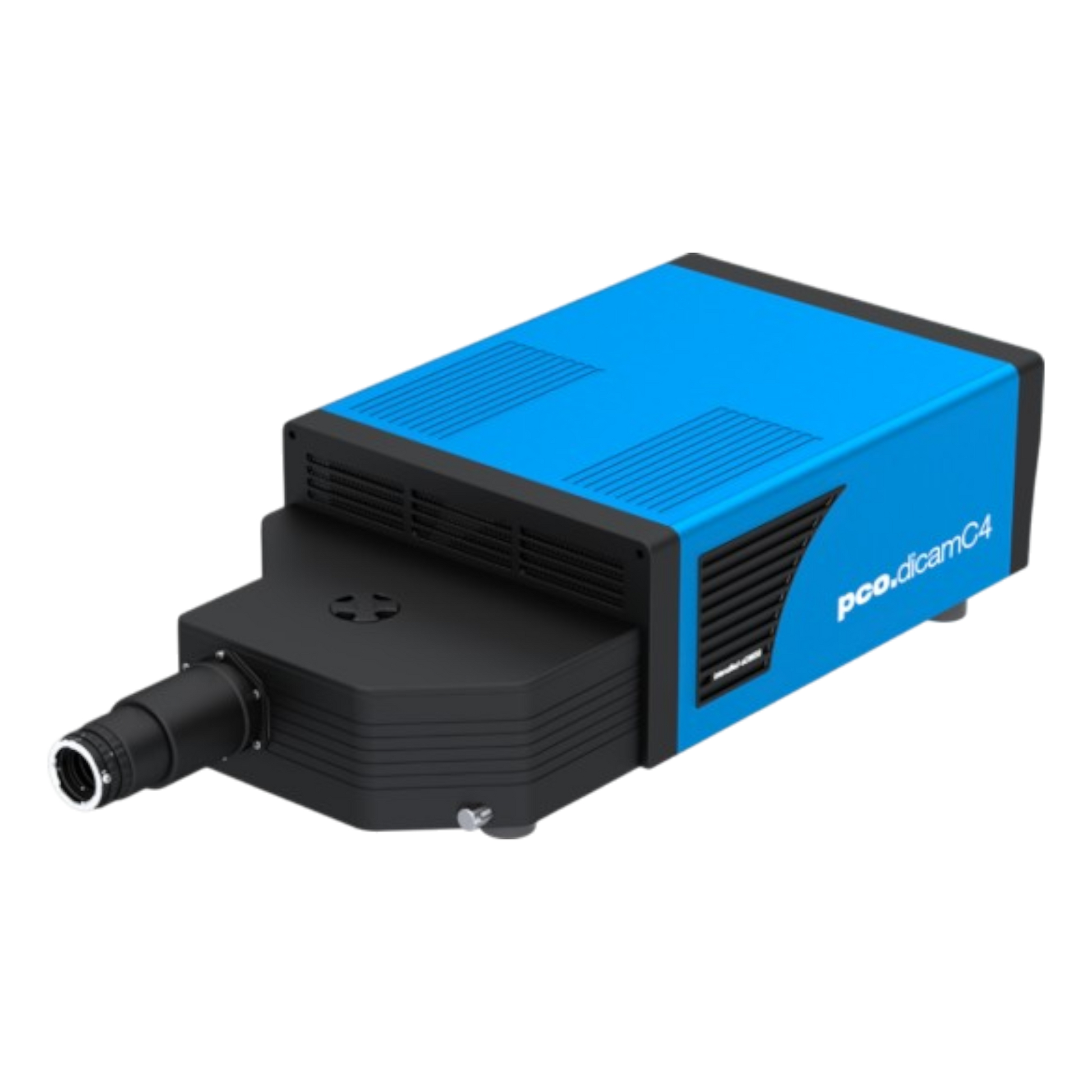

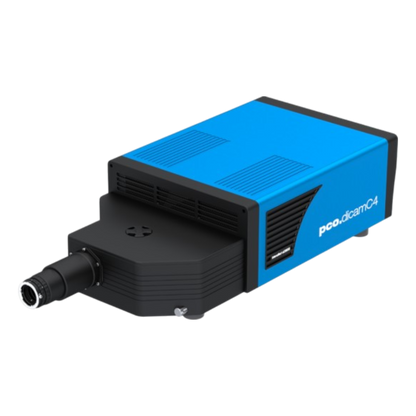

PCO pco.dicam C4 25-S20-P46 SEL 4.2MP Monochrome Intensified sCMOS Microscope Camera

PCO pco.dicam C4 25-S20-P46 SEL – 4.2 Megapixels Monochrome Intensified sCMOS Camera – 85108001501

The PCO pco.dicam C4 25-S20-P46 SEL is a high-performance intensified sCMOS camera optimized for time-resolved, low-light imaging. Combining a 4.2 megapixel sCMOS sensor (2048 x 2048) with a 25 mm S20 photocathode image intensifier and fast-decay P46 phosphor, this SEL (Selected) configuration enables sub-nanosecond gating precision for ultrafast events. It is ideal for advanced applications in plasma physics, combustion diagnostics, and laser-induced fluorescence.

Condition

New with Manufacturer Warranty

Included Items

• PCO pco.dicam C4 Camera Head with 25 mm S20/P46 Intensifier

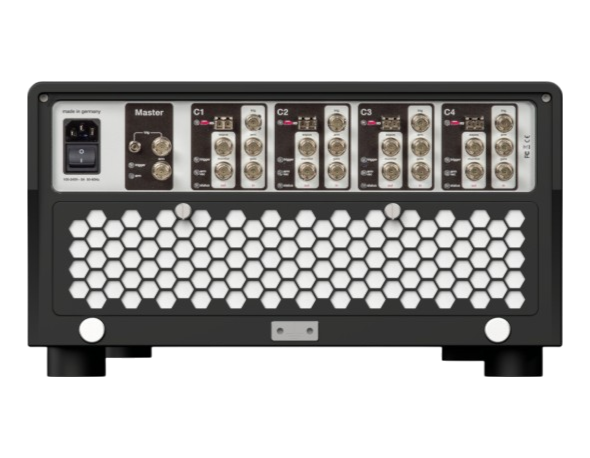

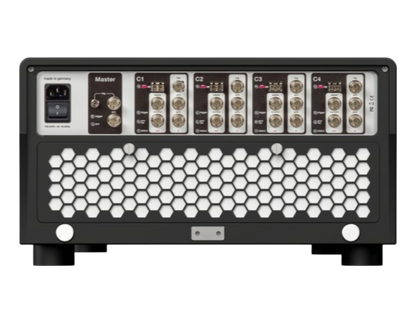

• Sub-Nanosecond Gating Controller (SEL)
• Power Supply
• PCO Software & Drivers

Key Features

• 4.2 Megapixel sCMOS sensor (2048 x 2048 resolution)
• 25 mm image intensifier with S20 photocathode and fast-decay P46 phosphor
• Sub-nanosecond gating (SEL configuration)
• High temporal resolution and quantum efficiency in the visible spectrum
• Designed for photon-starved, time-resolved imaging scenarios

Applications

• Laser-Induced Fluorescence (LIF)
• Plasma, Combustion, and Shockwave Diagnostics
• Time-Resolved Fluorescence Imaging
• Single-Photon and Ultrafast Optical Imaging
• Advanced Scientific and Industrial Gated Imaging
